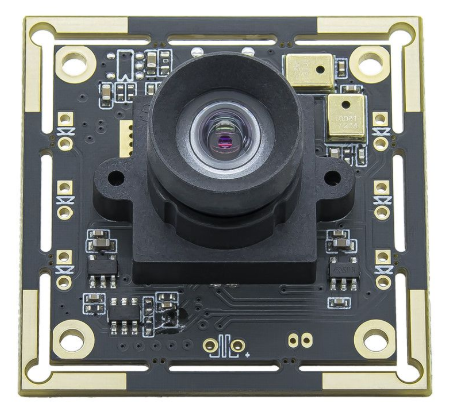

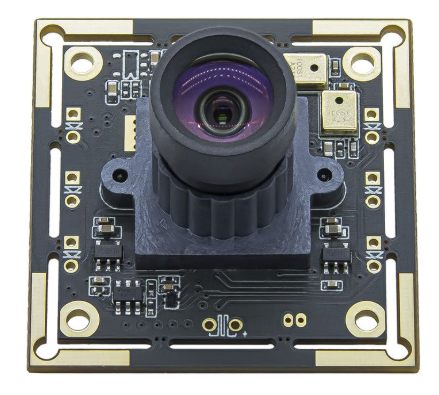

USB3.0 2MP 1080P Colourful Global Shutter Camera Module With 60FPS
Features:
1. Standard industrial camera 38*38mm 32mm*32mm board structure
2. 6 plug-in lights can be added and soldered (infrared and white lights), which can be made into an on/off image or photosensitive control - can be extended to the external frame light board
3. There is a reserved functional interface, which can customize software functions such as triggering, pulse output input, etc. (additional charge for customization)
4. Advantages: USB3.0-YUY2 can also run high frame rates
1080P-60 frames to 720P-90 frames; TYPEC interface can be wired in both forward and reverse directions
1. Product size: 38 * 38 * 23.6 ± 0.5 MM
2. Product chip: AR0234 (1/2.6 '')
3. Maximum resolution, format, and frame rate: 1280X720 MJPEG/YUV 60FPS
4. Maximum viewing angle: 110 ° without distortion
5. Built in dual digital microphone
6. Sample testing line TYPE-C3.0-1 meter
|
Module No. |
HBVCAM-F2314GS-U3 V22 |
|
Module Size |
38mm × 38mm × 19.50mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
700 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
AR0234 (1/2.6” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
1920*1080 |
|
Sensitivity |
270mV /（lux-sec） |
|
Pixel Size |
3.0µm x 3.0µm |
|
Maximum Image Transfer Rate |
MJPEG 640x480 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS MJPEG 1280x960 60FPS / YUY2 1280x960 5FPS MJPEG 1920x1080 60FPS / YUY2 1920x1080 5FPS
|
|
S/N Ratio |
38db |
|
Max Dynamic Range |
71.4db |
|
Shutter type |
Global shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
Support |
|
Lens Construction |
2G2P |
|
F/No |
2.4 |
|
EFL |
2.4 mm |
|
FOV |
110° |
|
TV Distortion |
<5% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
