48 million high pixel industrial cameras, industrial control computers, advertising machines, commercial displays, live streaming equipment, and other embedded built-in camera modules
Features:
1. Ultra HD 8000X6000High Resolution 48MP USB Camera
2. Autofocus- 200ms fast focus speed
3. 70degree Wide angle no distortion lens
4. UVC Free Driver, Plug and Play on Android , Linux ,Windows, MAC OS
5. Real Color Reproduction, without interpolation
6. Wide Application:1. Video Conferencing ,Live Streaming,Security,Medical device,Industrial Inspection,Research and Development,Education and Trainin,High Resolution document Scan
1. Product size: 38 * 38 * 19.5 double-layer laminated board
2. Product chip: S5KGM1ST (1/2 '')
3. Maximum resolution, format, frame rate:
8000*6000 MJPEG 5FPS
3840 * 2160 MJPEG 30FPS default
4. Maximum viewing angle: 82 ° autofocus without distortion
5. Sample matching test line 4P-2.0MM-50CM
Applications:
1. Video Conferencing: With the rise of remote work and online meetings,a 48MP autofocus USB camera module can be used to provide high-quality video forvideo conferencing applications.
2. Live Streaming: Content creators and streamers can use a 48MP autofocus USB camera module to capture high-resolution video with autofocus capabilities,providing high-quality footage for their audience.
3. Security and Surveillance: A 48MP autofocus USB camera module can be used in security and surveillance applications,providing high-resolution images and videos with autofocus capabilities for better analysis and identification.
4. Medical Imaging: In the medical field,a 48MP autofocus USB camera module can be used for imaging applications, such as telemedicine and remote diagnosis.
5. Industrial Inspection: A 48MP autofocus USB camera module can be used in industrial inspection applications, providing high-resolution images withautofocus capabilities for quality control and analysis.
6. Research and Development : A 48MP autofocus USB camera module can be used in scientific research applications, such as microscopy and spectroscopy,to capture high-resolution images and videos with autofocus capabilities forbetter analysis and documentation.
7. Education and Training: A 48MP autofocus USB camera module can be used in education and training applications,providing high-quality videos with autofocus capabilities for better demonstrations and lectures.
Overall,a 48MP autofocus USB camera module can be used in a wide range of applications where high-resolution images and videos with autofocus capabilities are required.
Product Specificaiton:
|
Module No.
|

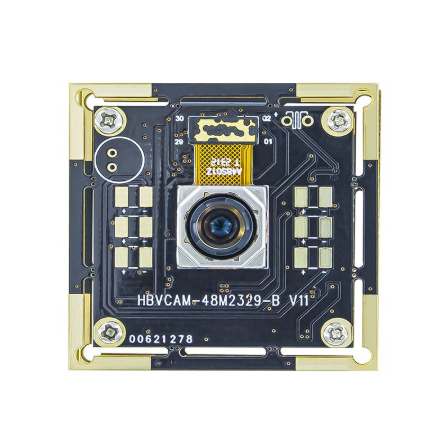

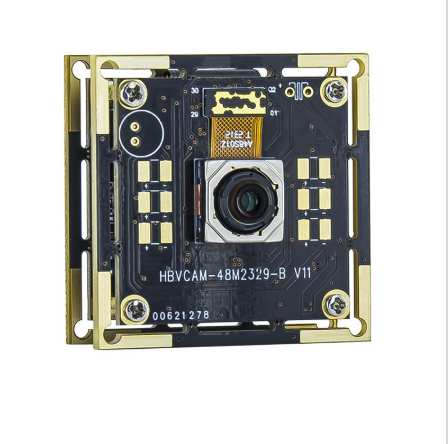

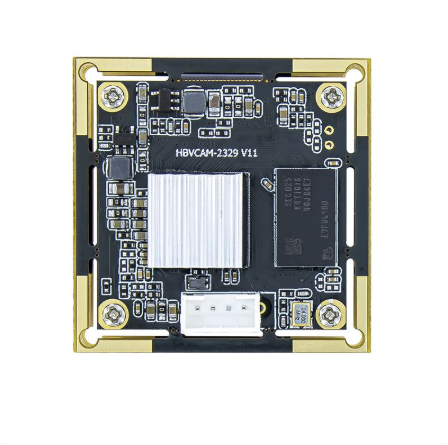

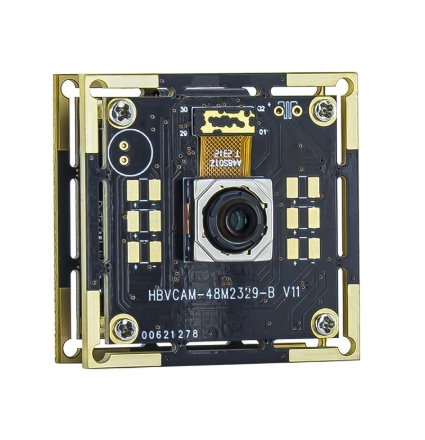

HBVCAM-48M2329-B V11
|
|
Module Size
|
38mm × 38mm × 25.60mm±0.5MM
|
|
Temperature (Operation)
|
-30°C to 70°C
|
|
Temperature (Stable Image)
|
0°C to 50°C
|
|
Assembly technique
|
SMT (ROSH)
|
|
Focus
|
Auto
|
|
Object distance
|
10CM-infinity
|
|
Resolution
|
2000LW/PH (Center)
|
|
PCB printing ink
|
Black
|
|
interface
|
USB 2.0
|
|
Power suuply
|
USB bus power
|
|
supply voltage
|
DC 5V±5%
|
|
Maximum Power consumption
|
2560 mW
|
|
Operating system request
|
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
|
Sensor
|
S5KGM1 (1/2.25” )
|
|
Seneor Package
|
COB,Bare Die
|
|
Maximum resolution
|
8000*6000
|
|
Sensitivity
|
1.4V /（lux-sec）
|
|
Pixel Size
|
0.8µm x 0.8µm
|
|
Maximum Image Transfer Rate
|
MJPEG 1920x1080 30FPS / YUY2 640x480 25FPS
MJPEG 2592x1944 30FPS / YUY2 800x600 25FPS
MJPEG 3840x2160 30FPS / YUY2 1920x1080 6FPS
MJPEG 4000x3000 15FPS /
MJPEG 8000x6000 5FPS /
|
|
S/N Ratio
|
36db
|
|
Max Dynamic Range
|
82db
|
|
Shutter type
|
Electronic rolling shutter
|
|
AGC/AEC/Whiter balance
|
Auto
|
|
Output Formats
|
YUY2/MJPEG
|
|
Microphone
|
Support
|
|
Lens Construction
|
6P
|
|
F/No
|
1.79
|
|
EFL
|
4.71 mm
|
|
FOV
|
79°
|
|
TV Distortion
|
<1%
|
|
Relative Illumination (Sensor)
|
70%
|
|
IR Filter
|
650±10nm
|
|
Module Package
|
Anti-electrostatic tray
|
|
Certifications
|
FCC/CE/ROSH
|
Product Drawing:
