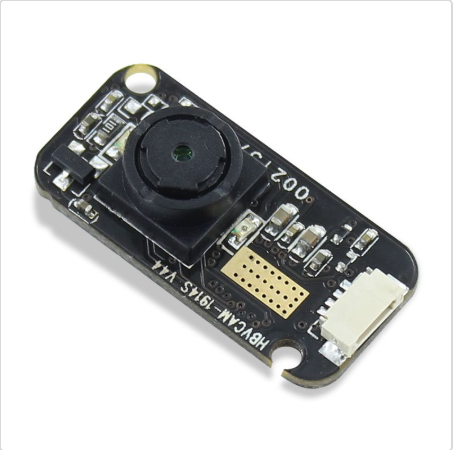

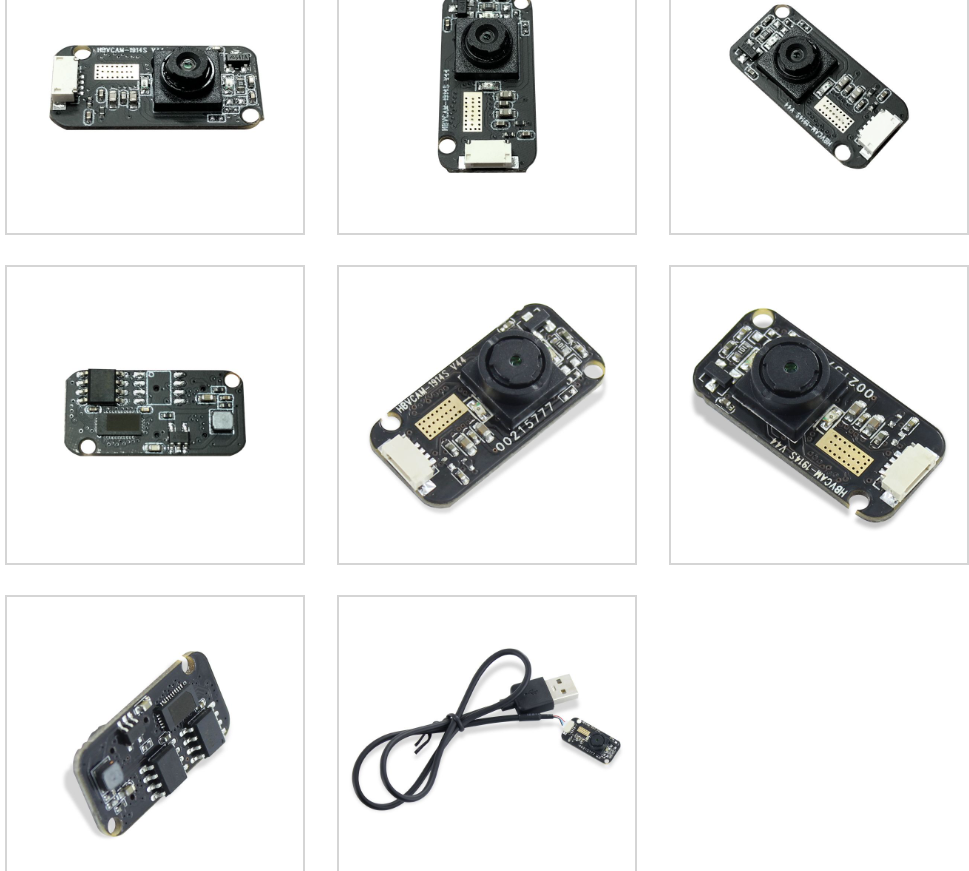

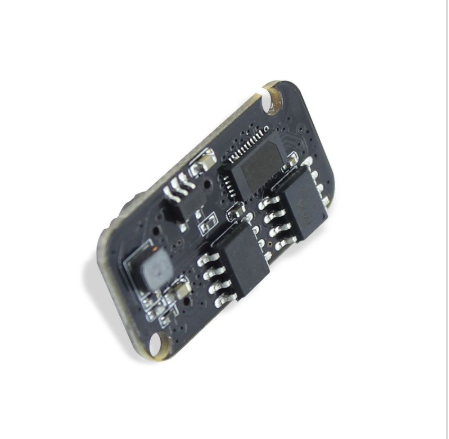

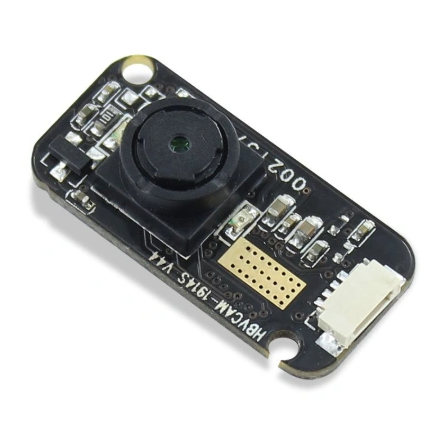

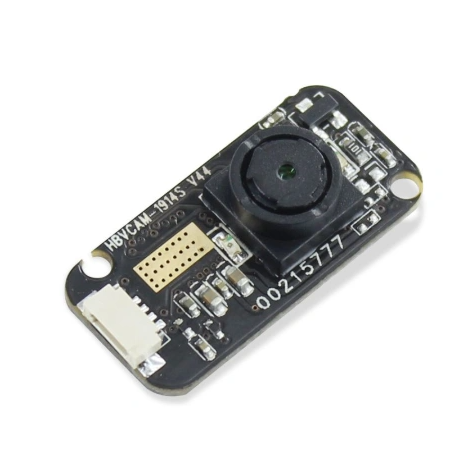

HBVCAM GC0308 0.3MP 120FPS mini infrared camera module
1. Small mini size, with YUV/MJPEG format, high frame rate 320x240-120fps
2. Macro infrared 850nm (general delivery of Quantong NO-IR chip, black and white)
3. It can be made into color low frame and high frame non infrared night vision
4. Small angle magnification and large angle field of view are optional
5. Disadvantages: low cost effective, poor long-distance infrared
HBVCAM GC0308 0.3MP 120FPS mini infrared camera module

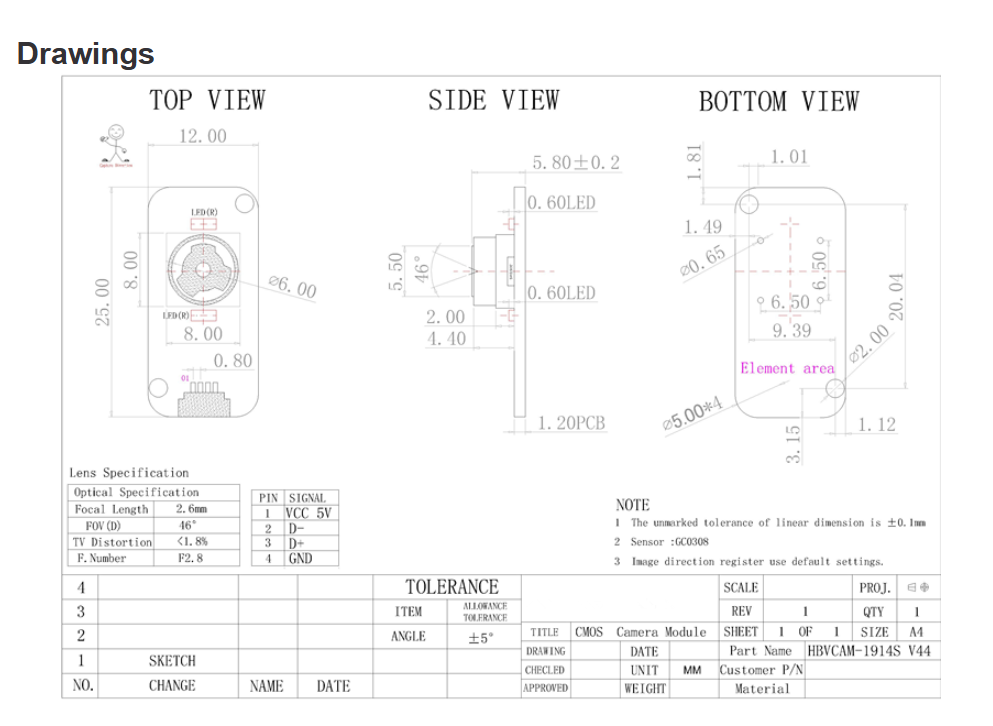

* Size:25MM*12MM*6.3MM
* Sensor：GC0308(1/6.5'')
* Maximum Resolution：640*480 30fps Minimum Resolution:320*240 120fps
* Fov：80degree（Lens can be adjustable,different Lens,FOV different)

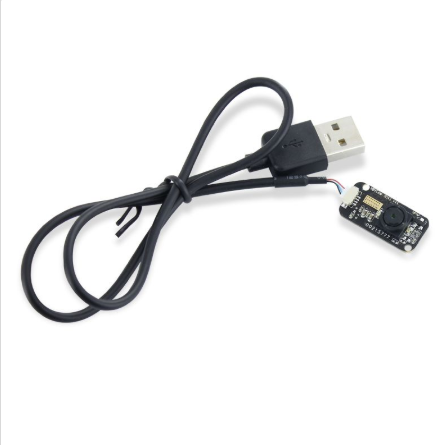

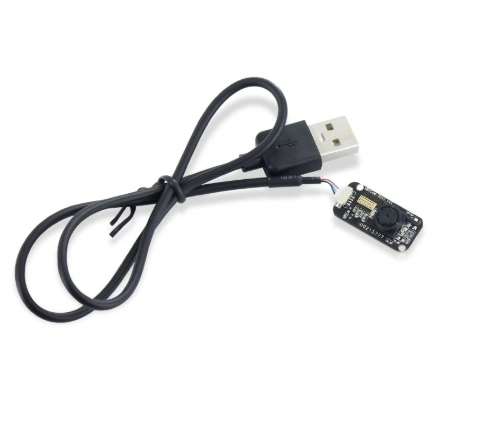

* Interface:USB2.0
* Focus:fixed
* Output Formats:YUY2/MJPEG
* Supply voltage:DC 5V±5%
* Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
Module No. |

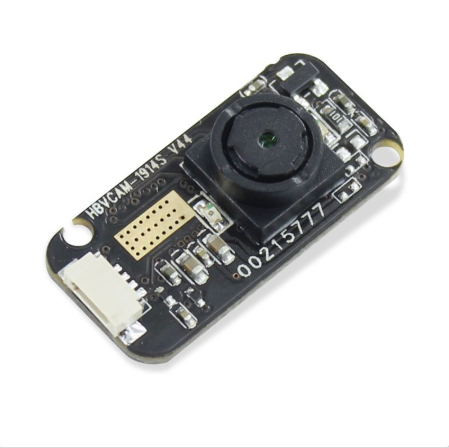

HBVCAM-1914S V44 |
|

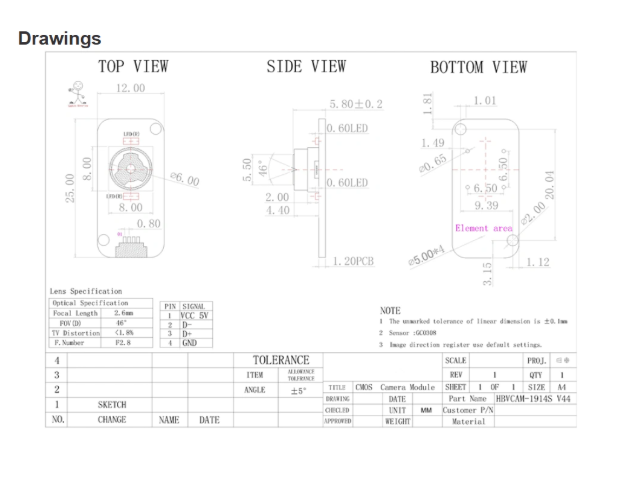

Module Size |
25mm × 12mm × 6mm±0.2MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
500mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
GC0308 (1/6.5” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
640*480 |
|
Sensitivity |
3.0mv /（lux-sec） |
|
Pixel Size |
3.4µm x 3.4µm |
|
Maximum Image Transfer Rate |

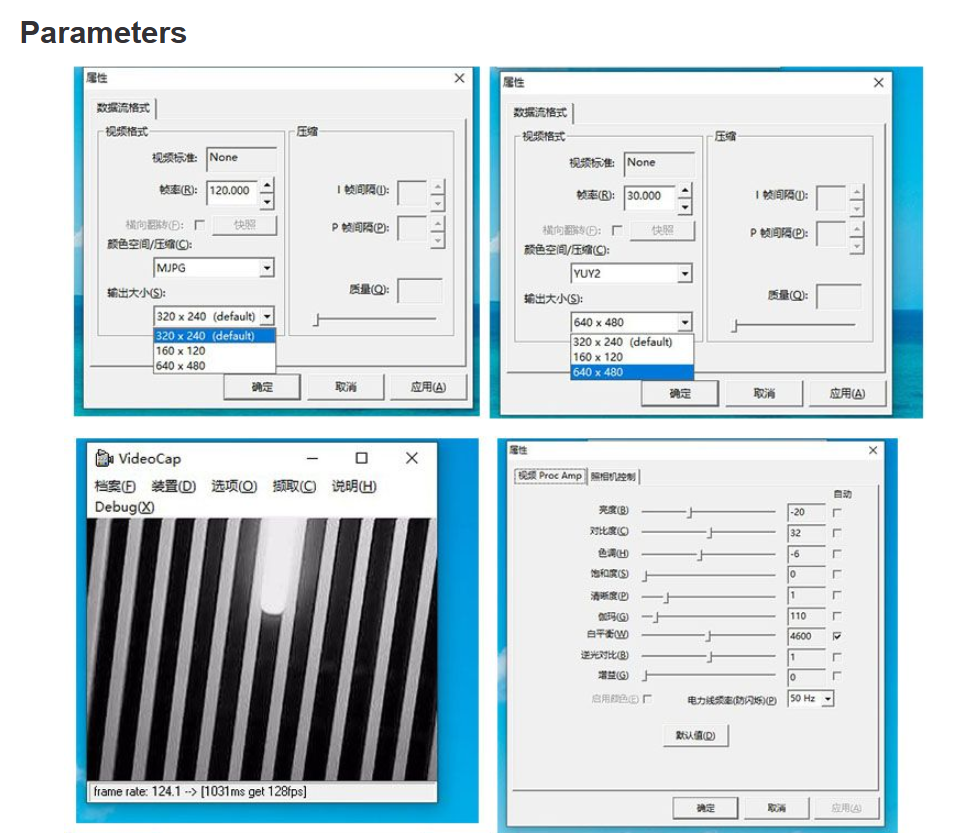

MJPEG 160x120 30FPS YUY2 160x120 30FPS MJPEG 320x240 128FPS YUY2 320x240 128FPS MJPEG 640x480 30FPS YUY2 640x480 30FPS
|
|
S/N Ratio |
42 db |
|
Max Dynamic Range |
58 db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
4P |
|
F/No |
2.8 |
|
EFL |
2.6mm |
|
FOV |
46° /80° （Two FOV for your options） |
|
TV Distortion |
<1.8% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
850±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
