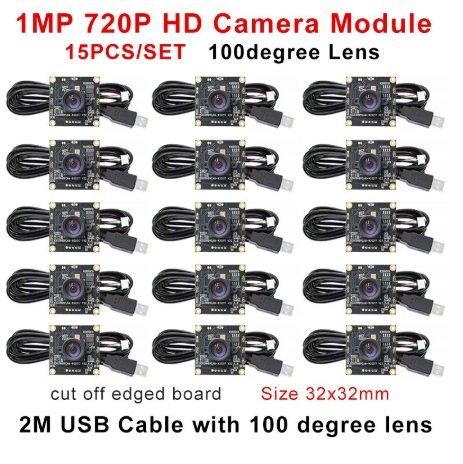

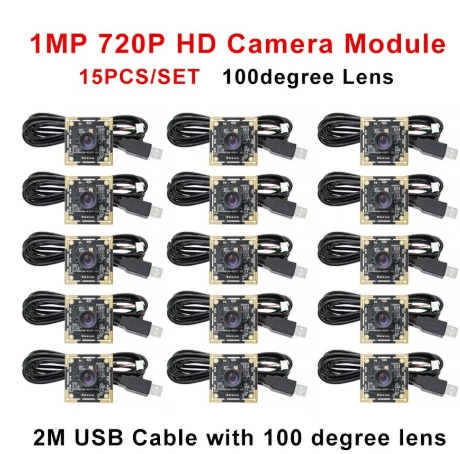

HBVCAM OV9732 1MP HD Free Driver Face Recognition Camera Module

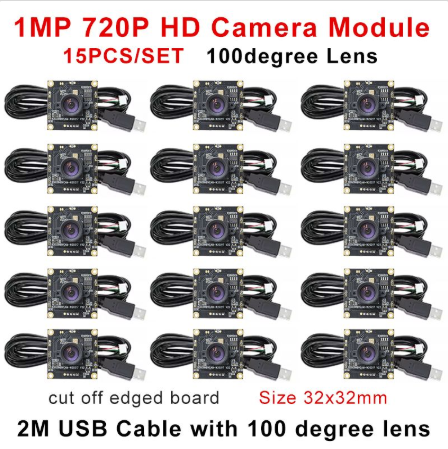

*Standard industrial camera 38*38mm/32* 32mm structure
*The effect of portrait and recognition is good

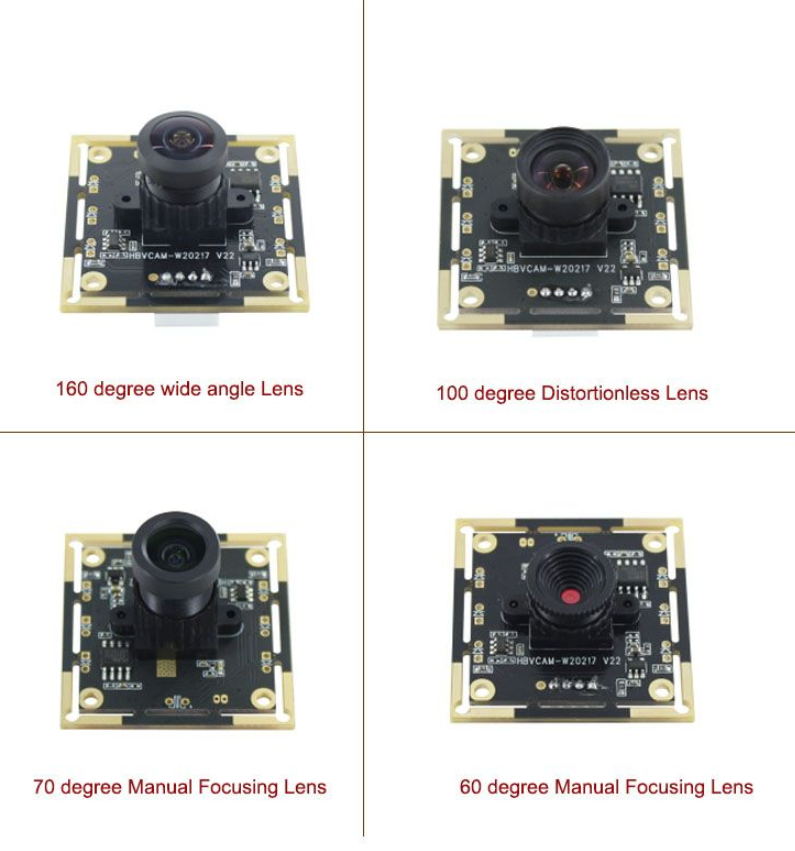

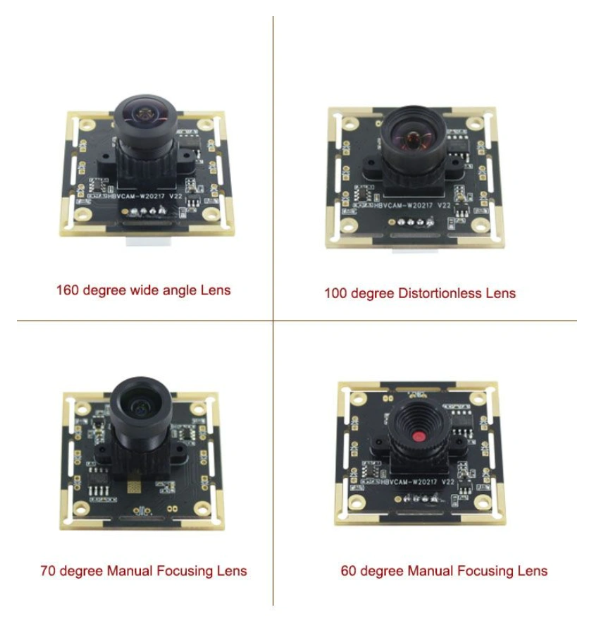

* Multiple lens options
*High cost effective
*6 plug-in lamps (infrared white light) can be added for welding, which can be made into an on/off diagram and can also be controlled by light sensitivity
* Four 720P cameras have been opened and fixed for 30FPS at the same time
Fix brandwith and the exposure problem FW.
Customer firmware up-to-date20250226.rar
Fix crash proble FW.
Customer firmware-date20250320-VERSION_0x31-0003-3825-Fix bugs_Display flower -花屏screen.rar
HBVCAM OV9732 1MP HD Free Driver Face Recognition Camera Module
1. 1MP CMOS Camera Module

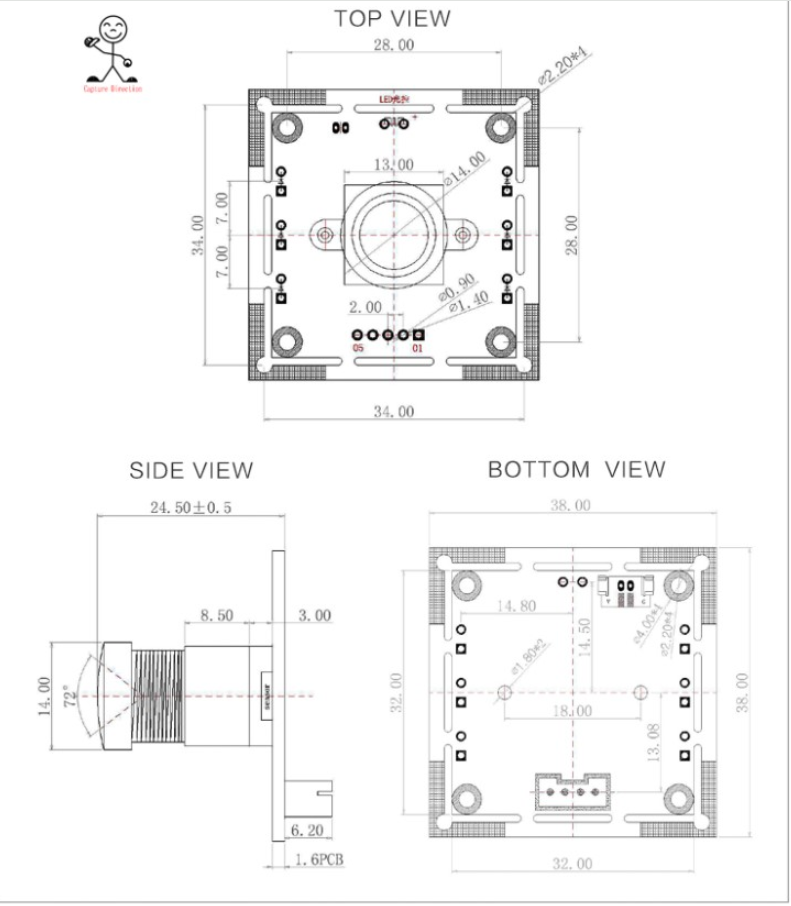

2.Size:38mm × 38mm × 18 mm±0.5MM
3.Sensor：OV9732(1/4'')
4.Maximum Resolution：1280*720 30fps
5.Fov：160°（ Lens can be adjustable,different Lens,FOV different）
6.Interface:USB2.0
7.Focus:fixed
8.Output Formats:YUY2/MJPEG
9.Supply voltage:DC 5V±5%
10.Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
Module No. |
HBVCAM-W20217 V22 |
|
Module Size |
38mm × 38mm × 16.05mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
450 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV9732 (1/4” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
1280*720 |
|
Sensitivity |
3300mV /（lux-sec） |
|
Pixel Size |
3µm x 3µm |
|
Maximum Image Transfer Rate |
MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS
|
|
S/N Ratio |
39db |
|
Max Dynamic Range |
72db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
2G2P |
|
F/No |
2.2 |
|
EFL |
2.1 mm |
|
FOV |
100° |
|
TV Distortion |
<3% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
