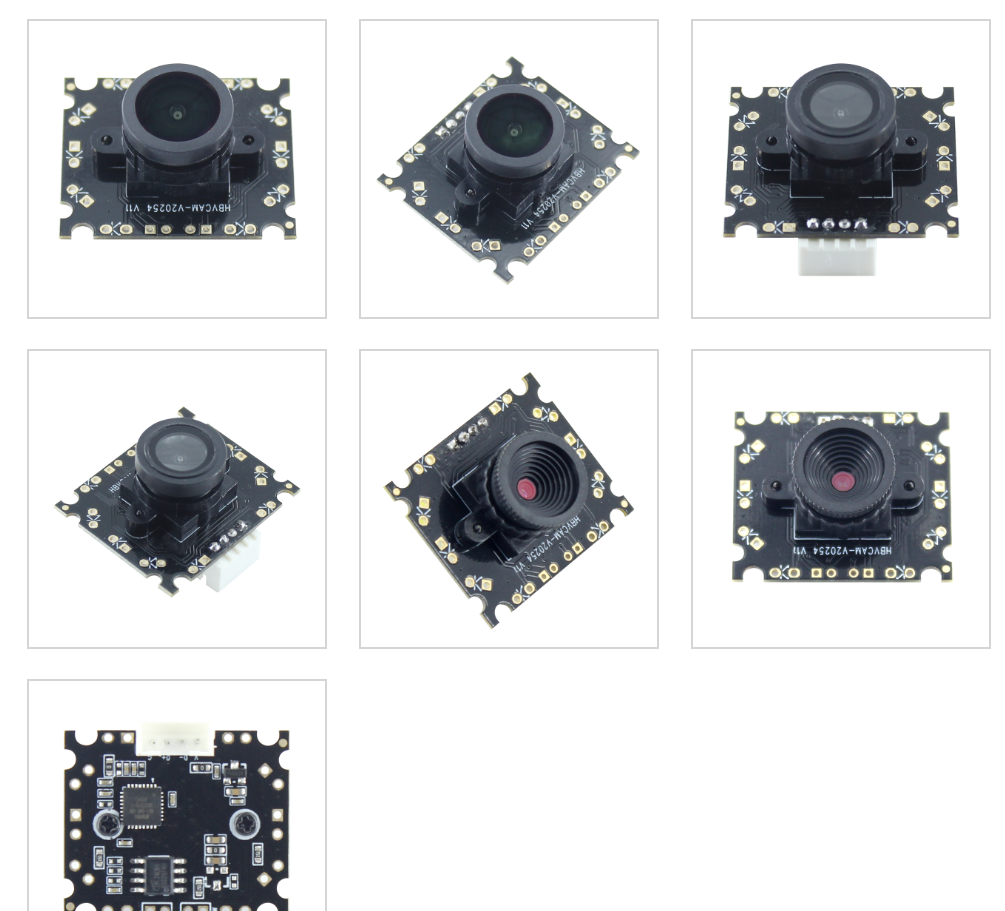

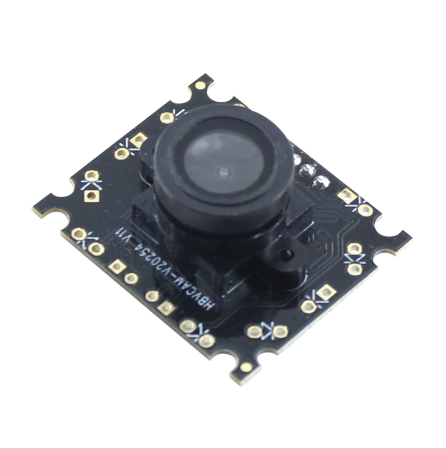

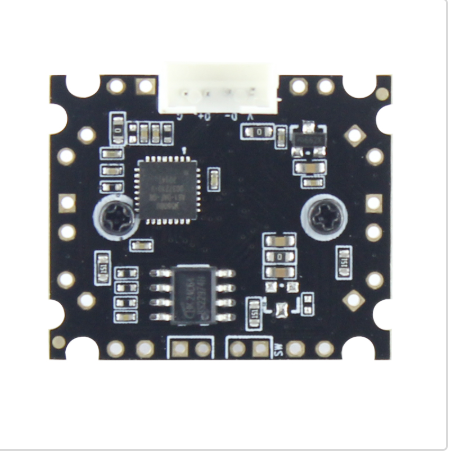

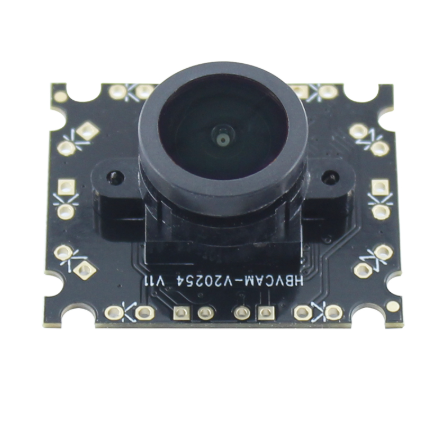

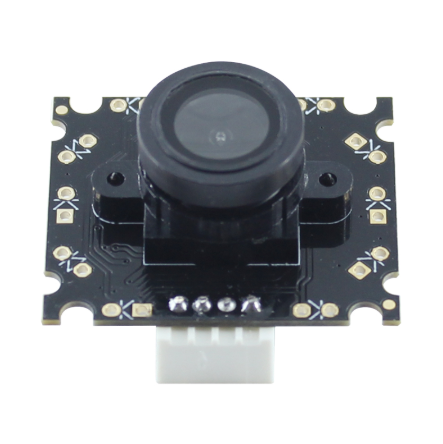

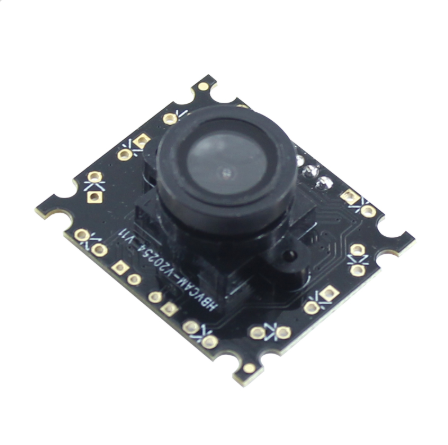

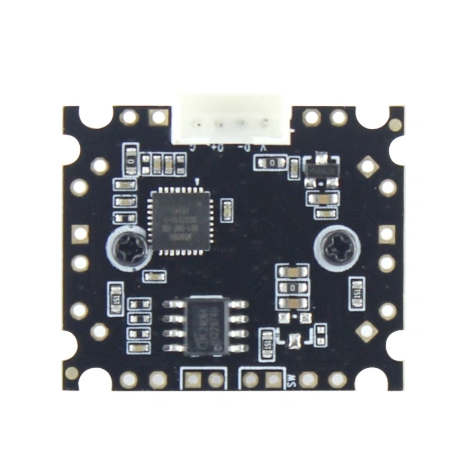

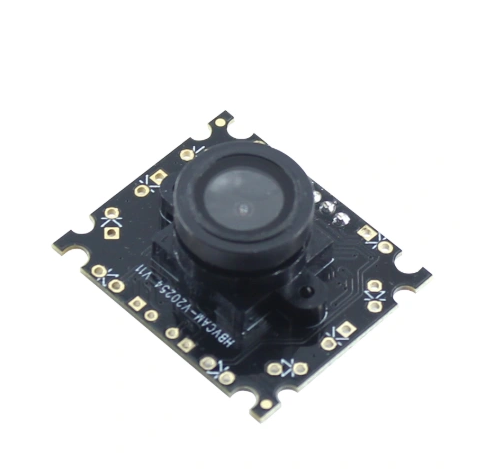

OV7670 0.3MP USB2.0 PC Camera Module
Standard size :30mmX25mm (available PC camera)
The socket can be removed and weld wire
can add welding plug-in lamp (can be infrared white light) two solder joint switch control, optional lamp number
Lens is multiple options
5. cost-effective
OV7670 0.3MP USB2.0 PC Camera Module
Product Specification:
|
Module No. |
HBVCAM-V20254 V11 |
||
|
Module Size |
30mm × 25mm × 12.00mm±0.3MM |
||
|
Temperature (Operation) |
-30°C to 70°C |
||
|
Temperature (Stable Image) |
0°C to 50°C |
||
|
Assembly technique |
SMT (ROSH) |
||
|
Focus |
Fixed |
||
|
Object distance |
30CM-infinity |
||
|
Resolution |
600LW/PH (Center) |
||
|
PCB printing ink |
Black |
||
|
interface |
USB 2.0 |
||
|
Power suuply |
USB bus power |
||
|
supply voltage |
DC 5V±5% |
||
|
Maximum Power consumption |
250mW |
||
|
Operating system request |
Win XP/win 7 、8 / vista /android 4.0/ mac /Linux with uvc |
||
|
Sensor |
OV7670 (1/6” ) |
||
|
Seneor Package |
CSP,Bare Die |
||
|
Maximum resolution |
640*480 |
||
|
Sensitivity |
1.3V /（lux-sec） |
||
|
Pixel Size |
3.6µm x 3.6µm |
||
|
Maximum Image Transfer Rate |
YUY2 160x120 30FPS YUY2 176x144 30FPS YUY2 320x240 30FPS YUY2 352x288 30FPS YUY2 640x480 30FPS |
||
|
S/N Ratio |
46 db |
||
|
Max Dynamic Range |
52 db |
||
|
Shutter type |
Electronic rolling shutter |
||
|
AGC/AEC/Whiter balance |
Auto |
||
|
Output Formats |
YUY2 |
||
|
Microphone |
NO |
||
|
Lens Construction |
1G3P |
||
|
F/No |
2.5 |
||
|
EFL |
1.3mm |
||
|
FOV |
130° |
||
|
TV Distortion |
<-2.3% |
||
|
Relative Illumination (Sensor) |
70% |
||
|
IR Filter |
650±10nm |
||
|
Module Package |
Anti-electrostatic tray |
||
|
Certifications |
FCC/CE/ROSH |
||
