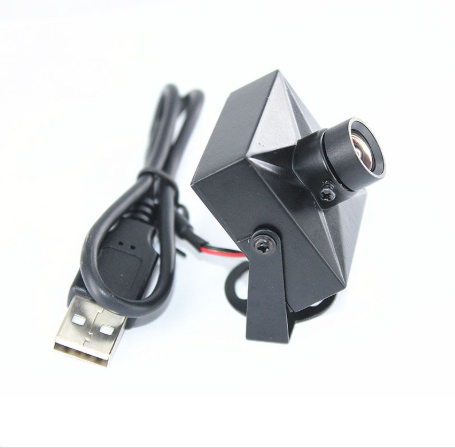

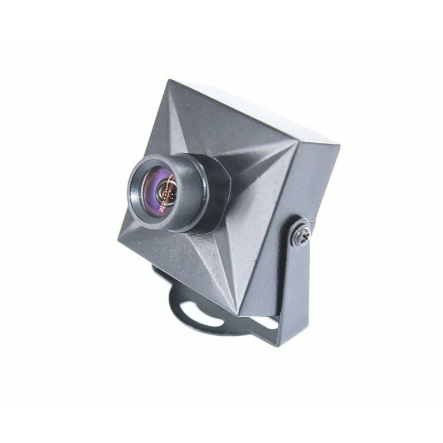

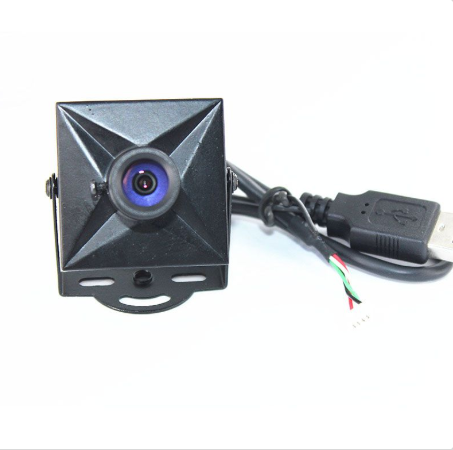

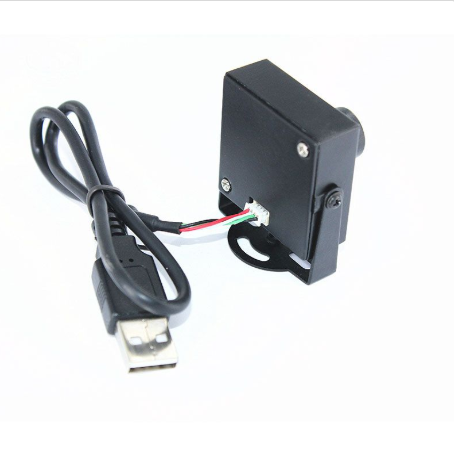

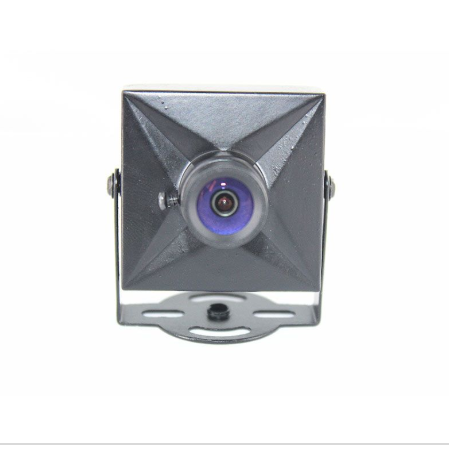

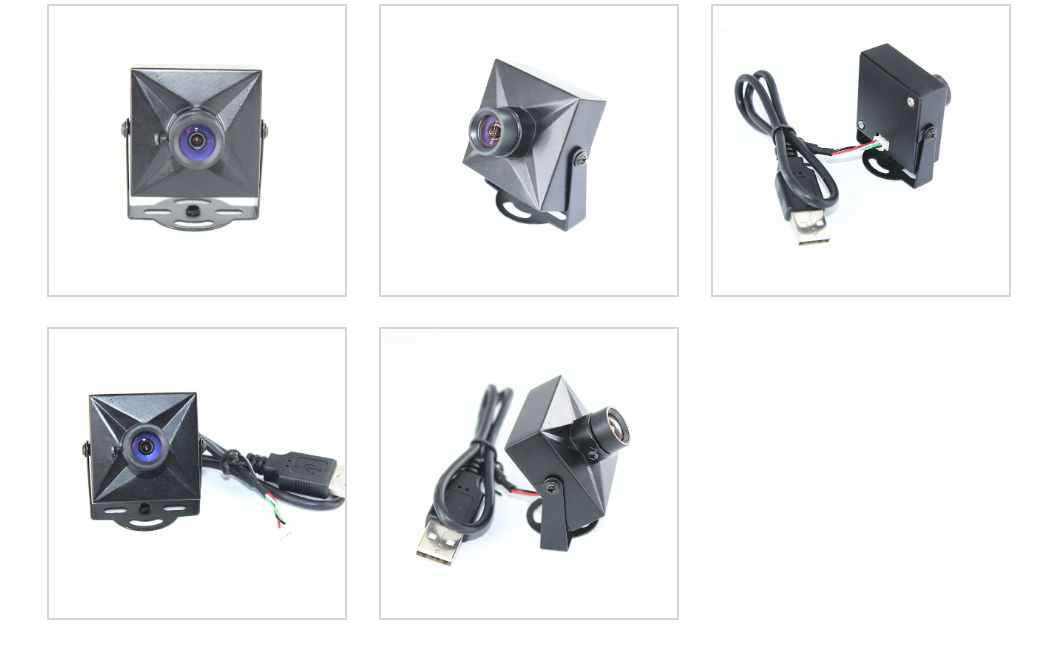

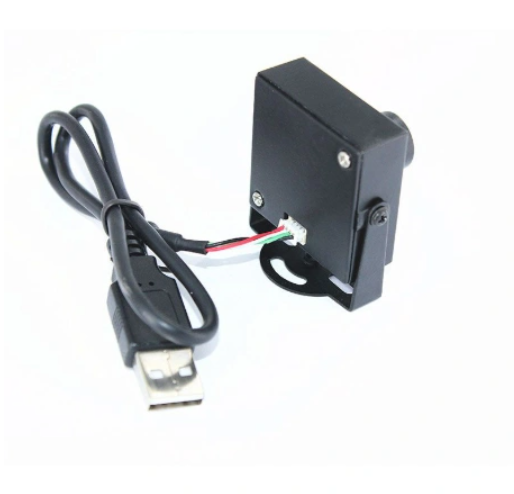

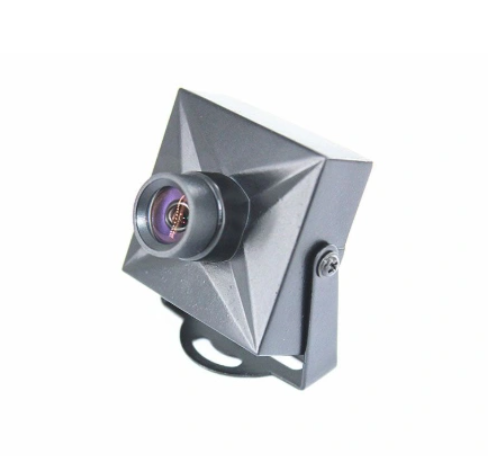

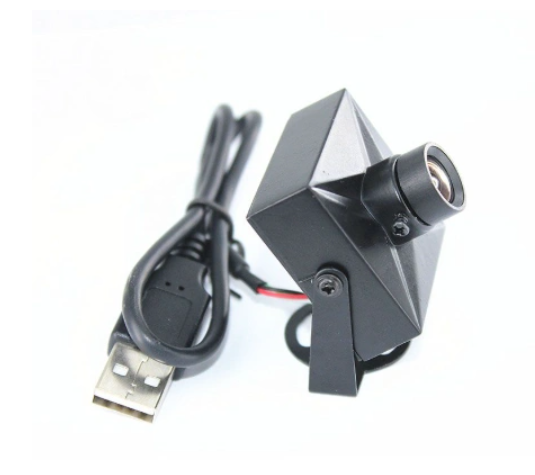

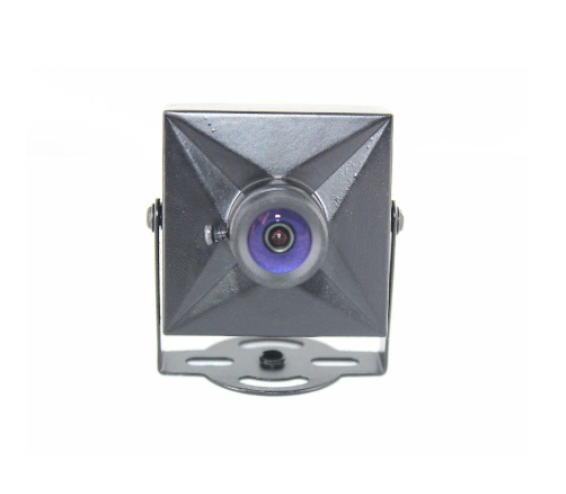

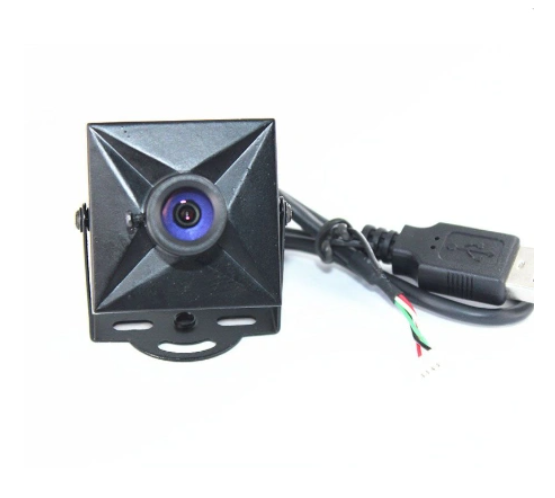

| Model No. | HBVCAM-1831-2710 V11 with Case |
| Model Size | 36MM(L)*36MM(W)*28MM(H) |
| Sensor | OV2710 |
| Optical Format | 1/2.7'' inch |
| Active array size | 1920*1080 |
| Sensitivity | 3300mV/Lux-sec |
| Pixel Size | 3um*3um |
| Max S/N ratio | 39dB |
| Dynamic range | 69dB@8Xgain |
| Image area | 5856um*3278um |
| Object distance | 30cm-infinity (adjustable) |
| Interface | 4PIN USB2.0 |
| DFOV (Diagonal Field of View) | 80degree |
| HFOV(Horizontal Field of View) | 70degree |
| VFOV (Vertical Field of View) | 43degree |
| Operating system | Free driver for Windows 2000\ Windows XP\Windows 7 / Linux and Android system with Standard UVC Protocol |
| Video Format | MJPG |
| Format output and FPS |
1280*720（default）31fps 320*240 30fps 352*288 30fps 640*480 30fps 800*600 30fps 1920*1080 29fps |
| Video Format | YUY2 |
| Format output and FPS |
1280*720（default）9fps 320*240 30fps 352*288 30fps 640*480 30fps 800*600 21fps 1920*1080 5fps |
| Automatic white balance | √ |
| Automatic Exposure | √ |
| Focus | Fixed Focus |
| USB cable | 1M for default (Also supply 2M) |
