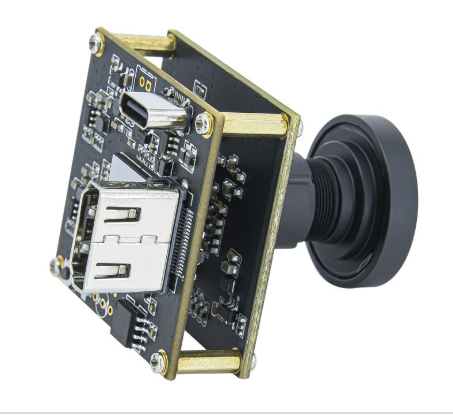

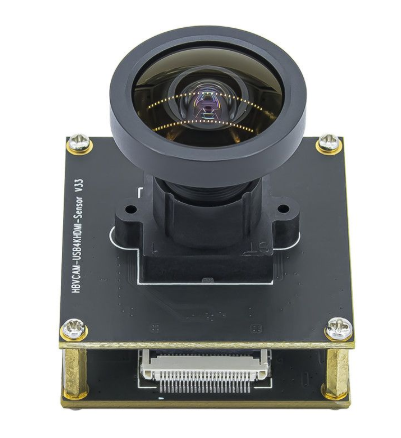

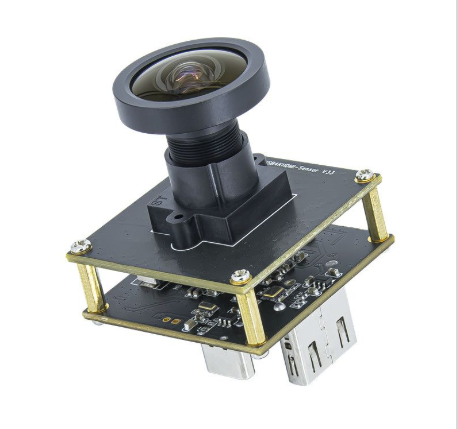

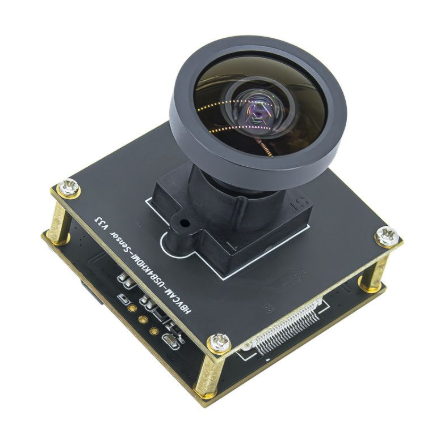

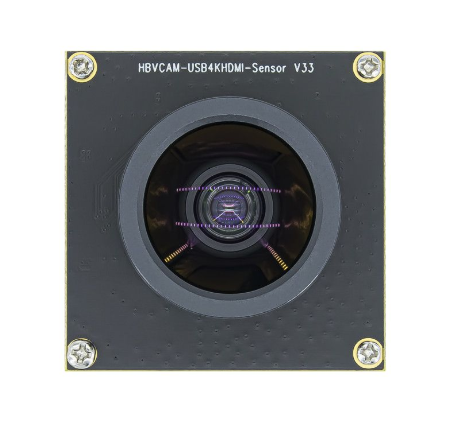

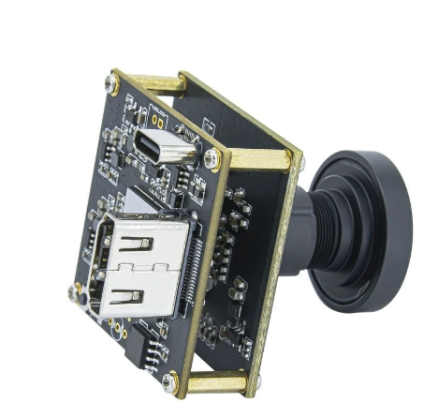

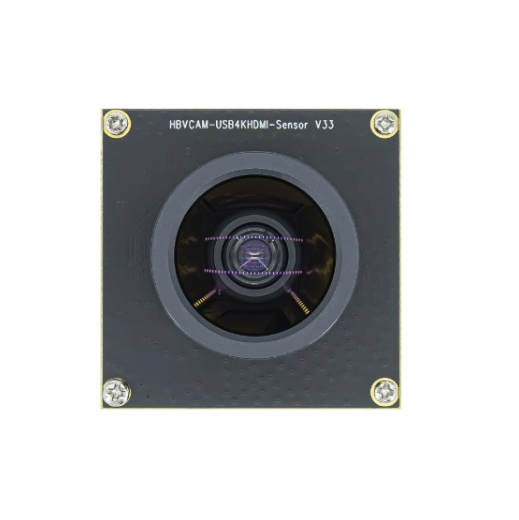

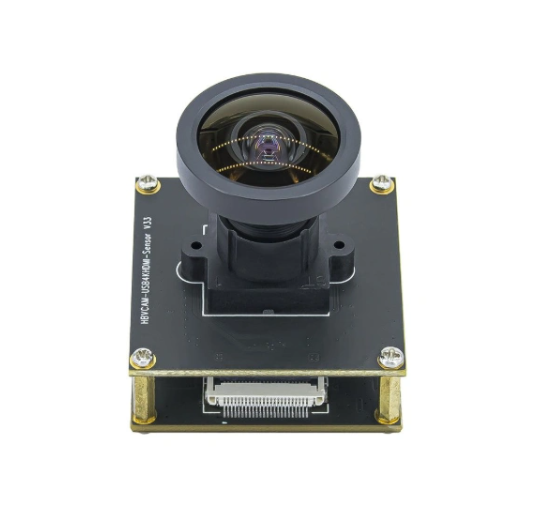

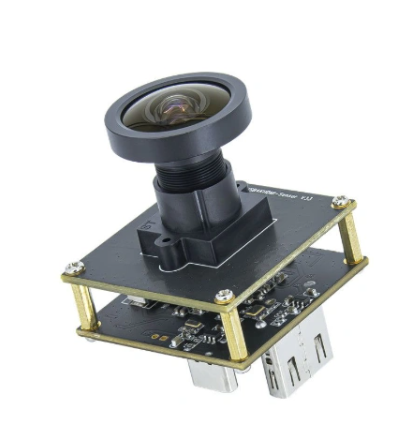

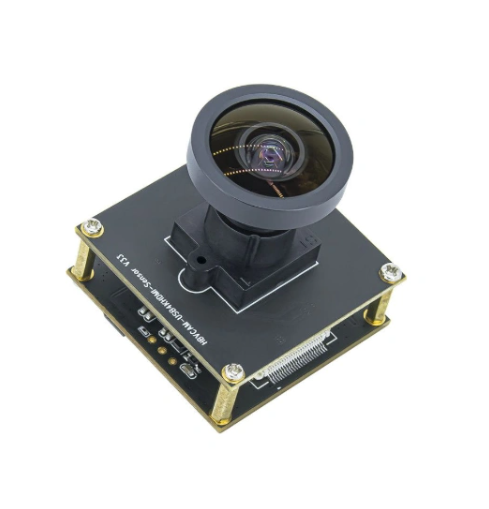

IMX678 8MP HDMI 4K Camera Module For Live Brodcast
1. Standard industrial camera 38, 32mm board structure
2. IMX678-1/1.8 large pixel mainly promotes high-end, high pixel effect with requirements, large screen 4k screen, live streaming camera
3. Built in dual digital microphone
4. Can be used for night vision - expandable light board
IMX678 8MP HDMI 4K Camera Module For Live Brodcast
2. Product size: 38 * 38 * 40.5 ± 0.5 MM
3. Product chip: IMX678 (1/1.8 '')
4. Maximum resolution, format, frame rate: 3840 * 2160 MJPEG 30FPS
5. Maximum viewing angle: 95 ° distortion free 25mm head
6. Built in dual digital microphone
7. Sample testing line 4P-2.0MM-50CM
Product Specification:
|
Module No. |
HBVCAM-4KHDMI V22 |
|
Module Size |
38mm × 38mm × 41.40mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|

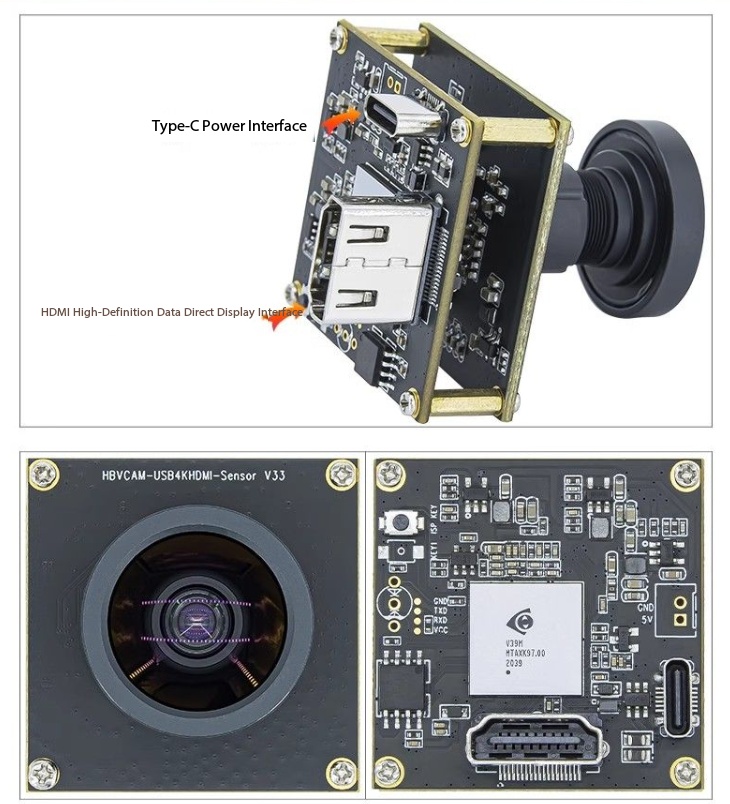

interface |
HDMI |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
950 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
IMX678 (1/1.8” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
3840*2160 |
|
Sensitivity |
50mV /（lux-sec） |
|
Pixel Size |
1.55µm x 1.55µm |
|
Maximum Image Transfer Rate |
MJPEG 640x480 60FPS / MJPEG 1280x720 60FPS / MJPEG 1920x1080 30FPS / MJPEG 2560x1440 30FPS / MJPEG 3840x2160 30FPS /
|
|
S/N Ratio |
40db |
|
Max Dynamic Range |
83db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
5G2P |
|
F/No |
2.8 |
|
EFL |
4.0 mm |
|
FOV |
95° |
|
TV Distortion |
<5% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |

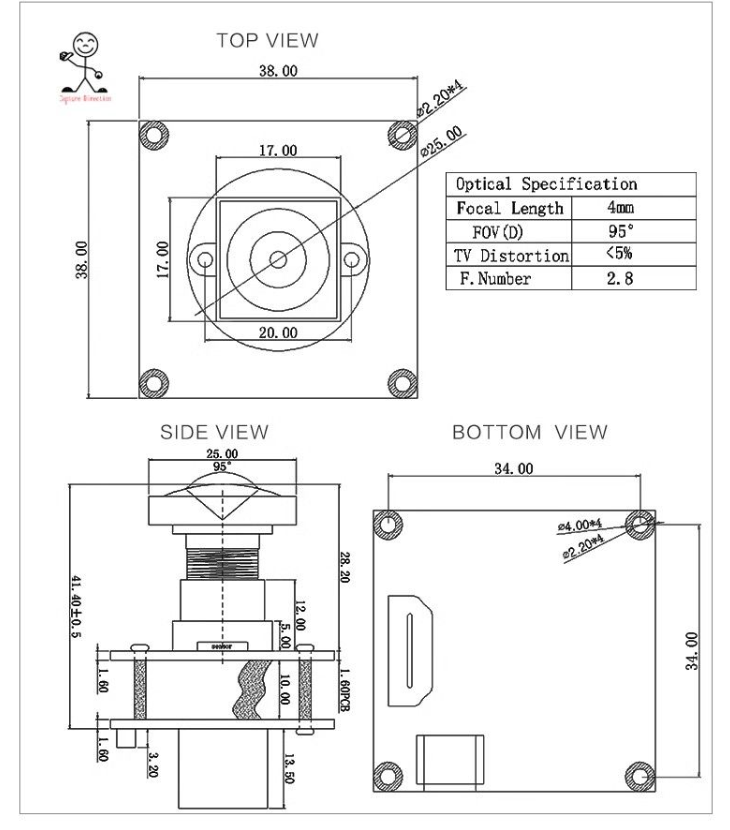

Product Drawings:
