Product Features:
1. Standard industrial camera 38, 32mm board structure
2. HDMI high-definition interface
(Direct high-definition 4k display screen for independent display without the need for a host)
3. Focusing on high-end video platforms, high-definition dynamic commercial displays, high-definition interface live streaming cameras, and other fields

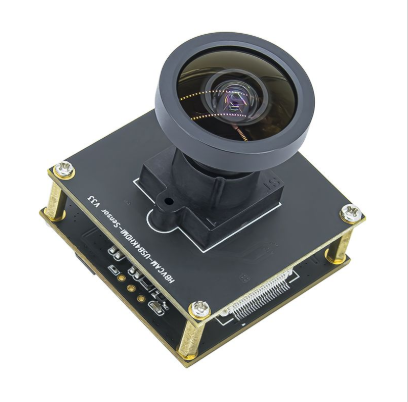

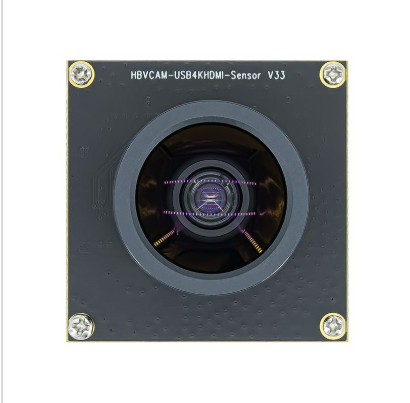

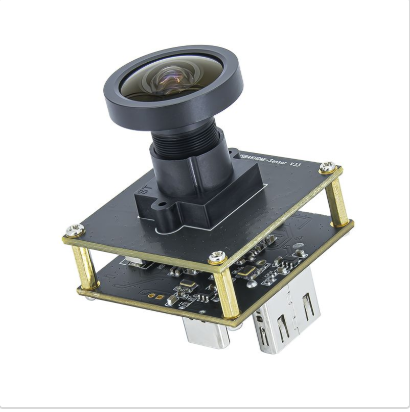

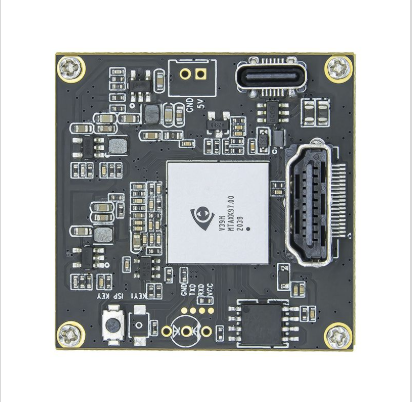

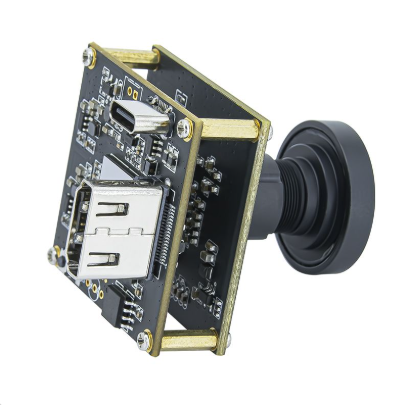

IMX678 8MP HD HDMI 4K Camera Module For Live streaming, Video booths, Commercial displays Equipment
The IMX678-AAQR1-C is a diagonal 8.86 mm (Type 1/1.8) CMOS active pixel type solid-state image sensor with a square pixel array and 8.40 M effective pixels. This chip operates with analog 3.3 V, digital 1.1 V, and interface 1.8 V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time.
Features
◆CMOS active pixel type dots
◆Built-in timing adjustment circuit, H/V driver and serial communication circuit
◆Input frequency: 13.5 MHz / 18 MHz / 24 MHz / 27 MHz / 36 MHz / 37.125 MHz / 72 MHz / 74.25 MHz
◆Number of recommended recording pixels: 3840 (H) × 2160 (V) approx. 8.29M pixel
◆Readout mode All-pixel scan mode Horizontal / Vertical 2/2-line binning mode Window cropping mode Horizontal / Vertical direction - Normal / Inverted readout mode
◆Readout rate Maximum frame rate in All-pixel scan mode: 12 bit: 60 frame/s, 10 bit: 72 frame/s
◆High dynamic range (HDR) function Digital overlap HDR Clear HDR
◆Synchronizing sensors function
◆Variable-speed shutter function (resolution 1H unit)
◆Conversion gain switching (HCG Mode / LCG Mode)
◆CDS / PGA function 0 dB to 30 dB: Analog Gain 30 dB (step pitch 0.3 dB) 30.3 dB to 72 dB: Analog Gain 30 dB + Digital Gain 0.3 dB to 42 dB (step pitch 0.3 dB)
◆Supports I/O CSI-2 serial data output (2 Lane / 4 Lane / 8Lane / 4Lane × 2ch) RAW10 / RAW12 output
◆AR coating on cover glass (Both sides)

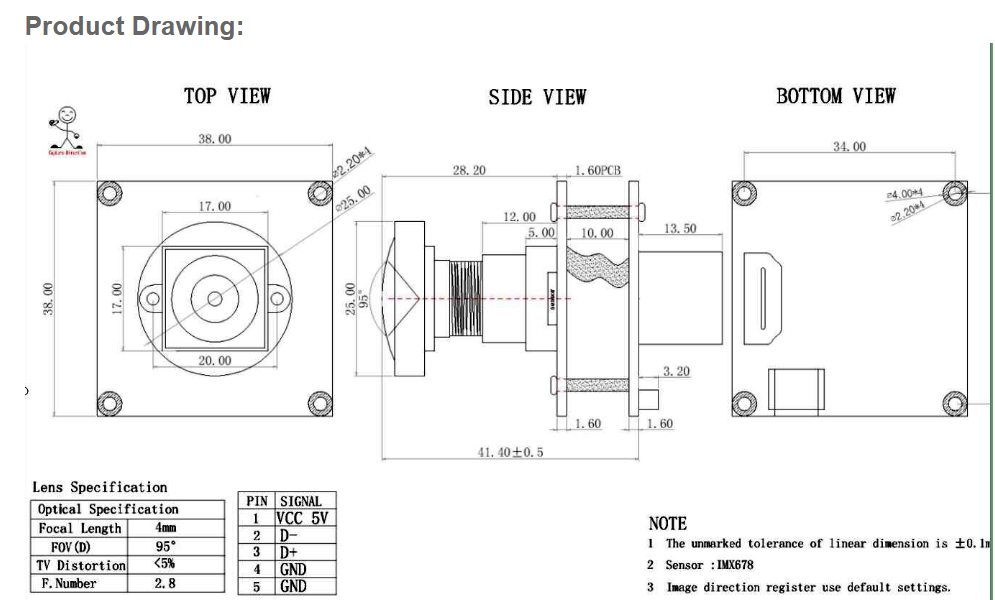

Product Specification:
|
Module No. |
HBVCAM-4KHDMI V22 |
|
Module Size |
38mm × 38mm × 41.40mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
HDMI |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
950 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
IMX678 (1/1.8” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
3840*2160 |
|
Sensitivity |
50mV /（lux-sec） |
|
Pixel Size |
1.55µm x 1.55µm |
|
Maximum Image Transfer Rate |
MJPEG 640x480 60FPS / MJPEG 1280x720 60FPS / MJPEG 1920x1080 30FPS / MJPEG 2560x1440 30FPS / MJPEG 3840x2160 30FPS /
|
|
S/N Ratio |
40db |
|
Max Dynamic Range |
83db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
5G2P |
|
F/No |
2.8 |
|
EFL |
4.0 mm |
|
FOV |
95° |
|
TV Distortion |
<5% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
