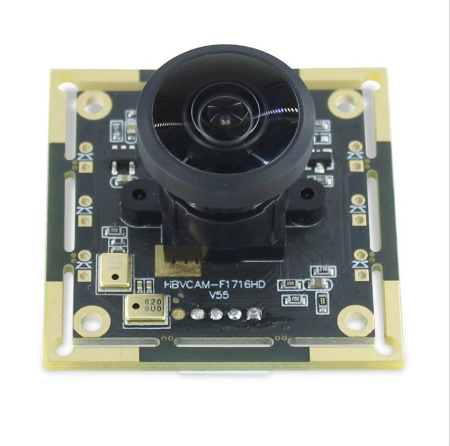

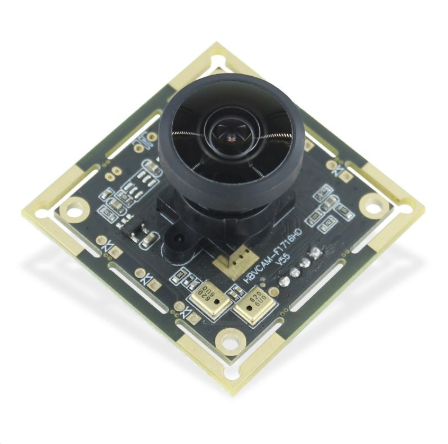

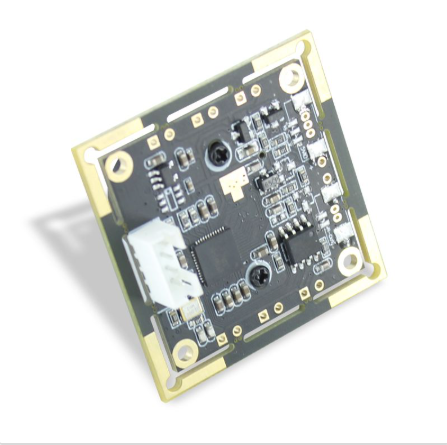

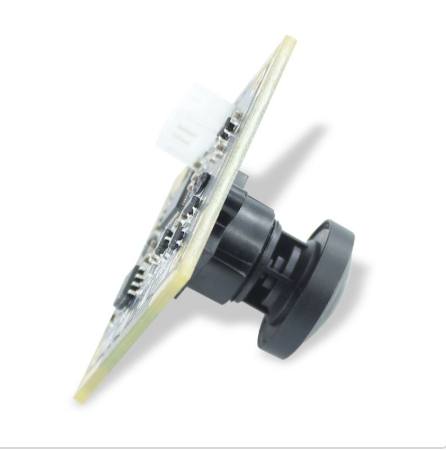

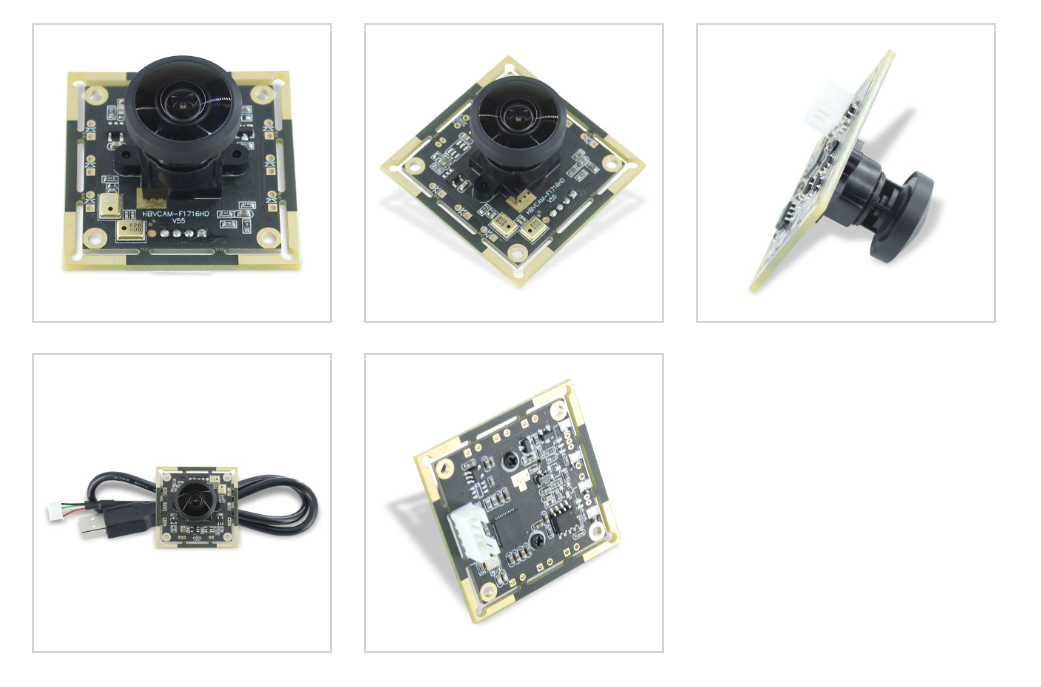

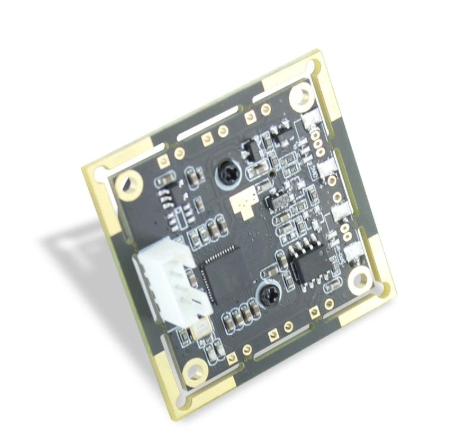

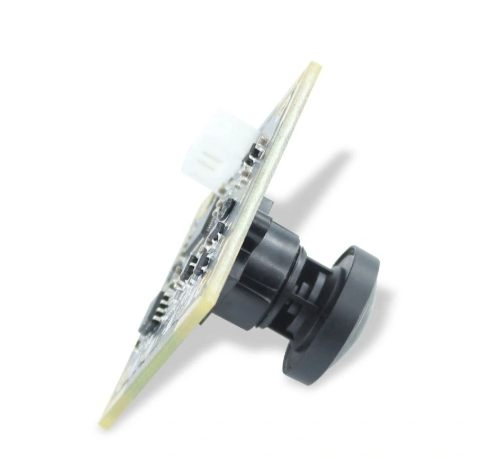

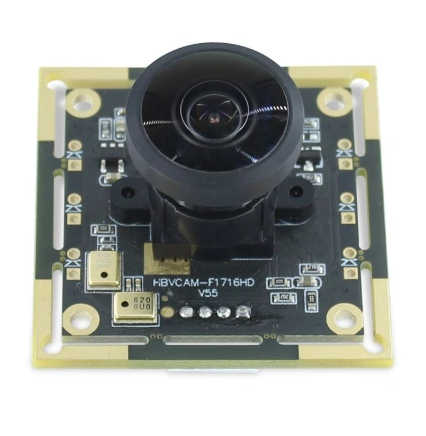

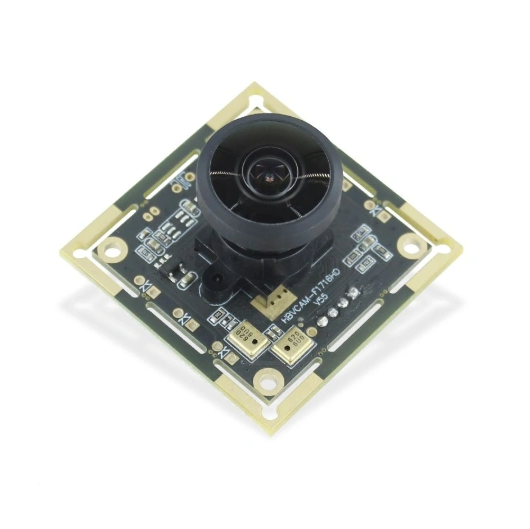

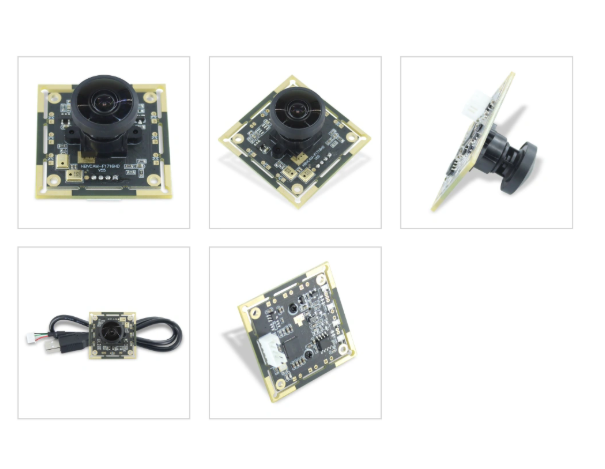

| Model No. | HBVCAM-1716 |
| Model Size | 8MM(L)*38MM(W)*18MM(H) |
| Resolution | 1920*1080 |
| Optical Format | 1/2.7'' inch |
| Active array size | 1920*1080 |
| Sensitivity | 3300mV/Lux-sec |
| Dynamic Range | 69dB8Xgain |
| Pixel Size | 3um*3um |
| Image Area | 5856um*3278um |
| Object distance | 30cm-infinity (adjustable) |
| Interface | 4PIN USB2.0 |
| DFOV | 180degree |
| Operating system | Free driver for Windows 2000\ Windows XP\Windows 7 / Linux and Android system with Standard UVC Protocol |
| Video Format | MJPG |
| Format output and FPS |
1920*1080(default)30fps 160*120 30fps 176*144 30fps 320*240 30fps 352*28830fps 640*480 30fps 1280*720 30fps |
| Video Format | YUY2 |
| Format output and FPS |
640*480(default)30fps 160*120 30fps 176*144 30fps 320*240 30fps 352*288 30fps |
| Automatic white balance | √ |
| Exposure | √ |
| Focus | Fixed Focus(the lens is adjustable) |

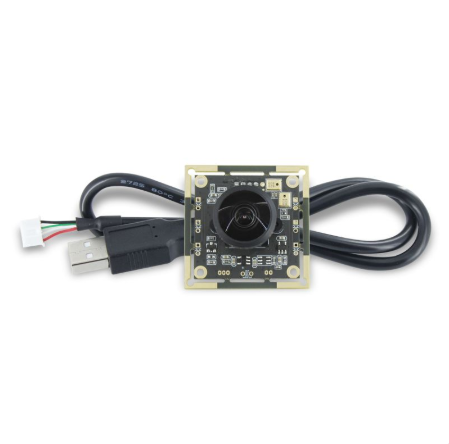

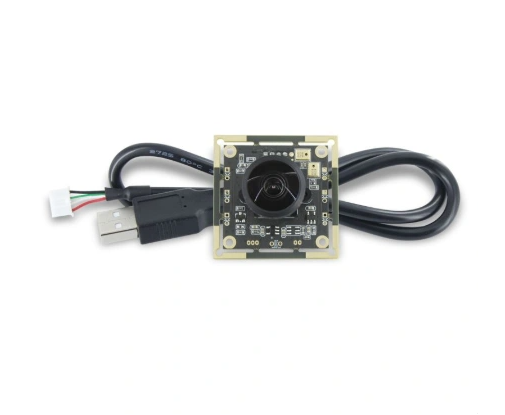

| USB cable | 1M for default (Also supply 2M) |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
