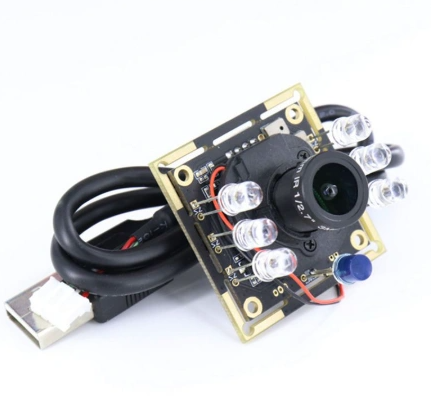

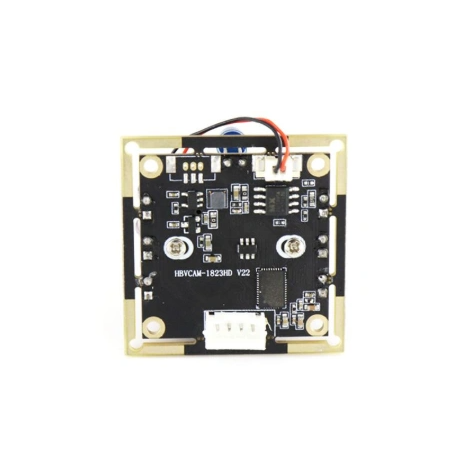

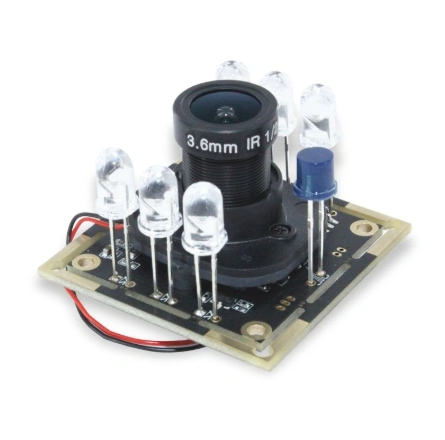

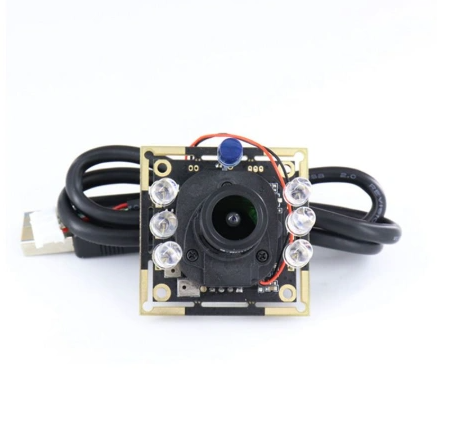

Module No.
|

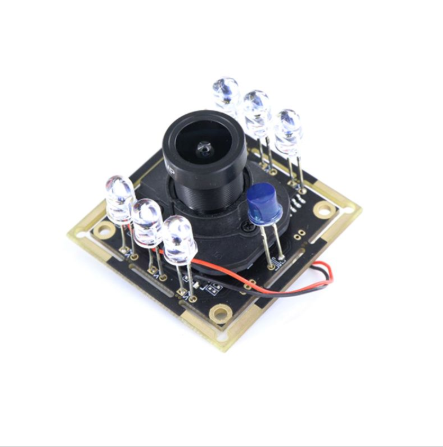

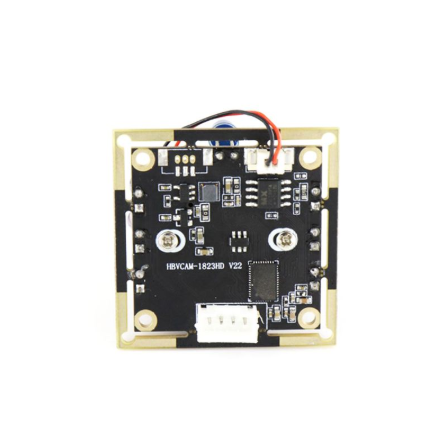

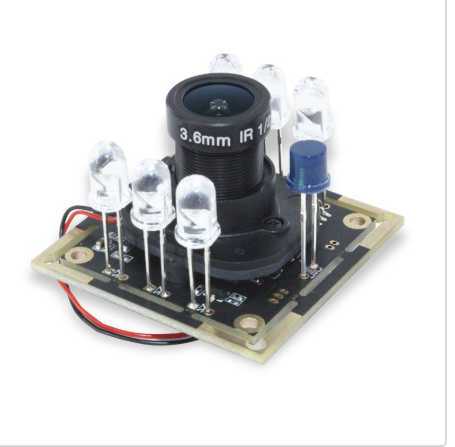

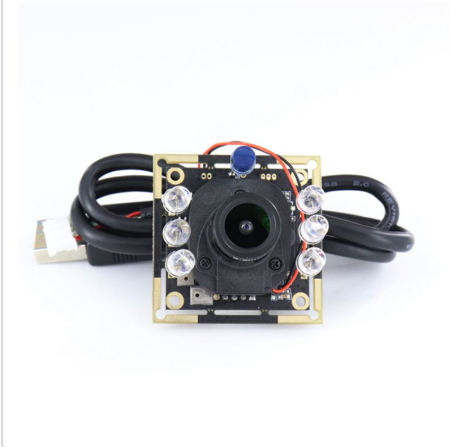

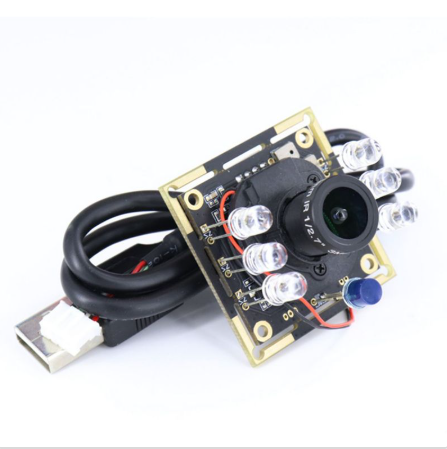

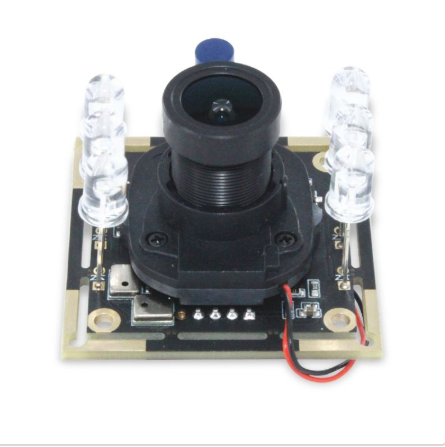

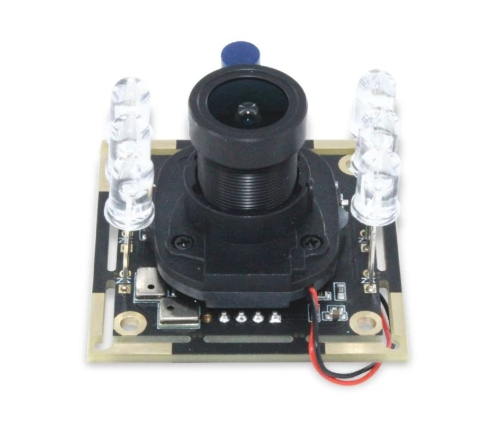

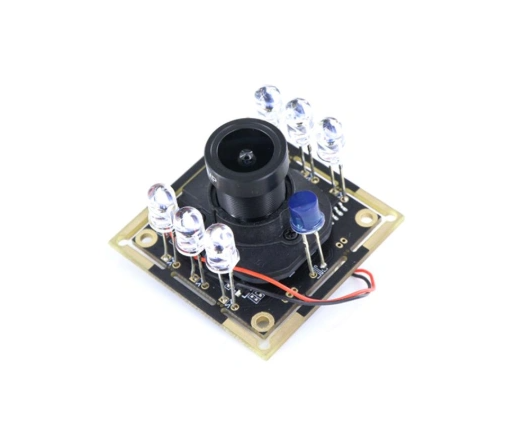

HBVCAM-1823HD V33
|
|
Module Size
|
38mm × 38mm × 17.5mm±0.5MM
|
|
Temperature (Operation)
|
-30°C to 70°C
|
|
Temperature (Stable Image)
|
0°C to 50°C
|
|
Assembly technique
|
SMT (ROSH)
|
|
Focus
|
Fixed
|
|
Object distance
|
30CM-infinity
|
|
Resolution
|
600LW/PH (Center)
|
|
PCB printing ink
|
black
|
|
interface
|
USB 2.0
|
|
Power suuply
|
USB bus power
|
|
supply voltage
|
DC 5V±5%
|
|
Maximum Power consumption
|
800mW
|
|
Operating system request
|
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
|
Sensor
|
HM2131 (1/2.7” )
|
|
Seneor Package
|
CSP,Bare Die
|
|
Maximum resolution
|
1920*1080
|
|
Sensitivity
|
4600mv /（lux-sec）
|
|
Pixel Size
|
3µm x 3µm
|
|
Maximum Image Transfer Rate
|
MJPEG 320x240 30FPS / YUY2 320x240 30FPS
MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS |
|
Output Formats
|
YUY2/MJPEG
|
|
Microphone
|
Support
|
|
FOV
|
100°
|
|
Certifications
|
FCC/CE/ROSH
|
