The standard size:38*38mm
The LED light can be added on the PCB board (the led will be turned on when opening the test APP and turned off when closing the test APP )
The FPS is 30fps when choosing a 4K resolution
The 12mp 4k Camera Module can be used as to face recognition machine with good effect
The Frame rate is 30fps even when you choose the 4K resolution
Experience the power of exceptional image quality with our 12MP USB camera module. Capture stunning visuals with impressive clarity and detail for various applications. Unlock the potential of high-resolution imaging with our reliable and versatile 12MP USB camera module.
1) More than HD: This camera adopts a 12MP IMX258 sensor for sharp image and accurate color reproduction, Max. still resolution 3840*3104.
2) 1/3.06 ” CMOS IMX258 Image Sensor Webcams: IMX258 is a 13-megapixel CMOS active pixel type square pixel array image sensor with a diagonal of 5.867 mm (1/3.06). It adopts EXMOR RS technology and realizes high-speed image acquisition of column-parallel A/D converter circuit and high-sensitivity low-noise image (compared with traditional CMOS image sensor) through backlight imaging pixel structure

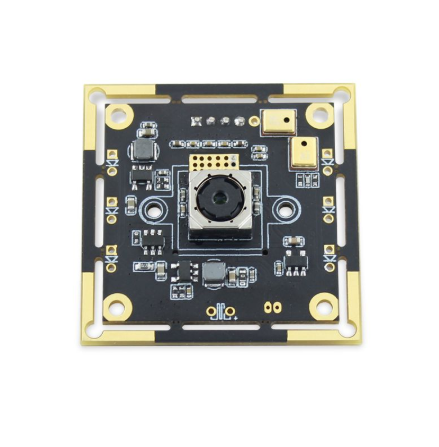

3) 12mp Autofocus Camera Module With Auto Focus Lens: Auto Focus uses the principle of object light reflection to receive the reflected light by the sensor CCD on the camera and drive the electric focusing device to focus through computer processing, which is called autofocus.
Auto Focus cameras have such features:
○Automatically judge the subject of the photographer in a certain way;
○Measure the distance between the subject and the photosensitive element of the camera in a certain way;
○The driving motor pushes the focusing device of the lens to the corresponding distance scale.

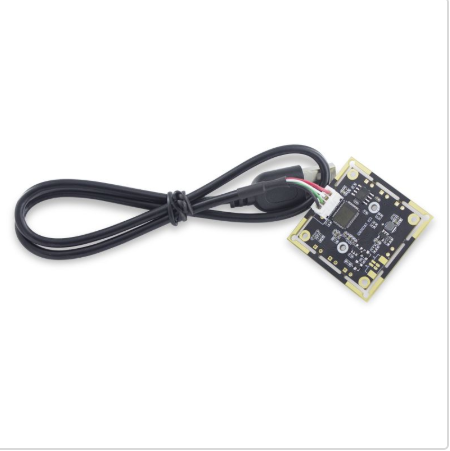

4) Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. This 12mp 4k Camera Module is compatible with Windows/Linux /Mac OS/Android, and supports OTG protocol and Raspberry Pi.
5) 12mp Autofocus Camera Module Applications: This tiny camera is highly recommended for the video surveillance system, live streaming, videoconference, dashcam, and other vision
|
Model |

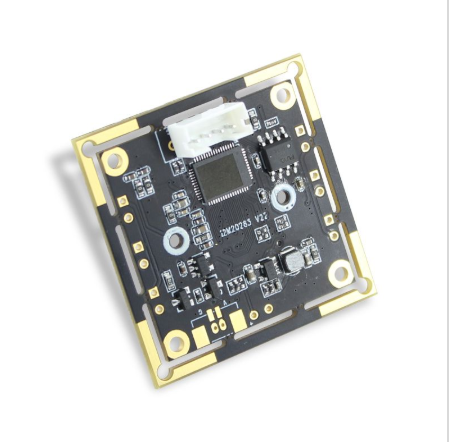

HBVCAM-12M20283 V22 |
|
Sensor |
SONY IMX258 |
|
Sensor Size |
1/3.06inch |
|
Max. Resolution |
3840*3104 |
|
Compression format |
MJPEG / YUY2（YUYV） |
|
Resolution & frame |
MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 1FPS MJPEG 3264x2448 30FPS / YUY2 3264x2448 1FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS MJPEG 3840x3104 15FPS / YUY2 3840x3104 1FPS |
|
Pixel Size |
1.12µm x 1.12µm |
|
Max Dynamic Range |
83db |
|
Shutter Type |
Electronic rolling shutter / Frame Exposure |
|
Connecting Port type |
|
|
Free Driver Protocol |
USB Video Class（UVC） |
|
AEC |
Support |
|
AWB |
Support |
|
AGC |
Support |
|
Adjustable parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
|
Lens Parameter |
78-degree lens |
|
Power Supply |
USB BUS POWER4P-2.0mm socket |
|
Operating Voltage |
DC5V |
|
Working Current |
150mA~240mA |
|
Working temperature |
-10～70℃ |
|
Storage temperature |
-20～85℃ |
|
Board size/Weight |
38X38mm（Compatible 32X32mm）/ about 30g |
|
Cable |
Standard 50CM / optional 1M,2M,3M |
1: ATM, Kiosk, POS, TV box 2: advertising cameras 3: one camera 4: Smart TV built-in camera
5: Construction Equipment 6: Banking equipment 7: body switch 8: Scanner
9: a mobile terminal device 10: Medical diagnostic image acquisition 11: fingerprints, palm prints image acquisition
12:video door phone 13:HD surveillance
