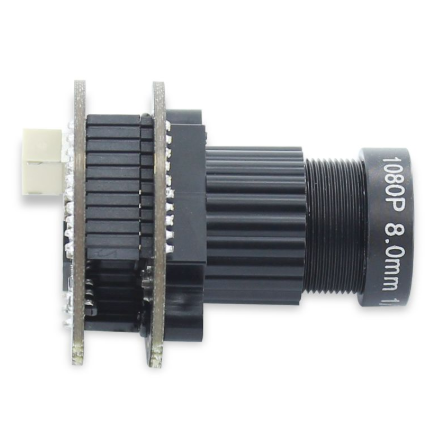

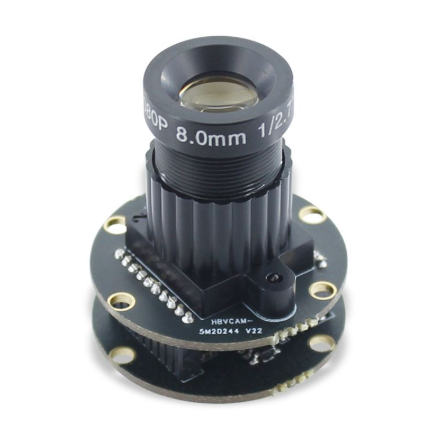

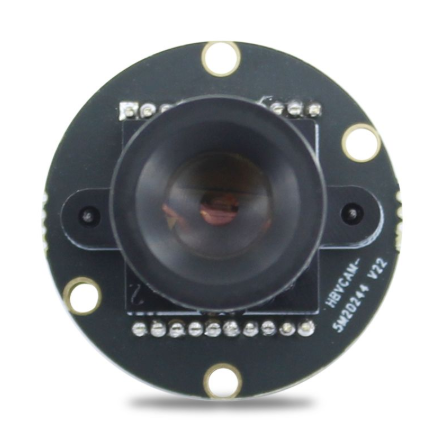

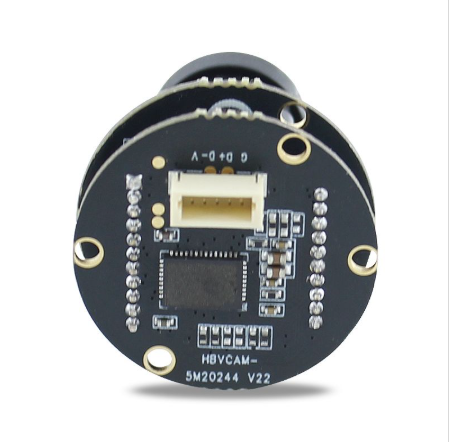

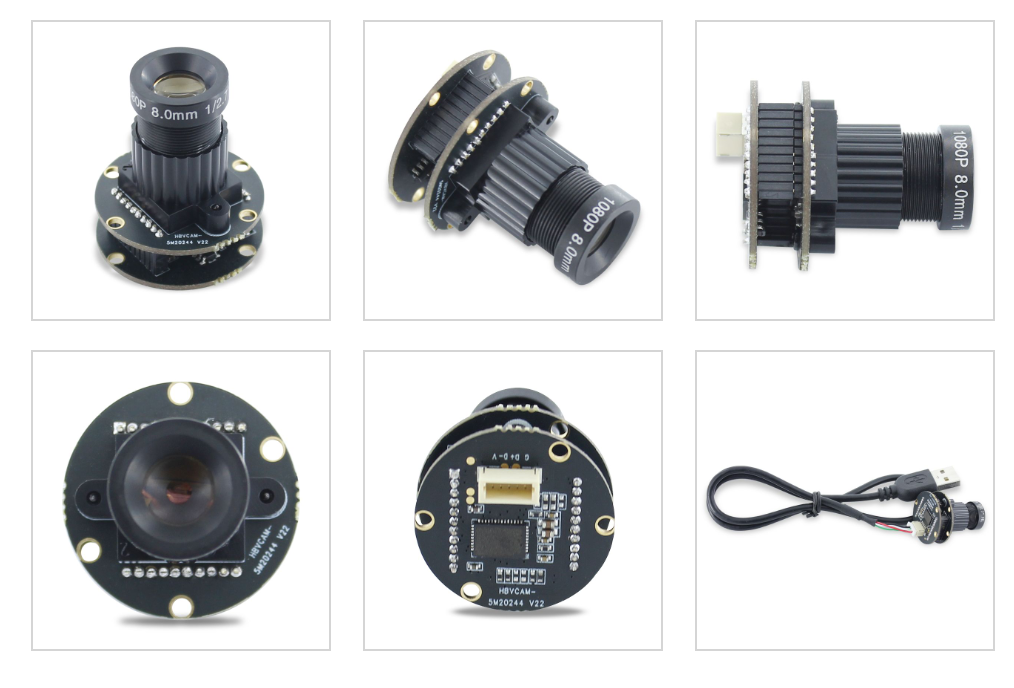

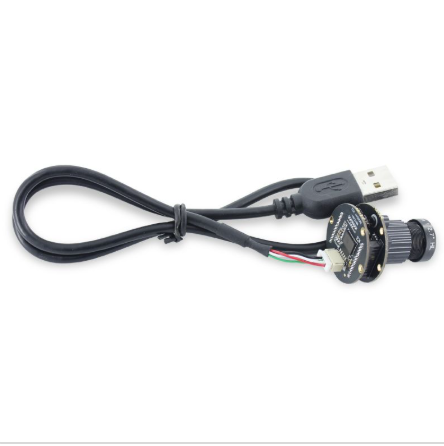

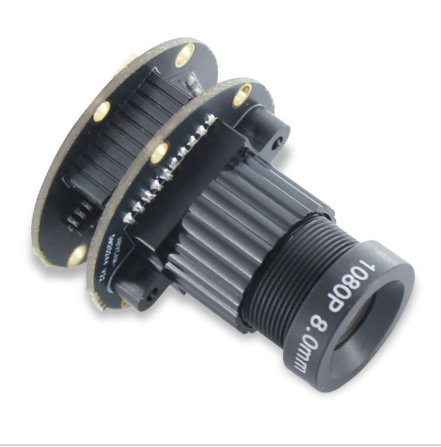

5Megapixel 2K Cylindrical Pipeline Industrial Equipment
*With 2560*1440 2K resolution 30fps
*The circular structure is mainly used for installation in circular large tubes, telescopes, etc
*Multiple lenses can be selected
*Large pixel 1/2.5 "
*Hardware wide dynamic 85db, backlight shooting
5Megapixel 2K Cylindrical Pipeline Industrial Equipment
*Size:F25MM Circle
*Sensor：PS5520(1/2.5'')
*Maximum Resolution：2592*1944 30fps
*Fov：110°
*Interface:USB2.0
*Focus:Fixed
*Output Formats:YUY2/MJPEG
*Supply voltage:DC 5V±5%
*Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
Module No. |
HBVCAM-5M20244 V11 |
|
Module Size |
Φ25 × 31mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
600 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
PS5520 (1/2.5” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
2592*1944 |
|
Sensitivity |
3300mV /（lux-sec） |
|
Pixel Size |
3.0µm x 3.0µm |
|
Maximum Image Transfer Rate |
MJPEG 1024x768 30FPS / YUY2 1024x768 10FPS MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 3FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 3FPS |
|
S/N Ratio |
39 db |
|
Max Dynamic Range |
85 db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
2G2P |
|
F/No |
F2.4 |
|
EFL |
8mm |
|
FOV |
53° |
|
TV Distortion |
<5% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
