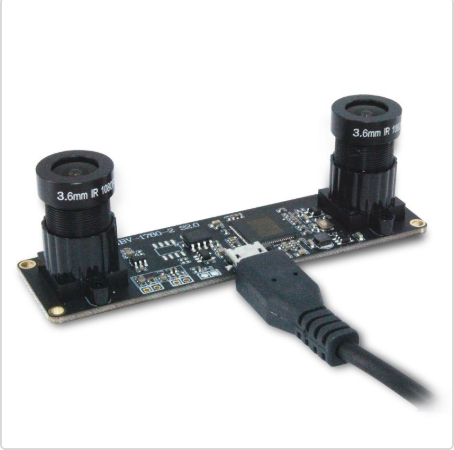

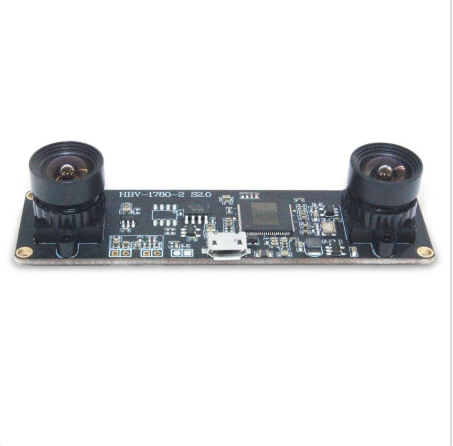

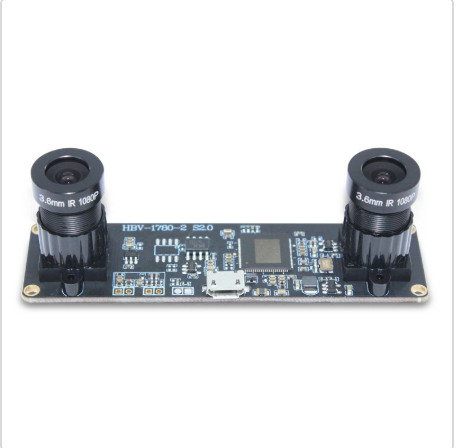

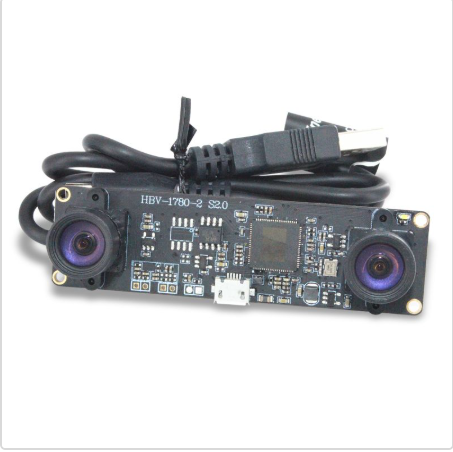

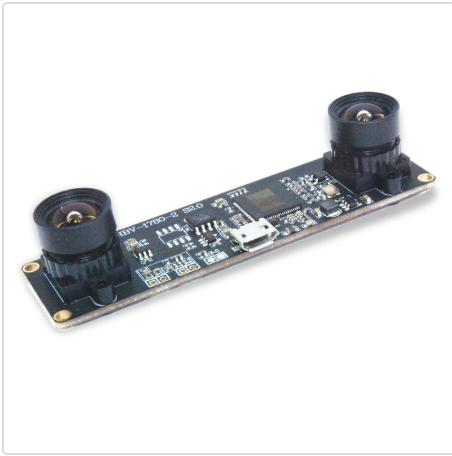

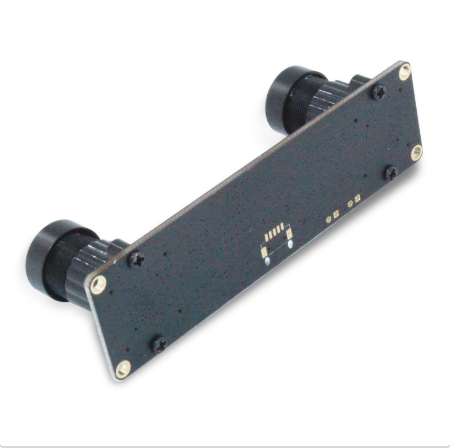

HBVCAM OV9732 1MP HD Face AR depth detection binocular synchronous camera module
1. Base Line: 60mm
2. 720P Synchronous Binocular Camera module
3. Support OTG function
4. Binocular Resolution: 640*240 / 1280*480 / 2560*720
Monocular Resolution : 320*240 / 640*480 / 1280*720

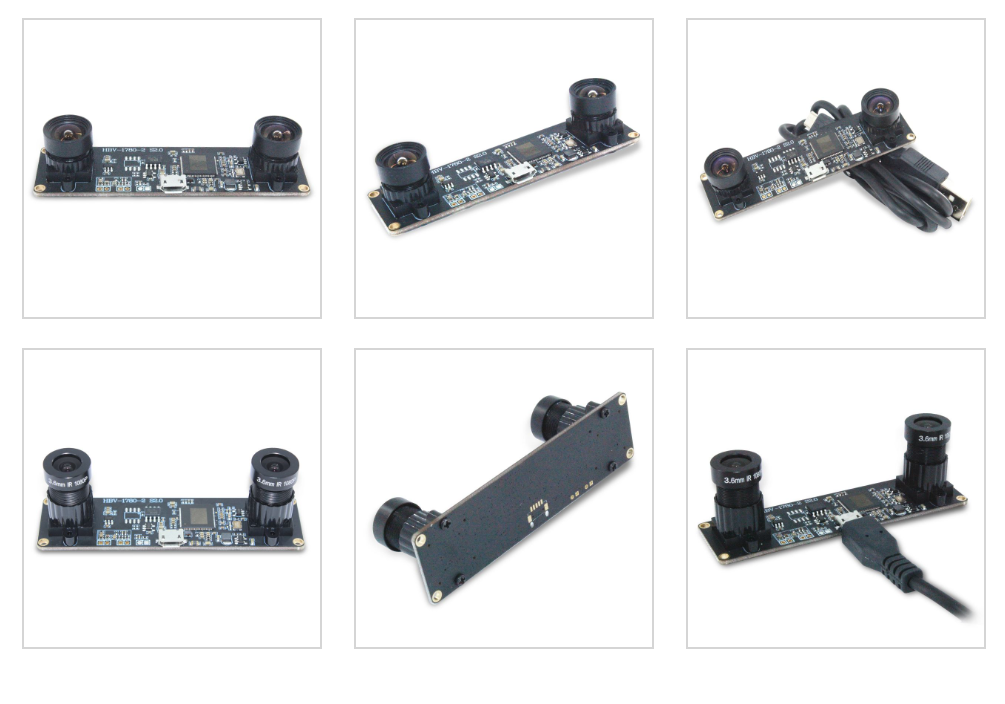

HBVCAM OV9732 1MP HD Face AR depth detection binocular synchronous camera module

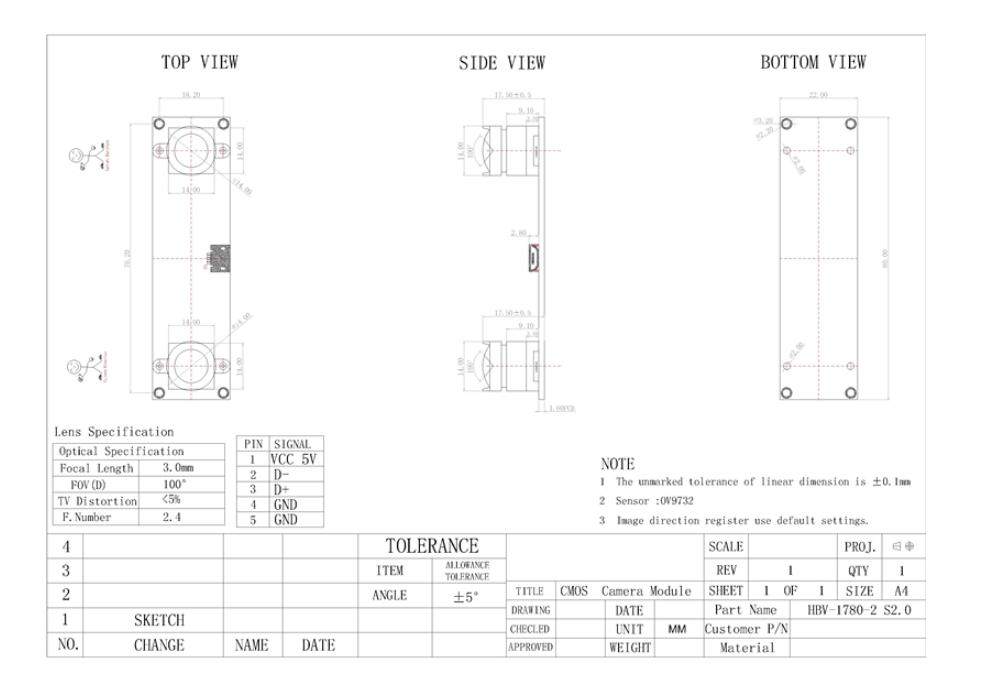

* Size:80mm × 22mm × 24.6mm±0.5MM (the two lens distance 60mm)
* Sensor：OV9732（1/4''）*2
* Maximum Resolution：2560*720 30fps
* Fov：72°（ Lens can be adjustable,different Lens,FOV different）
* Interface:USB2.0
* Focus:fixed
* Output Formats:YUY2/MJPEG
* Supply voltage:DC 5V±5%
* Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
Module No. |
HBV-1780-2 S2.0 |
|
Module Size |
80mm × 22mm × 17.5mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
850 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV9732 (1/4” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
2560*720 |
|
Sensitivity |
2066mV /（lux-sec） |
|
Pixel Size |
3µm x 3µm |
|
Maximum Image Transfer Rate |
MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x240 30FPS / YUY2 640x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x480 30FPS / YUY2 1280x480 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 2560x720 30FPS / YUY2 2560x720 5FPS |
|
S/N Ratio |
39db |
|
Max Dynamic Range |
72db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
2G2P |
|
F/No |
2.4 |
|
EFL |
3.0 mm |
|
FOV |
100° |
|
TV Distortion |
<5% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
