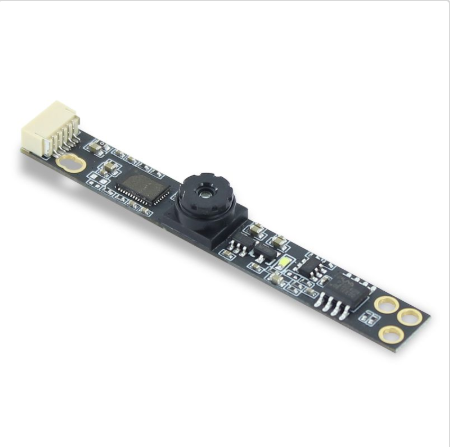

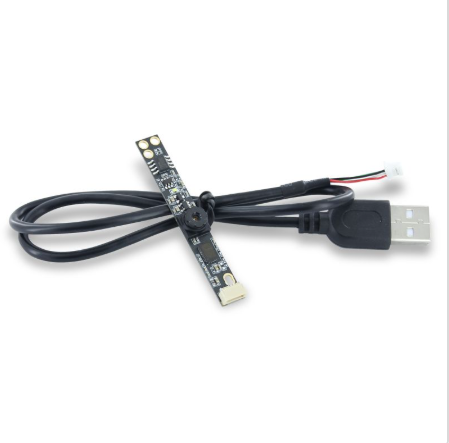

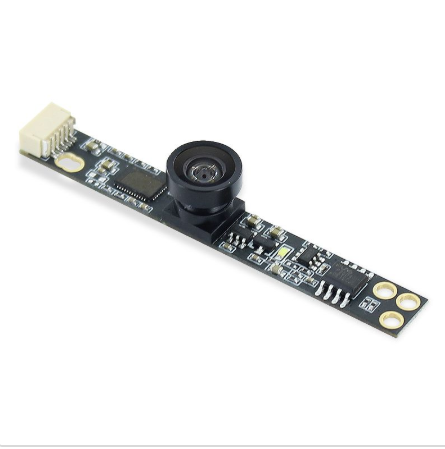

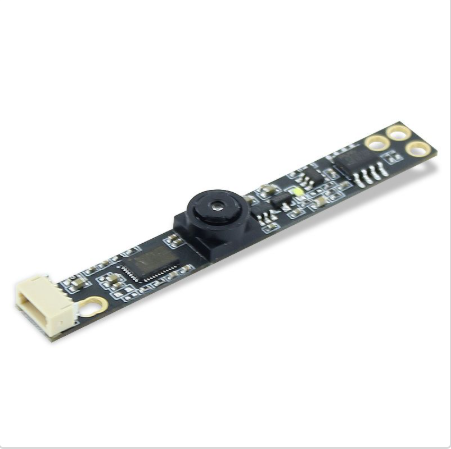

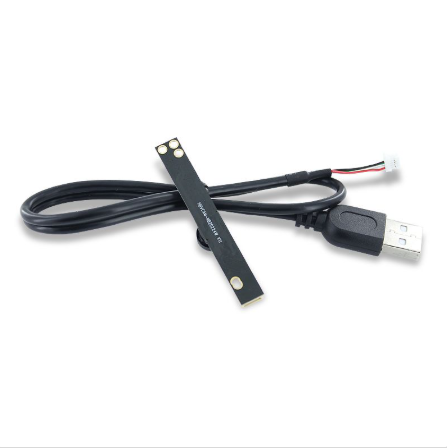

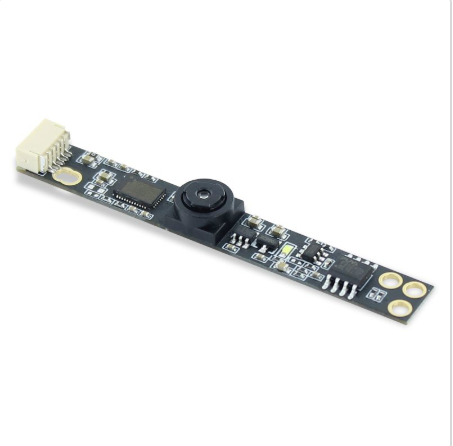

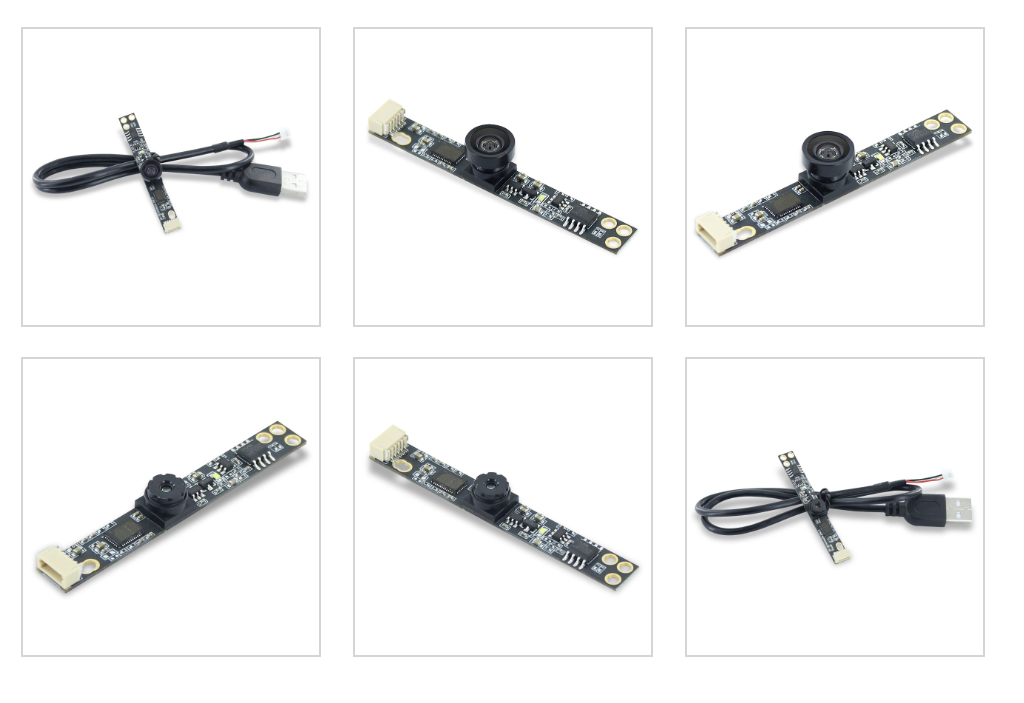

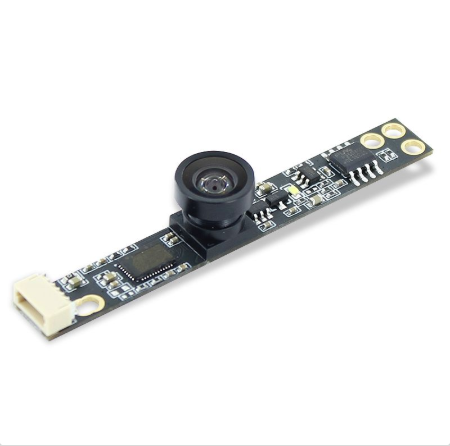

HBVCAM OV9732 1MP 720P Order Machine Camera Module

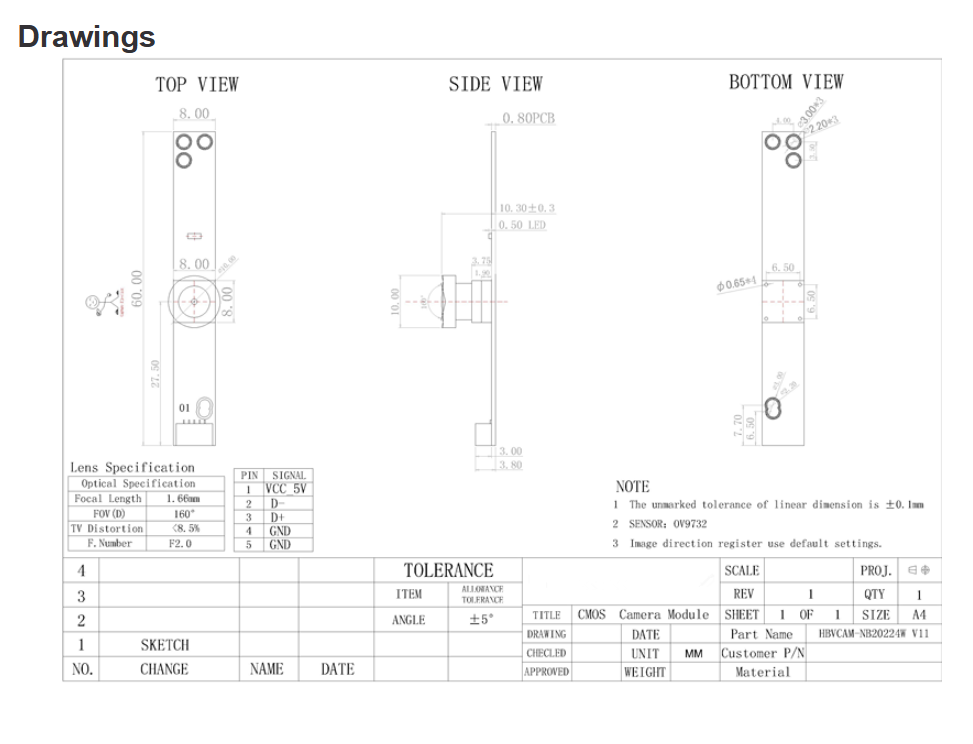

1. Structure and hole position of standard advertising machine
2. 720P HD usb2.0 Free Driver Camera Module
3.Support OTG function
HBVCAM OV9732 1MP 720P Order Machine Camera Module
* Size:60mm × 8mm × 6.2mm±0.5MM
* Sensor：OV9732(1/4'')
* Maximum Resolution：1280*720 30fps
* Fov：68.2°（ Lens can be adjustable,different Lens,FOV different）
* Interface:USB2.0
* Focus:fixed
* Output Formats:YUY2/MJPEG
* Supply voltage:DC 5V±5%
* Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
Module No. |
HBVCAM-NB20224W V11 |
|
Module Size |
60mm × 8mm × 10.3mm±0.3MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
400 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV9732 (1/4” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
1280*720 |
|
Sensitivity |
2066mv /（lux-sec） |
|
Pixel Size |
3µm x 3µm |
|
Maximum Image Transfer Rate |
MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS
|
|
S/N Ratio |
39 db |
|
Max Dynamic Range |
72 db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
2G2P |
|
F/No |
2.0 |
|
EFL |
1.66 mm |
|
FOV |
160° |
|
TV Distortion |
<8.5% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
