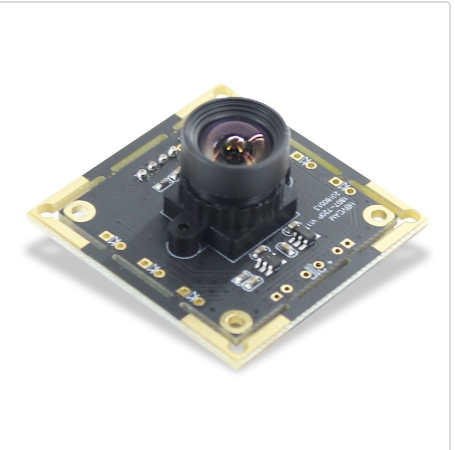

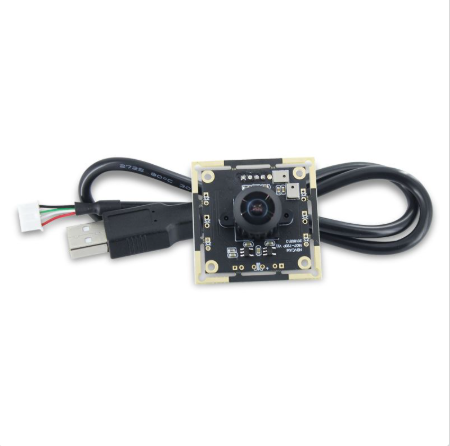

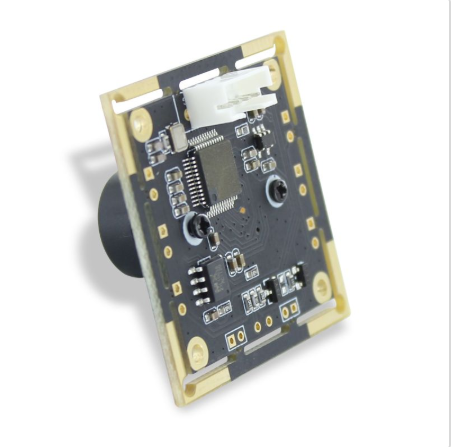

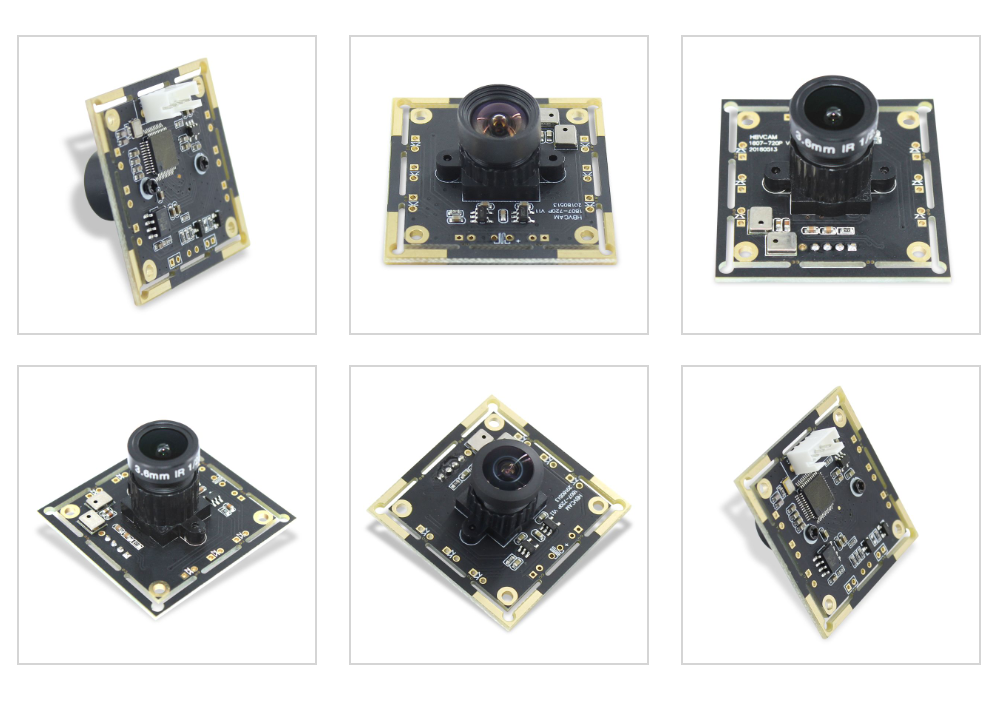

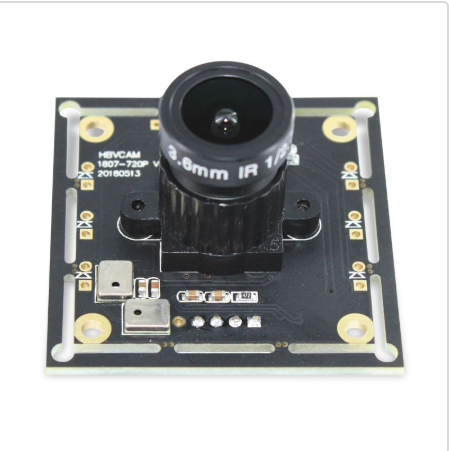

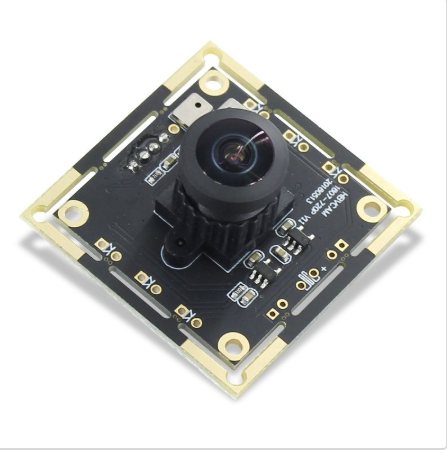

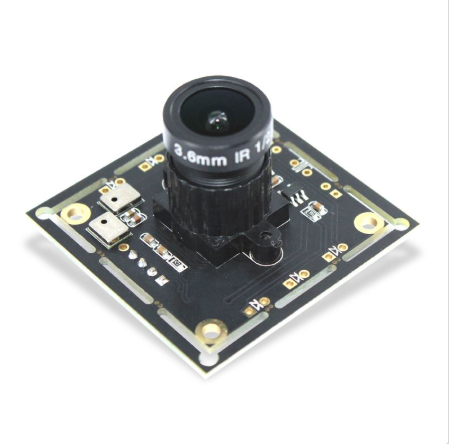

HBVCAM OV9732 1MP 720P HD USB Camera Module with OTG function
1. Standard industrial camera 38*38mm/32* 32mm structure
2. The effect of portrait and recognition is good
3. Multiple lens options
4.High cost effective
5. 6 plug-in lamps (infrared white light) can be added for welding, which can be made into an on/off diagram and can also be controlled by light sensitivity
6. Support OTG function for android phone
HBVCAM OV9732 1MP 720P HD USB Camera Module with OTG function

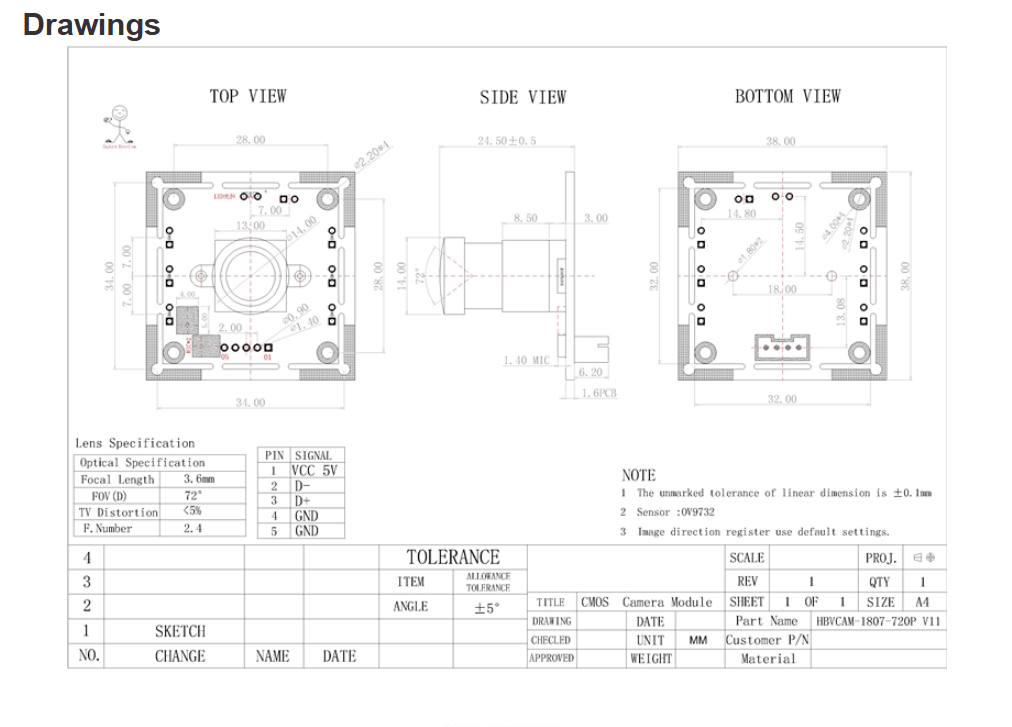

* Size :38mm × 38mm ×16mm±0.5MM
* Sensor：OV9732(1/4'')
* Maximum Resolution：1280*720 30fps
* Fov：72° （Lens can be adjustable,different Lens,FOV different)
* Interface:USB2.0
* Focus:fixed
* Output Formats:YUY2/MJPEG
* Supply voltage:DC 5V±5%
* Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
Module No. |
HBVCAM-1807-720P V11 |
|
Module Size |
38mm × 38mm × 24.5mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
450 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV9732 (1/4” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
1280*720 |
|
Sensitivity |
3300mV /（lux-sec） |
|
Pixel Size |
3µm x 3µm |
|
Maximum Image Transfer Rate |
MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 20FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS
|
|
S/N Ratio |
39db |
|
Max Dynamic Range |
72db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
Support |
|
Lens Construction |
2G2P |
|
F/No |
2.4 |
|
EFL |
3.6 mm |
|
FOV |
72° |
|
TV Distortion |
<5% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
