HBVCAM OV9726 720P HD OTG Free Driver PC webcam Camera module
1. Conventional standard 30X25mm structure has great versatility
2. 6 plug-in lamps (infrared white light) can be added for welding, which can be made into an on/off diagram and can also be controlled by light sensitivity
3. Optional lens
4. High cost effective
HBVCAM OV9726 720P HD OTG Free Driver PC webcam Camera module

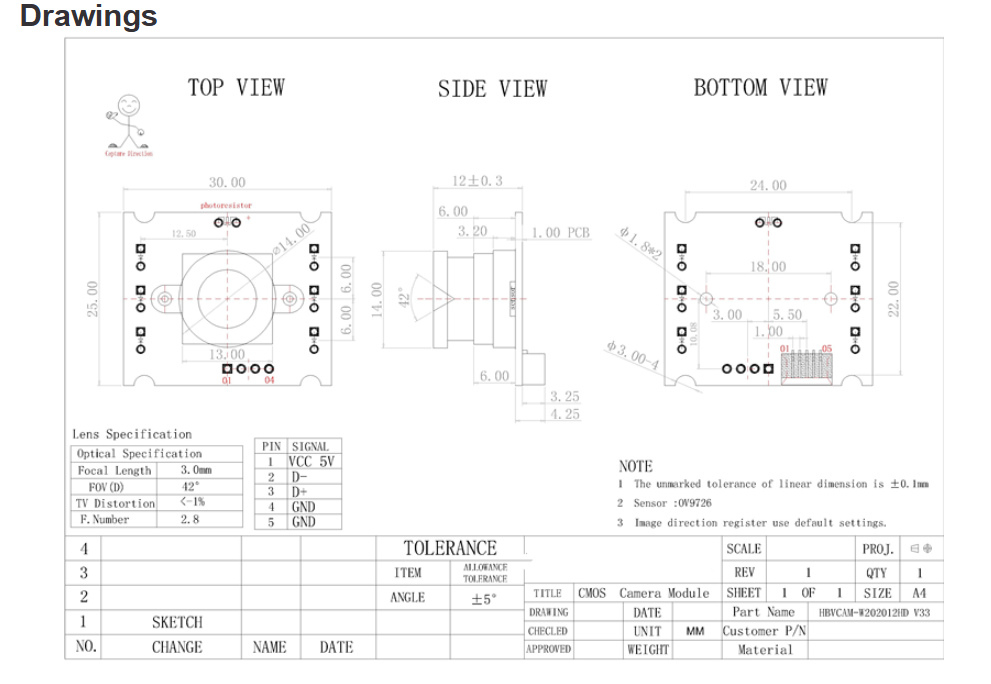

* Size :30mm × 25mm × 14mm±0.2MM
* Sensor：OV9726 (1/6.5” )
* Maximum Resolution：1280*800 30fps
* Fov：50° ( Lens can be adjustable,different Lens,FOV different)
* Interface:USB2.0
* Focus:fixed
* Output Formats:YUY2/MJPEG
* Supply voltage:DC 5V±5%
* Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
Module No. |
HBVCAM-W202012HD V33 |
|
Module Size |
30mm × 25mm × 12.0mm±0.3MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
650 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV9726 (1/6.5” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
1280*800 |
|
Sensitivity |
1300mV /（lux-sec） |
|
Pixel Size |
1.75µm x 1.75µm |
|
Maximum Image Transfer Rate |
MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS |
|
S/N Ratio |
36 db |
|
Max Dynamic Range |
70 db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
3P |
|
F/No |
2.8 |
|
EFL |
3.0 mm |
|

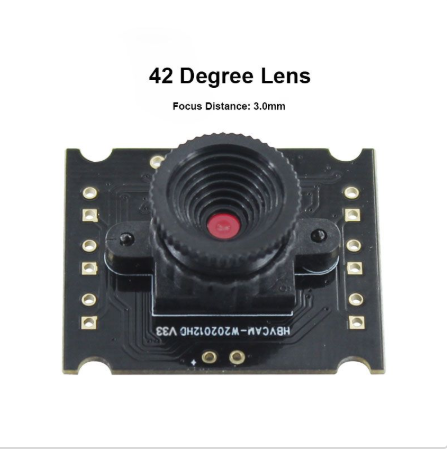

FOV |
42° |
|
TV Distortion |
<-1.0% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
