Module No.

HBVCAM-NB20231W V11

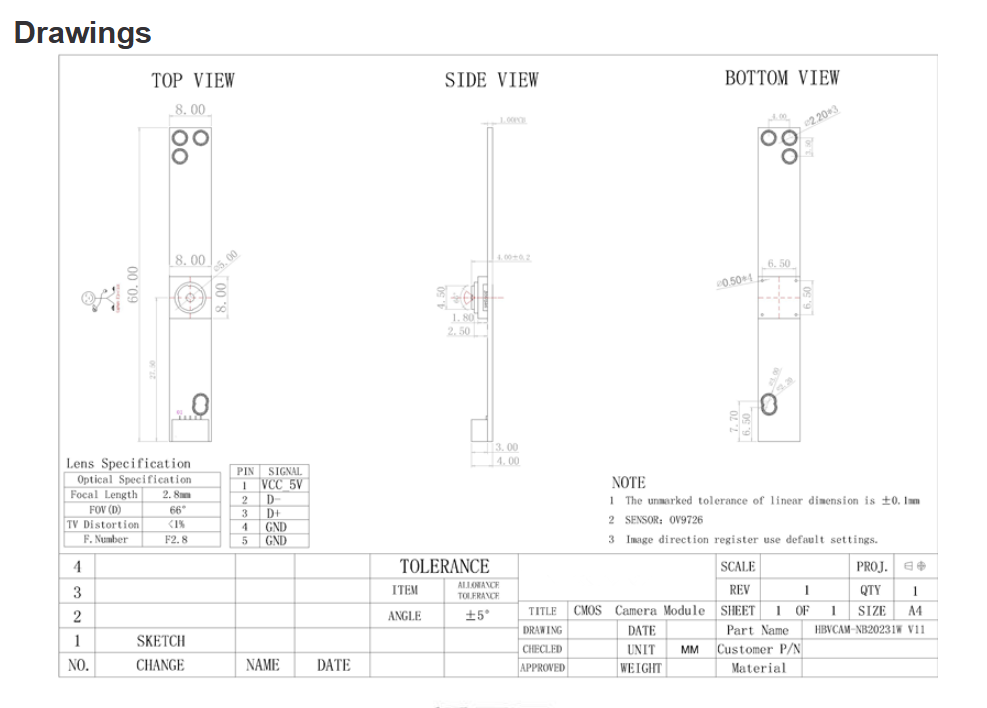

Module Size

60mm × 8mm × 4.0mm±0.2MM

Temperature (Operation)

-30°C to 70°C

Temperature (Stable Image)

0°C to 50°C

Assembly technique

SMT (ROSH)

Focus

Fixed

Object distance

30CM-infinity

Resolution

600LW/PH (Center)

PCB printing ink

Black

interface

USB 2.0

Power suuply

USB bus power

supply voltage

DC 5V±5%

Maximum Power consumption

640 mW

Operating system request

Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc

Sensor

OV9726 (1/6.5” )

Seneor Package

CSP,Bare Die

Maximum resolution

1280*800

Sensitivity

1300mV /（lux-sec）

Pixel Size

1.75µm x 1.75µm

Maximum Image Transfer Rate

MJPEG 320x240   30FPS /  YUY2 320x240  30FPS

MJPEG 640x360   30FPS /  YUY2 640x360  30FPS

MJPEG 640x480   30FPS /  YUY2 640x480  30FPS

MJPEG 800x600   30FPS /  YUY2 800x600  15FPS

MJPEG 1280x720  30FPS /  YUY2 1280x720 10FPS

MJPEG 1280x800  30FPS /  YUY2 1280x800 10FPS

S/N Ratio

36 db

Max Dynamic Range

70 db

Shutter type

Electronic rolling shutter

AGC/AEC/Whiter balance

Auto

Output Formats

YUY2/MJPEG

Microphone

NO

Lens Construction

3P

F/No

2.8

EFL

2.8 mm

FOV

66°

TV Distortion

<1.0%

Relative Illumination (Sensor)

70%

IR Filter

650±10nm

Module Package

Anti-electrostatic tray

Certifications

FCC/CE/ROSH
