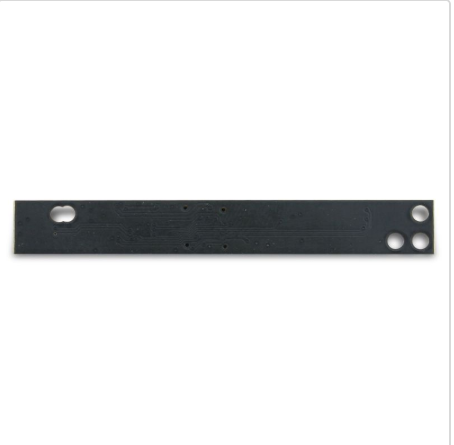

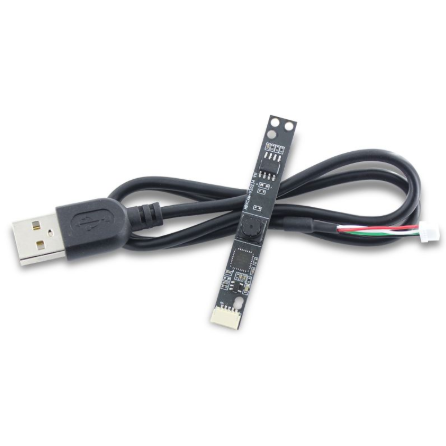

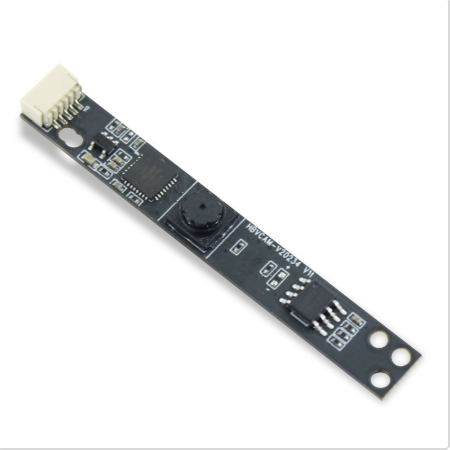

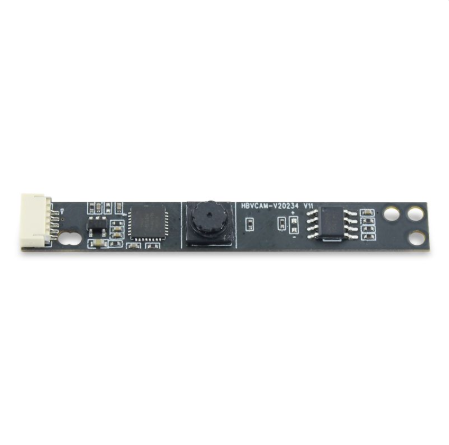

SANSETECH OV7675 0.3M Pixel USB CMOS Camera Module for advertising Machine

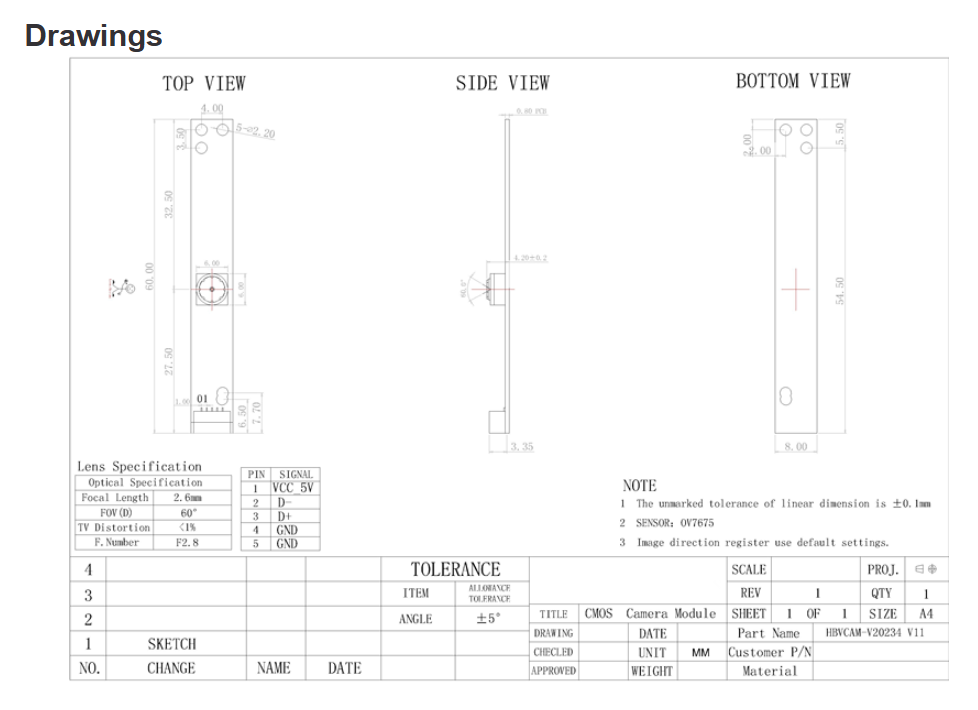

1. Structure and hole position of standard advertising machine
2. High cost effective
HBVCAM OV7675 0.3M Pixel USB CMOS Camera Module for advertising Machine
* Size :60mm × 8mm × 4.2mm±0.2MM
* Sensor：OV7675(1/9'')
* Maximum Resolution ：640*480 30fps
* Fov：60° （Lens can be adjustable,different Lens,FOV different)
* Interface:USB2.0
* Focus:fixed
* Output Formats:YUY2
* Supply voltage:DC 5V±5%
* Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
Specifications
Specifications
|
Module No. |
HBVCAM-V20234 V11 |
|
Module Size |
60mm × 8mm × 4.2mm±0.2MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
250mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV7675 (1/9” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
640*480 |
|
Sensitivity |
1800mV /（lux-sec） |
|
Pixel Size |
2.5µm x 2.5µm |
|
Maximum Image Transfer Rate |
YUY2 160x120 30FPS YUY2 176x144 30FPS YUY2 320x240 30FPS YUY2 352x288 30FPS YUY2 640x480 30FPS
|
|
S/N Ratio |
38 db |
|
Max Dynamic Range |
71 db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2 |
|
Microphone |
NO |
|
Lens Construction |
2P |
|
F/No |
2.8 |
|
EFL |
2.6mm |
|
FOV |
60° |
|
TV Distortion |
<1% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
