5M Pixle MINI CMOS Camera Module
*Small and flexible structure
*The head can be customized in structure, size, length, etc
*the camera can connected with telephone with OTG cable

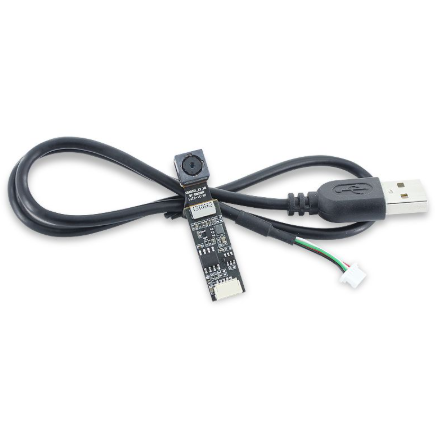

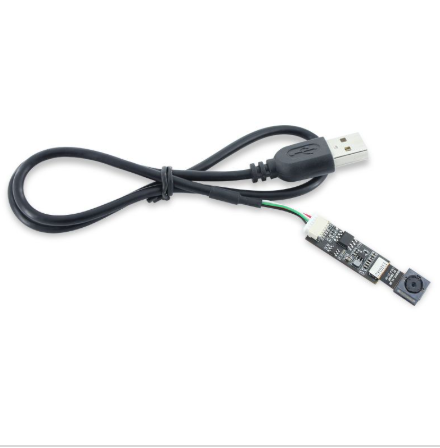

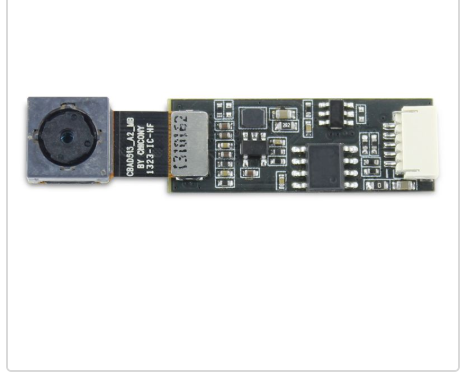

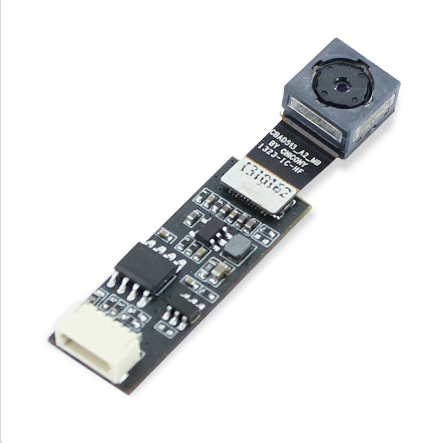

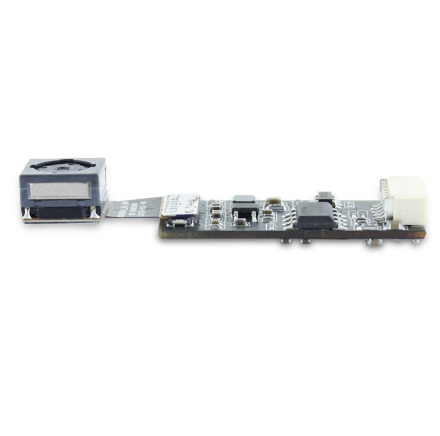

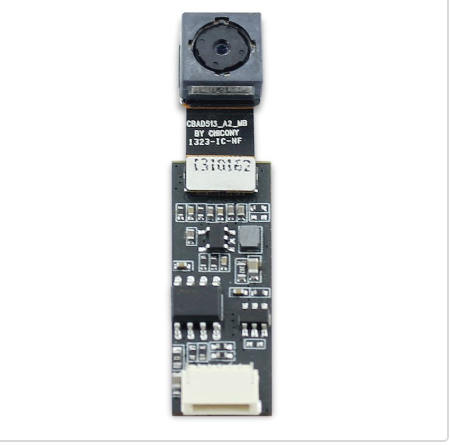

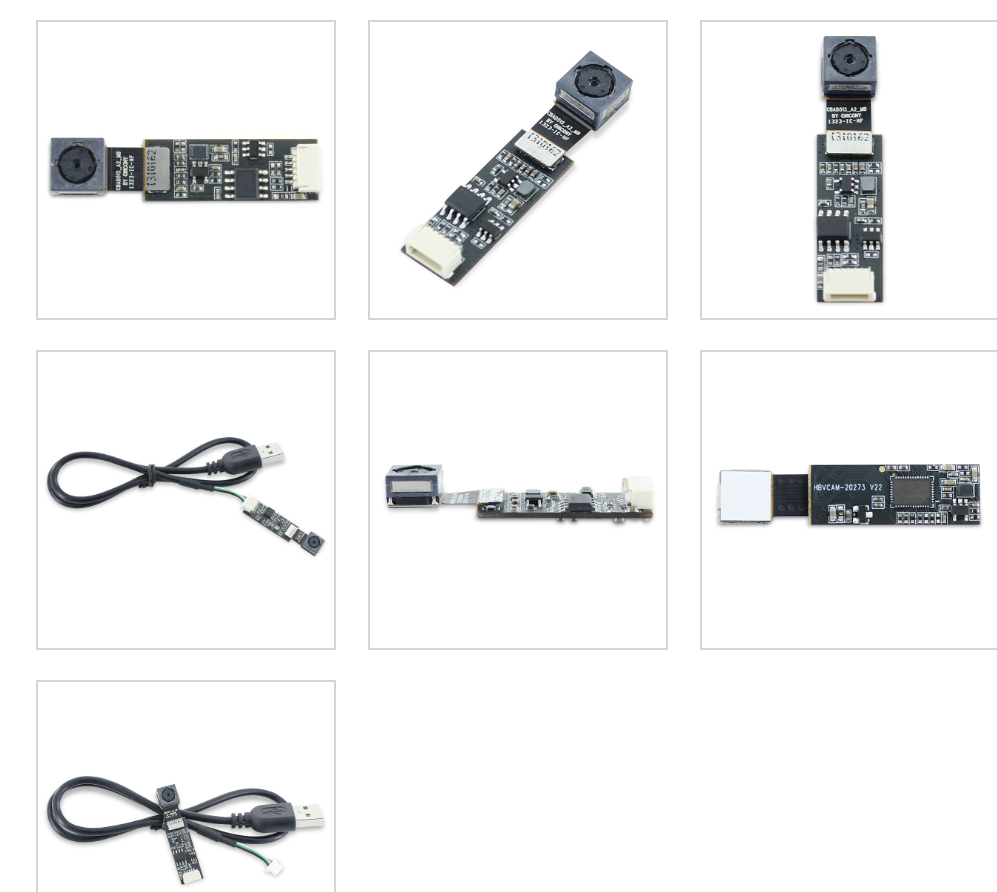

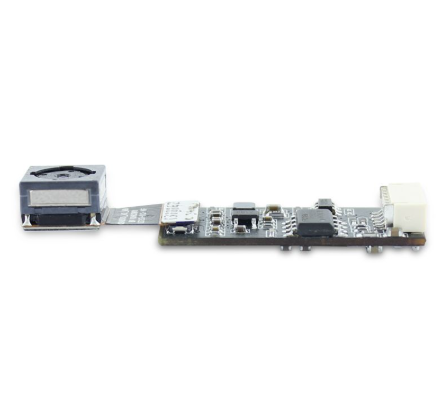

HBVCAM OV5648 5MP Small and flexible structure Camera Module
*Size:43*10*5.5±0.2 MM
*Sensor：OV5648(1/4'')
*Maximum Resolution：2592*1944 15fps
*Fov：65.4°
*Interface:USB2.0
*Focus:Auto
*Output Formats:YUY2/MJPEG
*Supply voltage:DC 5V±5%
*Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
Module No. |
HBVCAM-5M20273 V22 |
|
Module Size |
42.25mm × 10mm × 5.0mm±0.2MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Auto |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
1000 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV5648 (1/4” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
2592*1944 |
|
Sensitivity |
600mV /（lux-sec） |
|
Pixel Size |
1.4µm x 1.4µm |
|
Maximum Image Transfer Rate |
MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 2FPS
|
|
S/N Ratio |
34db |
|
Max Dynamic Range |
67db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
4P+IR |
|
F/No |
2.8 |
|
EFL |
3.1 mm |
|
FOV |
65.4° |
|
TV Distortion |
<1.0% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
