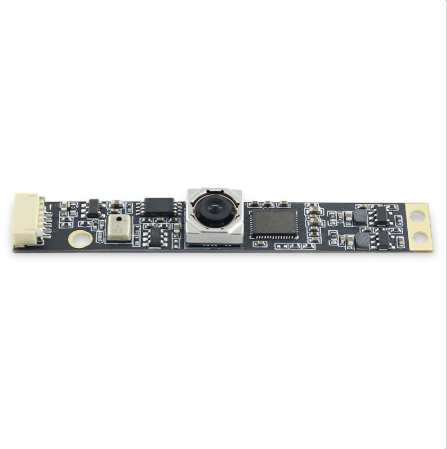

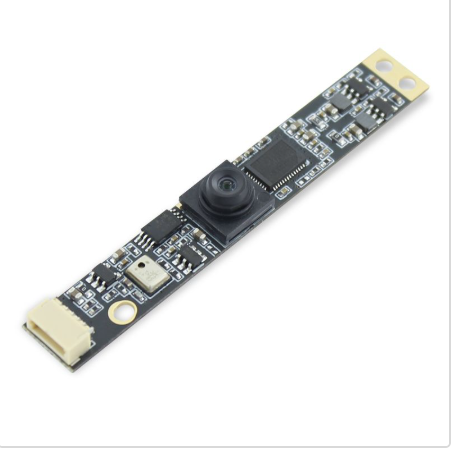

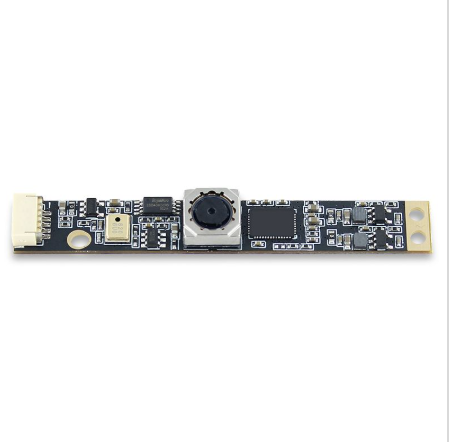

HBVCAM OV5647 5MP Auto Focus Camera Module for Kiosk Machine
1. Standard Structure and hole position of advertising machine
2. With 2k resolution
3. Integrated digital microphone
4. Focusing algorithm is more sensitive and accurate, with better effect, compared with no flash LED light
5. Multiple lenses can be selected
HBVCAM OV5647 5MP Auto Focus Camera Module for Kiosk Machine

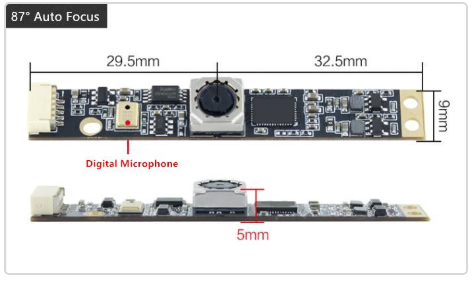

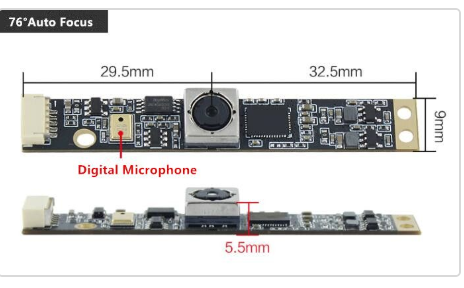

*Size:62*9* MM
*Sensor：OV5647(1/4'')
*Maximum Resolution：2592*1944 mjpeg 15FPS
*Fov：120°
*Interface:USB2.0
*Focus: atuo
*Output Formats:YUY2/MJPEG
*Supply voltage:DC 5V±5%
*Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
Module No. |

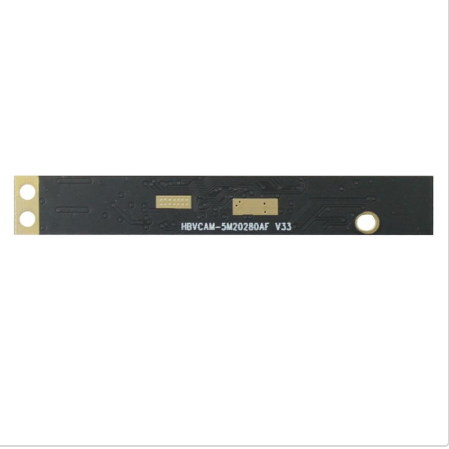

HBVCAM-5M20280AF V33 |
|
Module Size |
62mm × 9mm × 6.0mm±0.2MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
500 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV5647 (1/4” ) |
|
Seneor Package |
PLCC,Bare Die |
|
Maximum resolution |
2592*1944 |
|
Sensitivity |
600mV /（lux-sec） |
|
Pixel Size |
1.4µm x 1.4µm |
|
Maximum Image Transfer Rate |
MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS
|
|
S/N Ratio |
34db |
|
Max Dynamic Range |
67db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
Support |
|
Lens Construction |
4P |
|
F/No |
2.2 |
|
EFL |
1.6 mm |
|
FOV |
120° |
|
TV Distortion |
<12.5% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
