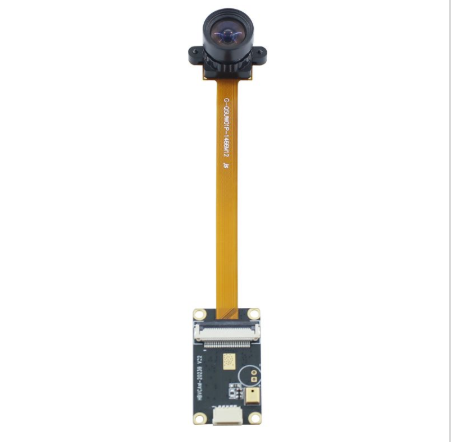

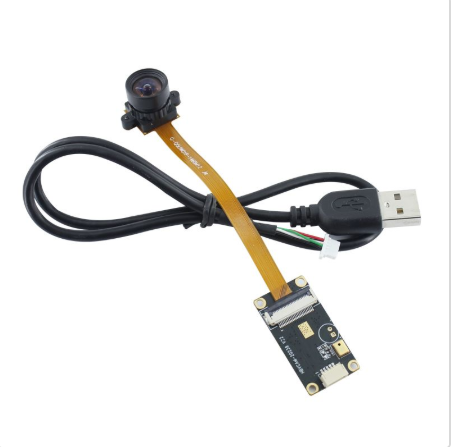

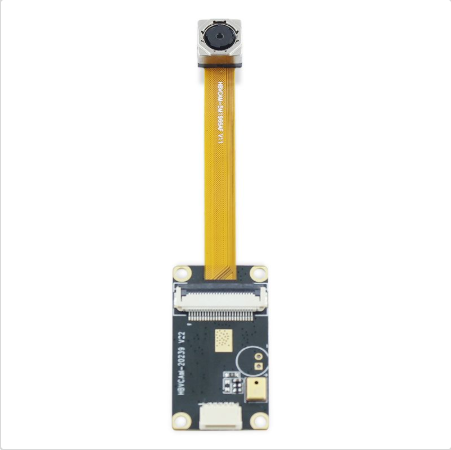

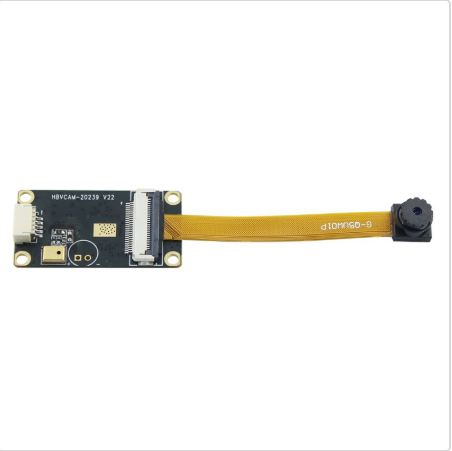

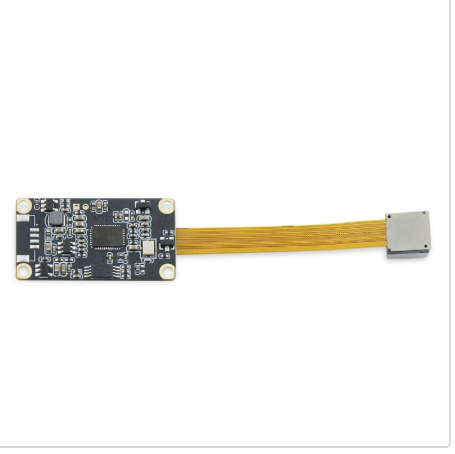

HBVCAM OV5640 5MP FPC PCB camera module with different FOV lens
*FPC+PCB Flexible structure with small size
*Fixed Focus and Auto Focus can be choosed
*The length of FPC can be customized as your requirement

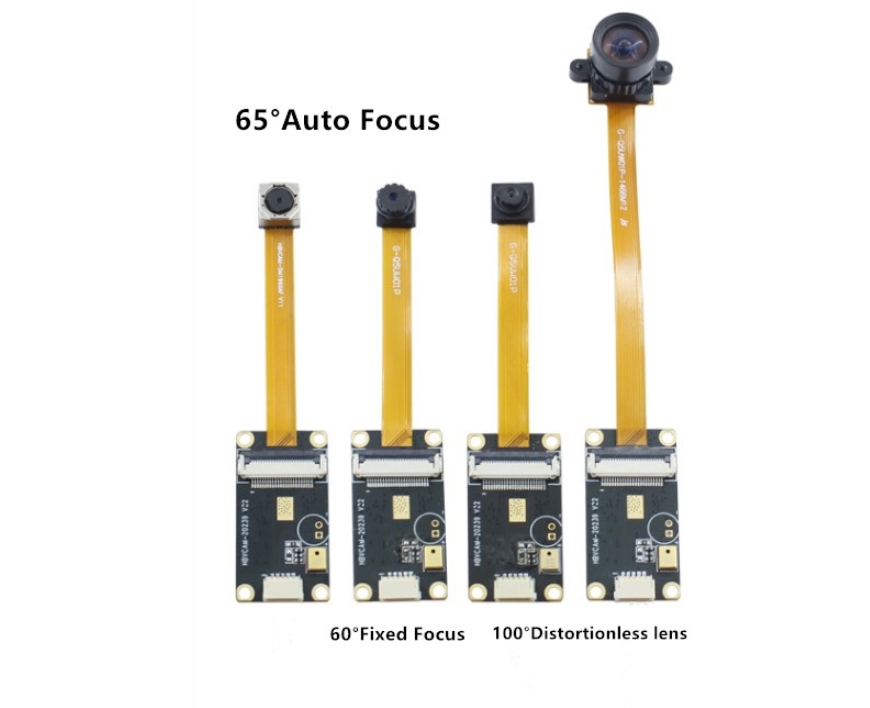

*Several specifications of lens are available
*The power consumption is lower and it will not become red due to heating
HBVCAM OV5640 5MP FPC PCB camera module with different FOV lens
*Size:175.8*18*5±0.2 MM
*Sensor：OV5640(1/4'')
*Maximum Resolution：2592*1944 15fps
*Fov：65°
*Interface:USB2.0
*Focus: Auto
*Output Formats:YUY2/MJPEG
*Supply voltage:DC 5V±5%
*Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
Module No. |
HBVCAM-20239 V22 |
|
Module Size |
85.8mm × 18mm × 4.8mm±0.2MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
920 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV5640 (1/4” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
2592*1944 |
|
Sensitivity |
600mV /（lux-sec） |
|
Pixel Size |
1.4µm x 1.4µm |
|
Maximum Image Transfer Rate |
MJPEG 1280x720 30FPS / YUY2 1280x720 15FPS MJPEG 1600x1200 30FPS / YUY2 1600x1200 15FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 6FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 2FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 2FPS |
|
S/N Ratio |
36db |
|
Max Dynamic Range |
68db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
Support |
|
Lens Construction |
4P |
|
F/No |
2.0 |
|
EFL |
2.6 mm |
|
FOV |
100° |
|
TV Distortion |
<1% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
