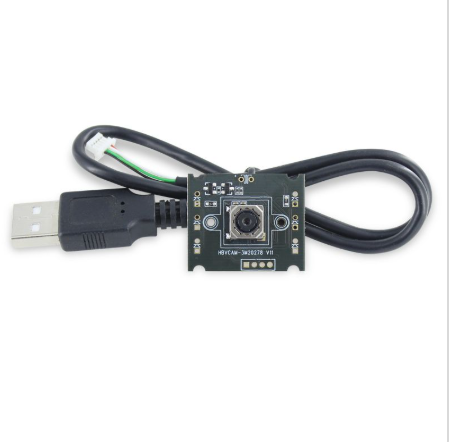

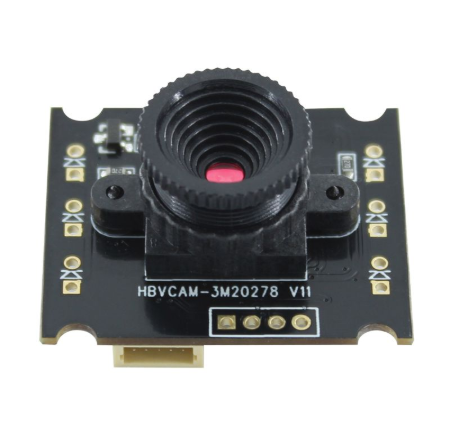

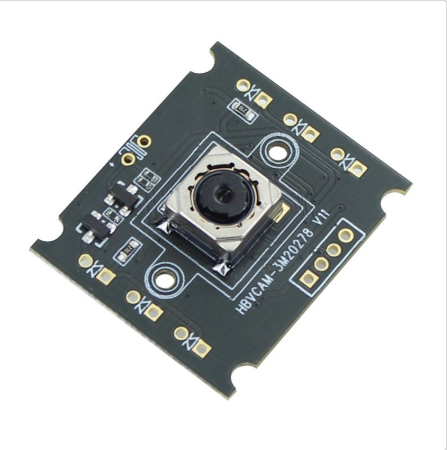

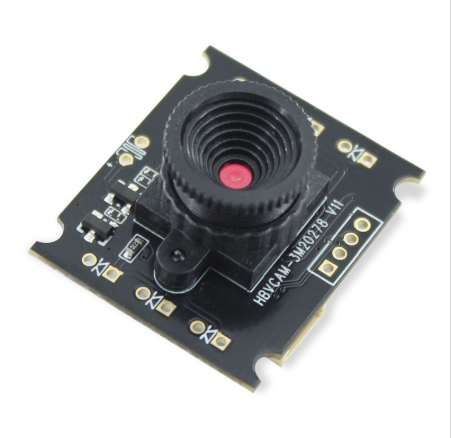

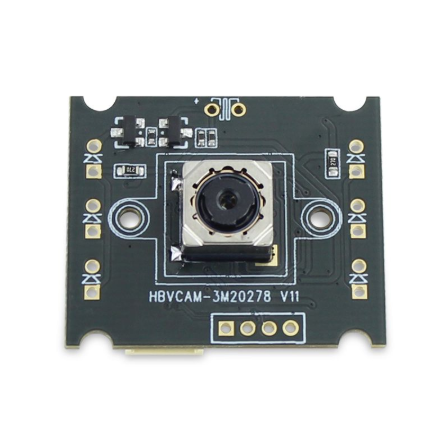

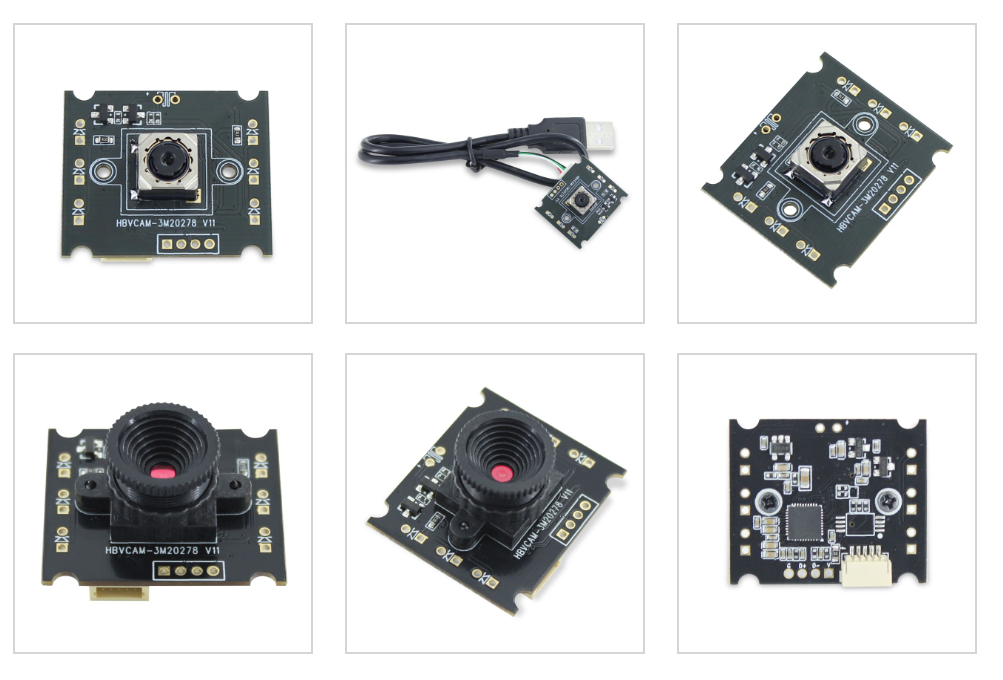

HBVCAM OV3640 3MP Auto Focus Fixed Focus Android Linux Camera Module with Free Driver
1. 30*25MM structure is available for many euqipment
2. it can be used as PC camera
3. Good quanlity and good price
HBVCAM OV3640 3MP Auto Focus Fixed Focus Android Linux Camera Module with Free Driver
* Size:30*25*6.8±0.3 MM
* Sensor：OV3640(1/4'')
* Maximum Resolution：2048*1536 15fps
1920*1080 20FPS
* Fov:64° （ Lens can be adjustable,different Lens,FOV different）
* Interface:USB2.0
* Focus:fixed
* Output Formats:YUY2/MJPEG
* Supply voltage:DC 5V±5%
* Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
Module No. |
HBVCAM-3M20278 V11 |
|
Module Size |
30mm × 25mm × 12.0mm±0.3MM |
|
Temperature (Operation) |
-20°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
750mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV3640 (1/4” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
2048*1536 |
|
Sensitivity |
670mV /（lux-sec） |
|
Pixel Size |
1.4µm x 1.4µm |
|
Maximum Image Transfer Rate |
MJPEG 320x240 15FPS / YUY2 320x240 17FPS MJPEG 352x288 15FPS / YUY2 352x288 17FPS MJPEG 640x480 15FPS / YUY2 640x480 17FPS MJPEG 1280x1204 5FPS / YUY2 1280X1204 3FPS MJPEG 1600x1200 5FPS / YUY2 1600X1200 3FPS MJPEG 2048x1536 5FPS / YUY2 2048x1536 3FPS |
|
S/N Ratio |
34 db |
|
Max Dynamic Range |
70 db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
4P |
|
F/No |
2.8 |
|
EFL |
2.8 mm |
|
FOV |
62° |
|
TV Distortion |
<1% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
