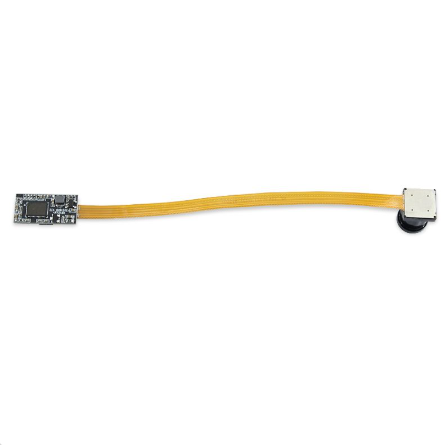

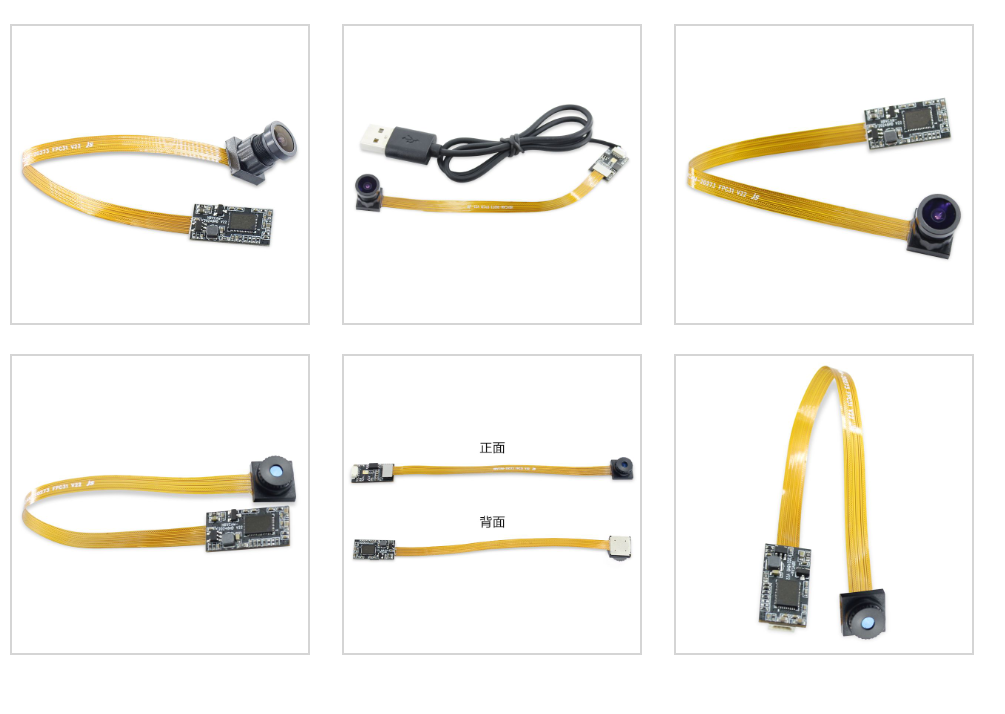

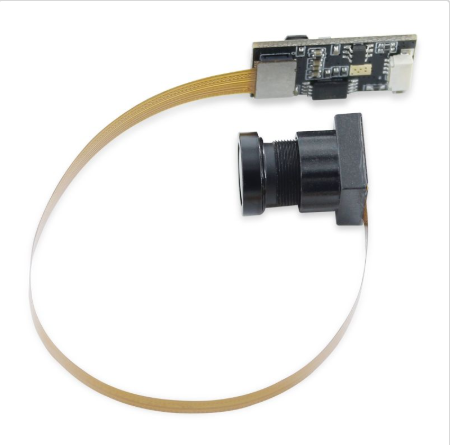

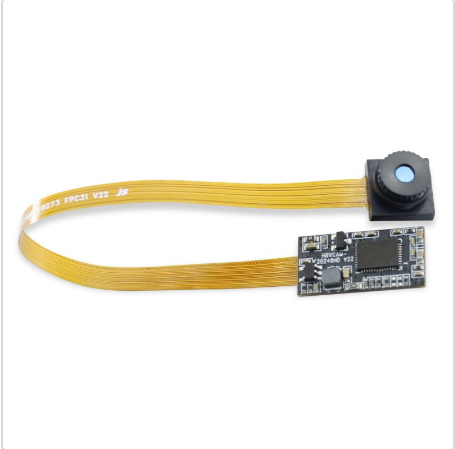

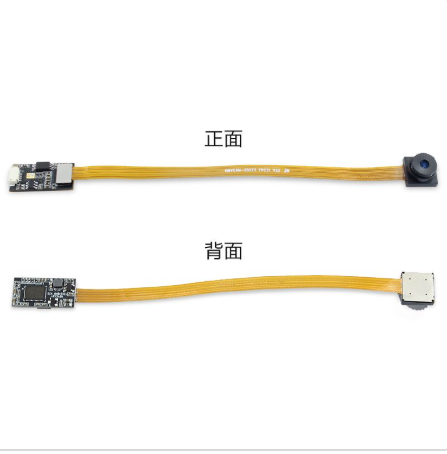

HBVCAM OV2735 1080P 30FPS Mini camera module with flexibility structure
*Soft and hard board split flexible structure and mini size
*Large image pixel is large with HD effect
*30/60 frames can be selected
*The head can be made 9X9mm/10X10mm
*Several specifications of lens are available
HBVCAM OV2735 1080P 30FPS Mini camera module with flexibility structure
OV2735 is a high sensitivity 1080p HD 0mnipixel3 hs sensor suitable for mainstream security applications. It is also a high-performance image sensor, which brings 1080p HD video capture to mainstream security and surveillance cameras. OV2735 provides technical advantages, supports low power consumption mode, stable image quality in the operating temperature range of 0 ° to 60 ° C, and significantly reduces power consumption. Therefore, 0V2735 provides a simple upgraded camera solution for security and surveillance camera OEMs, using the popular 1/2.7 inch optical format
0V2735 is based on Omnivision's proven 0-pixel 3HS pixel technology, capturing full-resolution 1080pHD video at 30 frames per second (fps) and 720p video at 60 frames per second. 0V2735 also provides a compact and energy-saving package for MIPL parallel support and frame synchronization
*PC board Size:20*10*14.6±0.3MM
*Sensor：OV2735(1/2.7'')
*Maximum Resolution：1920*1080 MJPEG 30/60FPS
*Fov：160°

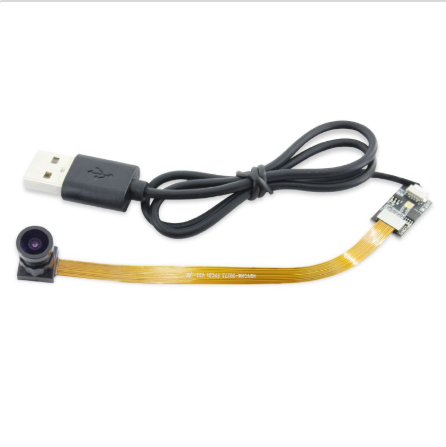

*Interface:USB2.0
*Focus:Fixed
*Output Formats:YUY2/MJPEG
*Supply voltage:DC 5V±5%
*Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
Module No. |
HBVCAM-F20248HD V22 |
|

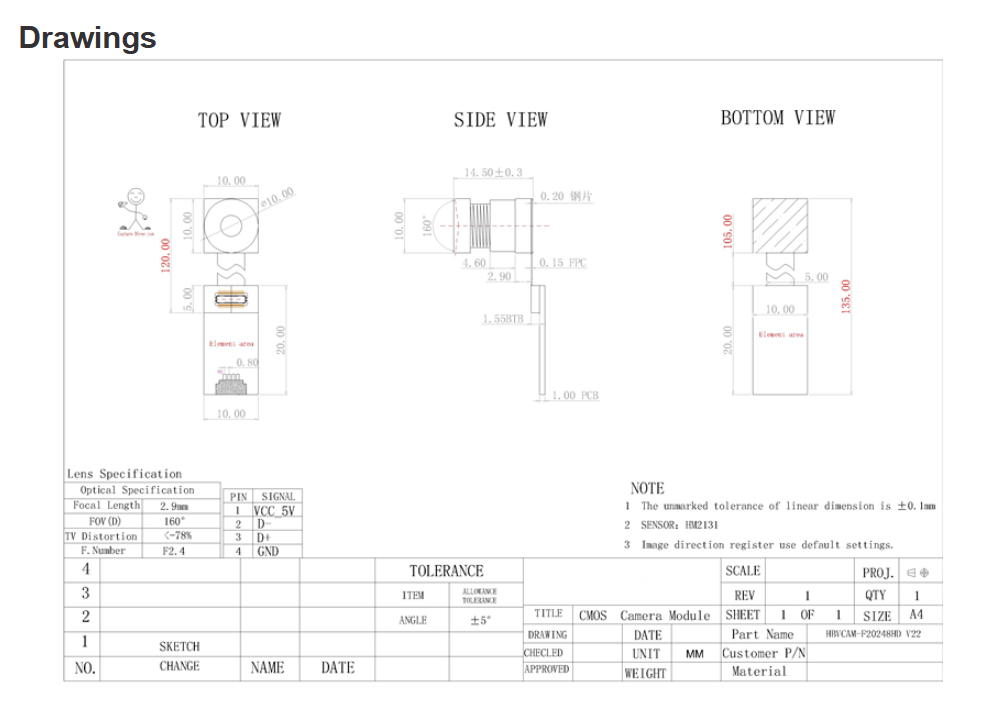

Module Size |
135mm × 10mm × 14.5mm±0.3MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
400mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
HM2131 (1/2.7” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
1920*1080 |
|
Sensitivity |
4600mv /（lux-sec） |
|
Pixel Size |
3µm x 3µm |
|

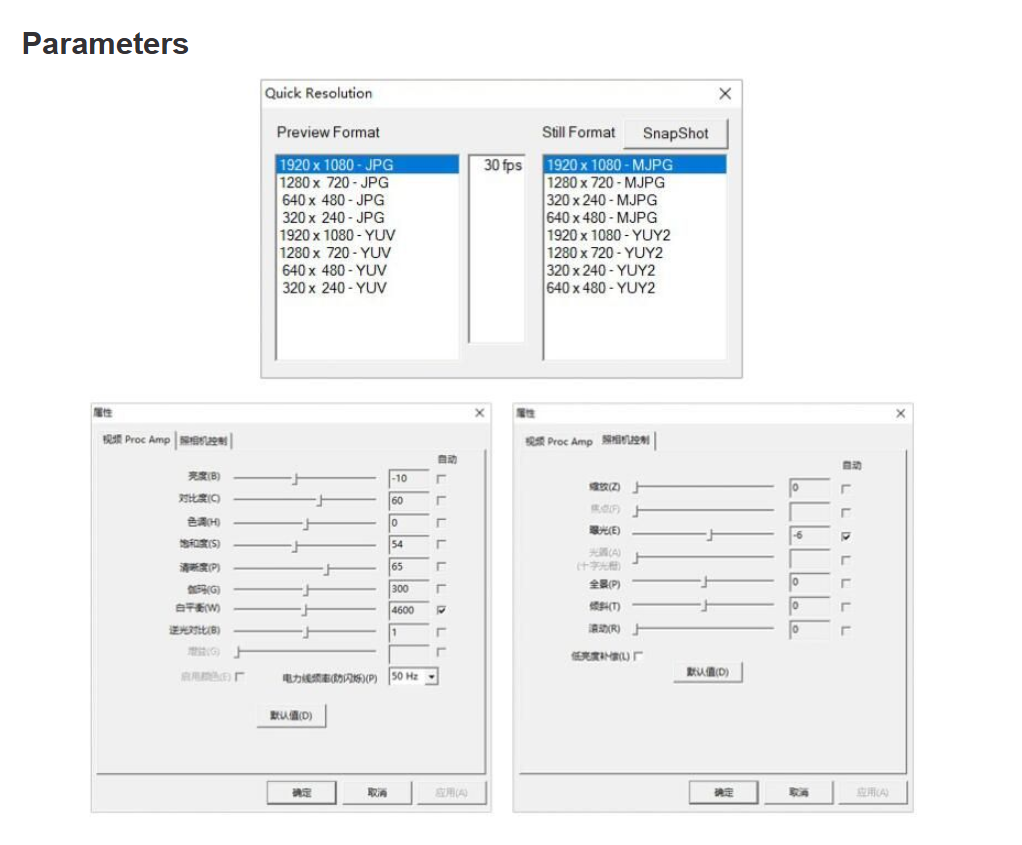

Maximum Image Transfer Rate |
MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
|
|
S/N Ratio |
38.9 db |
|
Max Dynamic Range |
62 db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
5G |
|
F/No |
2.4 |
|
EFL |
2.9mm |
|
FOV |
160° |
|
TV Distortion |
<-78% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
