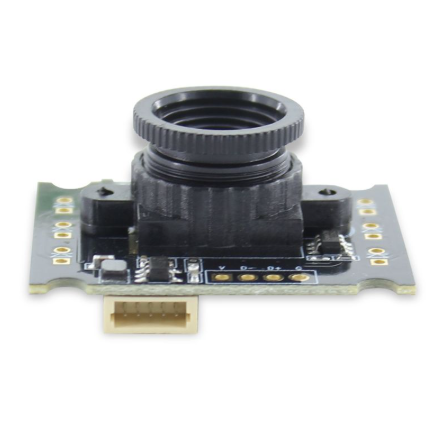

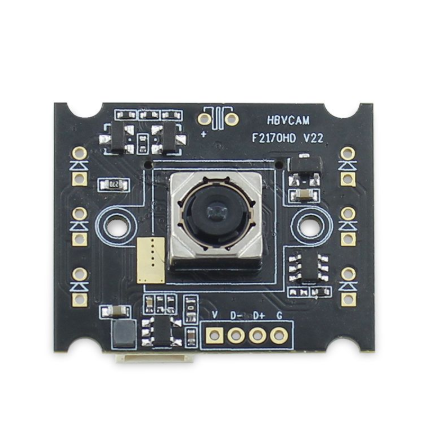

HBVCAM OV2720 2MP 1080P Auto Focus Camera Module For Industrial Equipment
1. Conventional standard 30X25mm structure has great versatility
2. 6 plug-in lamps (infrared white light) can be added for welding, which can be made into an on/off diagram and can also be controlled by light sensitivity
3. Several parameter lenses are optional
4. High Cost-effective

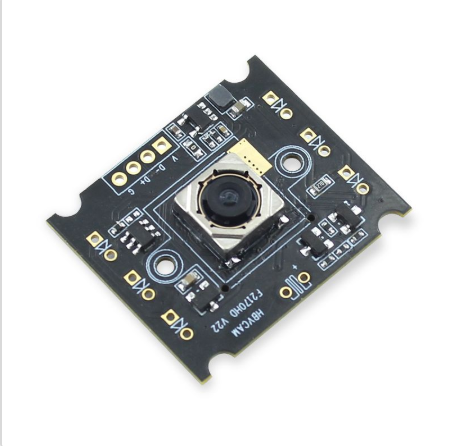

5. AF autofocus
HBVCAM OV2720 2MP 1080P Auto Focus Camera Module For Industrial Equipment
* 2MP CMOS Camera Module

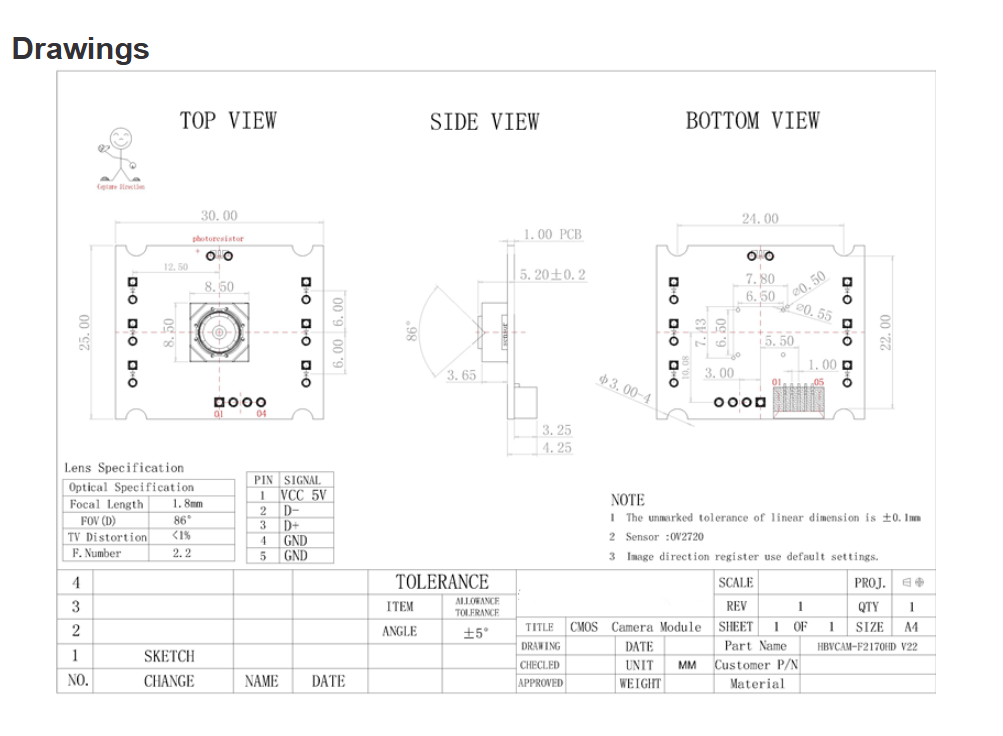

* Size:30mm × 25mm × 5.3 mm±0.2MM
* Sensor：OV2720(1/5.8'')
* Maximum Resolution：1920*1080 MJPEG 30FPS

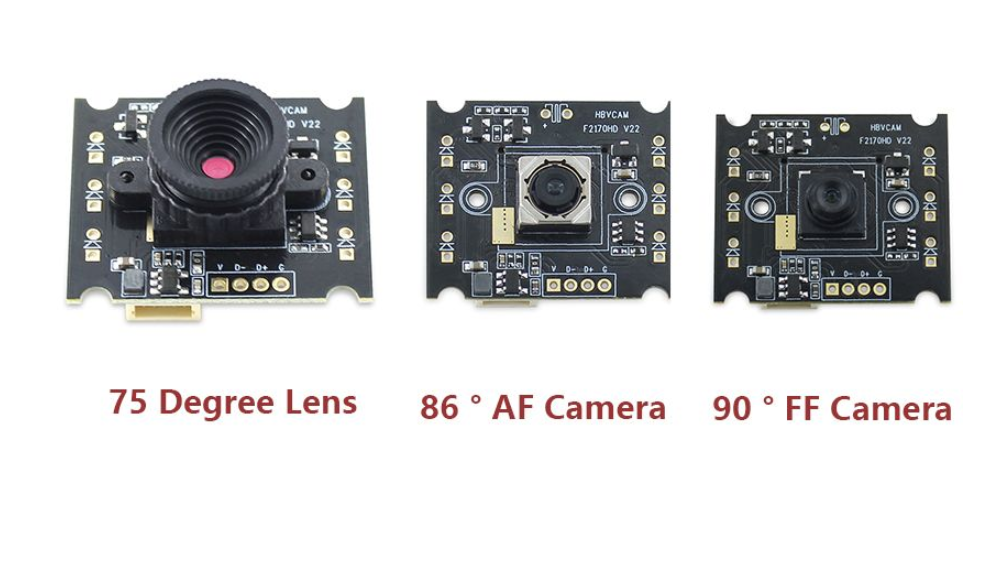

* Fov:86° （ Lens can be adjustable,different
Lens,FOV different）

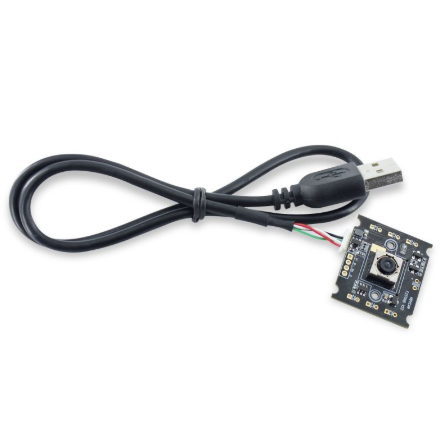

* Interface:USB2.0
* Focus:Atuo
* Output Formats:YUY2/MJPEG
* Supply voltage:DC 5V±5%
* Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
Module No. |

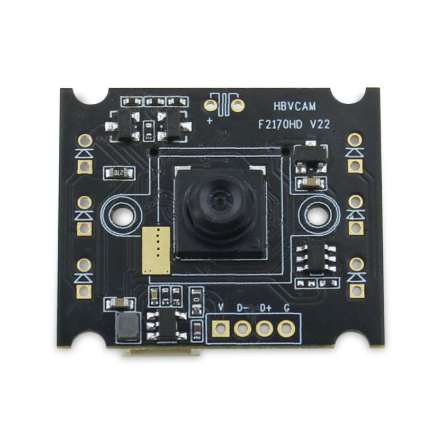

HBVCAM-F2170HD V22 |
|
Module Size |
30mm × 25mm × 5.2mm±0.2MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Aout |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
590mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV2720 (1/5.8” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
1920*1080 |
|
Sensitivity |
650mV /（lux-sec） |
|
Pixel Size |
1.4µm x 1.4µm |
|

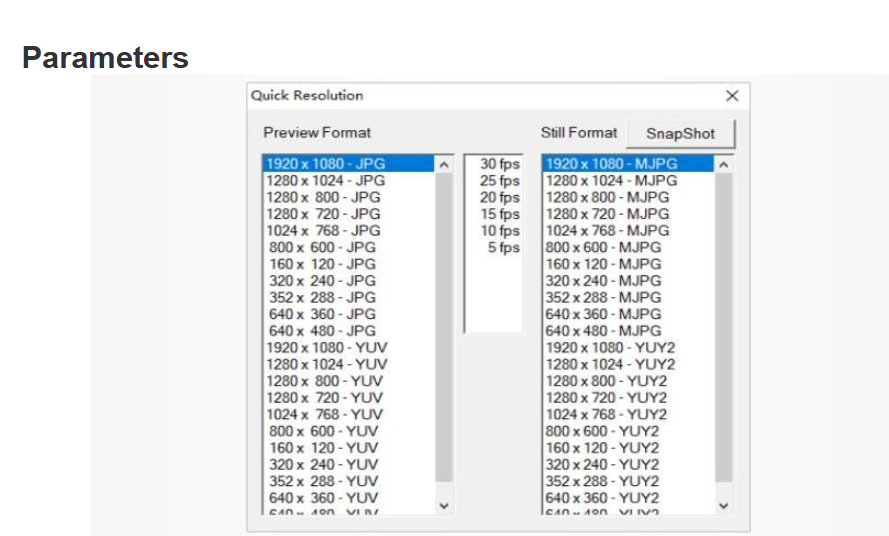

Maximum Image Transfer Rate |
MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS MJPEG 1280x1024 30FPS / YUY2 1280x1024 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
MJPEG 640x360 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
|
|
S/N Ratio |
35 db |
|
Max Dynamic Range |
68 db |
|
Shutter type |
Electronic rolling shutter |
|

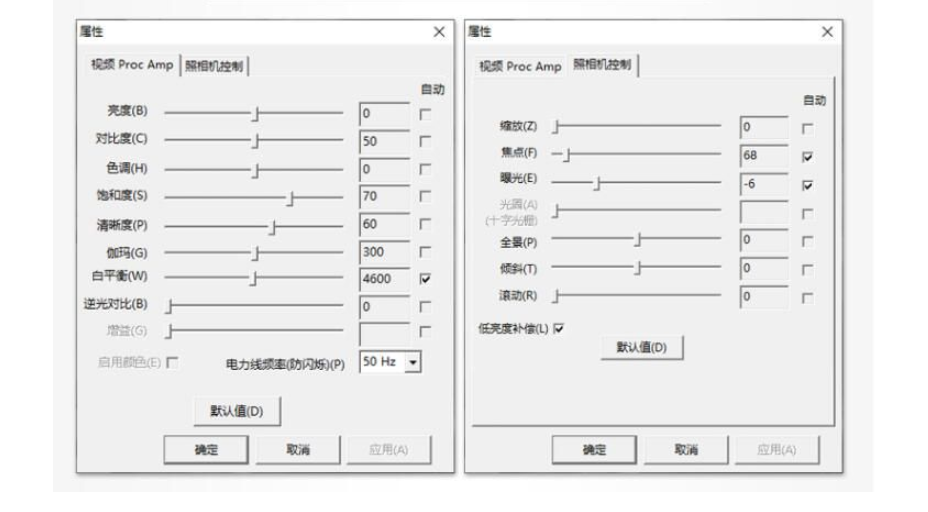

AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NC |
|
Lens Construction |
5P |
|
F/No |
2.2 |
|
EFL |
1.8mm |
|
FOV |
86° |
|
TV Distortion |
<1% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
