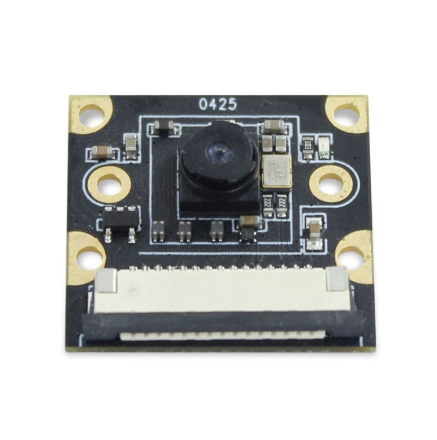

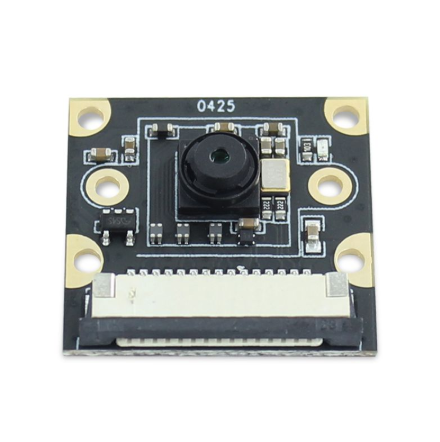

This is the camera module for Nvidia Jetson Nano, connected to the CSI interface. It is an IMX219 sensor, with 8 million pixels. And the Diagonal field angle is about 200 degree, suitable for normal situation using.
The IMX219 camera module is commonly used for various applications such as robotics, drones, computer vision projects, and surveillance systems. Its compatibility with the Nvidia Jetson Nano makes it a popular choice among developers working on AI and machine learning applications.
The IMX219 8MP camera module is a popular camera module that is compatible with the Nvidia Jetson Nano development board. It features the Sony IMX219 sensor, which has an 8-megapixel resolution and a 1/4" optical format. The camera module connects to the Jetson Nano via the camera Serial Interface (CSI) connector.
The IMX219 camera module is capable of capturing still images and videos with high resolution and quality. It supports various image modes, such as 3280 x 2464, 3280 x 1848 (16:9), 1920 x 1080 (16:9), and more. It can capture video at different frame rates, including 1080p at 30fps, 720p at 60fps, and 640x480p at 90fps.
The camera module connects to the Jetson Nano's CSI connector using a ribbon cable. The Jetson Nano provides the necessary interface and drivers to communicate with the camera module and process the captured images or videos. You can use software libraries like OpenCV or the Jetson Nano's native camera API to access and manipulate the camera data.
NOTE: 160 Degree is Night Vision Camera, 200 Degree is Non-Night Vision Camera
|
Module No. |
HBVCAM-HPLCC-8M |
|
|
Module Size |
25mm × 24mm ×14±0.5mm |
|
|
Temperature (Operation) |
-20°C to 70°C |
|
|
Temperature (Stable Image) |
0°C to 50°C |
|
|
Assembly technique |
SMT (ROSH) |
|
|
Focus |
Fixed |
|
|
Object distance |
30CM-∞ |
|
|
Resolution |
800LW/PH (Center) |
|
|
PCB printing ink |
Black |
|
|
interface |
15p-1.0 MIPI |
|
|
Working power supply |
3.3v（pin15） |
|
|
Operating system |
Raspberry Pi |
|
|
Package |
Anti-electrostatic tray |
|
|
Certifications |
FCC and CE |
|
|
Sensor Type |
IMX219 (1/4” ) |
|
|
Active Array Size |
3296*2512 |
|
|
Sensitivity |
600mV/Lux-sec |
|
|
Pixel Size |
1.12µm x1.12µm |
|
|
Maximum Image Transfer Rate |
30 fps for QSXGA; |
|
|
Output formats |
8/10bit RGB RAW output |
|
|
S/N Ratio |
39db |
|
|
Dynamic Range |
69db |
|
|
Package |
PLCC, Bare Die |
|
|
Lens Type |
||
|
Lens Construction |
1G4P+IR |
|
|
F/No |
2.0 |
|
|
EFL |
0.9 mm |
|
|
BFL(Optical) |
1.41mm |
|
|
FOV |
200° |
|
|
TV Distortion |
<18.6% |
|
|
Relative Illumination (Sensor) |
70% |
|
|
IR Filter |
650±10nm |
|

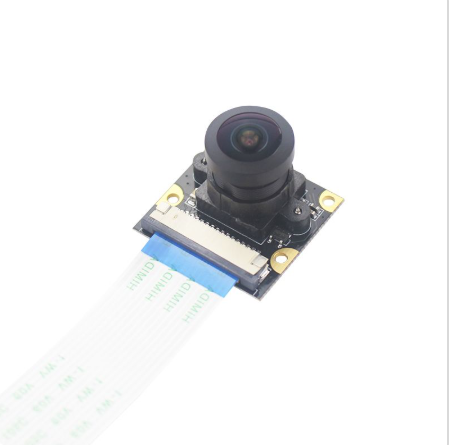

HBVCAM IMX219 8MP sensor in combination with a 200-degree fish-eye lens, empowers developers, researchers, and enthusiasts to capture immersive wide-angle visuals with exceptional clarity and detail.

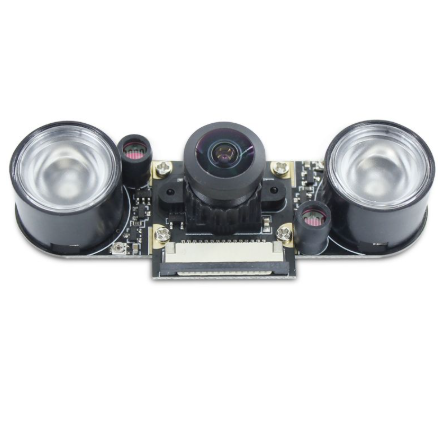

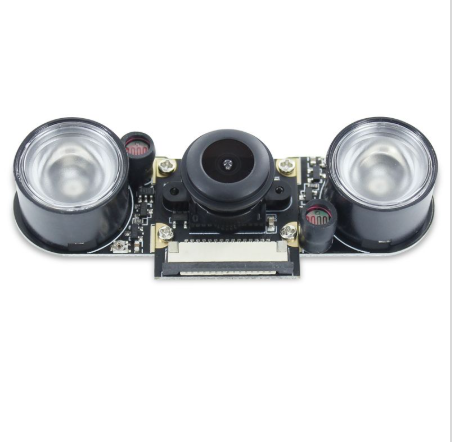

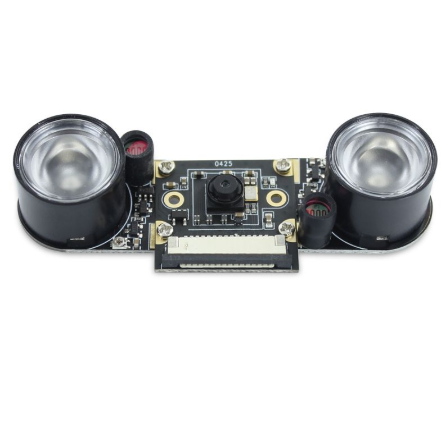

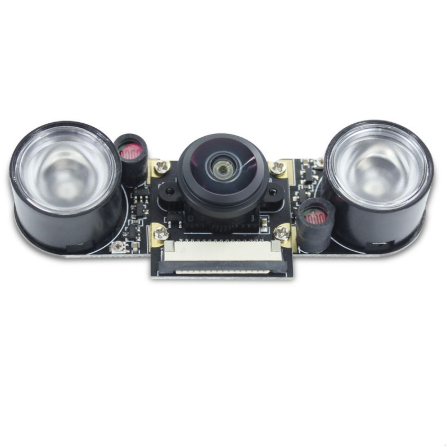

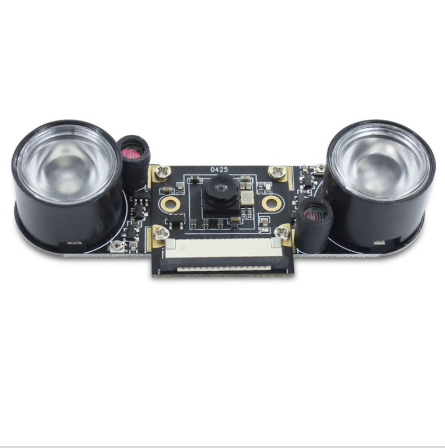

●Add 850IR LED Light for night
●Different FOV Lens
●Drawing
●High-Resolution Imaging: Equipped with the renowned IMX219 8MP sensor, the module captures images with impressive detail and clarity. Whether you're working on computer vision projects, robotics, or AI applications, expect stunning visual results that exceed expectations.

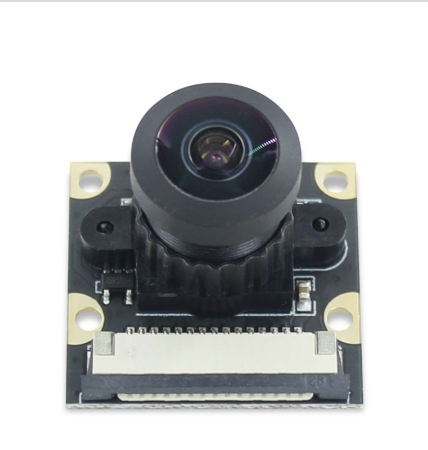

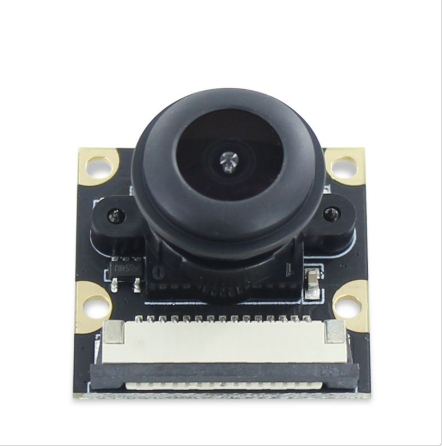

●200-Degree Fish Eye Lens: The lens offers an expansive 200-degree field of view, allowing you to capture a wider scene without compromising image quality. Immerse your audience in panoramic images and videos, creating unique and engaging visual content.
●Seamless Integration: Designed specifically for compatibility with the Nvidia Jetson Nano, the camera module integrates effortlessly with the development board's camera Serial Interface (CSI) connector. This plug-and-play functionality ensures a hassle-free setup and quick deployment.
●Robust Software Support: The module is fully compatible with the extensive software ecosystem provided by the Nvidia Jetson Nano platform. Leverage popular libraries like OpenCV and the Jetson Nano's native camera API to access and process the camera data, enabling advanced image manipulation and analysis.
●Versatile Applications: The caters to a wide range of applications, including immersive VR/AR experiences, panoramic photography, surveillance systems, 360-degree video capture, robotics, and more. Unlock the creative potential of your projects and explore new horizons with its exceptional fish-eye lens.
●Quality and Reliability: HBVCAM is dedicated to delivering products of the highest quality, ensuring reliability and longevity. The camera module is built to withstand demanding environments, making it suitable for both indoor and outdoor applications.
●Expandability: The modular design of the camera module allows for future expandability. HBVCAM is committed to continually innovating and offering additional accessories and lenses to further enhance the capabilities of the camera module.
Experience the extraordinary potential of the IMX219 8MP sensor combined with a 200-degree fish eye lens for the Nvidia Jetson Nano.
