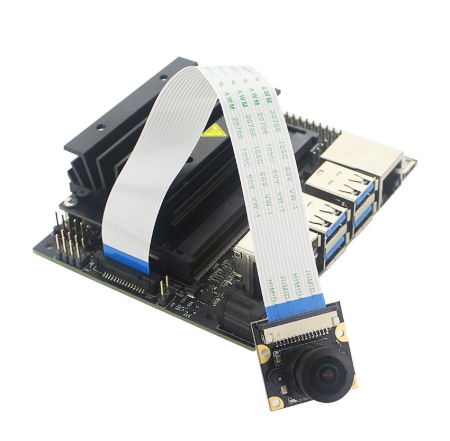

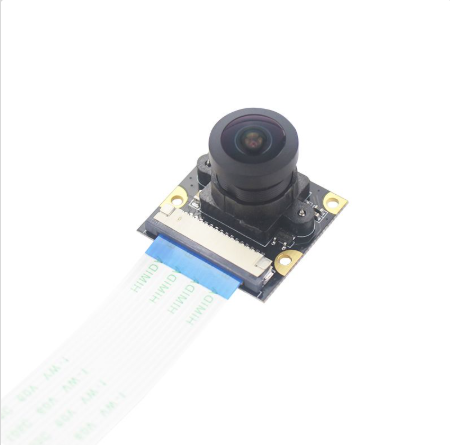

HBVCAM IMX219 8MP NVIDIA Jetson Nano Camera Module with 160 degree Fish eye lens
This is the camera moudle for Nvidia Jetson Nano , connected to CSI interface. It is IMX219 sensor , with 8 million pixel. And the Diagonal field angle is about 160 degree , suitable for normal situation using.
Camera module with a 160° fish-eye lens, which is a variation of the standard 8MP IMX219 Jetson Nano camera module but fitted with a wide-angle lens for broader field of view.
The 8MP Jetson Nano Camera Module with 160° Fish-Eye Lens is a high-performance imaging solution designed for NVIDIA Jetson Nano, Jetson Xavier NX, and other Jetson developer kits. Equipped with the Sony IMX219 sensor and an ultra-wide 160° field-of-view lens, this camera delivers sharp, detailed images while capturing a much broader perspective compared to standard lenses.
Its plug-and-play compatibility with the Jetson platform makes it an ideal choice for AI-powered applications such as robotics vision, autonomous navigation, smart surveillance, drones, and computer vision research. Whether you need panoramic imaging, enhanced situational awareness, or wide-area monitoring, this fish-eye camera module provides the flexibility and clarity required for next-generation edge AI projects.
2. Photosensitive chip: IMX219
3. Resolution: 3280 × 2464
4. CMOS size: 1/4 inch
5. Aperture (F): 2.35 （160 degree camera）
Aperture (F): 2.0 （200 degree camera）6. Focal Length: 2.4mm (manual adjustable), （160 degree camera）
Focal Length: 0.87mm （200 degree camera）

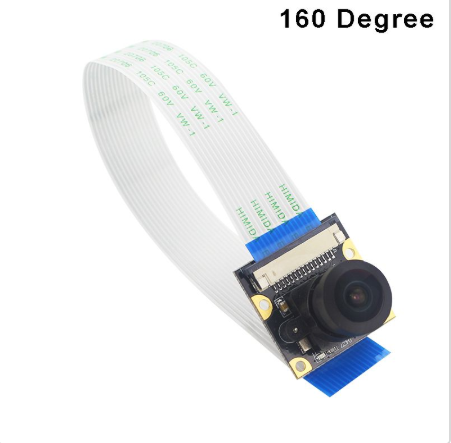

7. Diagonal angle: 160 or 200 degrees (conventional lens is only 72 degrees)
8. Distortion: <14.3%
9. Support 1080p30, 720p60 and 640 × 480p90 video recording
10. Application scenarios: AI intelligent recognition, face recognition, road identification line recognition, license plate recognition, and other scene recognition and judgment. . .

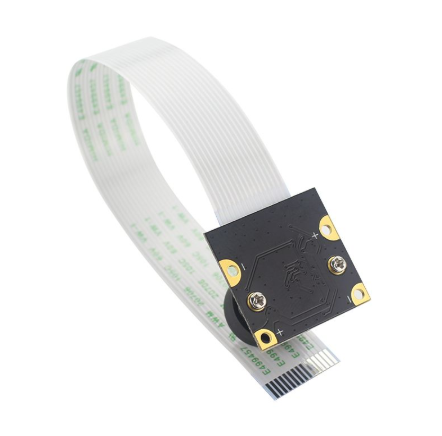

11. 4 screw holes:
(1). Can be used for fixed position12. Size: 25mm × 24mm × 18mm（160 degree camera）
Size: 25mm × 24mm × 16mm（200 degree camera）NOTE: 160 Degree is Night Vision Camera, 200 Degree is Non-Night Vision Camera
Ultra-wide 160° field of view captures more area, ideal for robotics, drones, and surveillance.
Native JetPack driver support for NVIDIA Jetson Nano / Xavier NX.
Lightweight and compact, easy to integrate into embedded AI projects.
Compatible with OpenCV, TensorRT, and deep learning frameworks.
Suitable for stitching multiple cameras into panoramic or 360° systems.
|
Module No. |
HBVCAM-HPLCC-8M |
|
|
Module Size |
25mm × 24mm ×17.7±0.5mm |
|
|
Temperature (Operation) |
-20°C to 70°C |
|
|
Temperature (Stable Image) |
0°C to 50°C |
|
|
Assembly technique |
SMT (ROSH) |
|
|
Focus |
Fixed |
|
|
Object distance |
30CM-∞ |
|
|
Resolution |
800LW/PH (Center) |
|
|
PCB printing ink |
Black |
|
|
interface |
15p-1.0 mipi |
|
|
Working power supply |
3.3v（pin15） |
|
|
Operating system |
Jeston Nano |
|
|
Package |
Anti-electrostatic tray |
|
|
Certifications |
FCC and CE |
|
|
Sensor Type |
IMX219 (1/4” ) |
|
|
Active Array Size |
3296*2512 |
|
|
Sensitivity |
600mV/Lux-sec |
|
|
Pixel Size |
1.12µm x1.12µm |
|
|
Maximum Image Transfer Rate |
30 fps for QSXGA; |
|
|
Output formats |
8/10bit RGB RAW output |
|
|
S/N Ratio |
39db |
|
|
Dynamic Range |
69db |
|
|
Package |
PLCC,Bare Die |
|
|
Lens Type |
||
|
Lens Construction |
6G+IR |
|
|
F/No |
2.35 |
|
|
EFL |
3.15 mm |
|
|
BFL(Optical) |
3.15mm |
|
|
FOV |
160° |
|
|
TV Distortion |
<14.3% |
|
|
Relative Illumination (Sensor) |
70% |
|
|
IR Filter |
650±10nm |
|
Robotics vision & obstacle avoidance (captures more surroundings in one frame)
Autonomous drones & vehicles (wider situational awareness)
Security & monitoring systems (fish-eye eliminates blind spots)
AR/VR & panoramic imaging
AI computer vision projects (YOLO, face tracking, object recognition)
