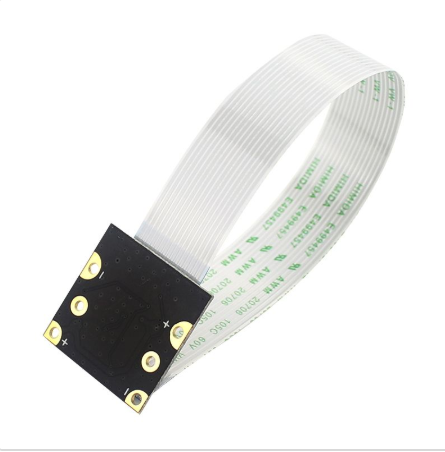

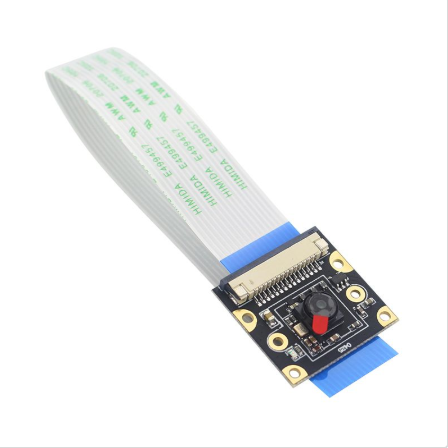

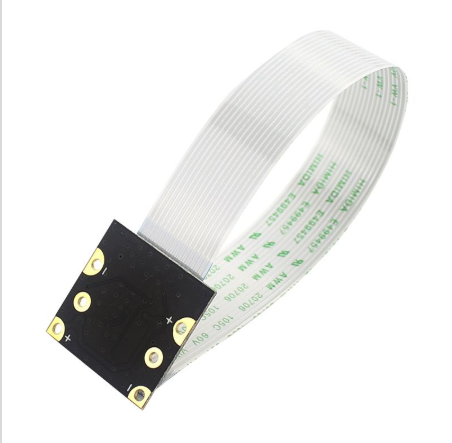

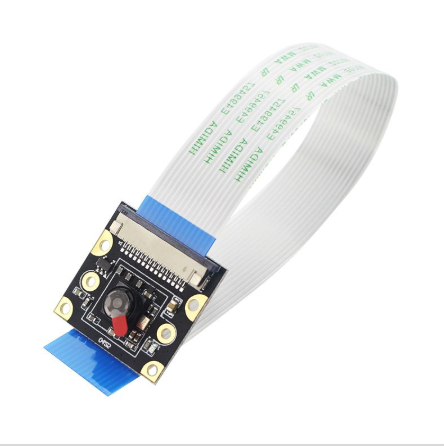

HBVCAM IMX219 8MP NVIDIA Jetson Nano Camera Module

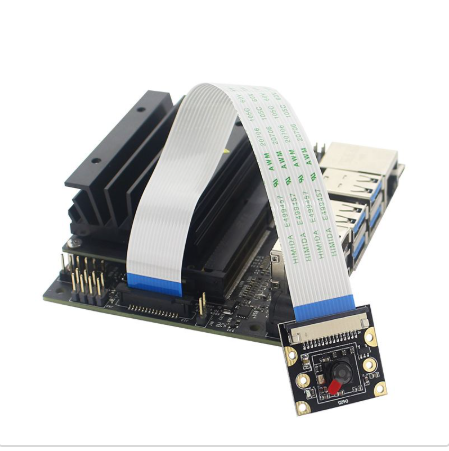

This is the camera moudle for Nvidia Jetson Nano , connected to CSI interface. It is IMX219 sensor , with 8 million pixel. And the Diagonal field angle is about 77 degree , suitable for normal situation using.
HBVCAM IMX219 8MP NVIDIA Jetson Nano Camera Module
( not include Jetson Nano board)
|
Module No. |
HBVCAM-HPLCC-8M |
|
|
Module Size |
25mm × 24mm ×5.3±0.2mm |
|
|
Temperature (Operation) |
-20°C to 70°C |
|
|
Temperature (Stable Image) |
0°C to 50°C |
|
|
Assembly technique |
SMT (ROSH) |
|
|
Focus |
Fixed |
|
|
Object distance |
30CM-∞ |
|
|
Resolution |
800LW/PH (Center) |
|
|
PCB printing ink |
Black |
|
|
interface |
15p-1.0 mipi |
|
|
Working power supply |
3.3v（pin15） |
|
|
Operating system |
Jeston Nano |
|
|
Package |
Anti-electrostatic tray |
|
|
Certifications |
FCC and CE |
|
|
Sensor Type |
IMX219 (1/4” ) |
|
|
Active Array Size |
3296*2512 |
|
|
Sensitivity |
600mV/Lux-sec |
|
|
Pixel Size |
1.12µm x1.12µm |
|
|
Maximum Image Transfer Rate |
30 fps for QSXGA; |
|
|
Output formats |
8/10bit RGB RAW output |
|
|
S/N Ratio |
39db |
|
|
Dynamic Range |
69db |
|
|
Package |
PLCC,Bare Die |
|
|
Lens Type |
||
|
Lens Construction |
4P |
|
|
F/No |
2.0 |
|
|
EFL |
2.93mm |
|
|
BFL(Optical) |
1.16mm |
|
|
FOV |
77° |
|
|
TV Distortion |
<1.0% |
|
|
Relative Illumination (Sensor) |
70% |
|
|
IR Filter |
650±10nm |
|
