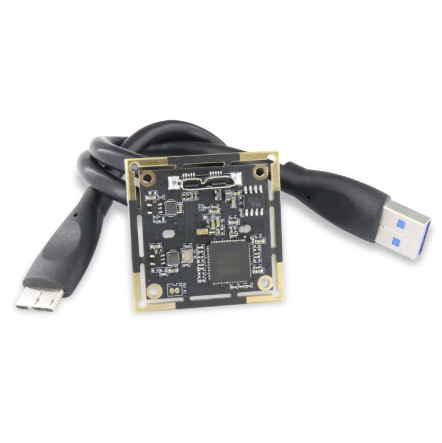

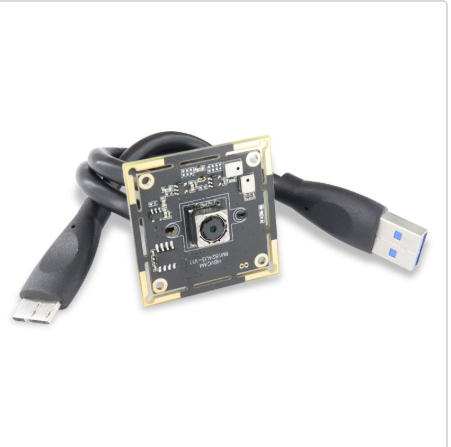

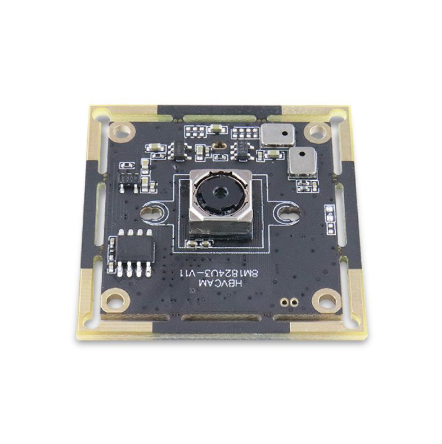

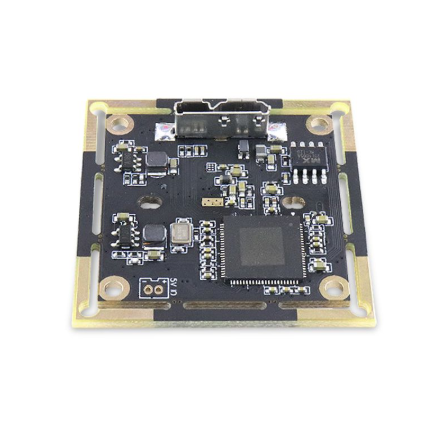

Module No.

HBVCAM-8M1824U3 V11

Module Size

38mm × 38mm × 6.75mm±0.2MM

Temperature (Operation)

-30°C to 70°C

Temperature (Stable Image)

0°C to 50°C

Assembly technique

SMT (ROSH)

Focus

AUTO

Object distance

30CM-infinity

Resolution

800LW/PH (Center)

PCB printing ink

black

interface

USB 3.0

Power suuply

USB bus power

supply voltage

DC 5V±5%

Maximum Power consumption

1000 mW

Operating system request

Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc

Sensor

IMX179 (1/3.2” )

Seneor Package

PLCC,Bare Die

Maximum resolution

3264*2448

Sensitivity

700mv /（lux-sec）

Pixel Size

1.4µm x 1.4µm

Maximum Image Transfer Rate

MJPEG 1280x1024 30FPS /    YUY2 1280x1024  5FPS

MJPEG 1600x1200 30FPS /    YUY2 1600x1200  5FPS

MJPEG 1920x1080 30FPS /    YUY2 1920x1080  5FPS

MJPEG 2048x1536 20FPS /    YUY2 2048x1536  3FPS

MJPEG 2592x1944 20FPS /    YUY2 2592x1944  2FPS

MJPEG 3264x2448 20FPS /    YUY2 3264x2448  1FPS

S/N Ratio

44 db

Max Dynamic Range

83 db

Shutter type

Electronic rolling shutter

AGC/AEC/Whiter balance

Auto

Output Formats

YUY2/MJPEG

Microphone

Support

Lens Construction

5P

F/No

2.2

EFL

3.5 mm

FOV

77.2°

TV Distortion

<1.0%

Relative Illumination (Sensor)

70%

IR Filter

650±10nm

Module Package

Anti-electrostatic tray

Certifications

FCC/CE/ROSH
