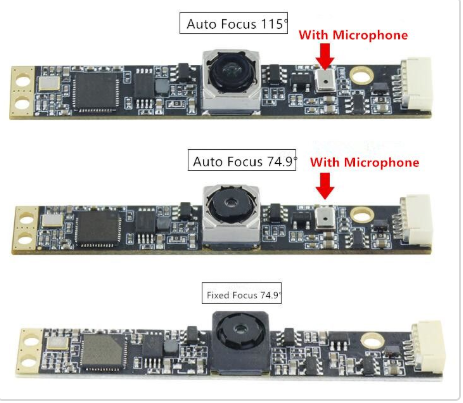

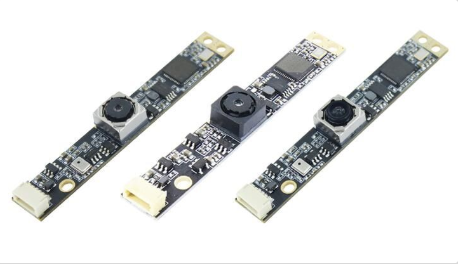

HBVCAM USB Camera Module 8MP 4K IMX179 HD Autofocus 3264x2448 No Distortion Industrial Webcam Board Compatible with Windows, Android, Linux, Plug and Play
1.It has excellent outdoor effect, vivid color, suitable for monitoring and dynamic demand.
2.Wide Angle: Mounted a High quality 105 degree wide view angle (horizontal) with IR filter, provides a wilder Field of View.
3.8MP Auto Focus Webcam IMX179 OTG UVC USB2.0 Auto Focus Camera Module For Face Recognition Module
4.The mini usb camera module is plug and play, drive free device, UVC architecture，it is easy to embed.
5. 8MP Auto Focus USB Camera Module ,UVC compliance for use in OS Windows, Linux,Android, Mac.
6.We promises every customer a 100% shopping satisfaction, feel free to reach us if you have any questions about your purchase. If you have any question, please be free to contact with our customer service. We will give you a professional and detailed reply within 24 hours. Click to buy now!
8MP Autofocus USB Camera Free Driver Webcam UVC With No Distortion HD Lens Super Mini Web Camera Module Sony IMX179 Camera USB2.0 For ATM Machine Kiosk Industrial Embedded Camera Module
1) More than HD ,8MP USB Camera: This camera adopts an 8MP IMX179 sensor for sharp image and accurate color reproduction, Max. still resolution 3264H x 2448V.
2) 1/3.2” CMOS IMX179 Image sensor Webcams: High quality and low color reproduction deviation produce sharp images and more details. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial
3) High quality HD autofocus 115 degree lens,The minimum identification distance will only be around 5cm, manually adjustable focal length provides you with an ultra-clear image detail to reflect a more realistic environment.

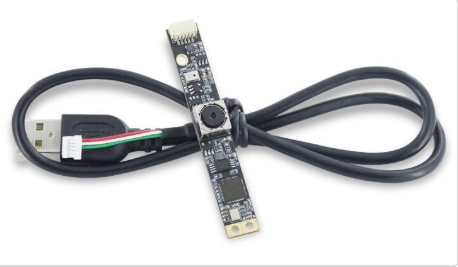

4) Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
USB camera module Parameters changable (Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure...)
5) Widely Applications: this 38*38mm tiny camera is highly recommended for the video surveillance system, live streaming, videoconference, dashcam, and other vision ,optional to cut to 32*32mm

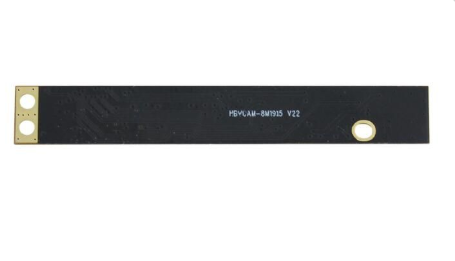

| Model No. | HBVCAM-8M1915V22 |
| Model Size | 62MM(L)*9MM(W)*6MM(H) |
| Sensor | SONY IMX179 |
| Optical Format | 1/3.2'' inch |
| Active array size | 3264(H)*2448(V) |
| Sensitivity | 3300mV/Lux-sec |
| Pixel Size | 1.4um*1.4um |
| Max S/N ratio | 34dB |
| Dynamic range | 72.5dB |
| Sentivity | 0.65V/Lux-sec@550nm |
| Image area | 6.18mm*5.85mm |
| Object distance | 30cm-infinity (adjustable) |
| Interface | 5PIN USB2.0 |
| OTG protocol | USB2.0 OTG |
| DFOV(Diagonal Field of View) | 70degree |
| HFOV(Horizontal Field of View) | 63degree |
| VFOV (Vertical Field of View) | 45degree |
| Operating system | WinXP/Vista/Win7/Win8 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVCAndroid 4.0 or above with UVC |
| Video Format | MJPG |
| Format output and FPS |
3264*2448（default）15fps 640*480 30fps 800*600 30fps 1280*720 30fps 1600*1200 30fps 1920*1080 30fps 2048*1536 20fps 2592*1944 20fps |
| Video Format | YUY2 |
| Format output and FPS |
3264*2448（default）2fps 640*480 30fps 800*600 20fps 1280*720 10fps 1600*1200 5fps 1920*1080 5fps 2048*1536 2fps 2592*1944 2fps |
| Automatic white balance | √ |
| Automatic Exposure | √ |
| Focus | Auto Focus |
| USB cable | 50CM for default |
