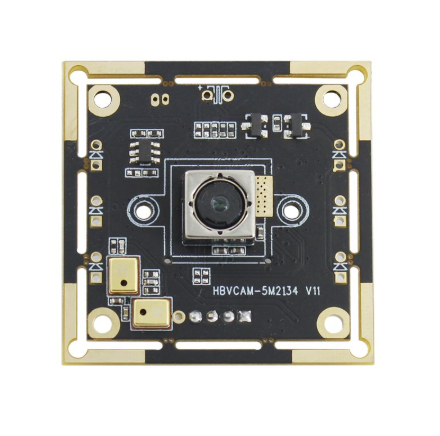

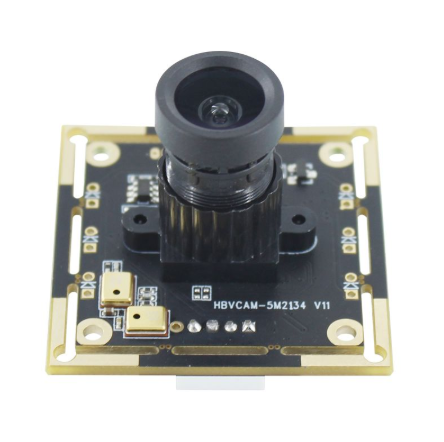

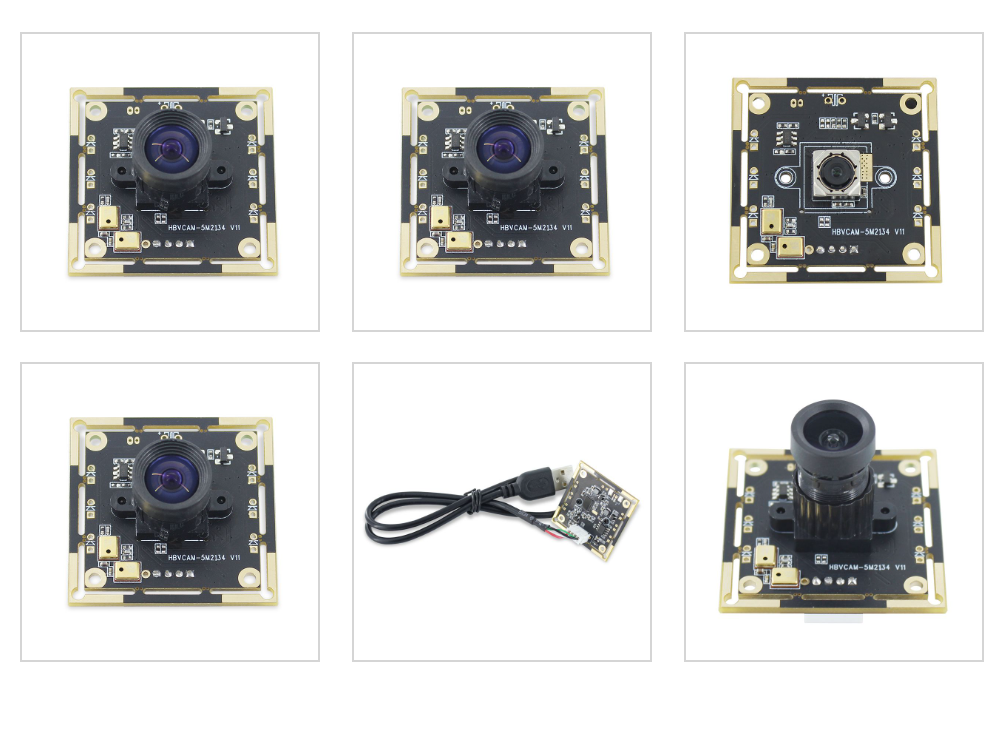

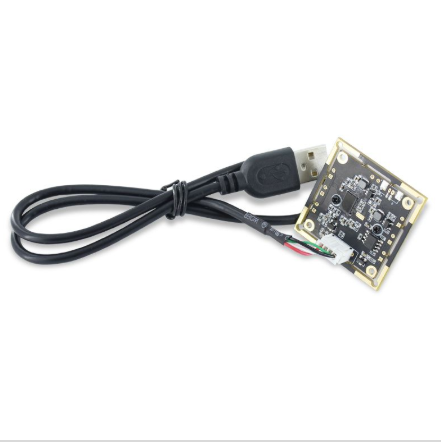

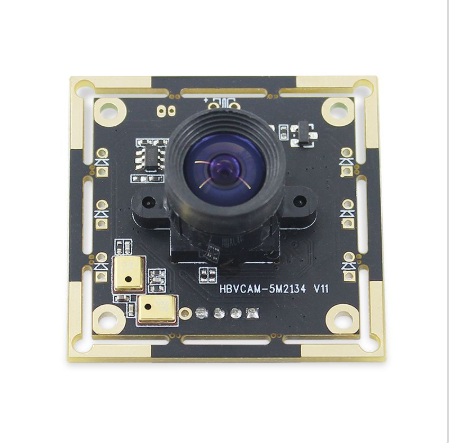

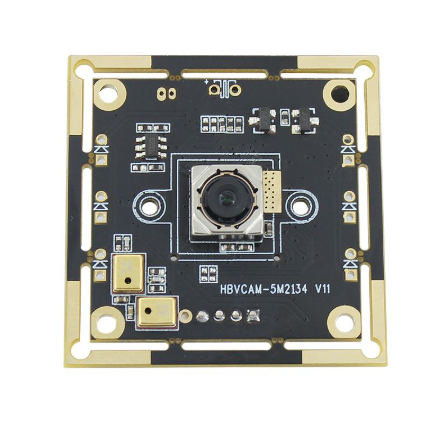

HBVCAM 5MP OV5693 Usb Camera module With auto Focus and Fixed Focus Lens
1. Standard industrial camera 38mm*38mm, 32mm *32mm structure
2. The effect of portrait and recognition is good

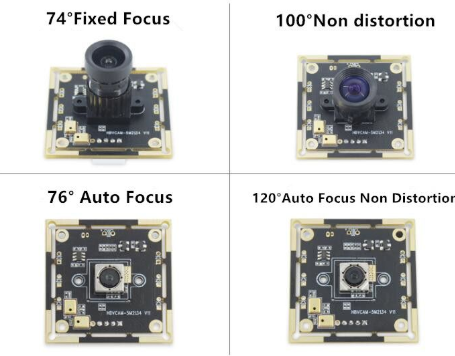

3. Multiple lens options
4. It can be welded with 6 plug-in white lamps, which can be made into an on/off diagram, or light sensitive control lamps
5. MJPEG-2592x1944 can be 30 frames
6. Lens and Fov is multiple.
HBVCAM 5MP OV5693 Usb Camera module With auto Focus and Fixed Focus Lens
*Size:38mm ×38mm ×25mm±0.5MM
*Sensor：OV5693(1/4'')
*Maximum Resolution：2592*1944 30fps
*Fov：74°
*Interface:USB2.0
*Focus: Fixed
*Output Formats:YUY2/MJPEG
*Supply voltage:DC 5V±5%
*Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
Module No. |
HBVCAM-5M2134 V11 |
|
Module Size |
38mm × 38mm × 25mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
920 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV5693 (1/4” ) |
|
Seneor Package |
PLCC,Bare Die |
|
Maximum resolution |
2592*1944 |
|
Sensitivity |
780mV /（lux-sec） |
|
Pixel Size |
1.4µm x 1.4µm |
|
Maximum Image Transfer Rate |
MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 2FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS
|
|
S/N Ratio |
36db |
|
Max Dynamic Range |
71.6db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
Support |
|
Lens Construction |
2G2P |
|
F/No |
2.8 |
|
EFL |
2.8mm |
|
FOV |
74° |
|
TV Distortion |
<8% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
