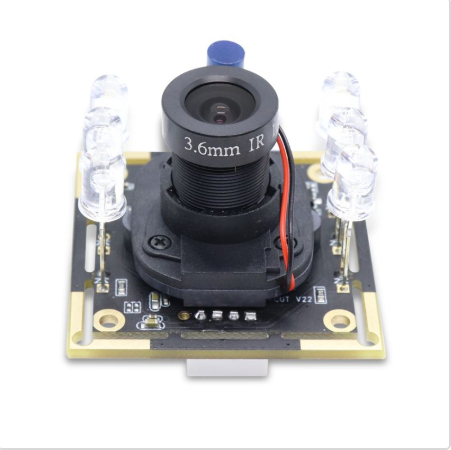

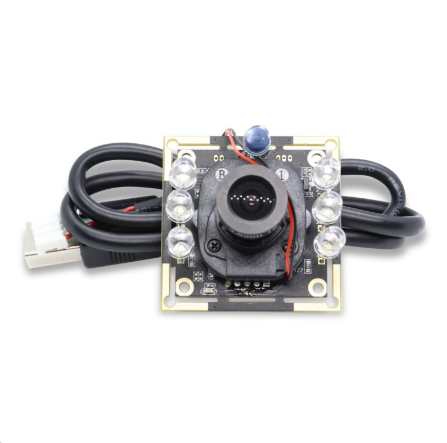

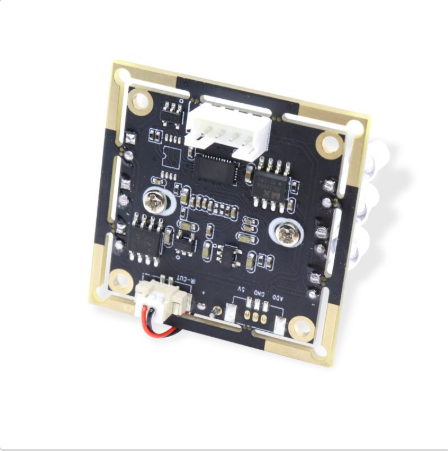

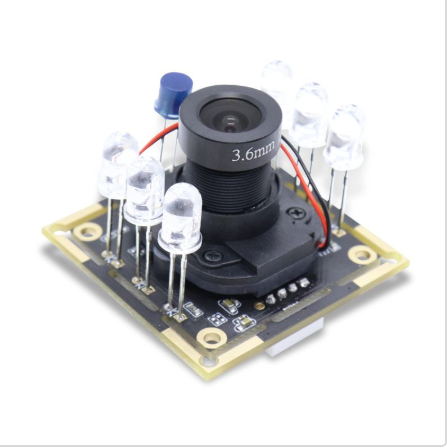

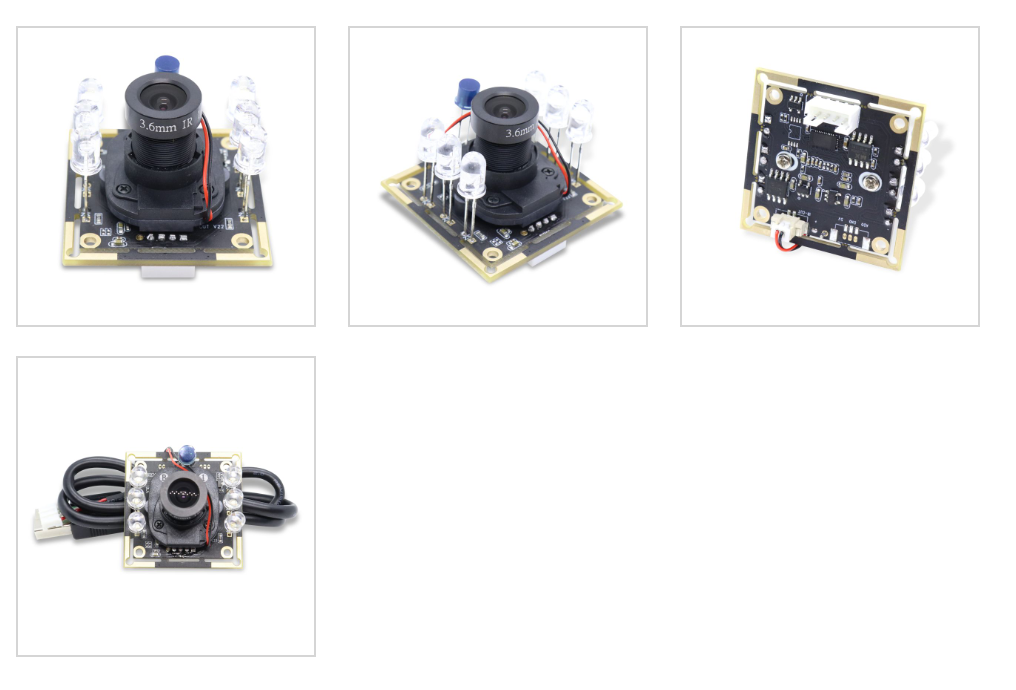

HBVCAM 1MP OV9732 720P HD IR-CUT day and night automatic switching module
1. Standard industrial camera board structure :38MM*38MM/32MM*32MM
2. Automatic photosensitive IR-CUT white/night black and white infrared mode switching (with 6 plugins of 850nm night vision infrared lights), can also be used for external expansion of infrared light board to supplement light and control switching
3. The main application needs to distinguish between daytime normal and nighttime black and white infrared night vision customer groups
4. Without microphone function
HBVCAM 1MP OV9732 720P HD IR-CUT day and night automatic switching module
OV9732 Sensor : OmniVision's OV9732 is a low-power and ultra-compact CameraChip™ sensor that brings 720p high definition (HD) video to mainstream security systems and wireless battery-powered smart-home cameras. Compared to the previous generation OV9712, the OV9732 is35 percent smaller and delivers dramatically improved pixel performance.The OV9732 CameraChip sensor utilizesOmniPixel3-HS™ high sensitivity 3.0 μm pixel technology to bring industry-leading scene reproduction to a wide range of security and lifestyle camera applications that operate in extremely high- and low-light conditions. The sensor's narrow 9-degree chief ray angle (CRA) supports consumer-grade optical lens systems and reduces image artifacts for enhanced performance. When operating in low-power mode, the 1/4-inch OV9732 requires just 99 mW to capture 720p HD video at 30 frames per second
* Size:38mm × 38mm × 24.2mm±0.5MM
* Sensor：OV9732(1/4'')
* Maximum Resolution：1280*720 30fps
* Fov：72°（ Lens can be adjustable,different Lens,FOV different）
* Interface:USB2.0
* Focus:fixed
* Output Formats:YUY2/MJPEG
* Supply voltage:DC 5V±5%
* Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc

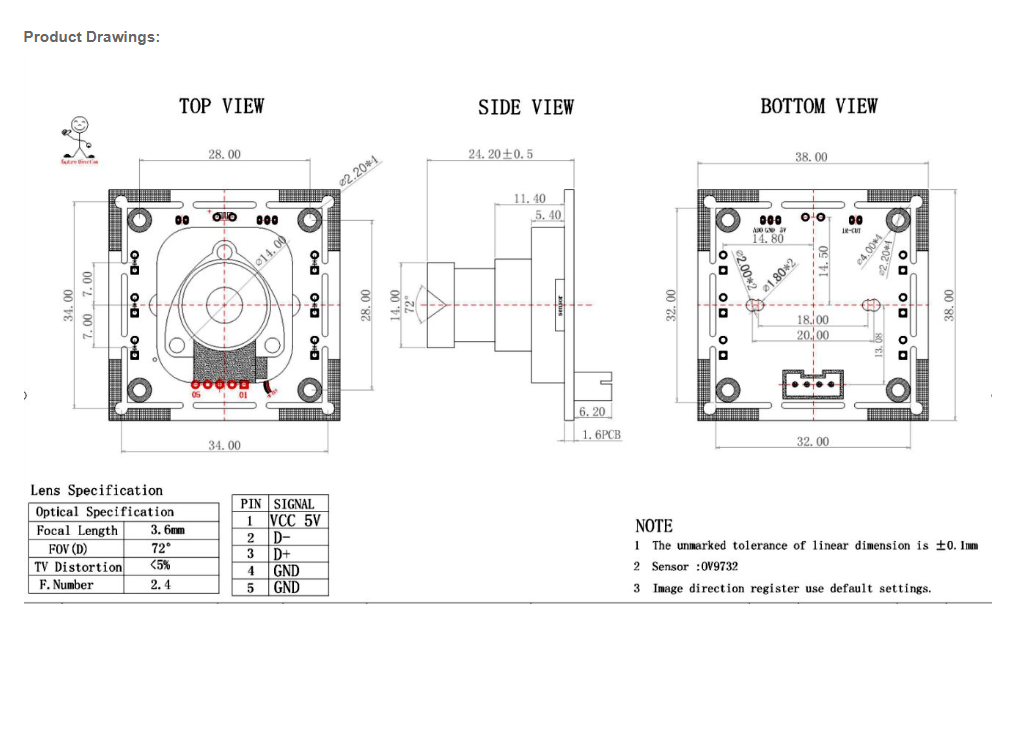

Product Specification:
|
Module No. |
HBVCAM-1920IR-CUT V22 |
|
Module Size |
38mm × 38mm × 24.2mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
840mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV9732 (1/4” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
1280*720 |
|
Sensitivity |
2066mv /（lux-sec） |
|
Pixel Size |
3µm x 3µm |
|
Maximum Image Transfer Rate |
MJPEG 160x120 30FPS YUY2 160x120 30FPS MJPEG 320x180 30FPS YUY2 320x180 30FPS MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 424x240 30FPS / YUY2 424x240 30FPS MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 20FPS MJPEG 848x480 30FPS / YUY2 848x480 15FPS JPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS
MJPEG 640x360 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
|
|
S/N Ratio |
39 db |
|
Max Dynamic Range |
72 db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
2G2P |
|
F/No |
2.4 |
|
EFL |
3.6mm |
|
FOV |
72° |
|
TV Distortion |
<5% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
