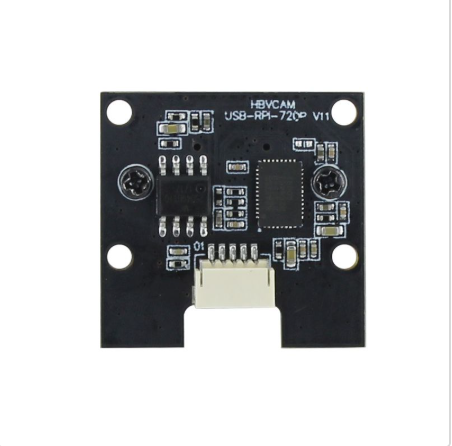

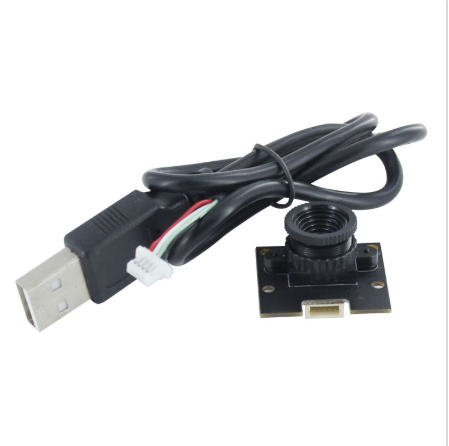

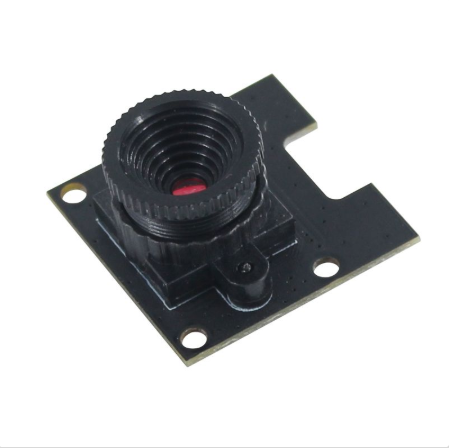

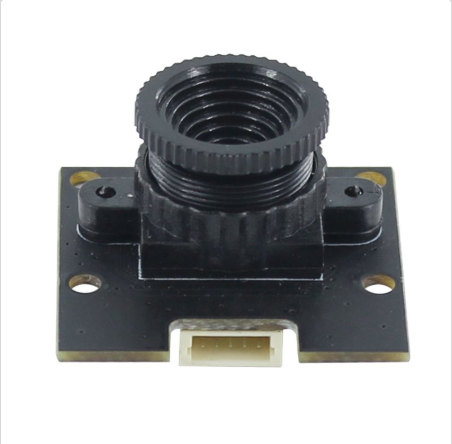

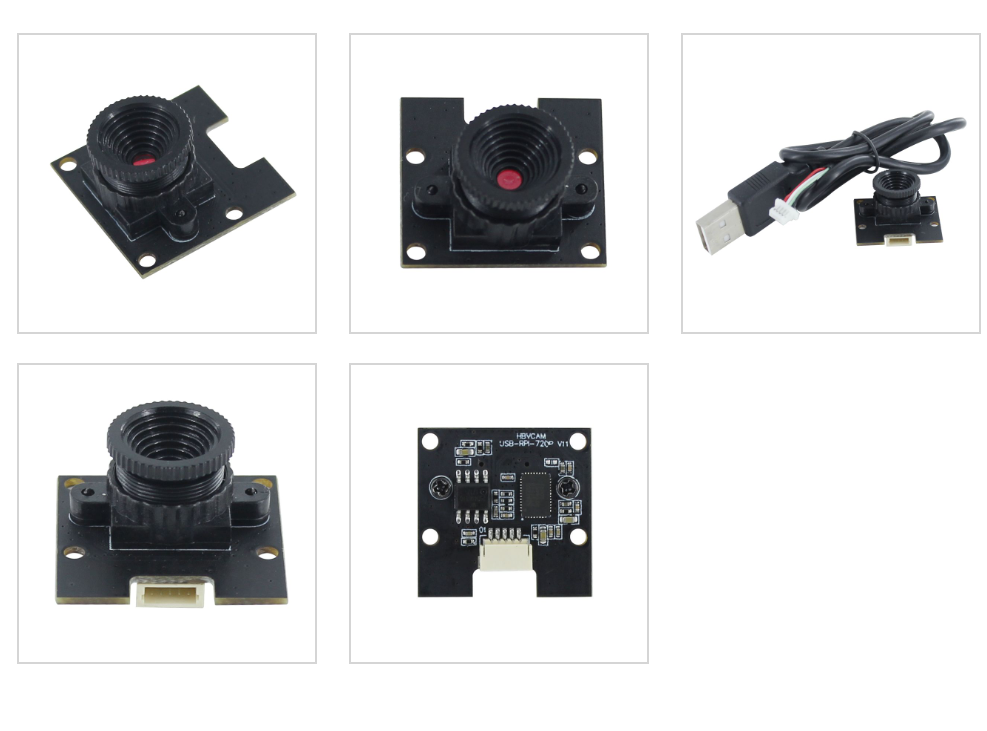

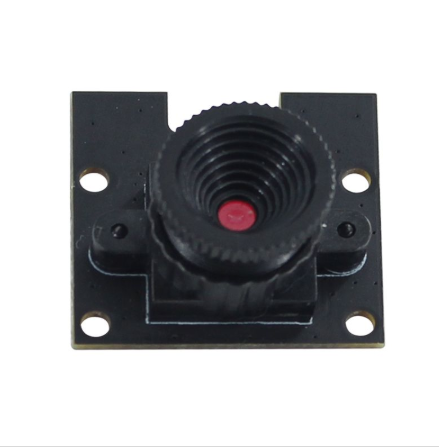

HBVCAM 1MP OV9726 HD USB-RPI CMOS Camera Module for Raspberry Pi Camera Module
1. The camera can be used on Raspberry pi board
2. 1MP HD Camera with cheap price
3.USB2.0 Interface for Raspberry pi Camera
HBVCAM 1MP OV9726 HD USB-RPI CMOS Camera Module for Raspberry Pi Camera Module\

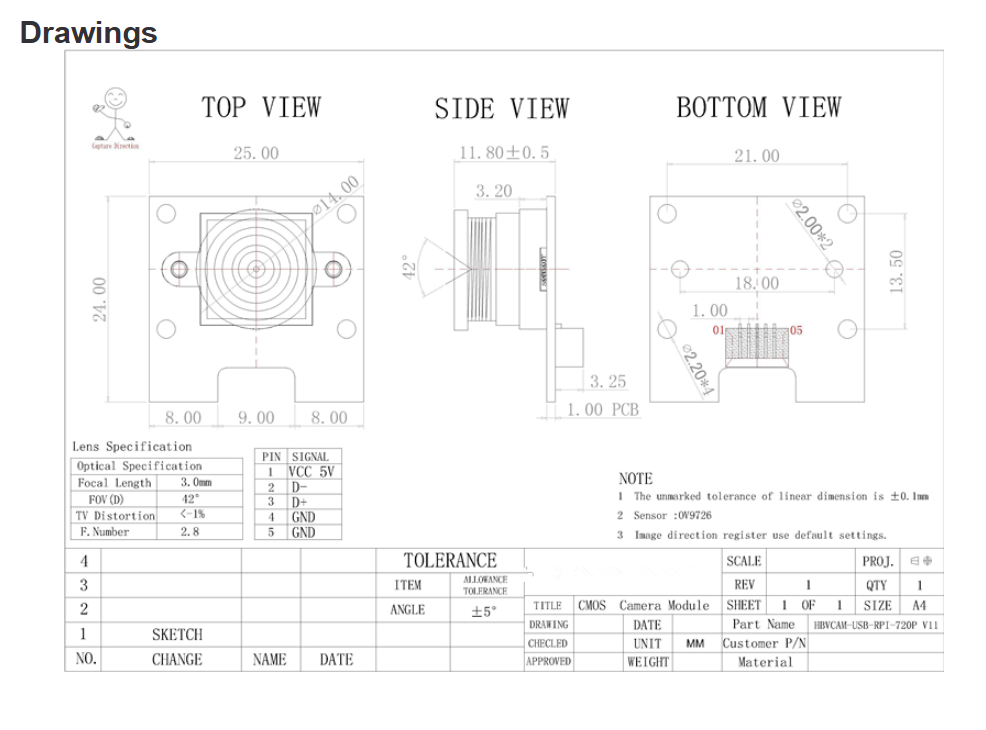

2.Size:25mm × 24mm × 4.3mm±0.2MM
3.Sensor：OV9726(1/6.5'')
4.Maximum Resolution：：1280*800 30fps
5.Fov56°（ Lens can be adjustable,different Lens,FOV different）
6.Interface:USB2.0
7.Focus:fixed
8.Output Formats:YUY2/MJPEG
9.Supply voltage:DC 5V±5%
10.Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
Module No. |
HBVCAM-USB-PRI-720P V44 |
|
Module Size |
25mm × 24mm × 11.8mm±0.2MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
640 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV9726 (1/6.5” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
1280*800 |
|
Sensitivity |
1300mV /（lux-sec） |
|
Pixel Size |
1.75µm x 1.75µm |
|
Maximum Image Transfer Rate |
MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x720 30FPS / YUY2 960x720 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS |
|
S/N Ratio |
36 db |
|
Max Dynamic Range |
70 db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
3P |
|
F/No |
2.8 |
|
EFL |
3.0 mm |
|
FOV |
42° |
|
TV Distortion |
<1.0% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
