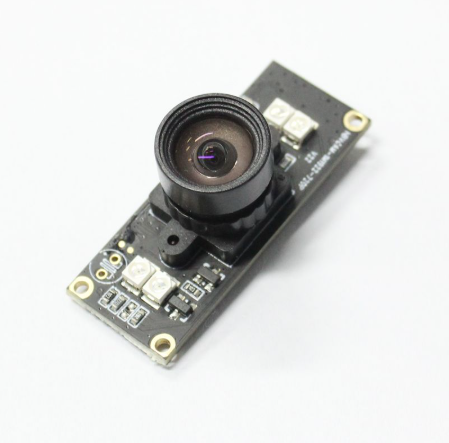

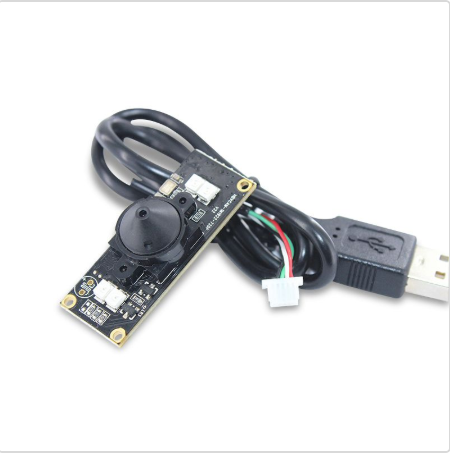

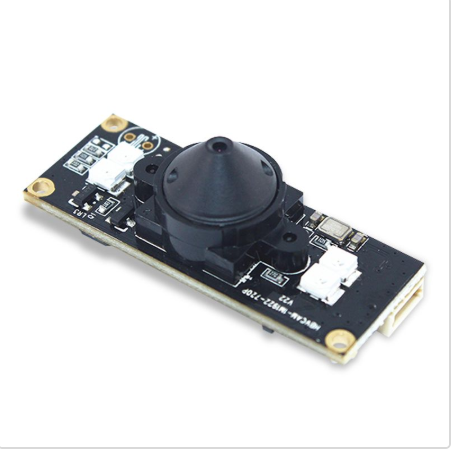

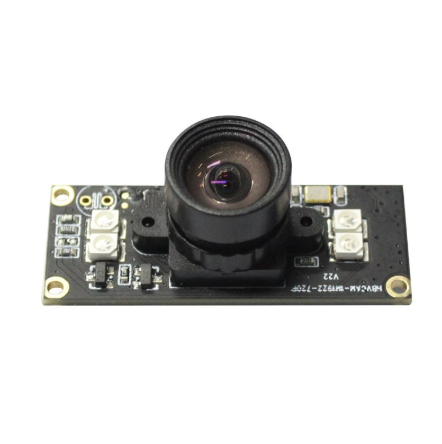

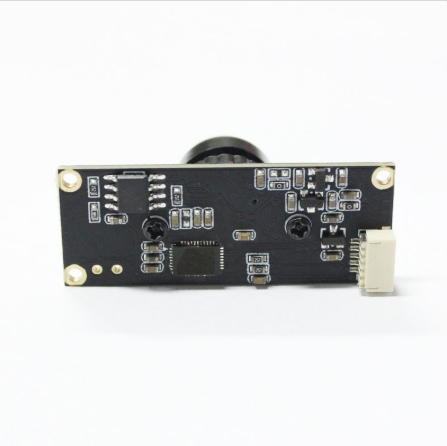

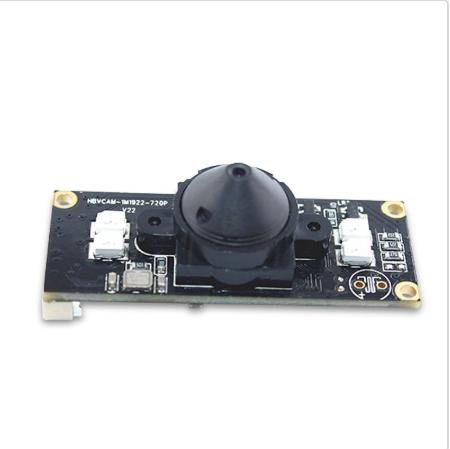

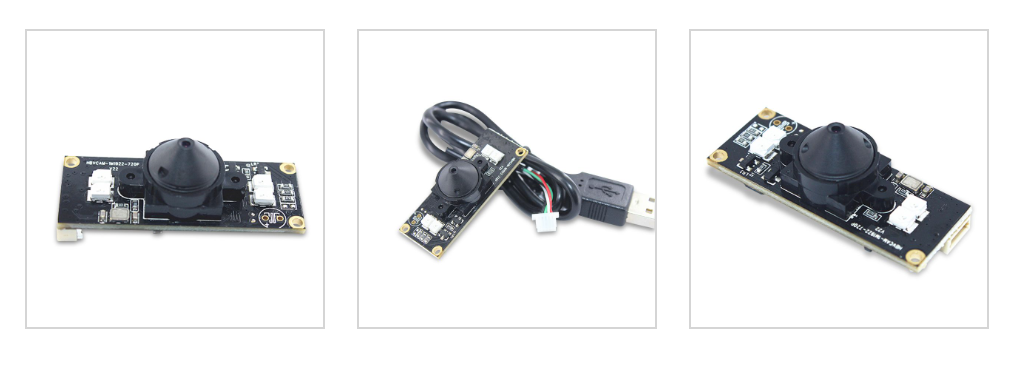

HBVCAM 1MP OV9712 HD Night Vision Camera Module with Pin hole Lens

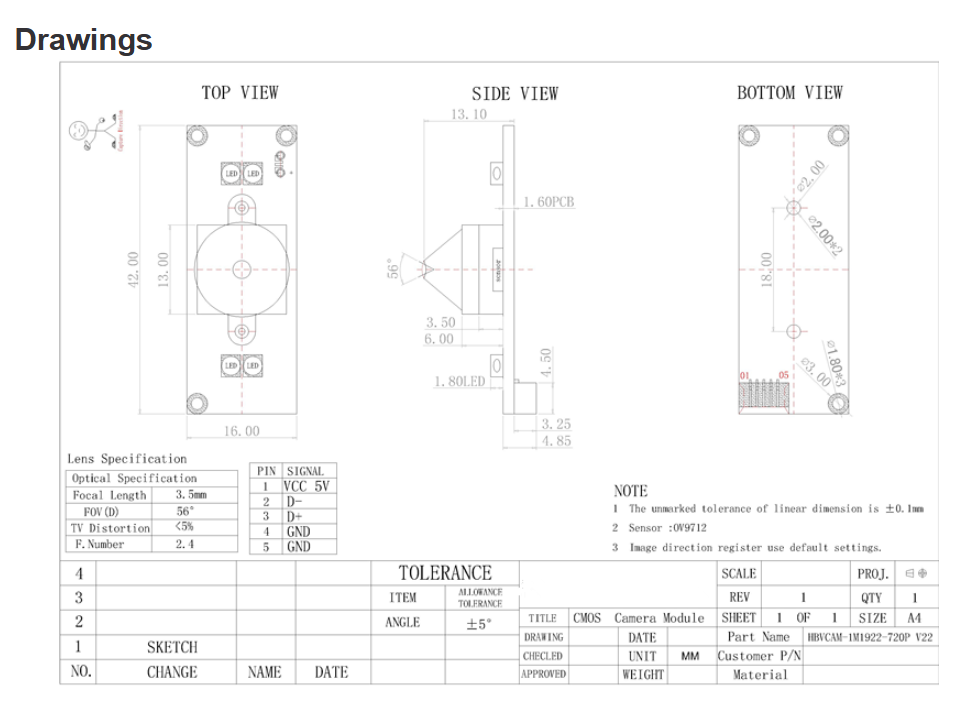

* Size:42mm × 16mm × 13.1mm±0.5MM
* Sensor：OV9712(1/4'')
* Maximum Resolution：1280*800 30fps
* Fov：30°（ Lens can be adjustable,different Lens,FOV different）
* Support pinhole night vision IR LED
* Interface:USB2.0
* Focus:fixed
* Output Formats:YUY2/MJPEG
* Supply voltage:DC 5V±5%
* Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
|
Module No. |
HBVCAM-1M1922-720P V22 |
|
Module Size |
42mm × 16mm × 13.1mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
1000 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV9712 (1/4” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
1280*800 |
|
Sensitivity |
3300mV /（lux-sec） |
|
Pixel Size |
3µm x 3µm |
|
Maximum Image Transfer Rate |
MJPEG 160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS |
|
S/N Ratio |
39 db |
|
Max Dynamic Range |
69 db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
4P |
|
F/No |
2.4 |
|
EFL |
3.5 mm |
|
FOV |
56° |
|
TV Distortion |
<5% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
