1The parameters of FOV are just for your reference, Different Lens has different FOV
2.The frame rate is related to Light、operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding

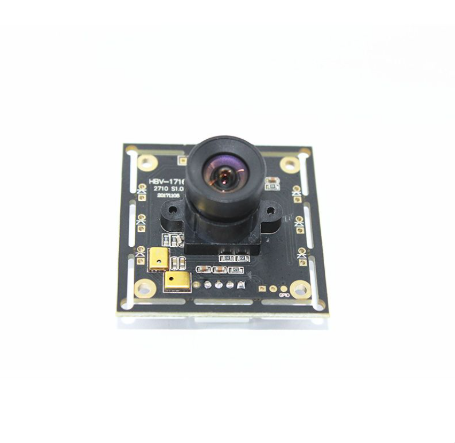

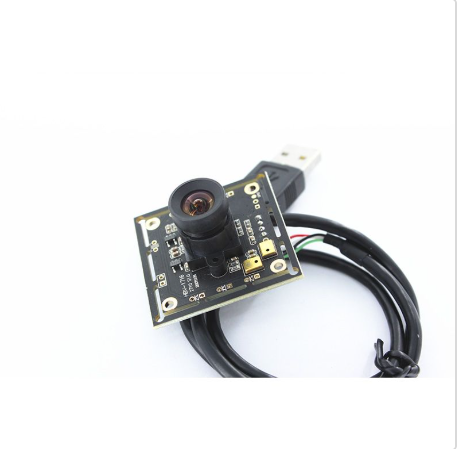

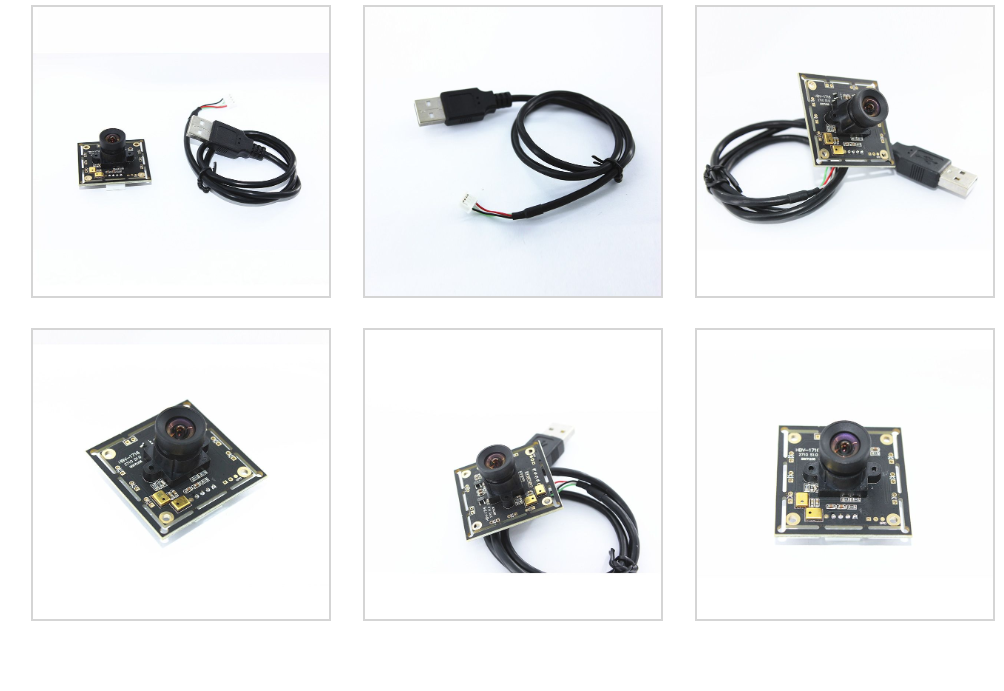

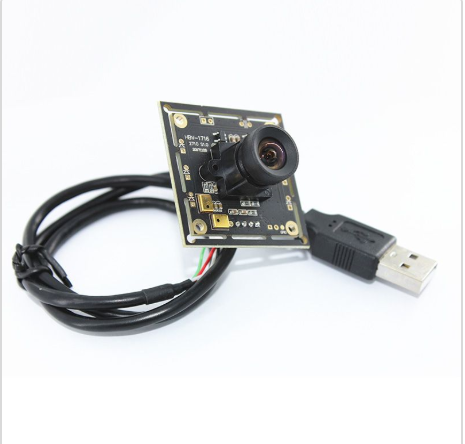

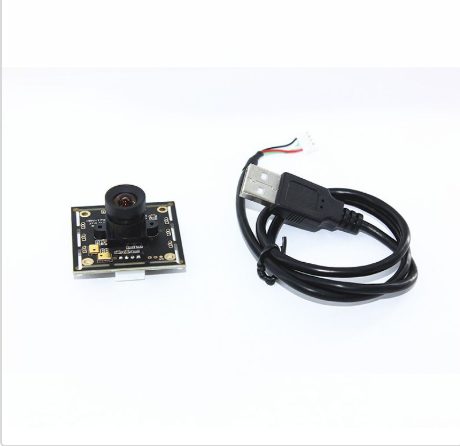

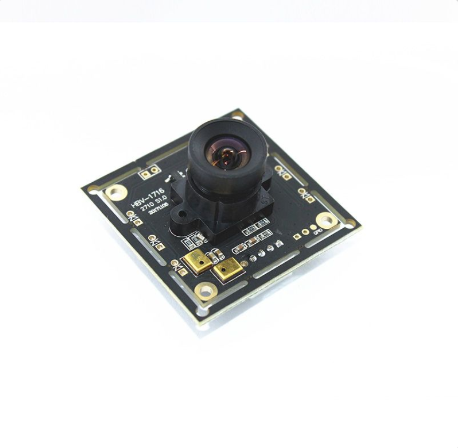

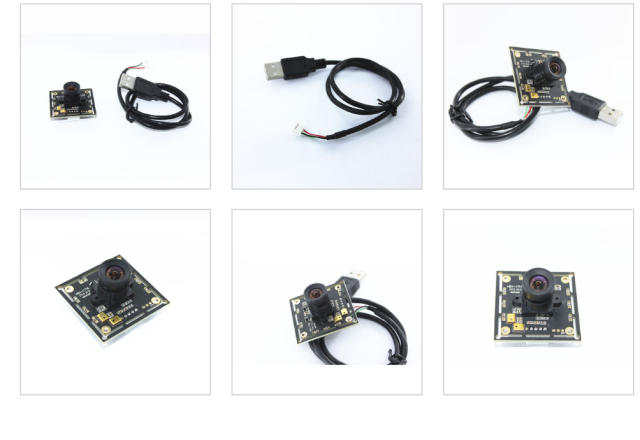

| HBVCAM-1716 2710 S1.0 Specification datasheet | |
| Model No. | HBVCAM-1716 2710 S1.0 |
| Model Size | 38MM(L)*38MM(W)*18MM(H) |
| Sensor | OV2710 |
| Optical Format | 1/2.7'' inch |
| Active array size | 1920*1080 |
| Sensitivity | 3300mV/Lux-sec |
| Pixel Size | 3um*3um |
| Max S/N ratio | 39dB |
| Dynamic range | 69dB@8Xgain |
| Image area | 5856um*3278um |
| Object distance | 30cm-infinity (adjustable) |
| Interface | 4PIN USB2.0 |
| DFOV (Diagonal Field of View) | 100degree |
| HFOV (Horizontal Field of View) | 85degree |
| VFOV (Vertical Field of View) | 58degree |
| Operating system | Free driver for Windows 2000\ Windows XP\Windows 7 / Linux and Android system with Standard UVC Protocol |
| Video Format | MJPG |
| Format output and FPS | 1920*1080（default）30fps 160*120 30fps 176*144 30fps 320*240 30fps 352*288 30fps 640*480 30fps 1280*720 30fps |
| Video Format | YUY2 |
| Format output and FPS | 640*480（default）30fps 160*120 30fps 176*144 30fps 320*240 30fps 352*288 30fps |
| Automatic white balance | √ |
| Automatic Exposure | √ |
| Focus | Fixed Focus (the lens is adjustable) |

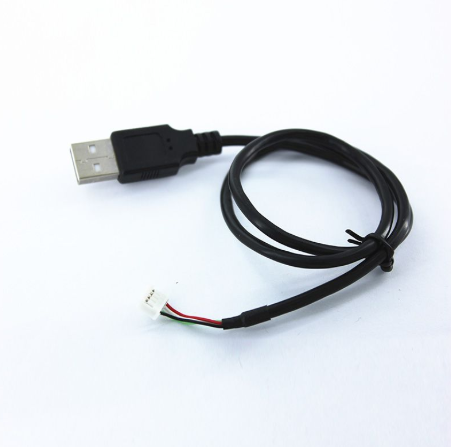

| USB cable | 1M for default (Also supply 2M) |
|
1The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light、operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding |
|
