HBVCAM 16MP Auto Focus UVC Sony IMX298 Plug and Play USB Camera Module For Windows Android Mac Linux USB2.0 Driverless
1.16M Pixle HD 4K CMOS Camera Module for industry equipment, advertising machine, embedded built-in machine 2.Size:38*38*6.9±0.2 MM
3.Sensor：IMX298(1/2.8'')
4.Maximum Resolution：1920*1080 YUV/MJPEG 15FPS
5.Fov：78°（ Lens can be adjustable,different Lens,FOV different）
6.Interface:USB2.0 4PIN 2.0 socket
7.Focus:Auto
8.Output Formats:YUY2/MJPEG
9.Supply voltage:DC 5V±5%
10.Operating system request:Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
11. With Microphone: yes
HBVCAM 16MP Auto Focus UVC Sony IMX298 Plug and Play USB Camera Module For Windows Android Mac Linux USB2.0 Driverless

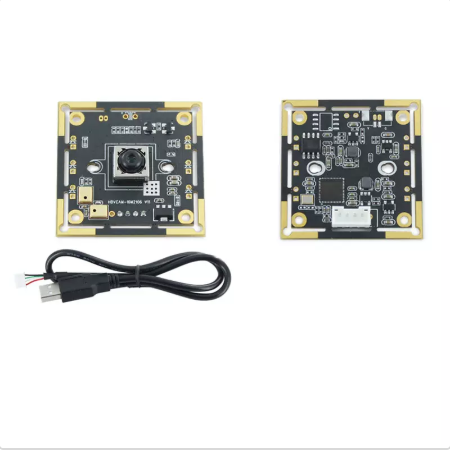

1 Piece of 16MP IMX298 USB Camera with Auto Focus lens, 50cm USB Cable
1) More than HD: This camera adopts an 16MP IMX298 sensor for sharp image and accurate color reproduction, Max. still resolution 4656 x 3496 .
2) 1/2.8” CMOS IMX298 Image sensor Webcams: High quality and low color reproduction deviation produce sharp images and more details. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial
3) M12 Mount fixed focus Lens : This camera module has a auto focus lens, transmitting the most realistic image effect.

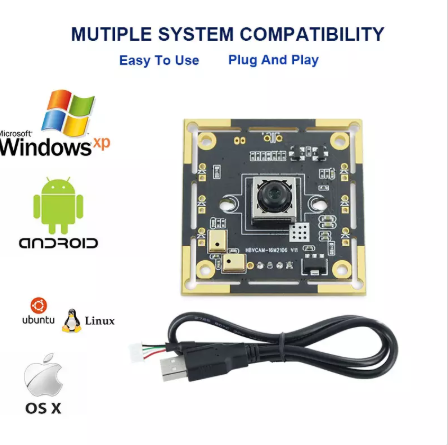

4) Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
5) Applications: This tiny camera is highly recommended for the video surveillance system, live streaming, videoconference, dashcam, and other vision
| Model | HBVCAM-16M2106 V11 |
| Sensor | SONY IMX298 |
| Sensor Size | 1/2.8inch |
| Pixel Size | 1.12um |
| Image Area | 6.4mm x 5.3mm |
| Max. Resolution | 4656(H) X 3496(V) 16Megapixel |
| Compression format | MJPEG / YUY2（YUYV） |
| Resolution & frame |
MJPEG 1920x1080@30FPS YUY2 2320x1744 @1FPS MJPEG 2592x1944@10FPS YUY2 4656x3496 @1FPS MJPEG 3264x2448@10FPS MJPEG 4208x3120@10FPS MJPEG 4656x3496@10FPS |
| Min illumination | 0.5lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| Free Driver Protocol | USB Video Class（UVC） |
| AEC | Support |
| AWB | Support |
| AGC | Support |
| Buttoncamera | Support |
| Adjustableparameters | Brightness,Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure |
| Lens Parameter | 78 degree lens |
| Power Supply | USB BUS POWER4P-2.0mm socket |
| Operating Voltage | DC5V |
| Working Current | 150mA~240mA |
| Working temperature | -10～70℃ |
| Storage temperature | -20～85℃ |

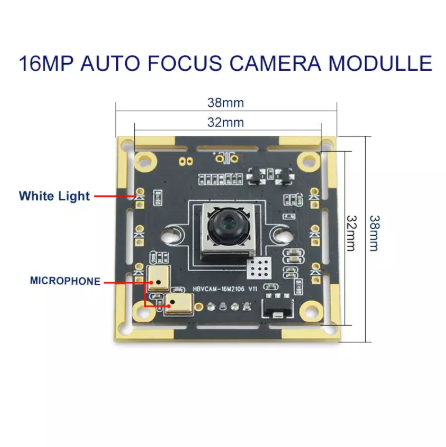

| Boardsize/Weight | 38X38mm（Compatible 32X32mm）/ about 30g |
| Cable | Standard 50CM / optional 1M,2M,3M |
1: ATM,Kiosk,POS,TV box 2: advertising cameras 3: one camera 4: Smart TV built-in camera
5: Construction Equipment 6: Banking equipment 7: body switch 8: Scanner
9: a mobile terminal device 10: Medical diagnostic image acquisition 11: fingerprints, palm prints image acquisition
12:video door phone 13:HD surveillance
