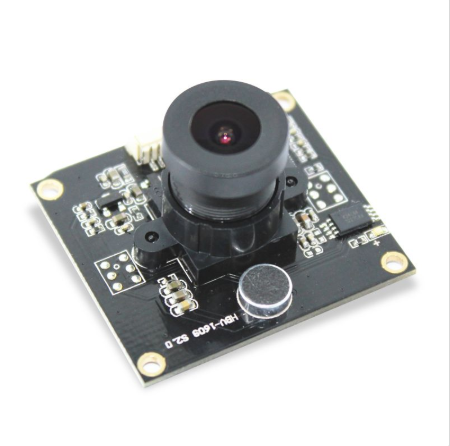

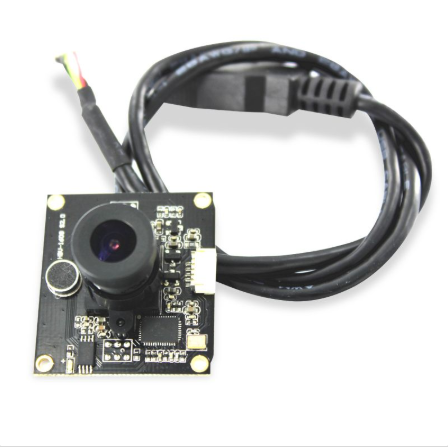

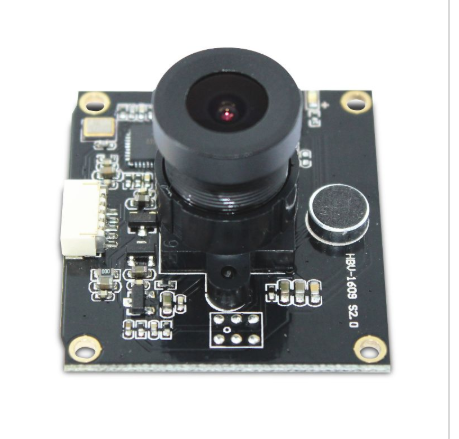

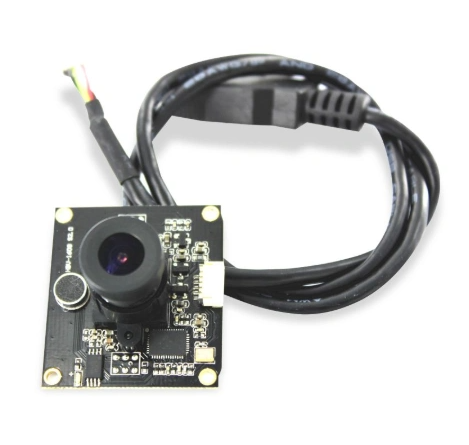

| Model No. |
HBVCAM-1609 S1.0 |
| Model Size |
35mm × 31.5mm × 18.5mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption |
400 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc |
| Sensor |
OV2643 (1/4” ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution |
1600*1200 |
| Sensitivity | 1250mv /(lux-sec) |
| Pixel Size | 2.2μm x 2.2μm |
| Maximum Image Transfer Rate |
MJPEG 320x240 30FPS / YUY2 320x240 30FPS |
| S/N Ratio | 39B |
| Max Dynamic Range | 62B |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4G+R |
| F/No | 2.0 |
| EFL |
2.6 mm |
| FOV | 120° |
| TV Distortion | <-50% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |

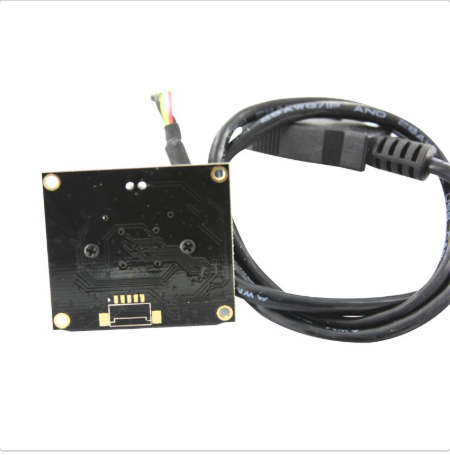

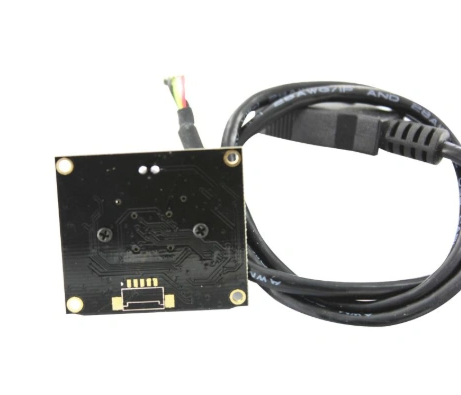

| USB cable | 50CM 1M 2M 3M |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
