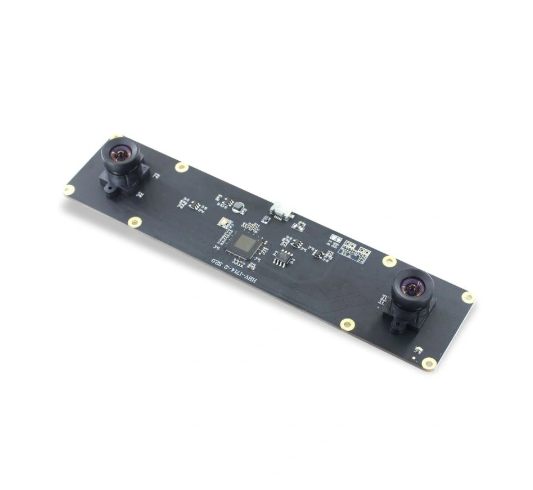

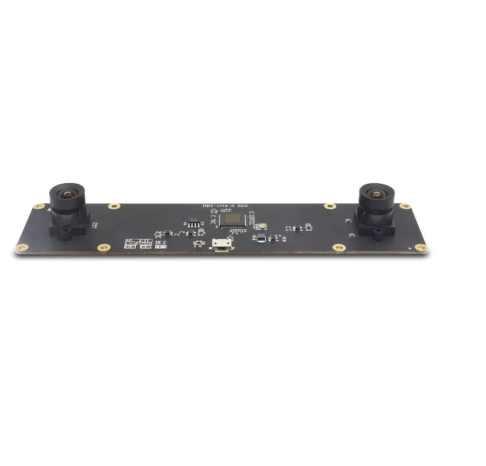

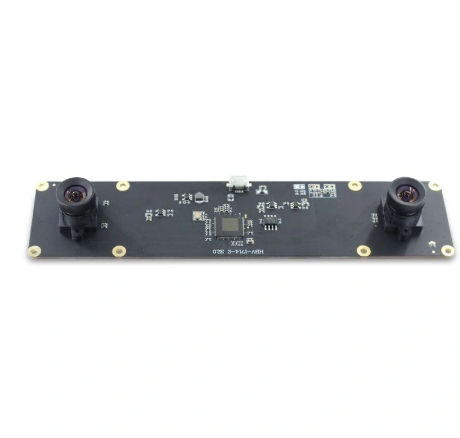

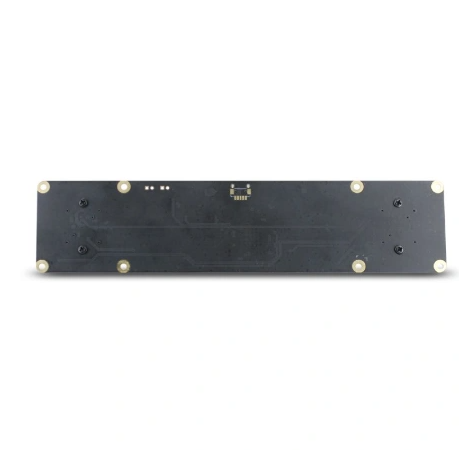

| Model No. |

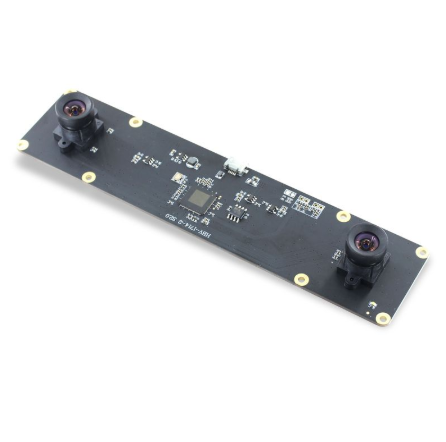

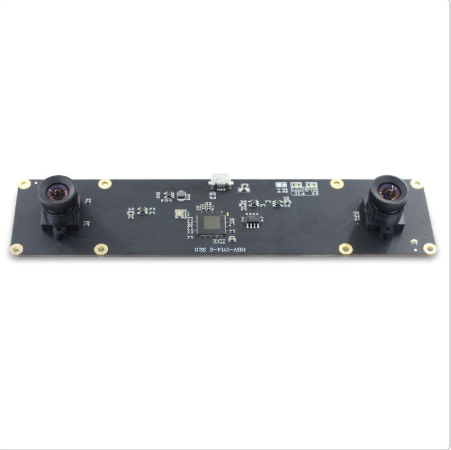

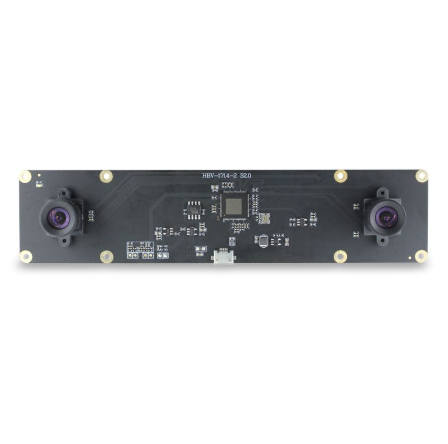

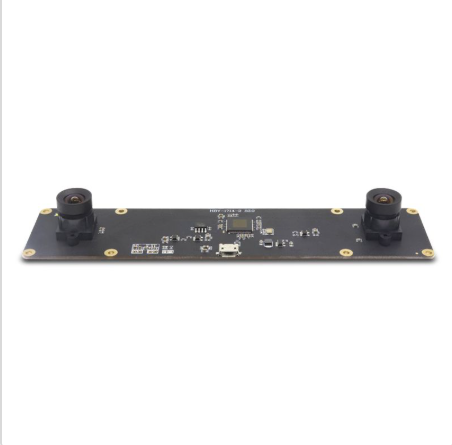

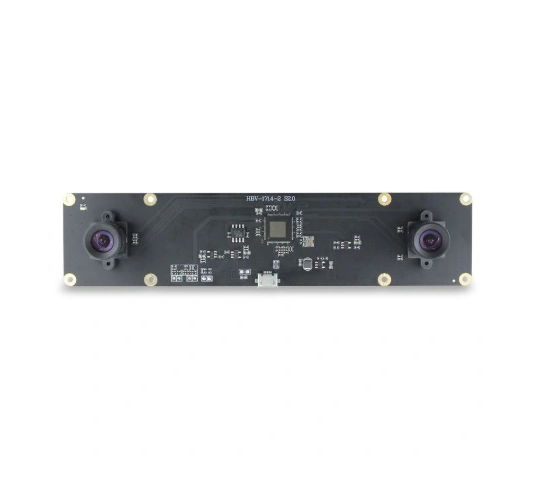

HBV-1714-2 S2.0 |
| Model Size |

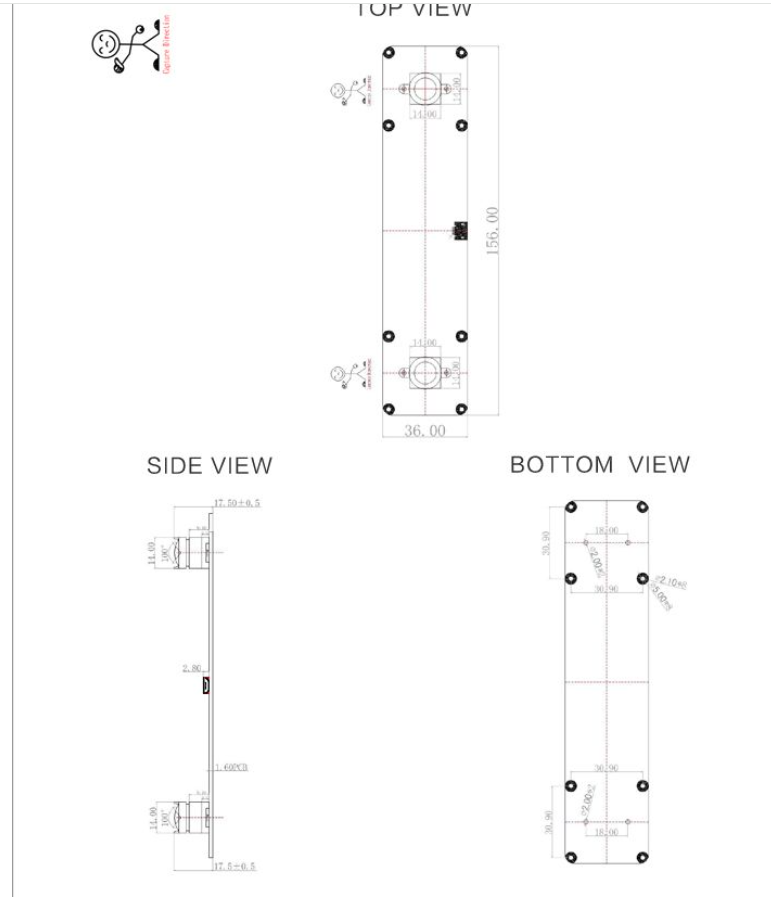

156mm × 36mm × 17.5mm±0.3MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption |
1460 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor |
OV9750 (1/3” ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution |
1280*960 |
| Sensitivity |
1900mV /(lux-sec) |
| Pixel Size |
3.75µm x 3.75µm |
| Maximum Image Transfer Rate |
MJPEG 960x960 60FPS / YUY2 960x960 10FPS MJPEG 1280x480 60FPS / YUY2 1280x480 10FPS MJPEG 1280x720 60FPS / YUV2 1280x720 5FPS MJPEG 1280x960 60FPS / YUV2 1280x960 10FPS MJPEG 2560x720 60FPS / YUV2 2560x720 5FPS MJPEG 2560x960 60FPS / YUV2 2560x960 5FPS |
| S/N Ratio | 39B |
| Max Dynamic Range | 72B |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction |
1G3P |
| F/No | 2.4 |
| EFL | 3.7mm |
| FOV | 100° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 50CM 1M 2M 3M |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
