| Machine parameters | ||||

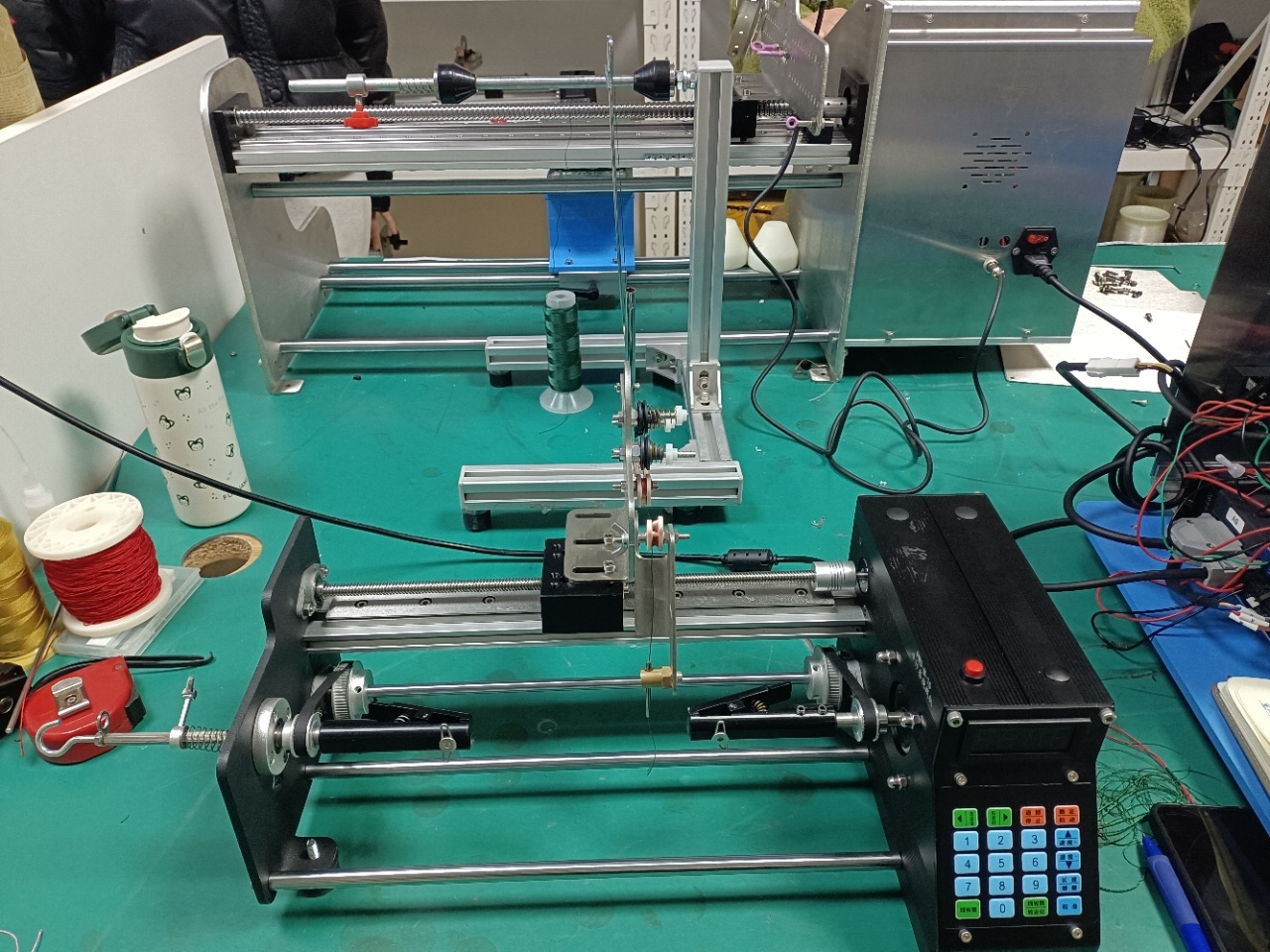

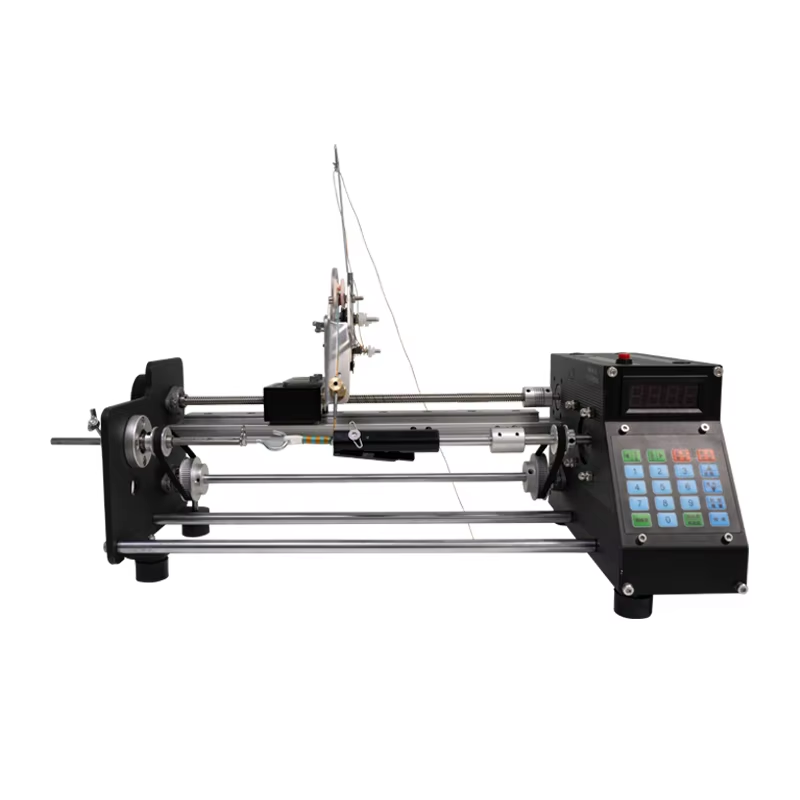

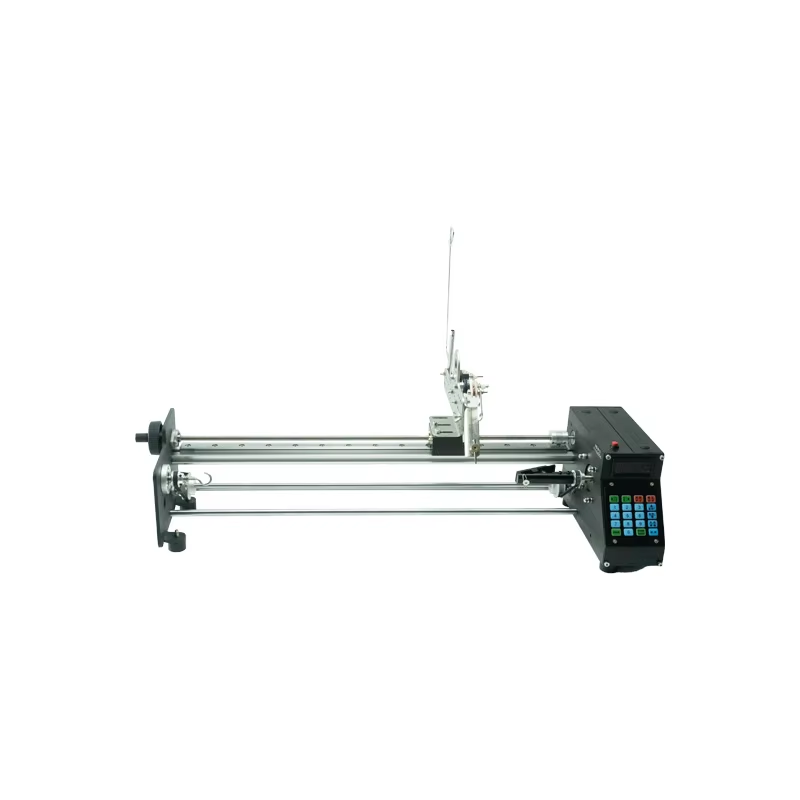

| Name | Coil winding machine | Machine display diagram | ||
| Model | PWD-M-15 | |||
| Functional features | The design of simultaneous operation of bilateral motors is adopted, aiming to achieve absolute synchronization when both sides operate simultaneously, ensuring more stable operation. 2. The self-weight of the machine has increased, making its operation more stable. 3. Coil winding machine, with a maximum speed of 1000 revolutions per minute; 4. The winding speed is adjustable, and the winding spacing can also be freely set according to requirements. 5. The tension of the winding can be controlled by installing a mechanical tensioner to achieve a good winding effect. The tightness of the winding can be adjusted through the wire support. 6. All the contact wire links are made of ceramic material, providing excellent wire protection. 7. The intelligent winding system can automatically return to the origin after winding is completed, greatly improving production efficiency. 8. Automatically detect the winding speed. The S-shaped acceleration and deceleration function at the beginning and end of the winding can reduce inertia and make the winding more uniform. 9. It is applicable to industries such as button buttons, straight buttons, Tang suit buttons, swallow-tail buttons, and bracelet weaving and winding. 10. The overall design adopts a black tone, which visually looks more grand and endows industrial products with artistic value. 11. It is suitable for batch production by manufacturers. |
 |
||
| Operation mode | Button operation | Packaging display diagram | ||
| System version | 2.13 System | |||
| Machine size | Length: 500mm* Width: 240mm* Height: 157mm | Length: 580mm* Width: 240mm* height: 157mm | Length: 750mm* Width: 240mm* height: 157mm | |
| Net weight of the machine | 5.6kg | 5.8kg | 6.6kg |  |
| Slide table size | 35cm | 45cm | 60cm | |
| Valid itinerary | 150mm | 250mm | 420mm | |
| Maximum winding diameter | 50mm | |||
| Wire diameter range (mm） | 0.025-5mm (Customizable wire crossing method) | |||
| Clamping fixture | Clips, wire hooks (Workwear can be customized | |||
| Rotational speed | 5-1800r/min | |||
| Measurement method | Count circles and count layers | |||
| Tension control mode | Mechanical tensioner | |||
| Rated input | 24V 10A | |||
| After-sales service | One-year warranty, free shipping and replacement of spare parts within one year | |||
| Whether to support export | Supports export and is applicable to voltage standards in European, American and Asian countries | |||
| Packaging size | Length: 600mm* Width: 330mm* Height: 270mm | Length: 660mm* Width: 310mm* Height: 235mm | Length: 865mm* Width: 330mm* height: 310mm | |
| Packaging weight | 8.4kg | 8.6kg | 9.8kg | |
| Packaging method | The standard five-layer corrugated carton is fixed inside with pearl cotton and foam. | |||
| Domestic uniform retail price | ||||
