| Machine parameters | ||||

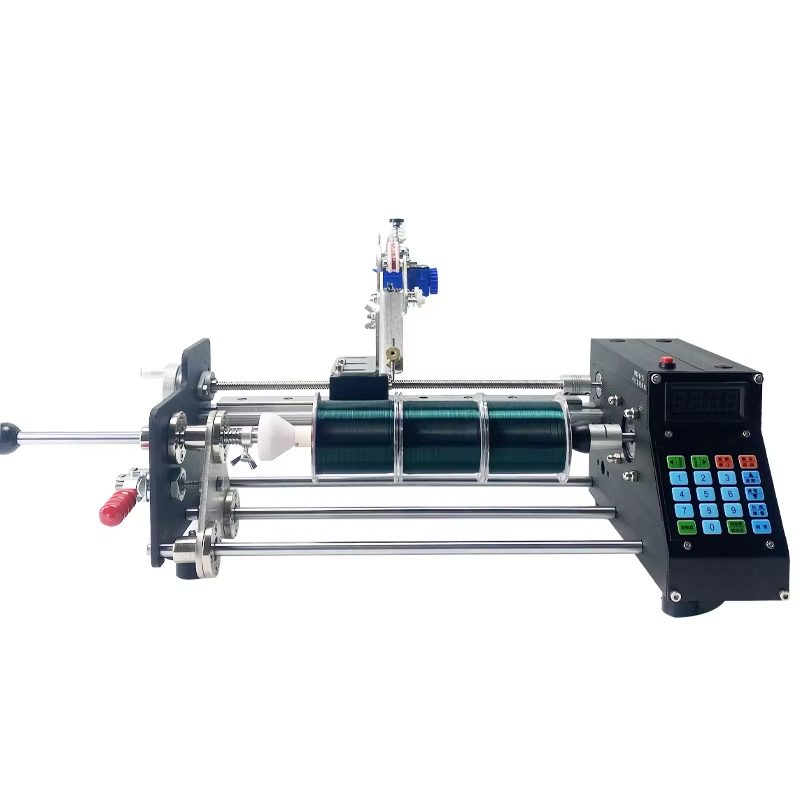

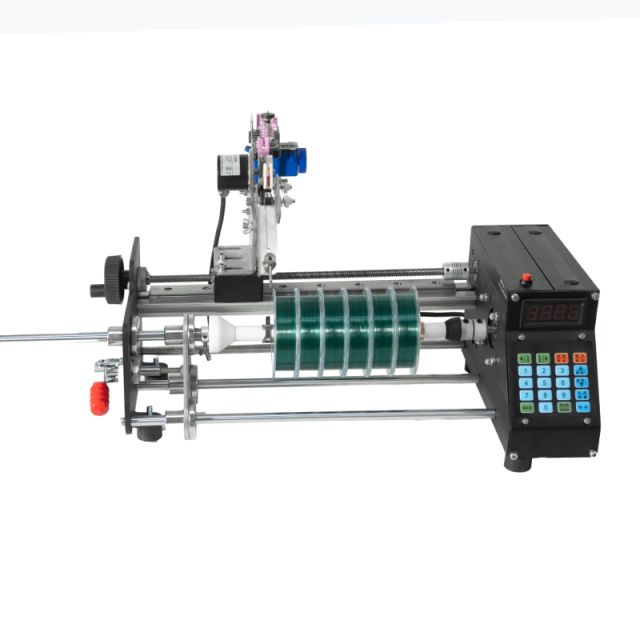

| Name | Medium-sized cable ribbon | Machine display diagram | ||
| Mode | PWD-M-15 | |||
| Functional features | 1. Parallel winding and wire arrangement ensures uniform and smooth routing, achieving precise wire arrangement. 2. The winding speed is adjustable. 3. The tension of the winding can be controlled by installing mechanical or magnetic tensioners to achieve a good winding effect. 4. All the contact wire links are made of ceramic material, providing excellent wire protection. 5. It is equipped with an intelligent system. When winding the wire, the system automatically detects that the resistance has increased to a certain extent. To prevent the wire from being pulled or broken, the system will activate the emergency stop wire protection function. 6. It automatically detects the winding speed. The S-shaped acceleration and deceleration function at the beginning and end of the winding can reduce inertia, making the meter measurement more accurate and the wire protection effect better. It can wind up to 9,999 meters. 7. It is applicable to various soft and thin wires, such as enameled wire, fishing line, cotton thread, electric wire, optical fiber, steel wire, welding wire, etc. 8. It integrates all the advantages of the winding machines on the market. The overall design adopts a black main color tone, which looks more grand visually and endows industrial products with artistic value. 9. It is suitable for batch production by manufacturers. |
 |
||
| Operation mode | Button operation | Packaging display diagram | ||
| System version | 2.13 System | |||
| Machine size | Length: 500mm* Width: 240mm* height: 160mm | Length: 600mm* Width: 240mm* height: 160mm | Length: 750mm* Width: 240mm* height: 160mm | |
| Net weight of the machine | 6.2kg | 6.6kg | 7.2kg |  |
| Slide table size | 35cm | 45cm | 60cm | |
| Valid itinerary | 200mm | 300mm | 420mm | |
| Maximum winding diameter | 110mm | |||
| Wire diameter range (mm） | 0.025-5mm (Customizable wire crossing method) | |||
| Clamping fixture | Standard I-shaped shaft top (customizable for special-shaped fixtures) | |||
| Rotational speed | 5-1800r/min | |||
| Measurement method | Independent encoders measure meters, turns and layers | |||
| Maximum winding length | 9999m | |||
| Tension control mode | Mechanical or magnetic tensioners | |||
| Rated input | 24V 10A | |||
| After-sales service | One-year warranty, free shipping and replacement of spare parts within one year | |||
| Whether to support export | Supports export and is applicable to voltage standards in European, American and Asian countries | |||
| Packaging size | Length: 600mm* Width: 330mm* Height: 270mm | Length: 660mm* Width: 310mm* Height: 235mm | Length: 865mm* Width: 330mm* height: 310mm | |
| Packaging weight | 8.8kg | 9.2kg | 10.2kg | |
| Packaging method | The standard five-layer corrugated carton is fixed inside with pearl cotton and foam. | |||
| Domestic uniform retail price | ||||
