| Machine parameters | |

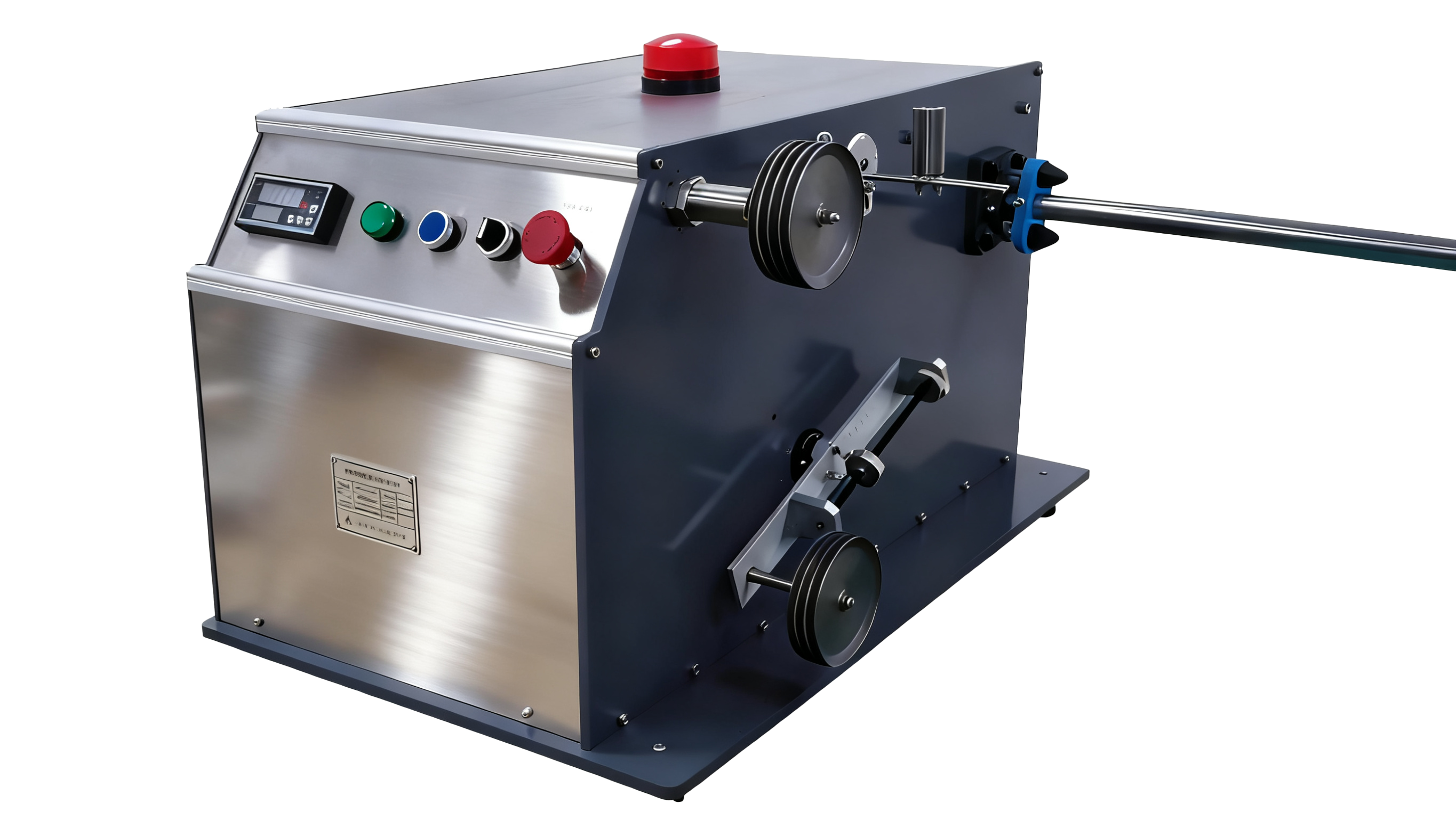

| Name | High-speed Active Wire Feeding Machine |
| Model | AWF-H-60 |
| Functional features | When winding single-mode optical fibers, the advantages of the active wire feeding machine are as follows: 1. Precise control of the wire feeding speed: The active wire feeding machine can accurately control the wire feeding speed of the single-mode optical fiber. During the winding process, a stable and precisely adjustable wire feeding speed is crucial. It can ensure that the optical fiber is wound evenly on the target object, avoiding problems such as uneven winding of the optical fiber and inconsistent tightness caused by unstable speed, thereby improving the winding quality. 2. Accurate tension control: It can precisely control the tension of the optical fiber. Single-mode optical fibers are relatively fragile. Excessive tension is likely to damage the internal structure of the optical fiber and affect its optical performance; too little tension may result in an un-tight winding, which is prone to looseness during subsequent use. Through the advanced tension control system, the active wire feeding machine can adjust the tension in real time according to the actual situation during winding, ensuring that the optical fiber maintains an appropriate tension throughout the winding process, neither damaging the optical fiber nor achieving the best winding effect. 3. Enhanced winding accuracy: In combination with high-precision winding equipment, the active wire feeding machine can achieve very high winding accuracy. It can precisely wind the optical fiber at the specified position according to the preset winding parameters, such as winding pitch, number of layers, etc., ensuring that the position and pitch of each turn of the optical fiber meet the requirements, thus improving the consistency and reliability of the product. 4. Reduced optical fiber damage: Due to the smooth wire feeding process and precise tension control, the active wire feeding machine can effectively reduce the friction, stretching and other damages suffered by the optical fiber during the winding process. This is crucial for ensuring the optical performance and service life of single-mode optical fibers, especially in application scenarios with extremely high requirements for optical fiber performance, such as communication trunks, high-precision sensing and other fields. |
| Size | Machine Dimensions：L:80cm*W:95cm*H:50 |
| Packing Box DimensionsL:90cm*W:110cm*H:50 | |
| Weight | Machine net weight：90kg |
| Gross weight：130kg | |
| The length of the wire reel bracket | 30cm |
| Tension adjustment | Angle sensor adjustment |
| Wire feeding speed | 900r/min |
| Wire unwinding mode | Active wire feeding |
| Alarm mode | Alarm for wire breakage |
| Input Voltage | 100-240V |
