AR0144 1MP Global Shutter Camera Module
The standard 28X28MM structure is versatile (available with a PC camera)
high cost effective than 1080P camera
AR0144 1MP Global Shutter Camera Module
AR0144 Sensor :
AR0144 Sensor :The AR0144 is a 1/4-inch 1.0 Mp CMOS digital image sensor with an active-pixel array of 1280H x 800V. It incorporates a new innovative global shutter pixel design optimized for accurate and fast capture of moving scenes. The sensor produces clear, low noise images in both low-light and bright scenes. It includes sophisticated camera functions such as auto exposure control, windowing, row skip mode, column-skip mode, pixel-binning and both video and single frame modes. It is programmable through a simple two-wire serial interface. The AR0144 produces extraordinarily clear, sharp digital pictures, and its ability to capture both continuous video and single frames makes it the perfect choice for a wide range of applications, including scanning and industrial inspection.
· Best Global Shutter Efficiency
· Low Dark Current/Hot Pixels
· High Linear Full Well
· Low Operational Power
· Small Form Factor
Specification
|
Module No. |

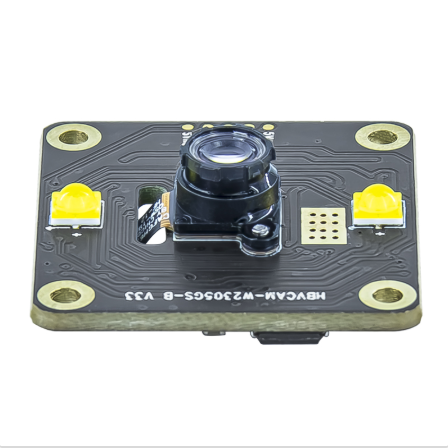

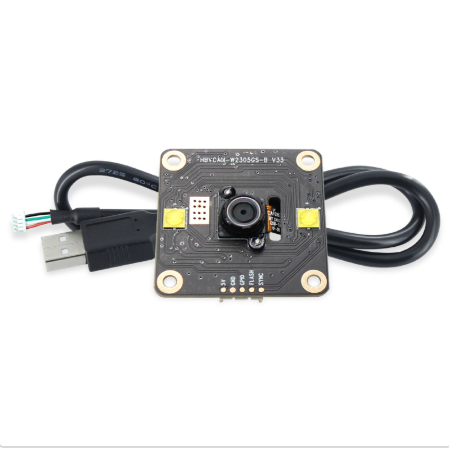

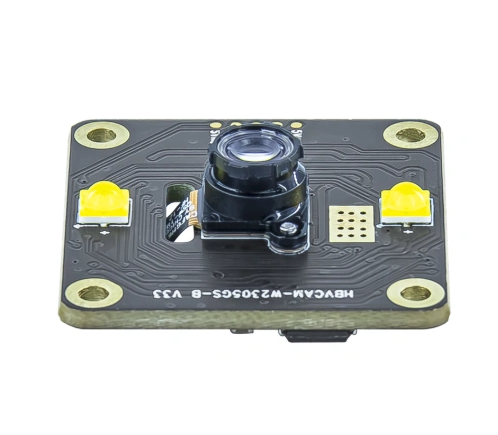

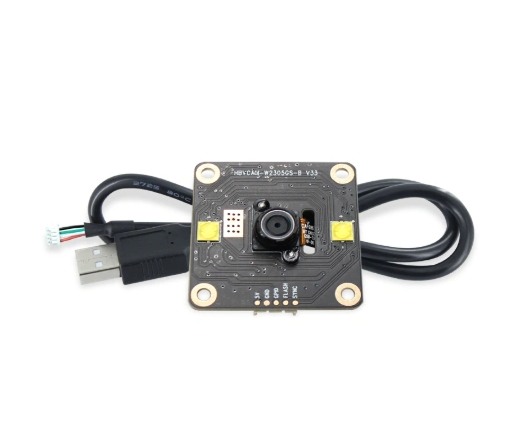

HBVCAM-W2305GS-B V33 |
|
Module Size |

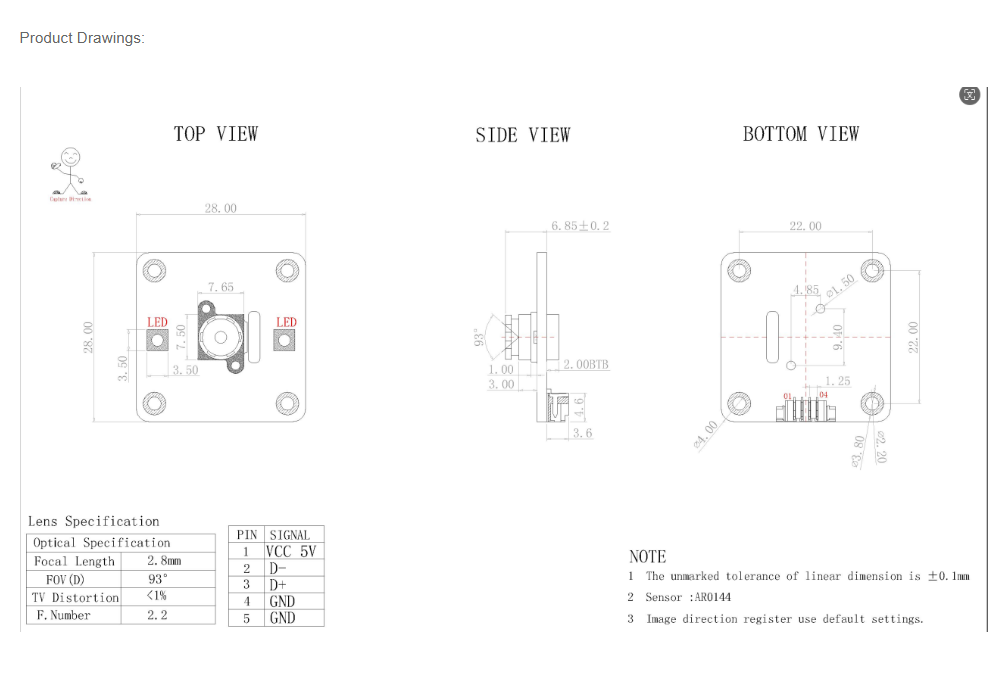

28mm × 28mm × 6.85mm±0.2MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
610 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
AR0144 (1/4” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
1280*800 |
|
Sensitivity |
3.6V /（lux-sec） |
|
Pixel Size |
3.0µm x 3.0µm |
|
Maximum Image Transfer Rate |
MJPEG 680x480 60FPS / YUY2 680x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 10FPS MJPEG 1280x720 60FPS / YUY2 1280x720 30FPS MJPEG 1280x800 60FPS / YUY2 1280x480 30FPS
|
|
S/N Ratio |
38db |
|
Max Dynamic Range |
63.9db |
|
Shutter type |
Global shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
4P |
|
F/No |
2.2 |
|
EFL |
2.8mm |
|
FOV |
93° |
|
TV Distortion |
<1% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
