Product Features:

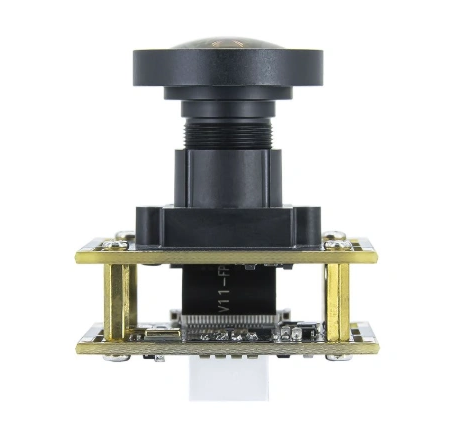

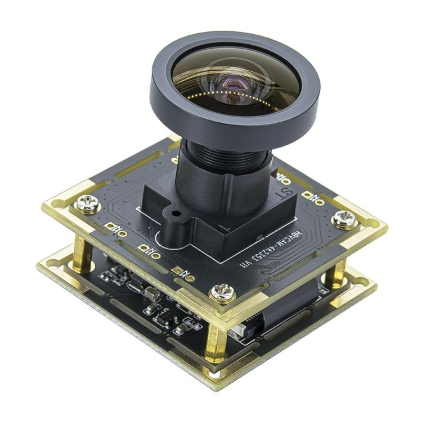

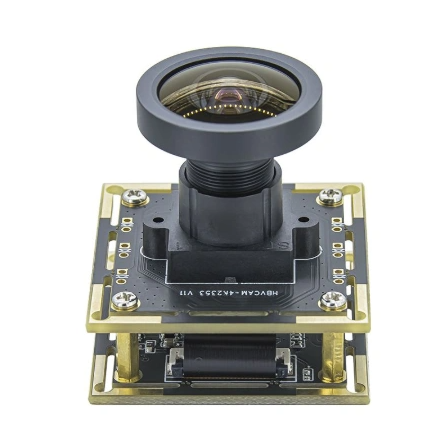

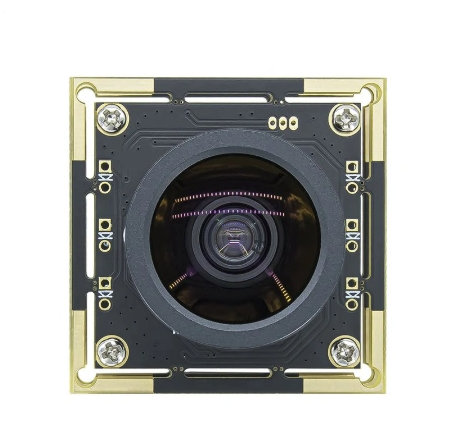

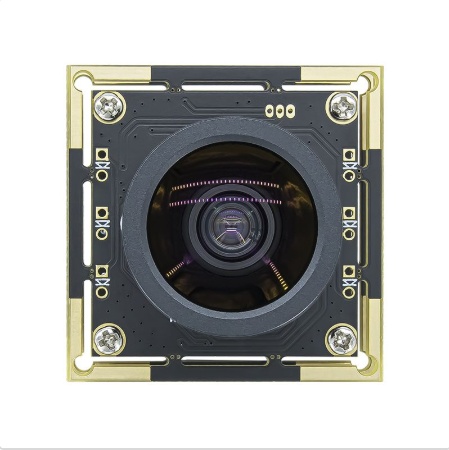

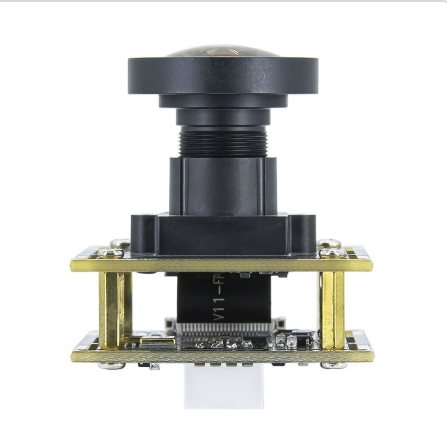

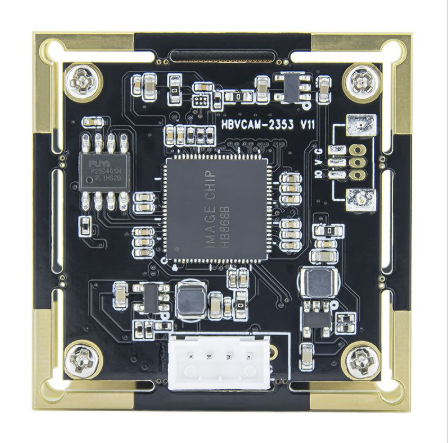

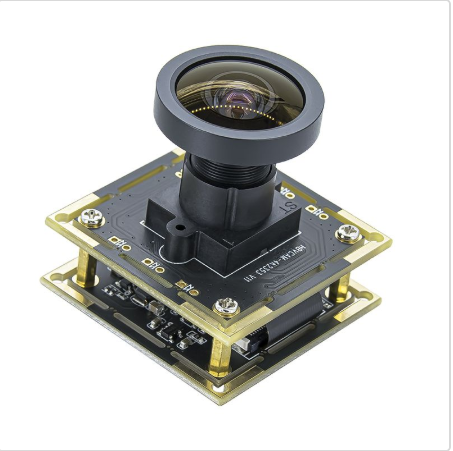

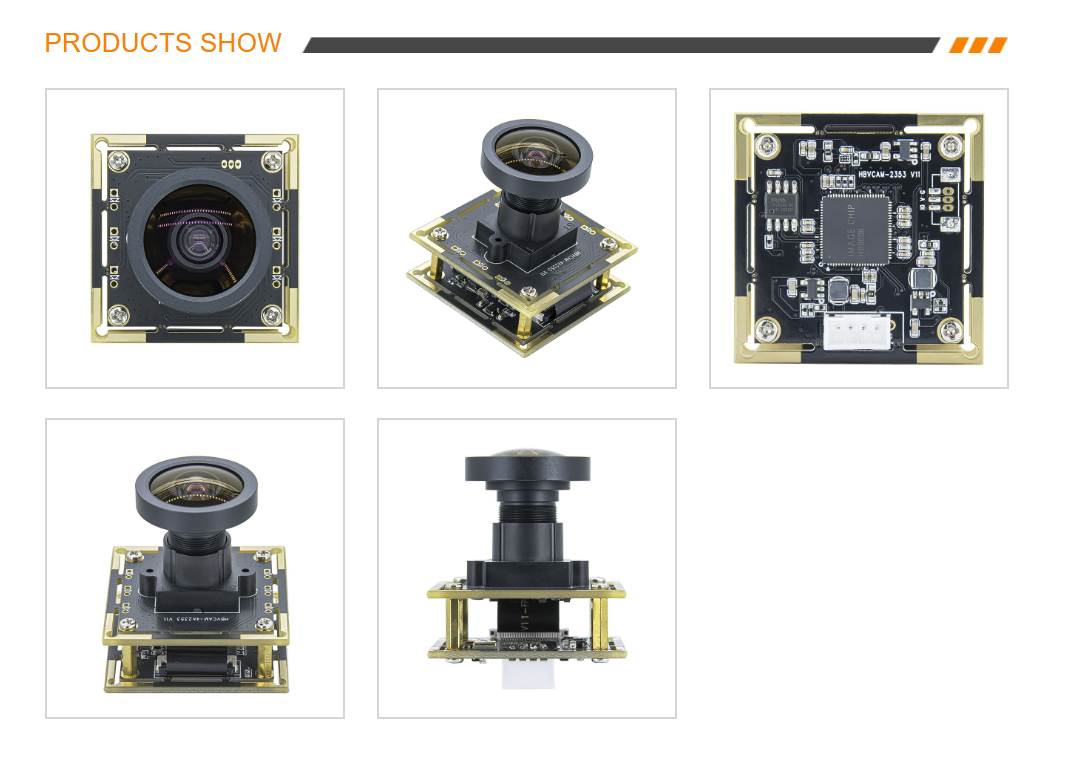

1. Standard industrial camera board:38mm*38mm/32mm* 32mm
2. IMX678-1/1.8 large pixel mainly promotes high-end, with high pixel effect requirements, 4k large screen, and live broadcast camera
3. Built-in dual digital microphone
4. Can be used for night vision - expandable light board
The IMX678-AAQR1-C is a diagonal 8.86 mm (Type 1/1.8) CMOS active pixel type solid-state image sensor with a square pixel array and 8.40 M effective pixels. This chip operates with analog 3.3 V, digital 1.1 V, and interface 1.8 V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time. (Application: Security cameras)
◆CMOS image sensor
◆Image size Diagonal 8.86 mm (Type 1/1.8) approx. 8.40 M pixels, All pixels
◆Total number of pixels 3856 (H) × 2200 (V) approx. 8.48 M pixels
◆Number of effective pixels 3856 (H) × 2180 (V) approx. 8.40 M pixels
◆Number of active pixels 3856 (H) × 2176 (V) approx. 8.39 M pixels
◆Number of recommended recording pixels 3840 (H) × 2160 (V) approx. 8.29 M pixels
◆Unit cell size 2.0 μm (H) × 2.0 μm (V)
|
Module No. |

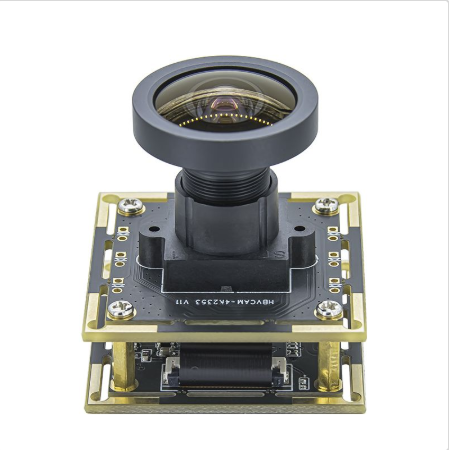

HBVCAM-4K2353 V11 |
|

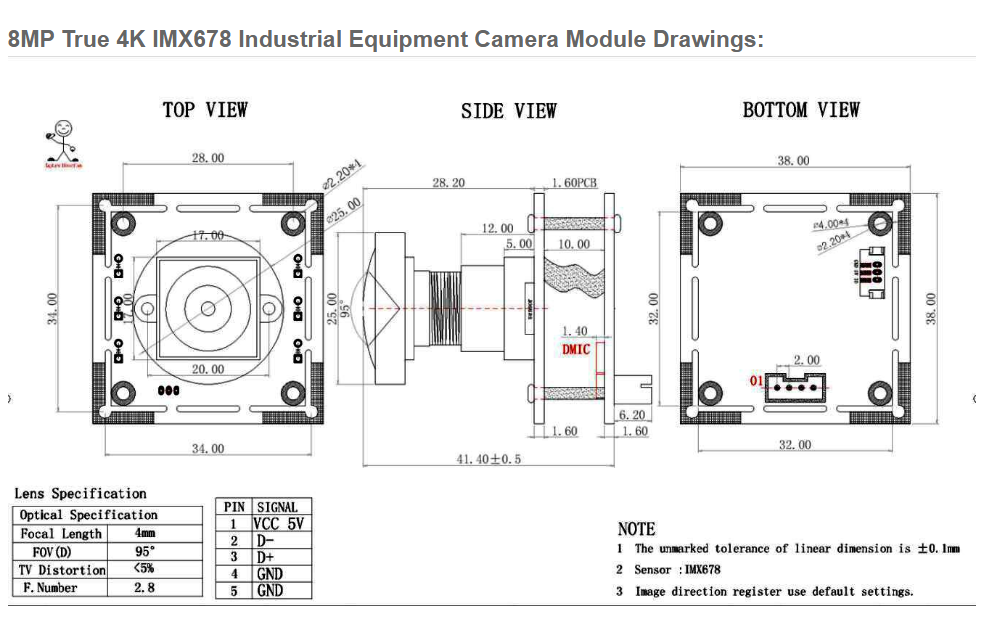

Module Size |
38mm × 38mm × 42.40mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power supply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
950 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
IMX577 (1/2.3” ) |
|
Senior Package |
CSP, Bare Die |
|
Maximum resolution |
3840*3040 |
|
Sensitivity |
50mV /（lux-sec） |
|
Pixel Size |
1.55µm x 1.55µm |
|
Maximum Image Transfer Rate |

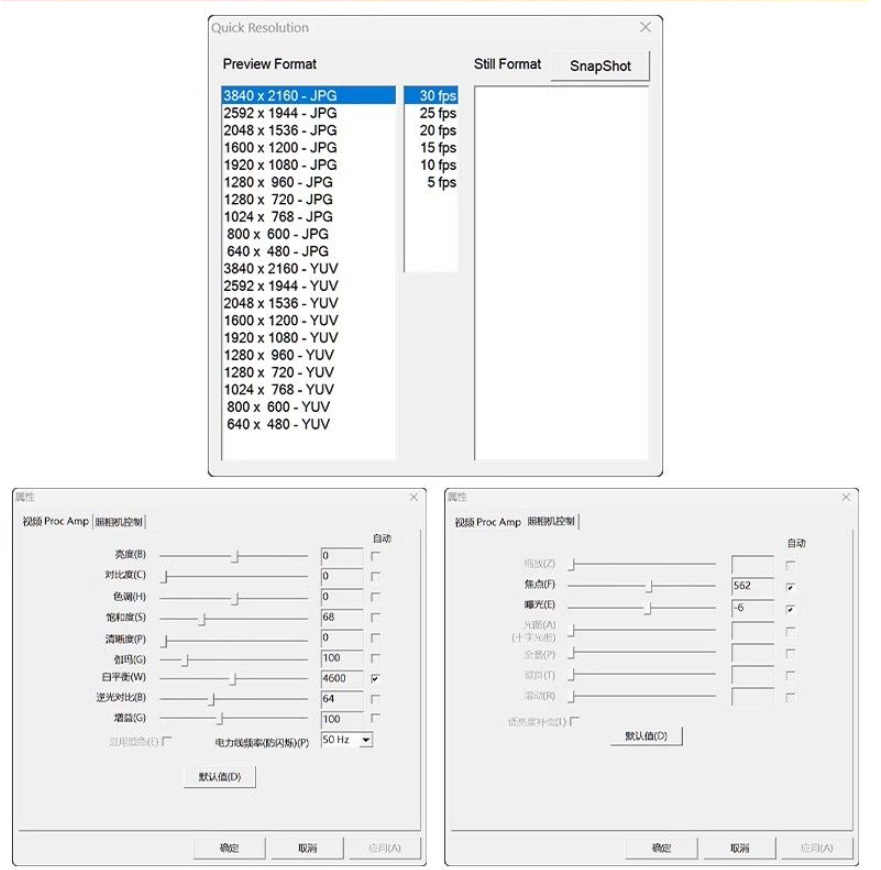

MJPEG 1280x720 60FPS / YUY2 1280x720 5FPS MJPEG 1920x1080 60FPS / YUY2 1920x1080 1FPS MJPEG 2408x1536 30FPS / YUY2 2408x1536 1FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 1FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS |
|
S/N Ratio |
40db |
|
Max Dynamic Range |
83db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
Support |
|
Lens Construction |
5G2P |
|
F/No |
2.8 |
|
EFL |
4.0 mm |
|
FOV |
85° |
|
TV Distortion |
<1.0% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
