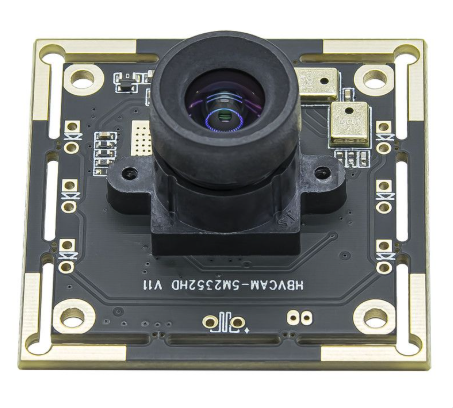

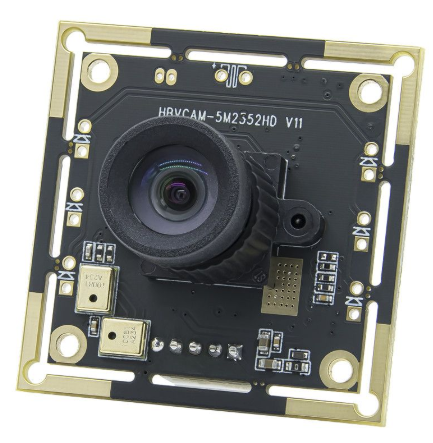

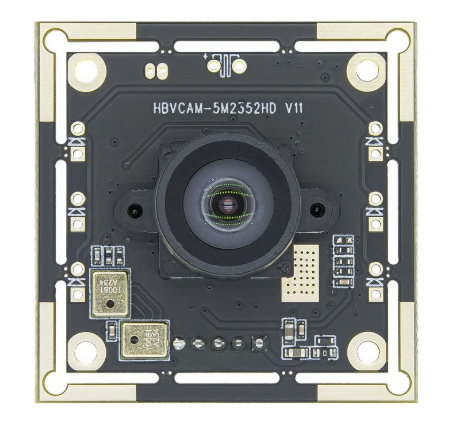

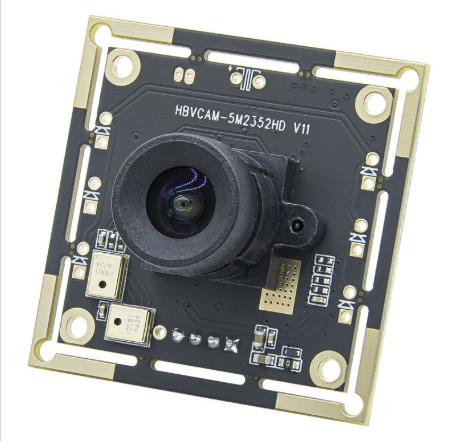

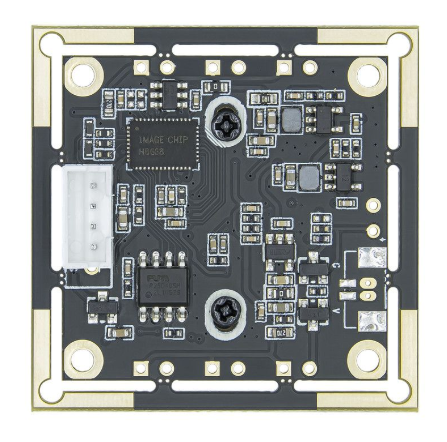

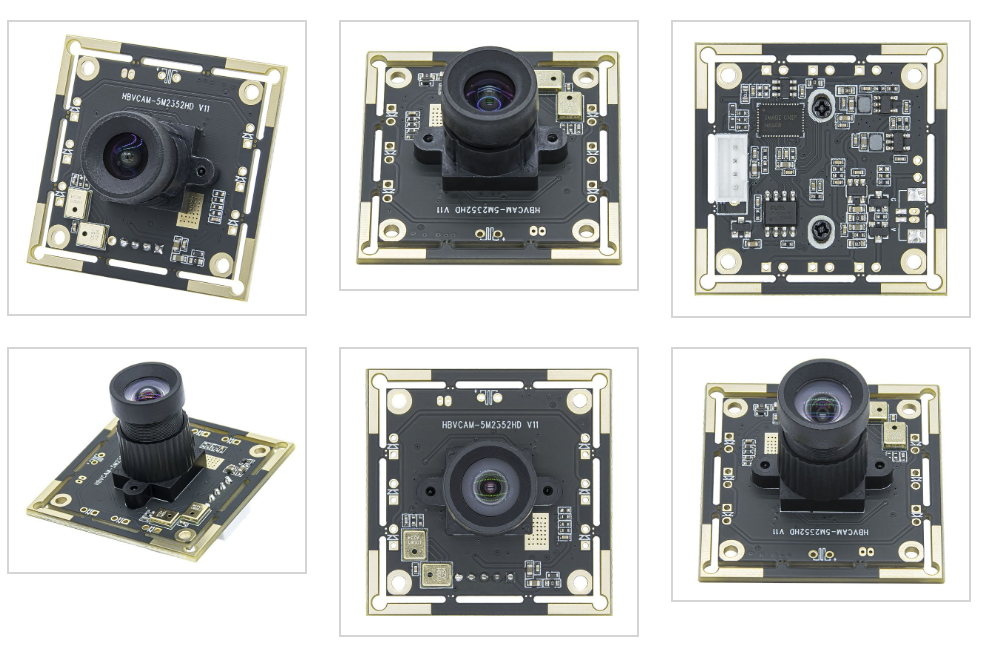

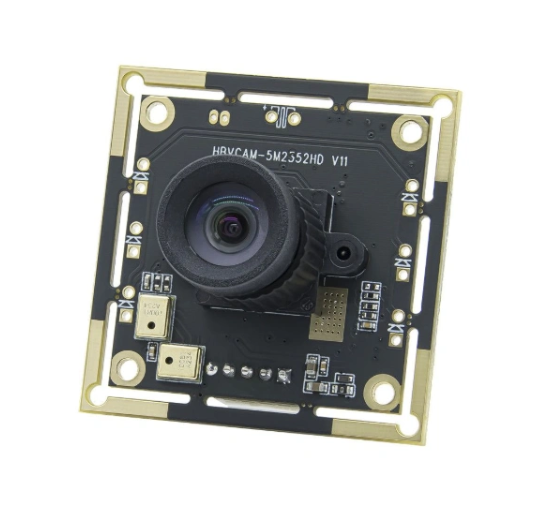

5MP Sony IMX335 2K HDR USB Camera Module For Industrial Machine
1. Standard industrial camera 38*38mm/32mm* 32mm board structure, hole positions
2. 1/2.7 "Sony large pixel HDR high-definition chip
3. Multiple lens options available
4. 6 plug-in lights can be added and soldered (with infrared and white light), which can be made into an on/off image or photosensitive control. There is a power expansion port with an external light board
5. MJPEG-2592x1944 can support 30 frames
6. Can be connected to CS port lens
7. Targeting customer groups with effective and sensor requirements
|
Module No. |
HBVCAM-5M2352HD V11 |
|
Module Size |
38mm × 38mm × 23.50mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
610 mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
IMX335 (1/2.8” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
2592*1944 |
|
Sensitivity |
780mV /（lux-sec） |
|
Pixel Size |
2.0µm x 2.0µm |
|
Maximum Image Transfer Rate |
MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 2FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS
|
|
S/N Ratio |
30db |
|
Max Dynamic Range |
72db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
Support |
|
Lens Construction |
2G2P |
|
F/No |
2.4 |
|
EFL |
4.2 mm |
|
FOV |
68° |
|
TV Distortion |
<5% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
