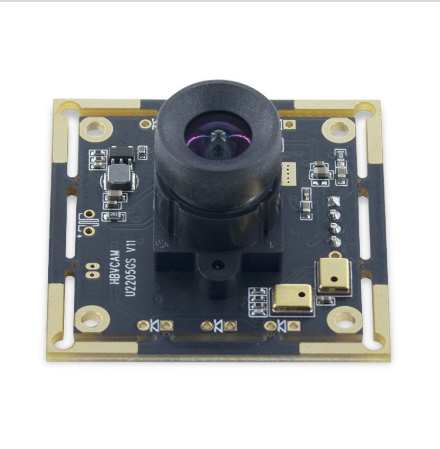

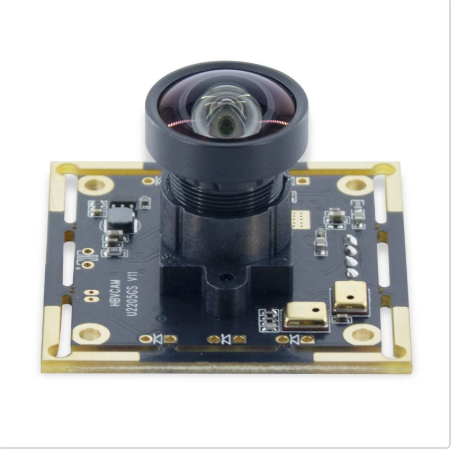

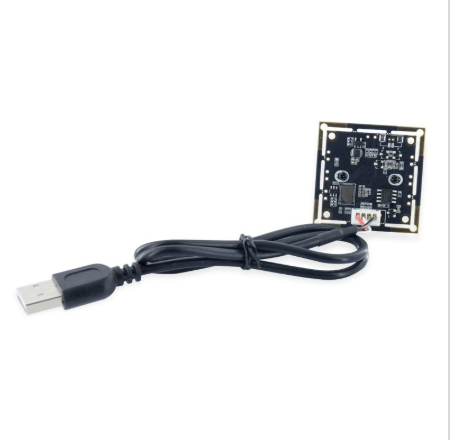

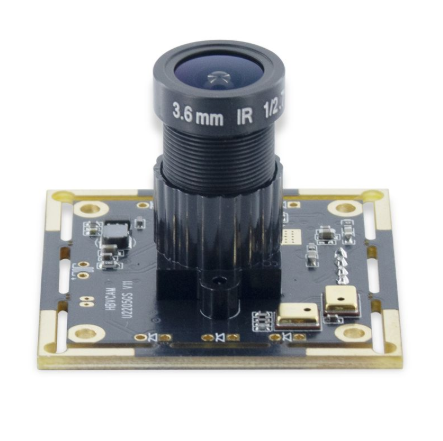

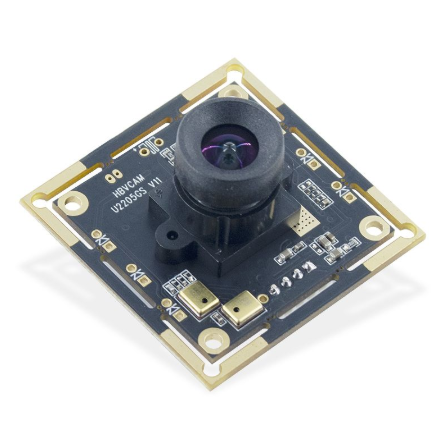

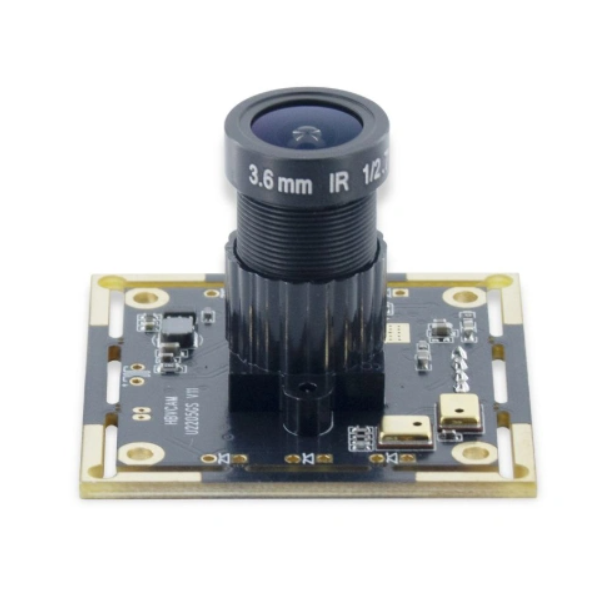

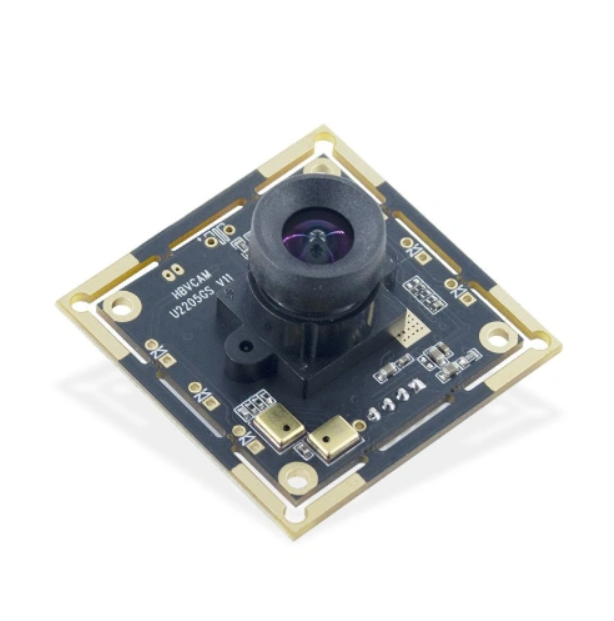

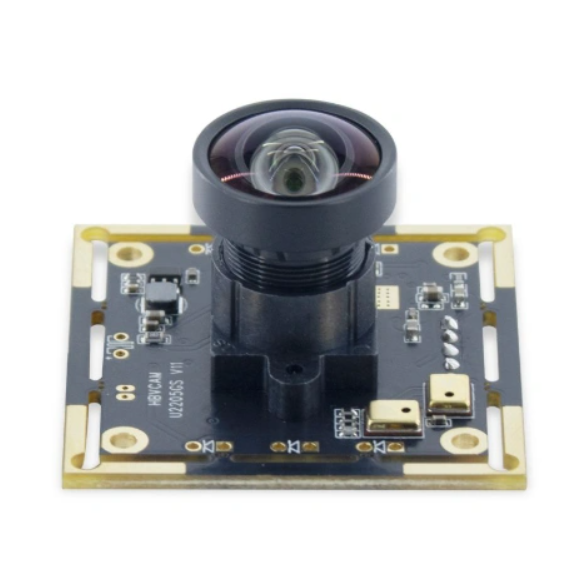

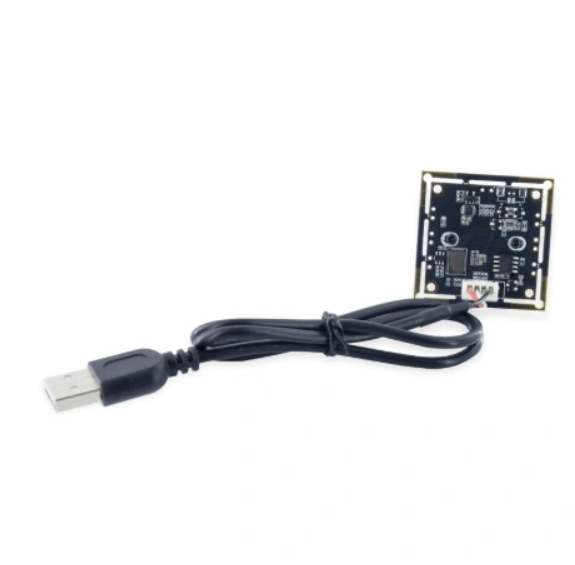

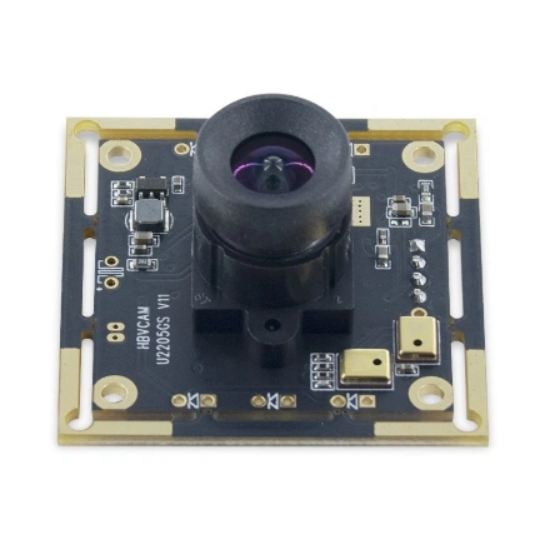

2MP USB2.0 OG02B10 120FPS Colorful Global Shutter Camera Module With Microphone
|
Module No. |
HBVCAM-U2205GS V11 |
|||
|
Module Size |
38mm × 38mm × 18.00mm±0.5MM |
|||
|
Temperature (Operation) |
-30°C to 70°C |
|||
|
Temperature (Stable Image) |
0°C to 50°C |
|||
|
Assembly technique |
SMT (ROSH) |
|||
|
Focus |
Fixed |
|||
|
Object distance |
30CM-infinity |
|||
|
Resolution |
600LW/PH (Center) |
|||
|
PCB printing ink |
Black |
|||
|
interface |
||||
|
Power supply |
USB bus power |
|||
|
supply voltage |
DC 5V±5% |
|||
|
Maximum Power consumption |
890 mW |
|||
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with svc |
|||
|
Sensor |
OG02B10 (1/2.9” ) |
|||
|
Senior Package |
CSP, Bare Die | |||
|
Maximum resolution |
1600*1200 |
|||
|
Sensitivity |
1900mV /（lux-sec） |
|||
|
Pixel Size |
3.0µm x 3.0µm |
|||
|
MJPEG 640x480 |
120FPS / |
YUY2 640x480 |
30FPS |
|
|
MJPEG 848x480 |
120FPS / |
YUY2 848x480 |
15FPS |
|
|
Maximum Image Transfer Rate |
MJPEG 1280x720 MJPEG 1280x960 |
120FPS / 60FPS / |
YUY2 1280x720 YUY2 1280x960 |
10FPS 1FPS |
|
MJPEG 1600x1200 |
60FPS / |
YUY2 1600x1200 |
1FPS |
|
|
S/N Ratio |
37.4db |
|||
|
Max Dynamic Range |
68db |
|||
|
Shutter type |
Electronic rolling shutter |
|||
|
AGC/AEC/Whiter balance |
Auto |
|||
|
Output Formats |
YUY2/MJPEG |
|||
|
Microphone |
Support |
|||
|
Lens Construction |
2G2P |
|||
|
F/No |
2.4 |
|||
|
EFL |
3.0 mm |
|||
|
FOV |
100° |
|||
|
TV Distortion |
<5% |
|||
|
Relative Illumination (Sensor) |
70% |
|||
|
IR Filter |
650±10nm |
|||
|
Module Package |
Anti-electrostatic tray |
|||
|
Certifications |
FCC/CE/ROSH |
|||
1. Standard industrial camera 38*38mm& 32mm*32mm board structure
2. The chip can choose color or black and white images (OG02B10/OG02B1B)
3. Can add 6 plugins for welding white light - can be made into an on/off image or photosensitive control - can be extended to the external frame light board
4. There is a reserved functional interface, which can customize software functions such as triggering, pulse output input, etc. (additional charge for customization)
5. Multi-lens optional
