Product Features:
1. Large pixel ultra small structural dimensions: length and width 20 * 14mm
2. With hardware wide dynamic range, the original phase 5268 photosensitive chip has a dynamic range of 85dB

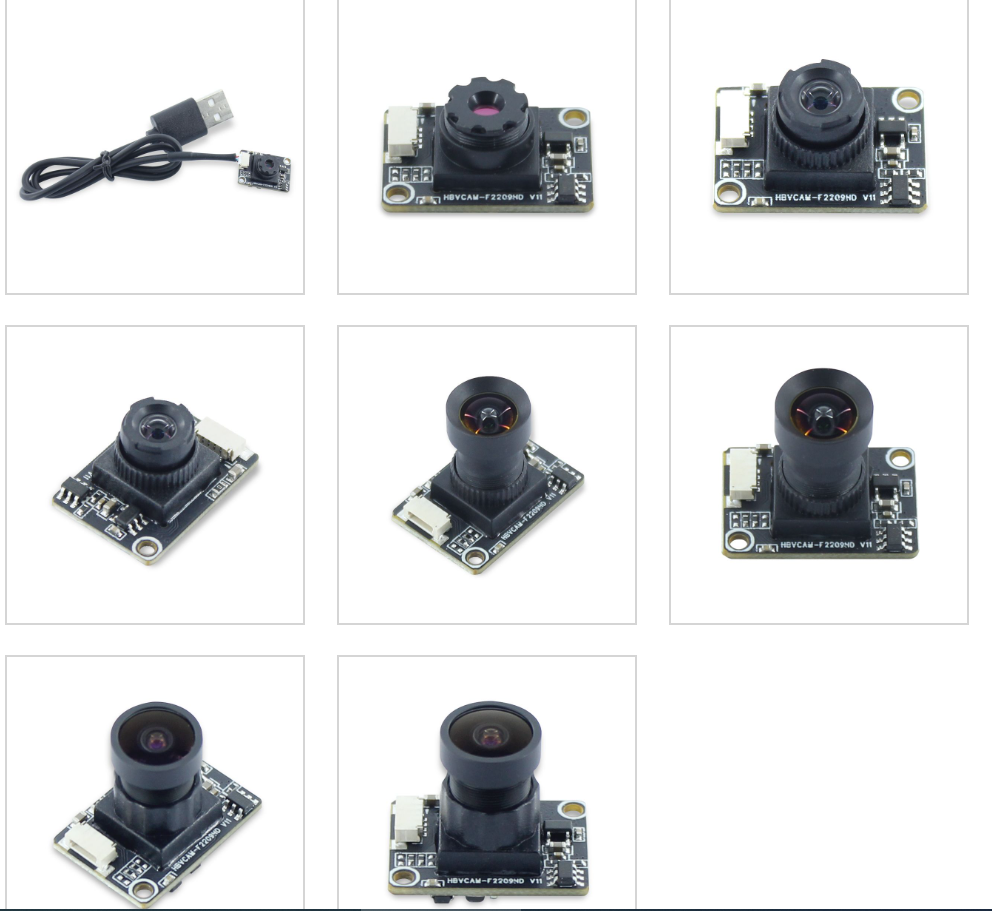

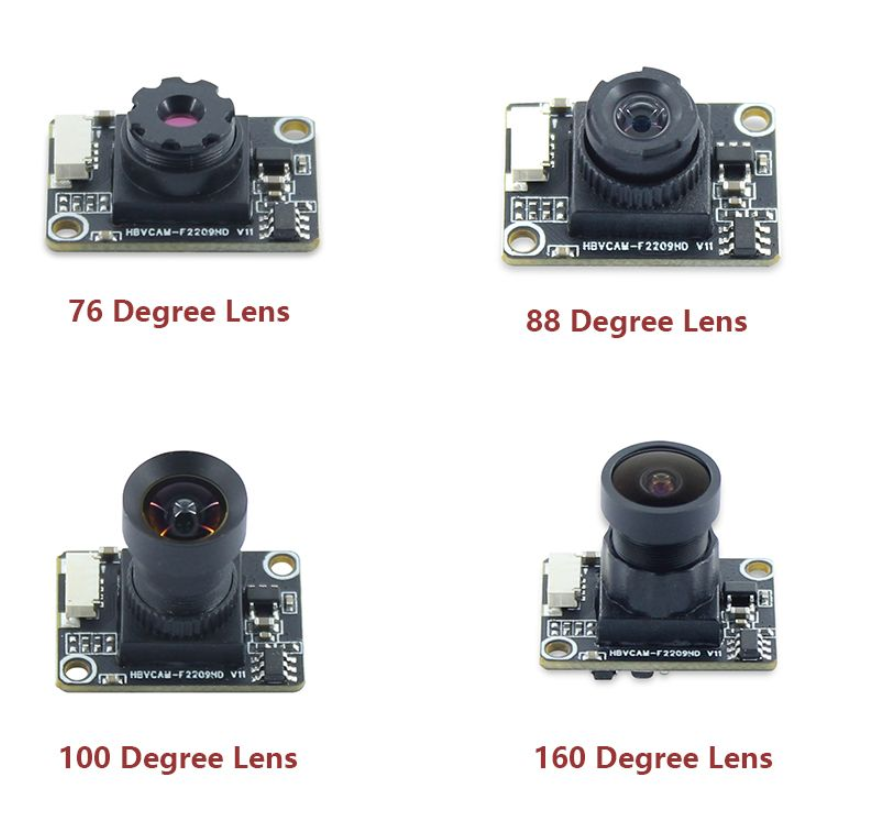

3. Several parameter lenses are optional
4. Can achieve 60 frames, with no wide dynamic effect at 60 frames
5. For customers who require good small casing effects, currently using helmets and special applications on airplanes

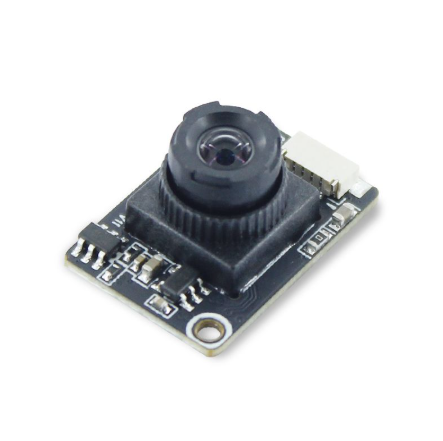

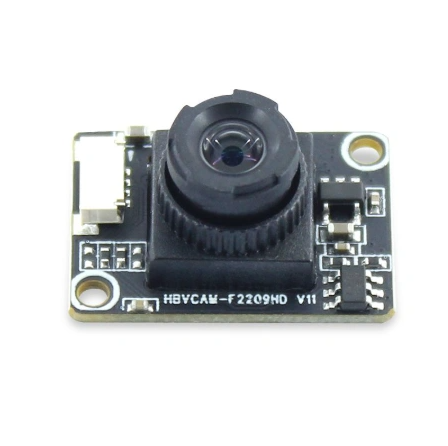

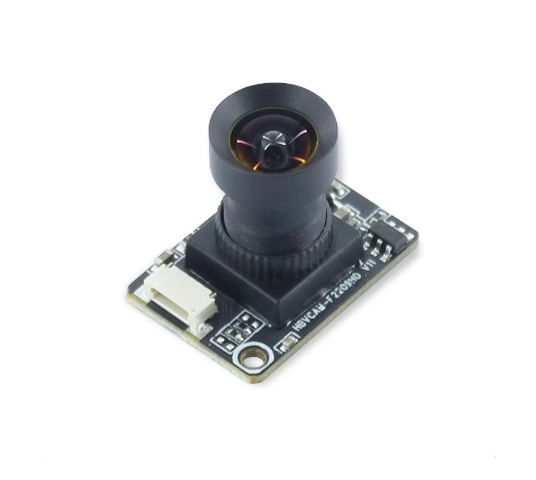

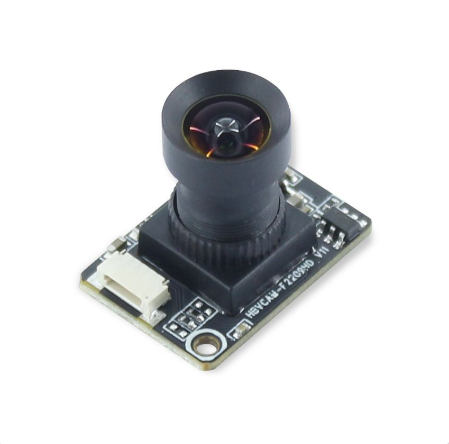

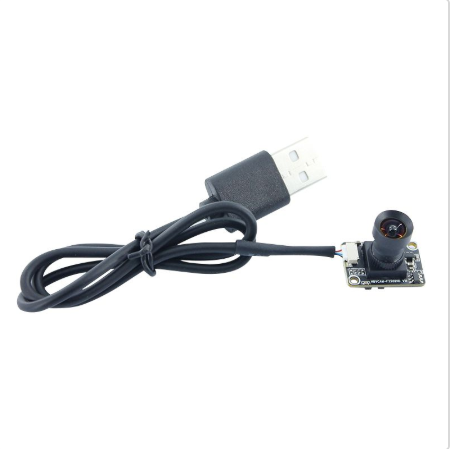

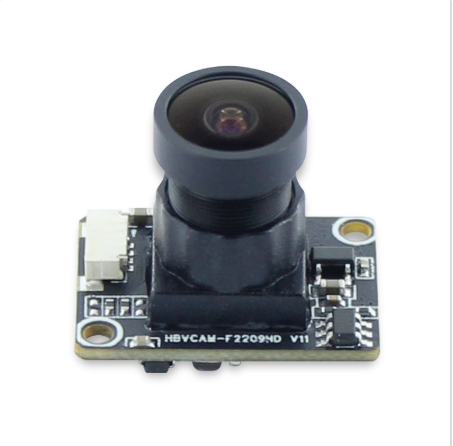

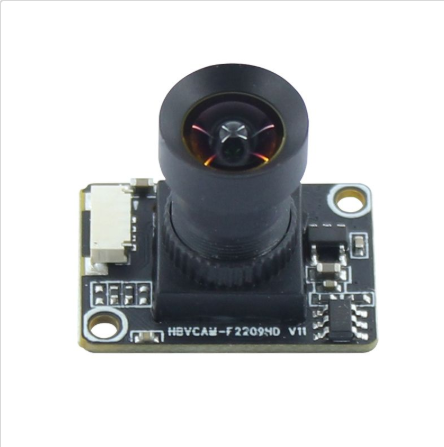

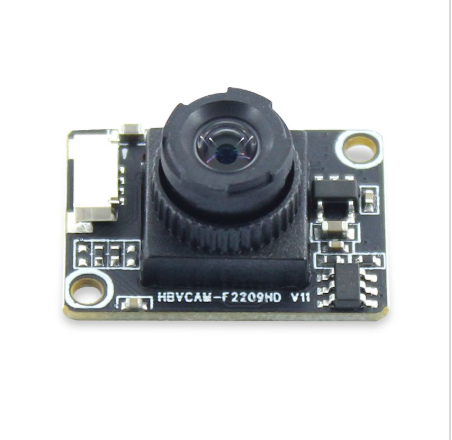

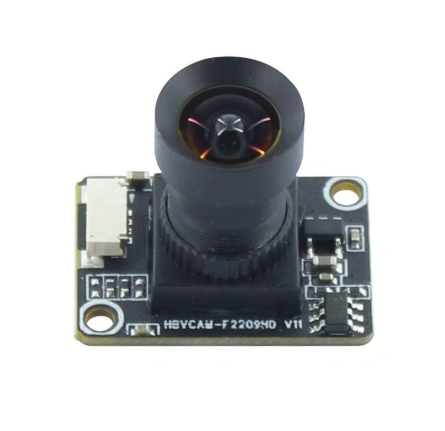

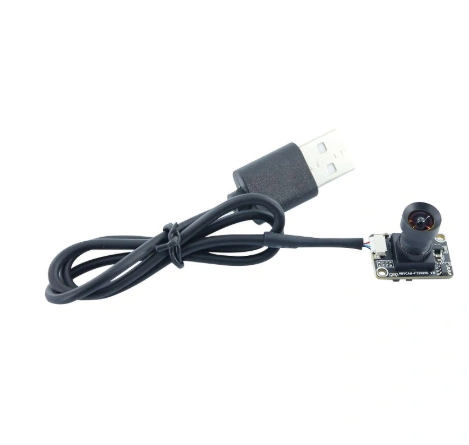

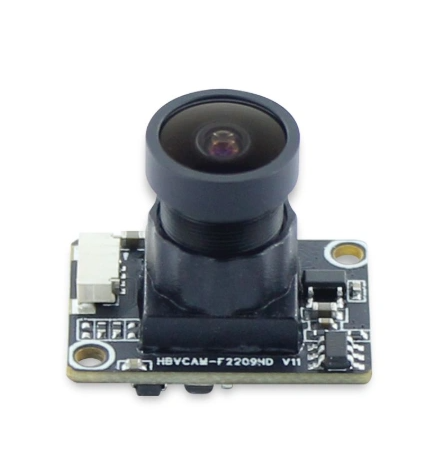

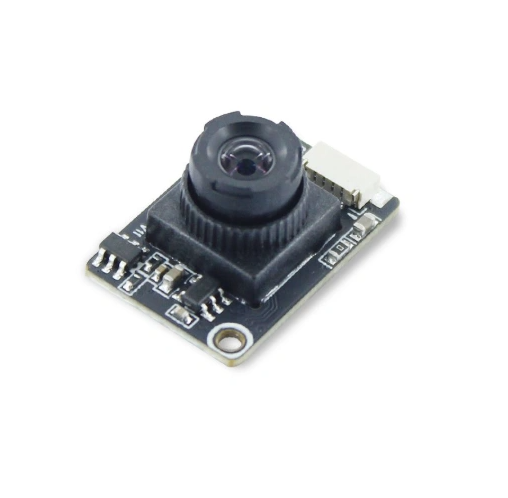

2MP PS5268 1/2.7 1080P WDR USB Mini Camera Module For facial Recognition Equipment
PS5268 Full-HD 1080p HDR CMOS IMAGE SENSOR: The PS5268 is a low power, highly integrated CMOS image sensor that output of 1920x1080 (Full HD-1080p) pixels with rolling shutter readout. It embedded the new FinePixel™ and HDR sensor technology to perform the excellent image quality and single-shot high dynamic range synthesized image output. PS5268 outputs linear 14-bit or local tone mapped 12-bit raw data through MIPI CSI-2 interface with very low power consumption. It is available in CSP package.The PS5268 can be programmed to set the exposure time for different luminance condition via I2CTM serial control bus. Embedded HDR image synthesis with local tone mapping to deliver high performance, cost effective and time to market for high resolution HDR application. By programming the internal register set, it performs on-chip black level correction and high temperature image quality control.
Product Specification:
|
Module No. |
HBVCAM-F2209HD V11 |
|
Module Size |
20mm × 14mm × 16.7mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
400mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
PS5268 (1/2.7” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
1920*1080 |
|
Sensitivity |
5800mV /（lux-sec） |
|
Pixel Size |
3µm x 3µm |
|

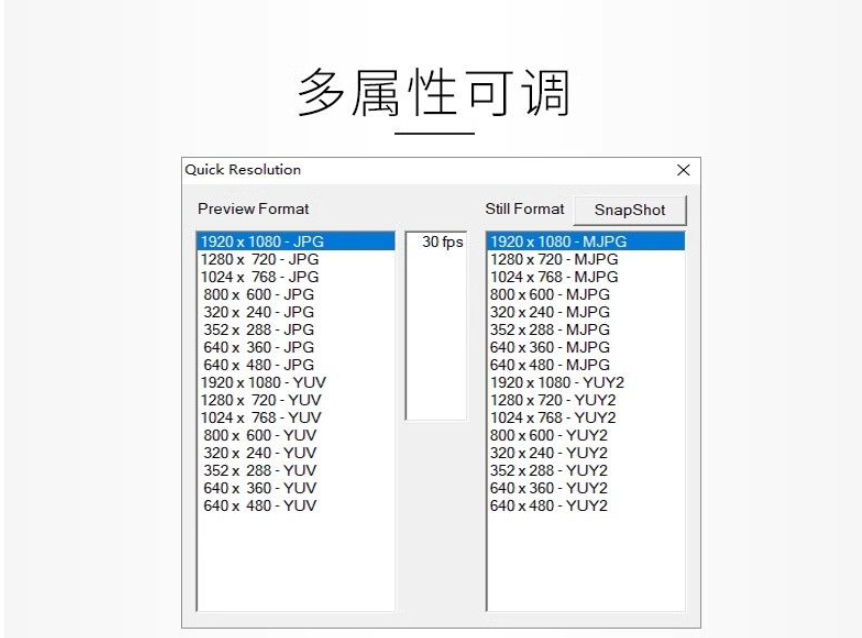

Maximum Image Transfer Rate |
MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 10FPS MJPEG 1024x768 30FPS / YUY2 1024x768 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
MJPEG 640x360 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
|
|
S/N Ratio |
41 db |
|
Max Dynamic Range |
85 db |
|
Shutter type |
Electronic rolling shutter |
|

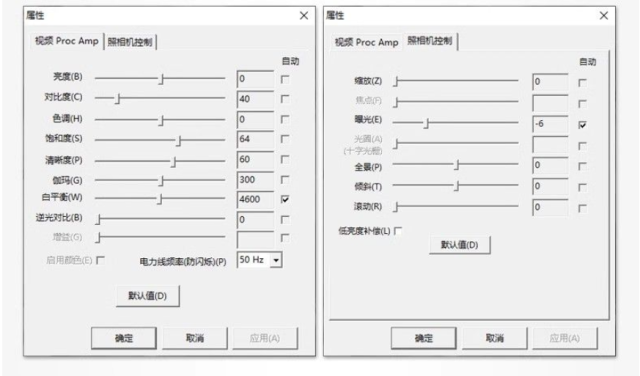

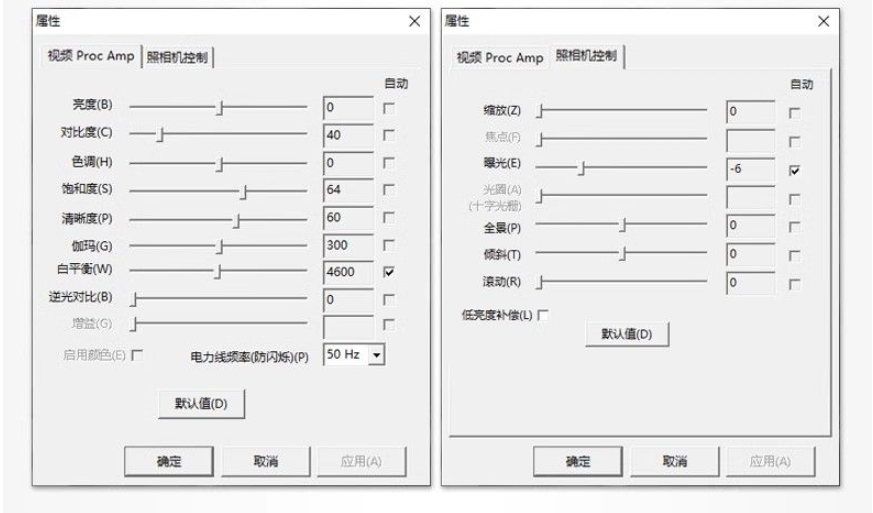

AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NO |
|
Lens Construction |
5G |
|
F/No |
2.4 |
|
EFL |
3.0mm |
|
FOV |
100° |
|
TV Distortion |
<5% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |

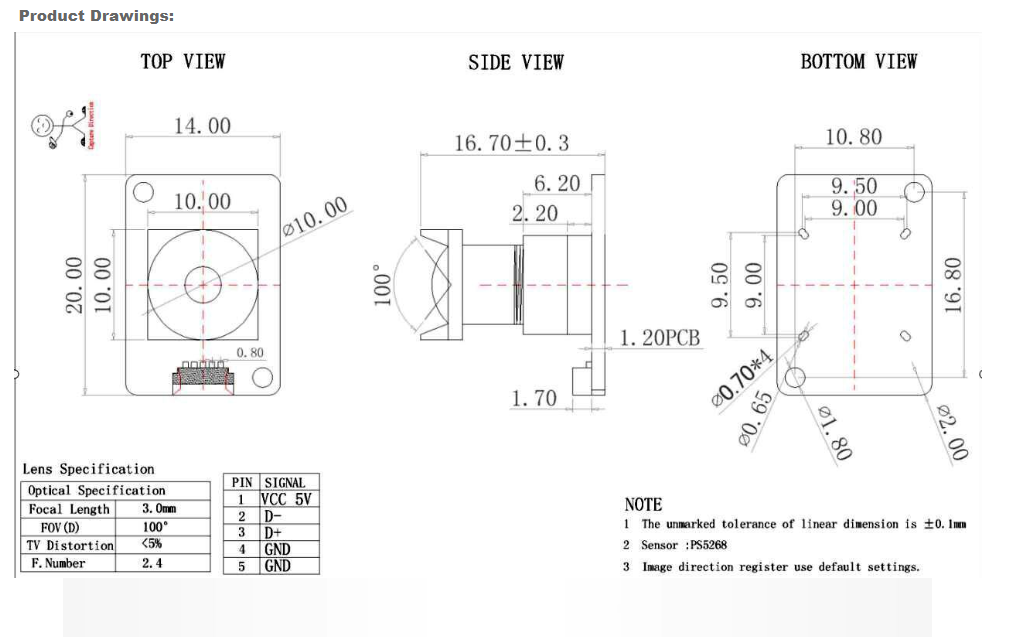

Product Drawings:
