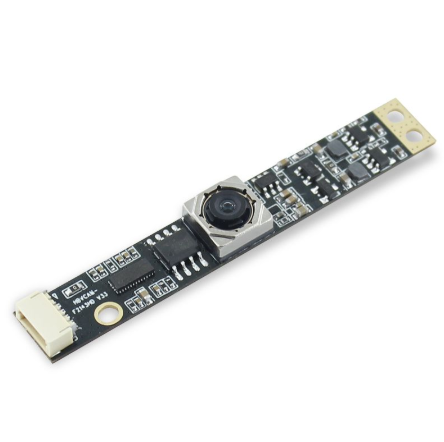

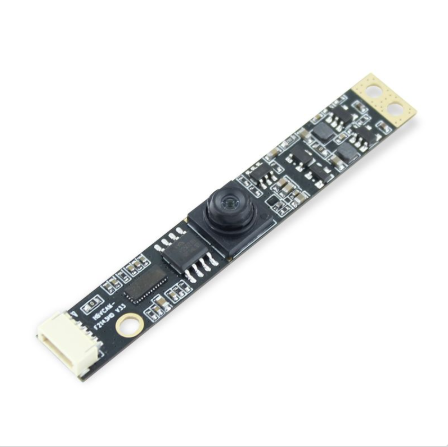

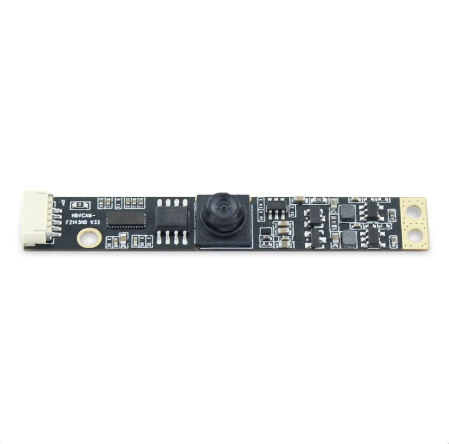

2 megapixels 1080P camera module for notebook, advertising machine, all-in-one face recognition device
1, standard advertising machine structure 2, product cost-effective
megapixels 1080P camera module for notebook, advertising machine, all-in-one face recognition device
2. Product size: 60 * 9 * 8MM
3. Product chip: OV2720(1/5.8”)
4. MAX resolution, format, frame rate: 1920 * 1080mjpeg 30FPS
5. Max View: 80 ° distortion-free focus

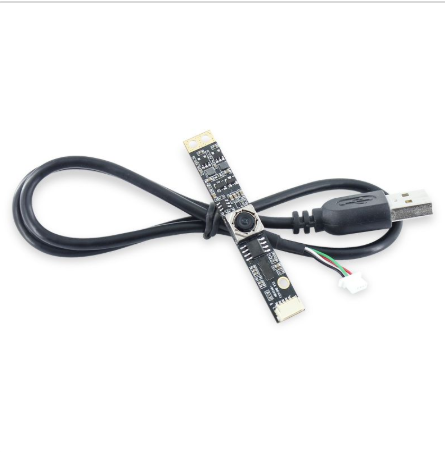

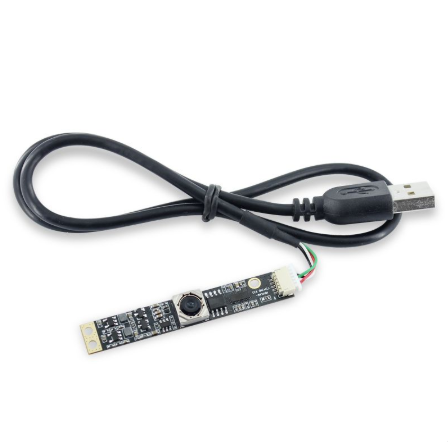

6. Sample usb cable: 5p-1.0 MM-40CM
Product Specification:
|
Module No. |
HBVCAM-F2143HD V33 |
|

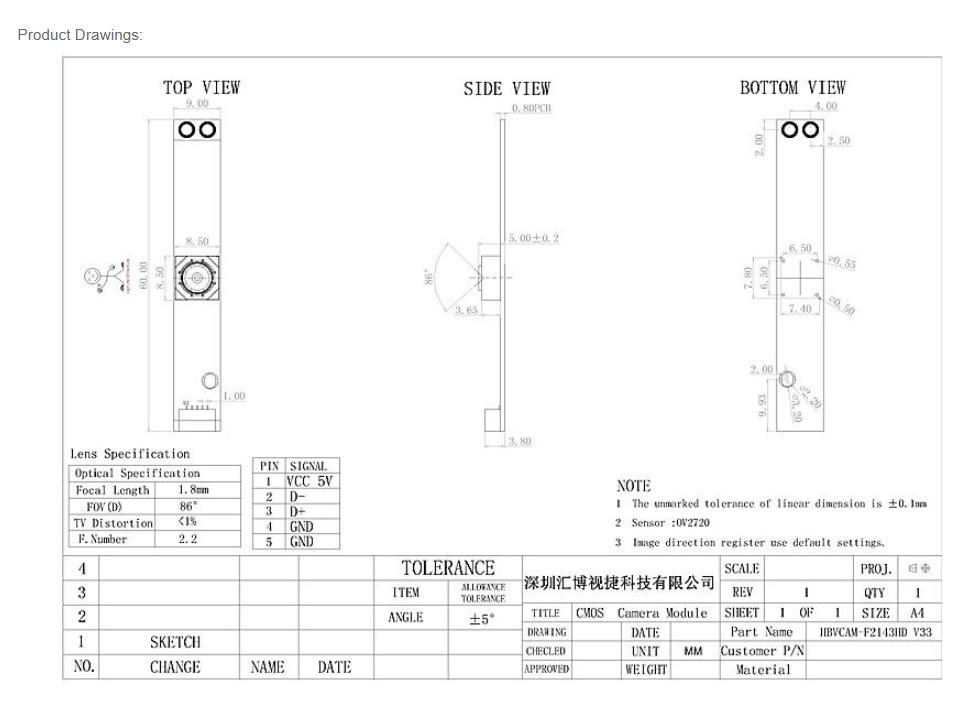

Module Size |
60mm × 9mm × 5.0mm±0.2MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Aout |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
590mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OV2720 (1/5.8” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
1920*1080 |
|
Sensitivity |
650mV /（lux-sec） |
|
Pixel Size |
1.4µm x 1.4µm |
|
Maximum Image Transfer Rate |
MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS MJPEG 1280x1024 30FPS / YUY2 1280x1024 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
MJPEG 640x360 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
|
|
S/N Ratio |
35 db |
|
Max Dynamic Range |
68 db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
NC |
|
Lens Construction |
5P |
|
F/No |
2.2 |
|
EFL |
1.8mm |
|
FOV |
86° |
|
TV Distortion |
<1% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
