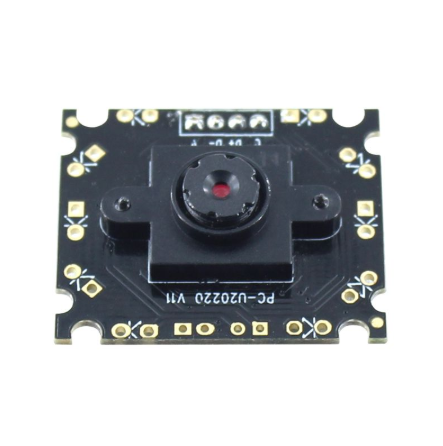

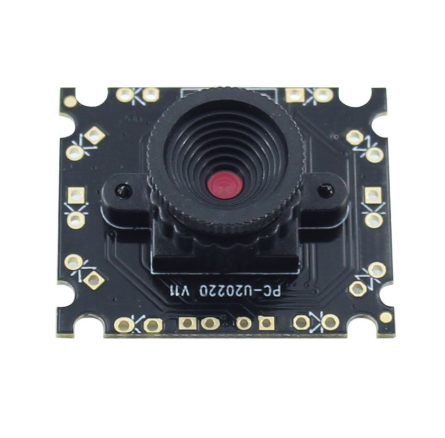

2MP GC2154 PC Camera Module With Cheap Price
2 megapixel PC camera module
product size: 30 * 25 * MM
product chip: GC2154(1/5”)
MAX resolution, format, frame rate: 1280 * 720 mjpeg 20FPS 1600 * 1200 yuy2 5fps
Max FOV: 70 °
6, built-in analog microphone

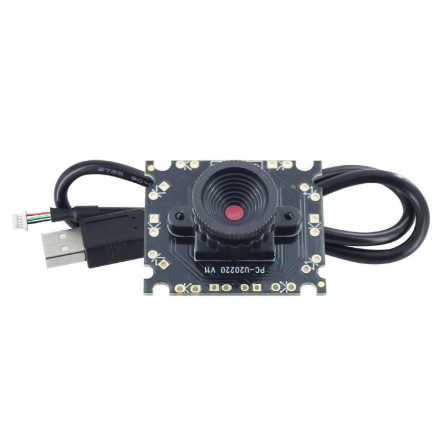

7, Sample usb cable: 4p-2.0 MM-40CM
2MP GC2154 PC Camera Module With Cheap Price
Standard size :30X25mm (available PC camera)

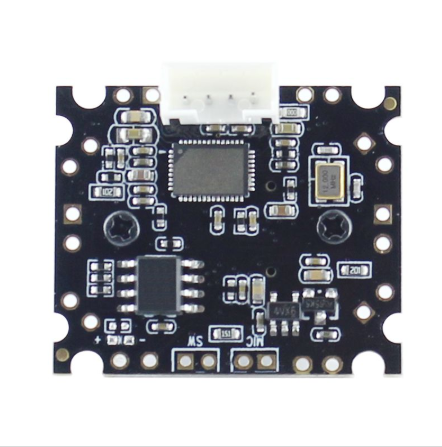

2. The socket can be removed and weld wire
3. can add welding plug-in lamp (can be infrared white light) two solder joint switch control

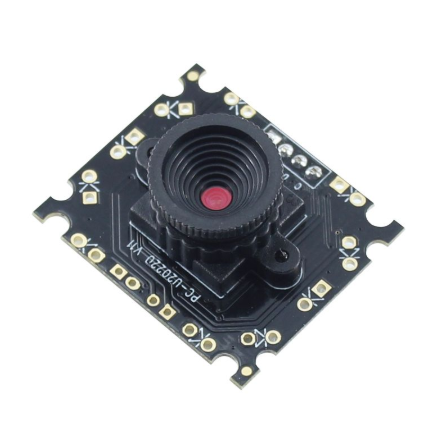

4, a variety of lenses can be selected
5, built-in analog microphone
6, the default Mjpeg 1280x720 normal run 15 frames

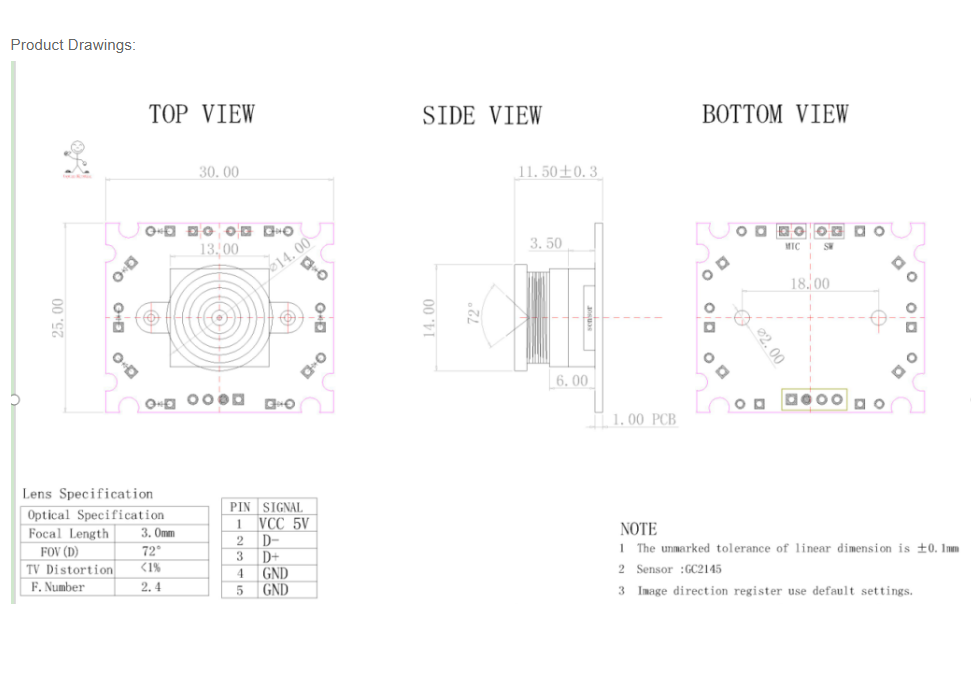

Product Specification:
|
Module No. |
PC-U20220 V11 |
|
Module Size |
30mm × 25mm × 11.50mm±0.3MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
470mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
GC2145 (1/5” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
1600*1200 |
|
Sensitivity |
1200mv /（lux-sec） |
|
Pixel Size |
1.75µm x 1.75µm |
|
Maximum Image Transfer Rate |
MJPEG 160x120 30FPS / YUY2 160x120 30FPS MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 20FPS / YUY2 800x600 12FPS MJPEG 1280x720 20FPS / YUY2 1280x720 10FPS
|
|
S/N Ratio |
36 db |
|
Max Dynamic Range |
70 db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
Support |
|
Lens Construction |
3P |
|
F/No |
2.4 |
|
EFL |
3.0mm |
|
FOV |
72° |
|
TV Distortion |
<1% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
