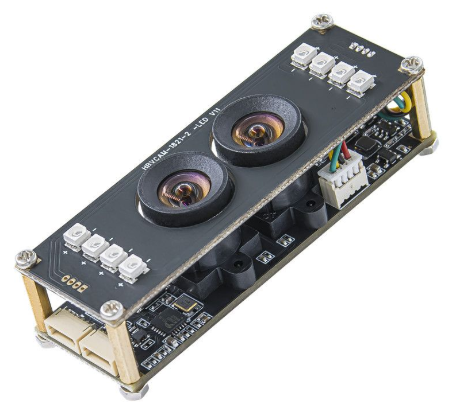

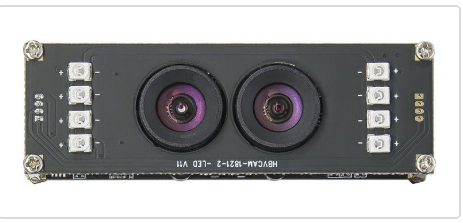

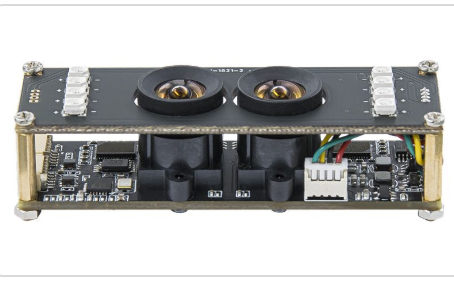

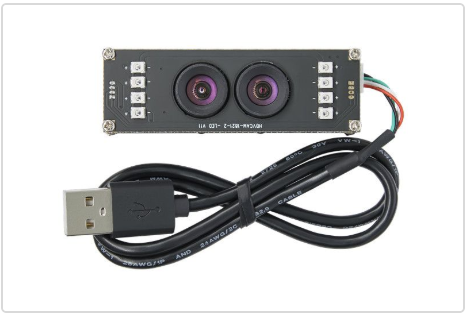

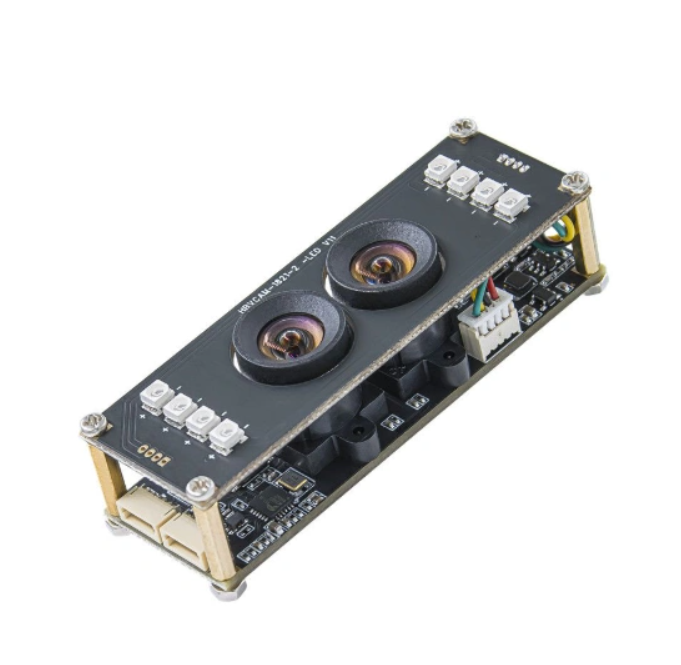

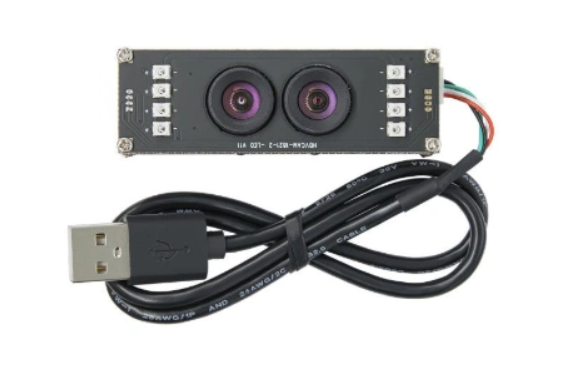

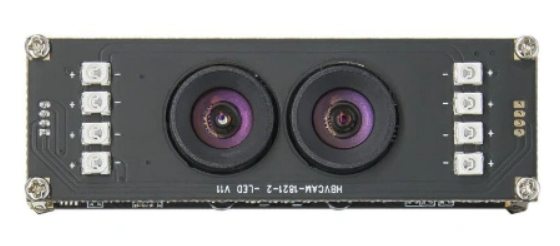

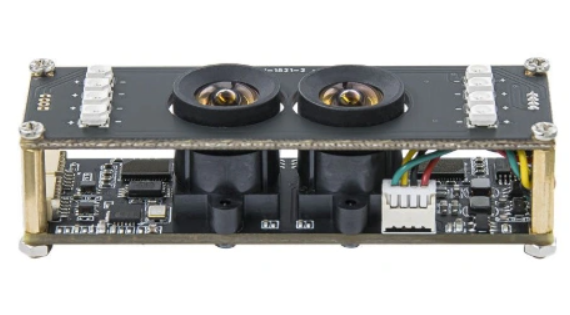

USB2.0 2MP PS5260 Face Recognition Dual Camera Module With 850IR Led

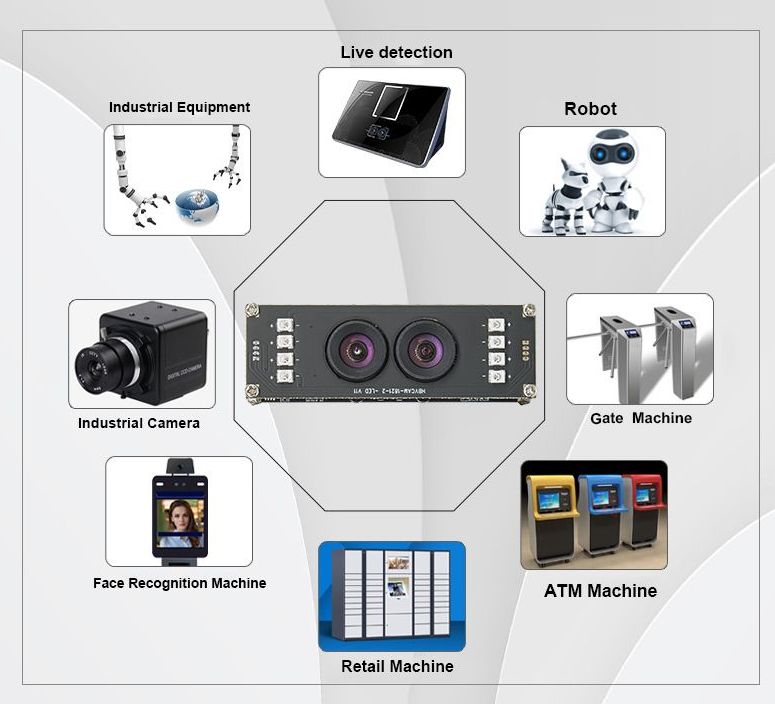

This dual camera module can be used : Portrait, Face, Object, and Life Detection and Recognition equipment

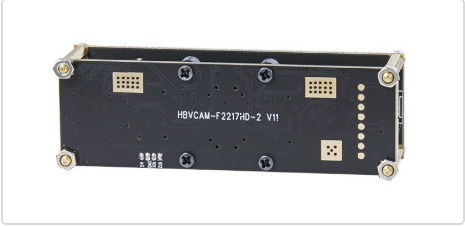

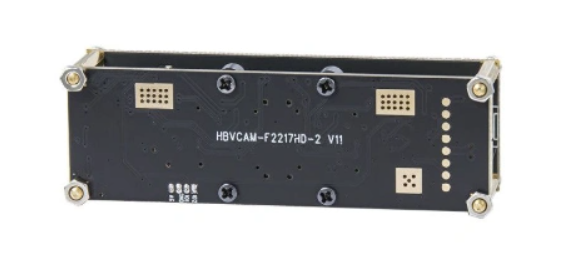

| Module No. | HBVCAM-F2217HD-2 V11 |

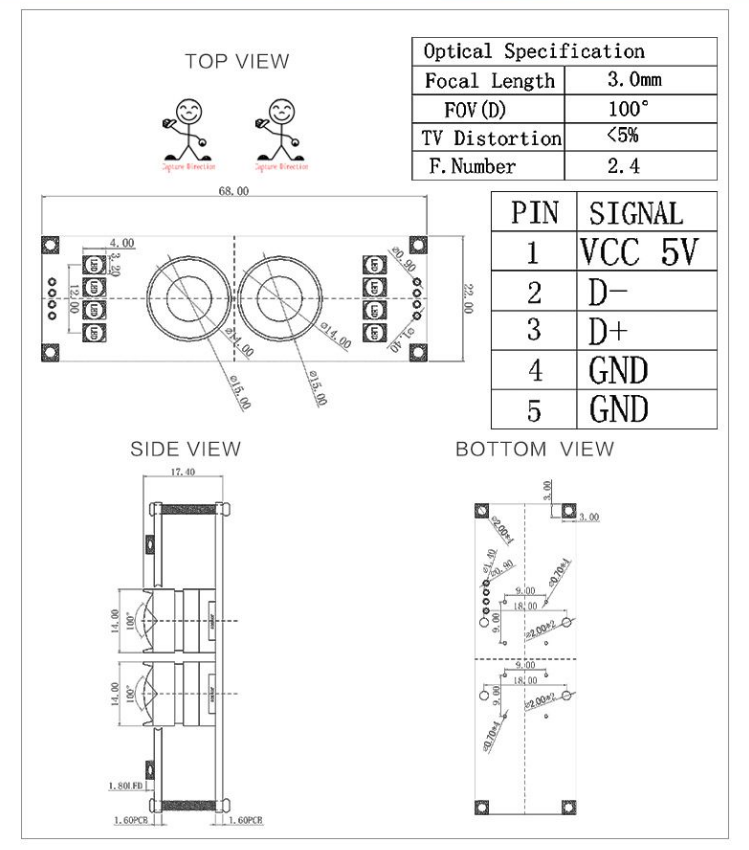

| Module Size | 68mm × 22mm × 17.4mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 2100mW |
| Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | PS5260 (1/2.7” ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1920*1080 |
| Sensitivity | 4700mv /（lux-sec） |
| Pixel Size | 3µm x 3µm |

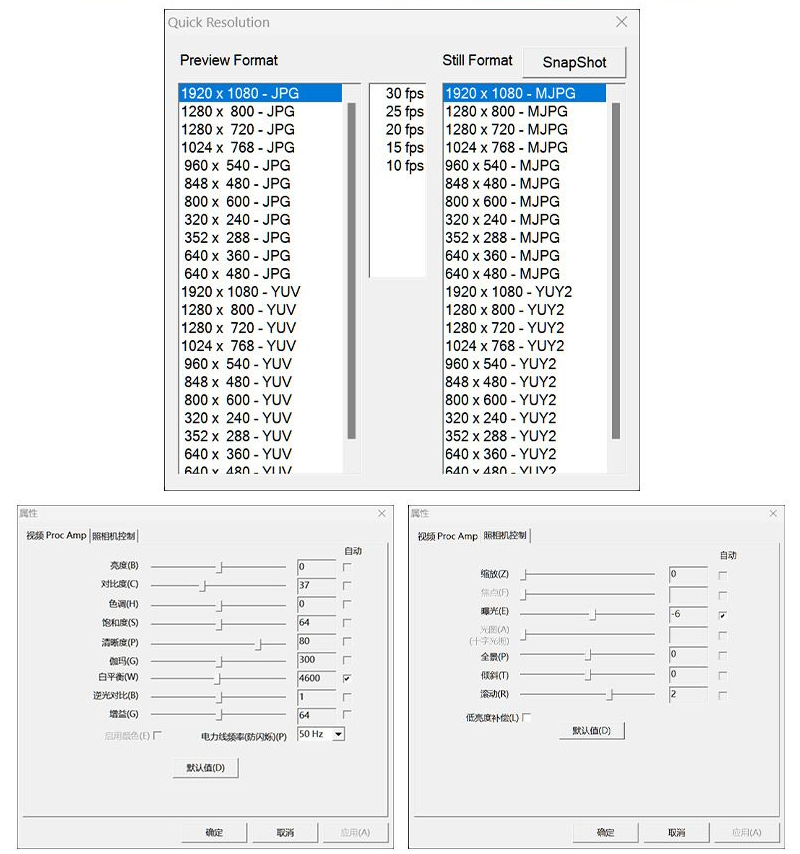

| Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 20FPSMJPEG 352x288 30FPS / YUY2 352x288 20FPSMJPEG 640x480 30FPS / YUY2 640x480 20FPSMJPEG 800x600 30FPS / YUY2 800x600 10FPSMJPEG 1280x720 30FPS / YUY2 1280x720 10FPSMJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 640x360 60FPS / YUY2 640x480 30FPSMJPEG 800x600 60FPS / YUY2 800x600 20FPSMJPEG 1280x720 60FPS / YUY2 1280x720 10FPS |
| S/N Ratio | 46 db |
| Max Dynamic Range | 83 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 3.0mm |
| FOV | 100° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm 850±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
