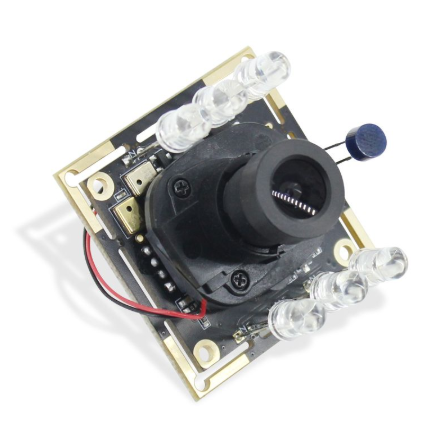

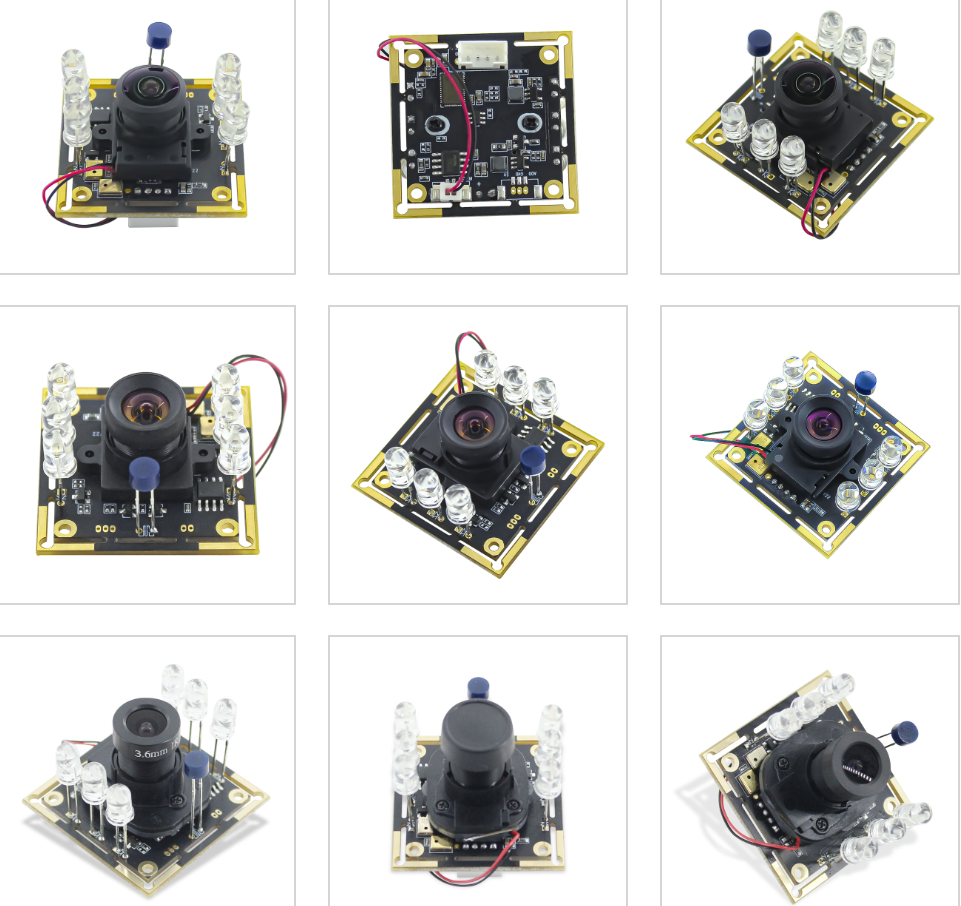

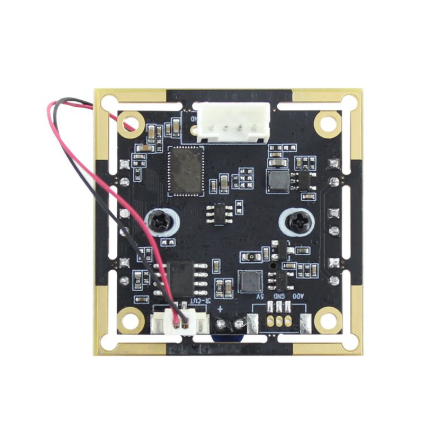

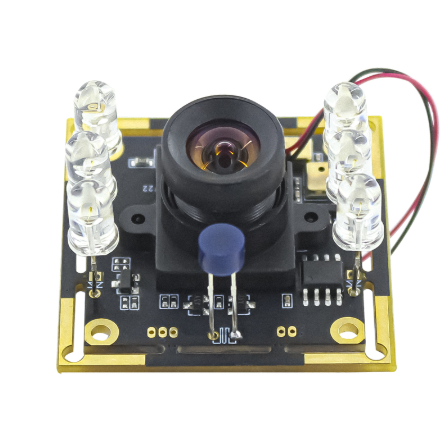

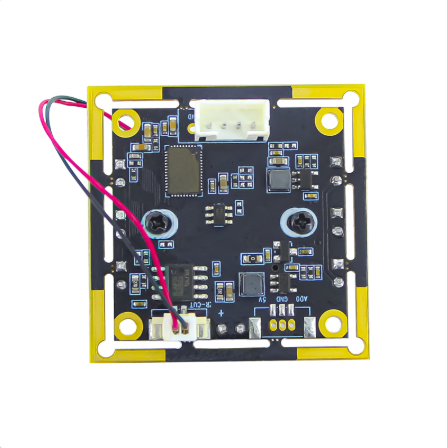

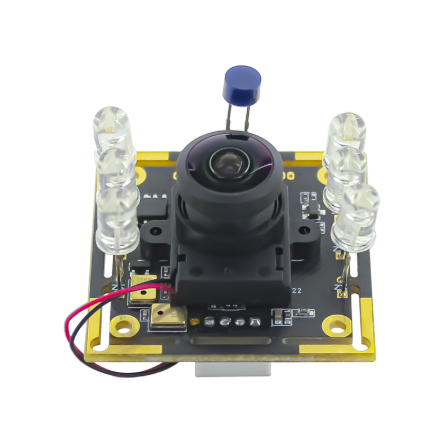

2MP 1080P Automatic IR CUT Switch camera module for IPC, advertising machine, equipment for day/Night
1, standard industrial camera structur: 38*38mm 32mm* 32mm
2, with white night mode but change-color during the day at night black and white, photosensitive control
2MP 1080P Automatic IR CUT Switch camera module for IPC, advertising machine, equipment for day/Night
2, product size: 38 * 38 * 22MM
3, product chip: PS5260(1/2.7”)
4, maximum resolution, format, frame rate: 1920 * 1080mjpeg 30FPS
5, maximum angle of view: 100 °
6, support IR-CUT-850/940nm Infrared
7, with dual digital microphone
8, sample with test line 4p-2.0 MM-40CM
Product Specification:
|
Module No. |
HBVCAM-F2132HDR V22 |
|
Module Size |
38mm × 38mm × 24.60mm±0.5MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Fixed |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
800mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
PS5260 (1/2.7” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
1920*1080 |
|
Sensitivity |
4700mV /（lux-sec） |
|
Pixel Size |
3µm x 3µm |
|
Maximum Image Transfer Rate |
MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1024x768 30FPS / YUY2 1024x768 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 30FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
MJPEG 640x360 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
|
|
S/N Ratio |
46 db |
|
Max Dynamic Range |
83 db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
Support |
|
Lens Construction |
2G2P |
|
F/No |
2.4 |
|
EFL |
3.6mm |
|
FOV |
94° |
|
TV Distortion |
<5% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
|
Certifications |
FCC/CE/ROSH |
