Product Features:
1. Standard laptop advertising machine and all-in-one machine with hole positions of 60mm * 9mm

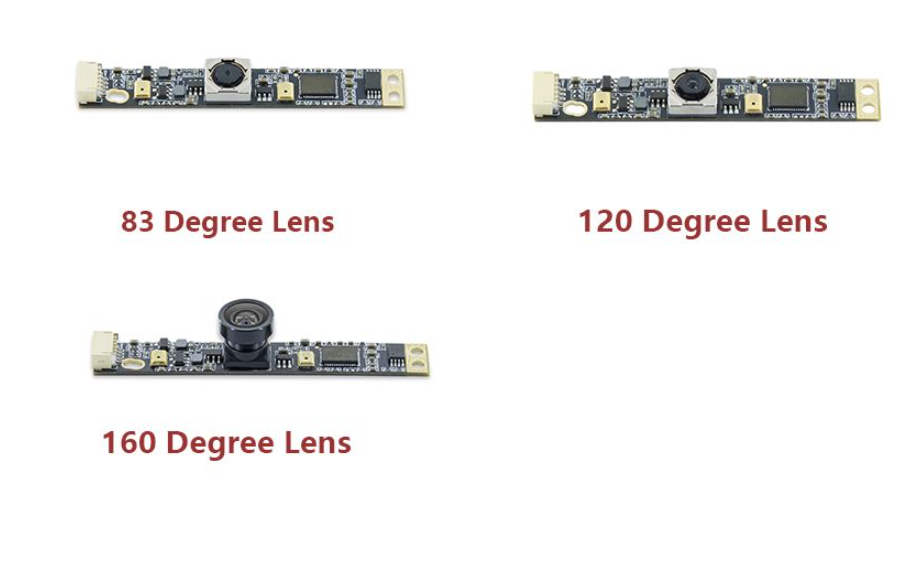

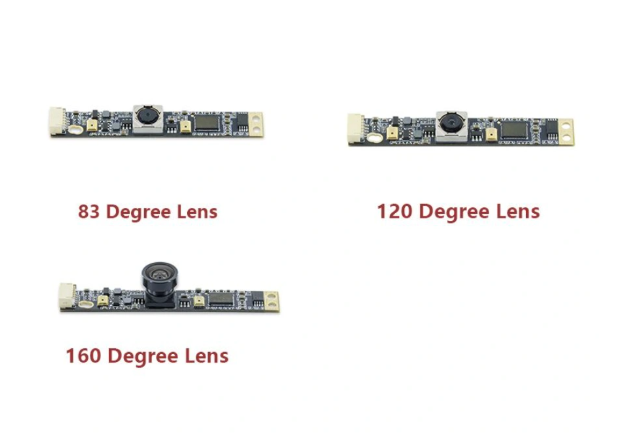

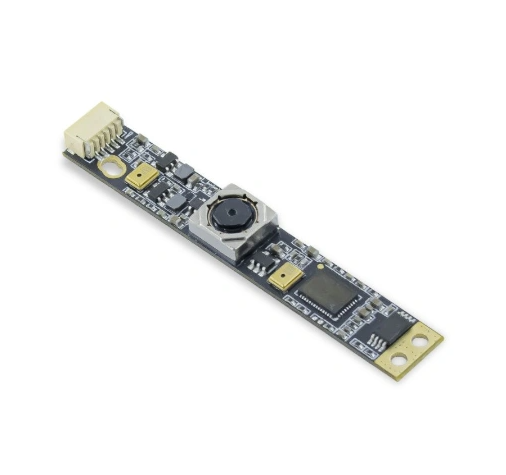

2. AF autofocus, standard module height

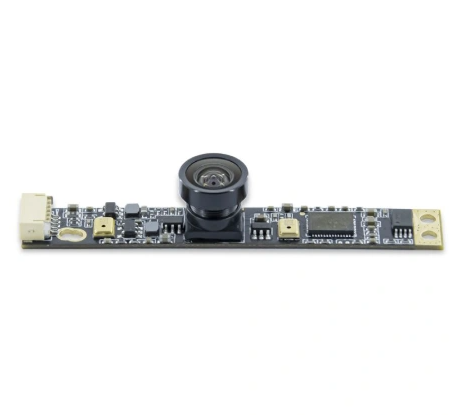

3. Multiple camera angles to choose from

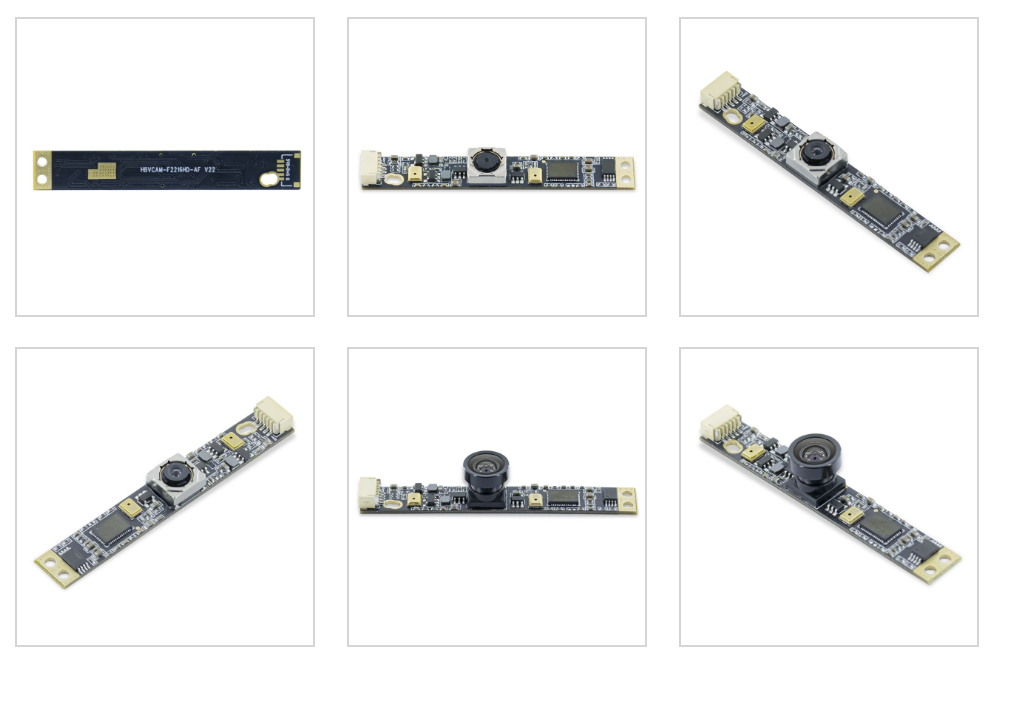

5. Equipped with built-in dual digital microphones

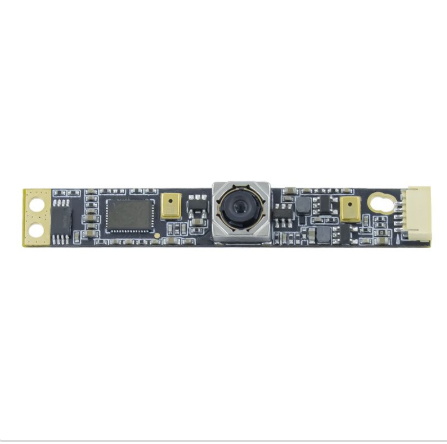

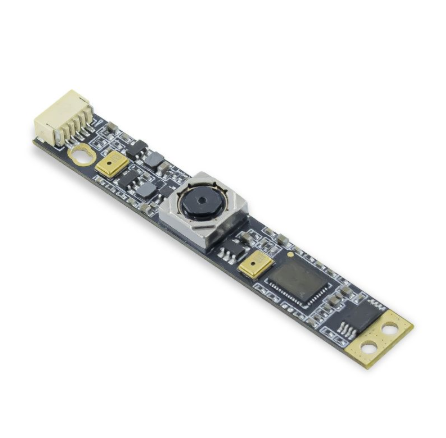

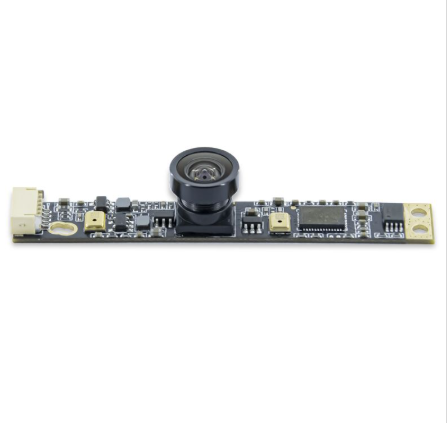

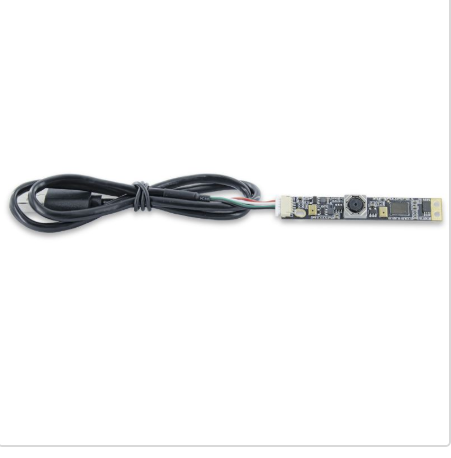

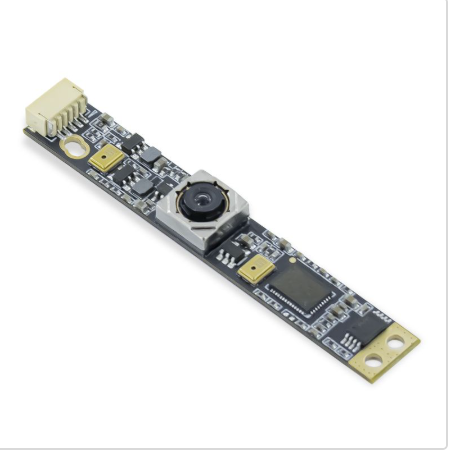

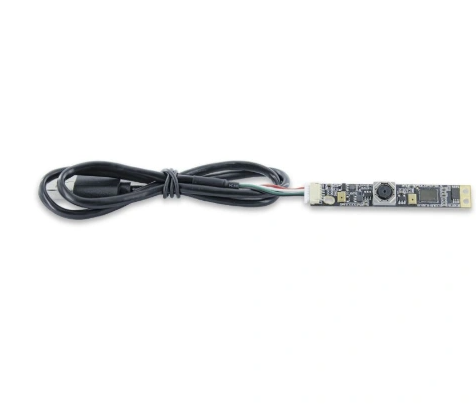

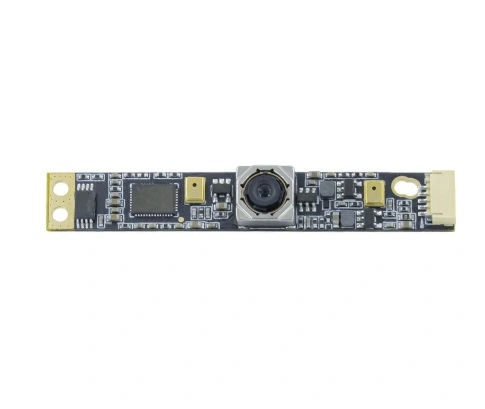

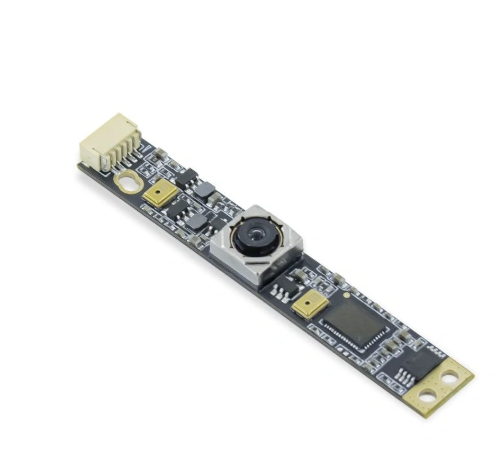

2MP 1080P Auto Focus HD USB Camera Module For ATM Machine
OS02F10 Sensor: The OS02F10 image sensor is a high quality, 1/4 inch, 1080p format, CMOS image sensor. It provides high quality digital
images and high-definition (HD) video. The OS02F10 is intended for products including security surveillance systems,
IP cameras and HD analog cameras.
By introducing an advanced 2 µm pixel architecture, the OS02F10 achieves excellent low-light sensitivity, signal-to-noise
ratio, full-well capacity, quantum efficiency, and low-power consumption. The default mode and programmable mode

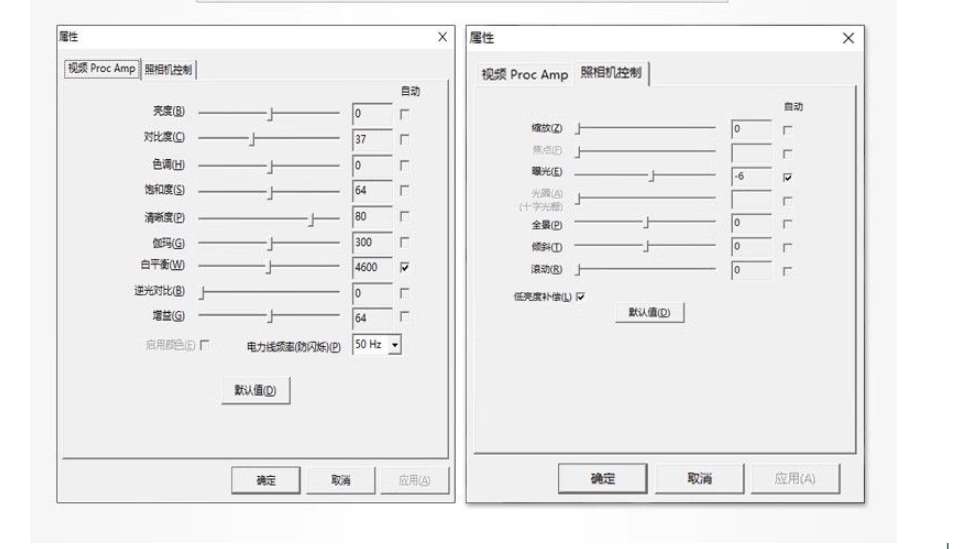

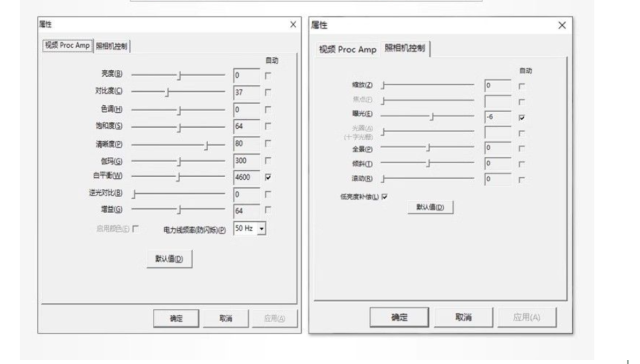

allow a more convenient way for controlling the parameters of frame size, exposure time, gain value, and so on. It also
offers the following image control functions: mirror and flip, windowing, auto black level calibration, defective pixel
correction, black sun cancellation, and so forth.
The OS02F10 supports a high frame rate up to 30 fps @ 1080p format though a DVP interface or MIPI interface. These
prominent features integrated in the OS02F10 allow for a best-in-class image sensor, bringing users vivid pictures and
excellent experience.
Applications
1. security surveillance systems
2. IP cameras
3. HD analog cameras

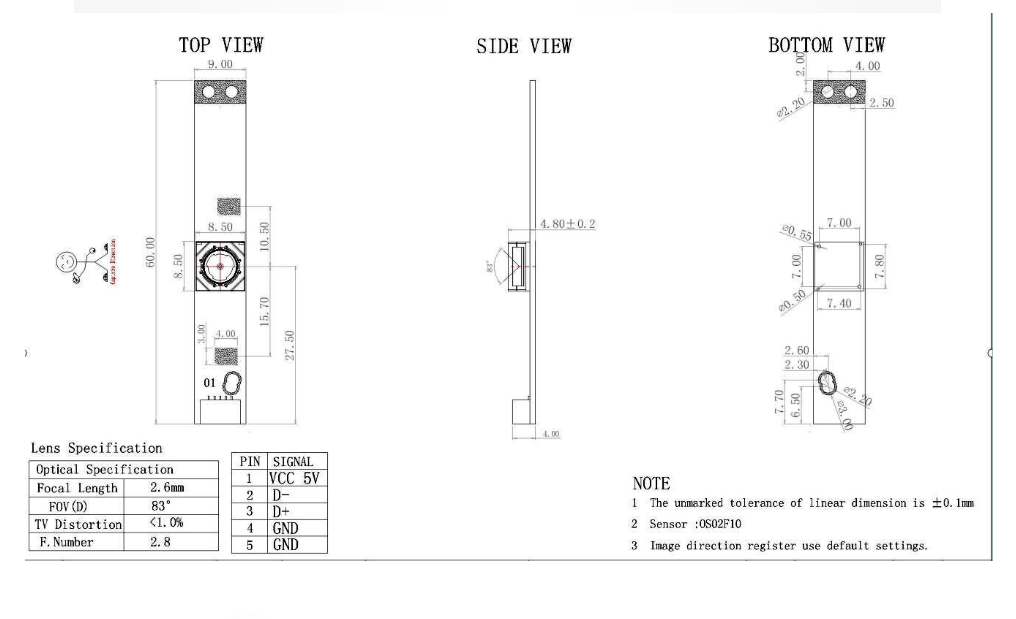

Product Specification:
|
Module No. |
HBVCAM-F2216HD-AF V22 |
|

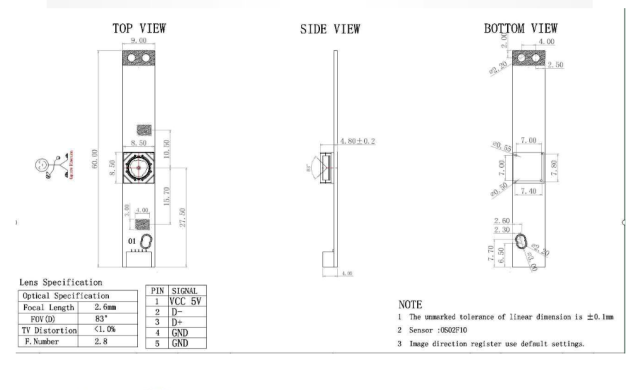

Module Size |
60mm × 9mm × 4.8mm±0.2MM |
|
Temperature (Operation) |
-30°C to 70°C |
|
Temperature (Stable Image) |
0°C to 50°C |
|
Assembly technique |
SMT (ROSH) |
|
Focus |
Auto |
|
Object distance |
30CM-infinity |
|
Resolution |
600LW/PH (Center) |
|
PCB printing ink |
Black |
|
interface |
USB 2.0 |
|
Power suuply |
USB bus power |
|
supply voltage |
DC 5V±5% |
|
Maximum Power consumption |
570mW |
|
Operating system request |
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
|
Sensor |
OS02F10 (1/4” ) |
|
Seneor Package |
CSP,Bare Die |
|
Maximum resolution |
1920*1080 |
|
Sensitivity |
10470e /（lux-sec） |
|
Pixel Size |
2µm x 2µm |
|

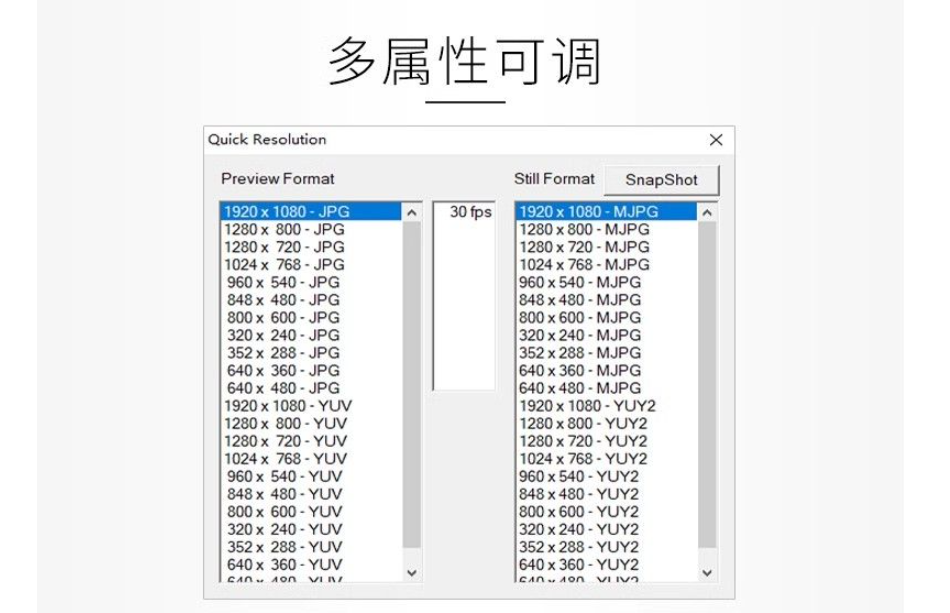

Maximum Image Transfer Rate |
MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 352x288 30FPS MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 10FPS MJPEG 848x480 30FPS / YUY2 848x480 10FPS MJPEG 1024x768 30FPS / YUY2 1024x768 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
MJPEG 640x360 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
|
|
S/N Ratio |
38.1 db |
|
Max Dynamic Range |
72.9 db |
|
Shutter type |
Electronic rolling shutter |
|
AGC/AEC/Whiter balance |
Auto |
|
Output Formats |
YUY2/MJPEG |
|
Microphone |
Support |
|
Lens Construction |
4P |
|
F/No |
2.8 |
|
EFL |
2.6mm |
|
FOV |
83° |
|
TV Distortion |
<1.0% |
|
Relative Illumination (Sensor) |
70% |
|
IR Filter |
650±10nm |
|
Module Package |
Anti-electrostatic tray |
